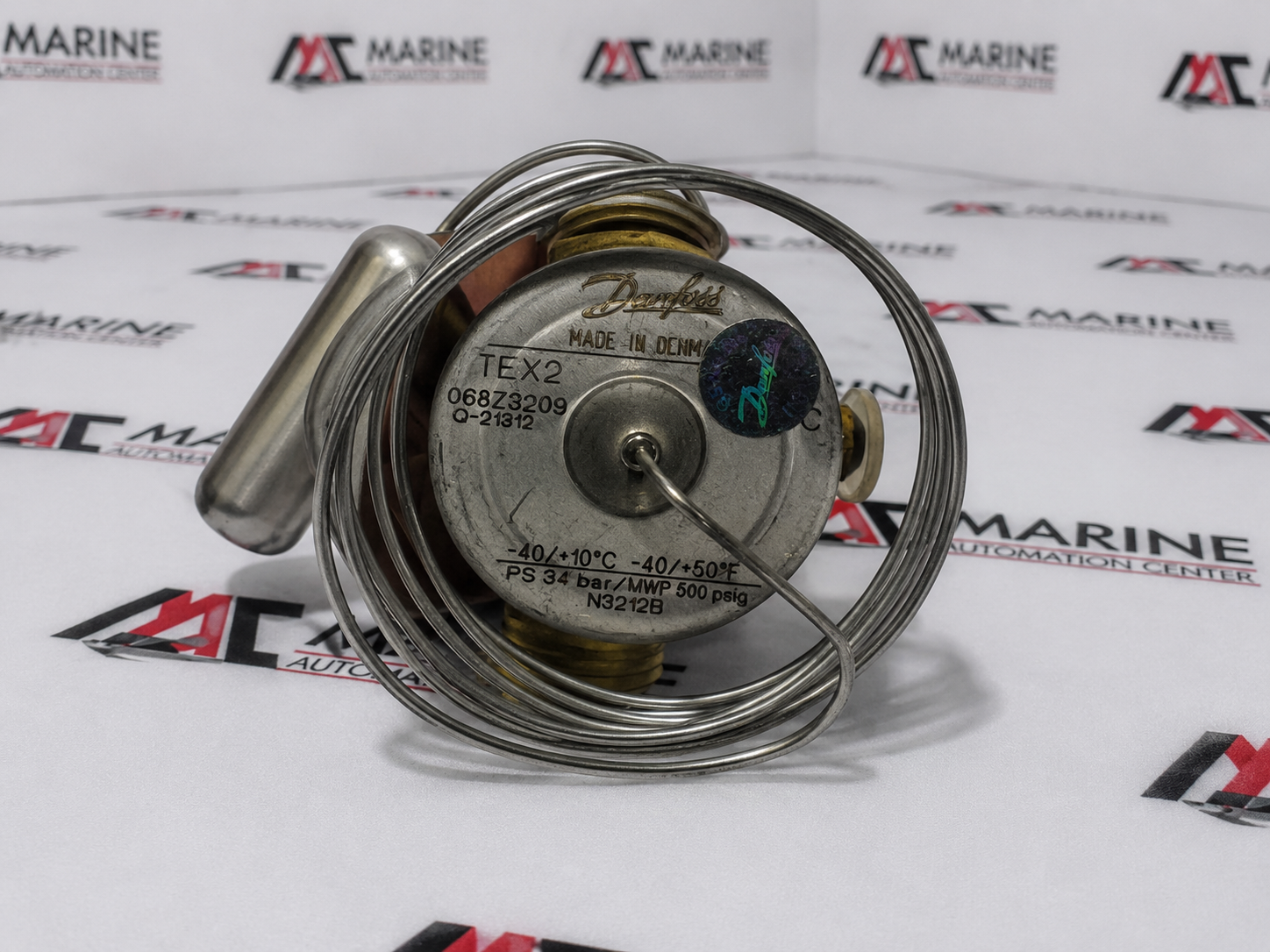

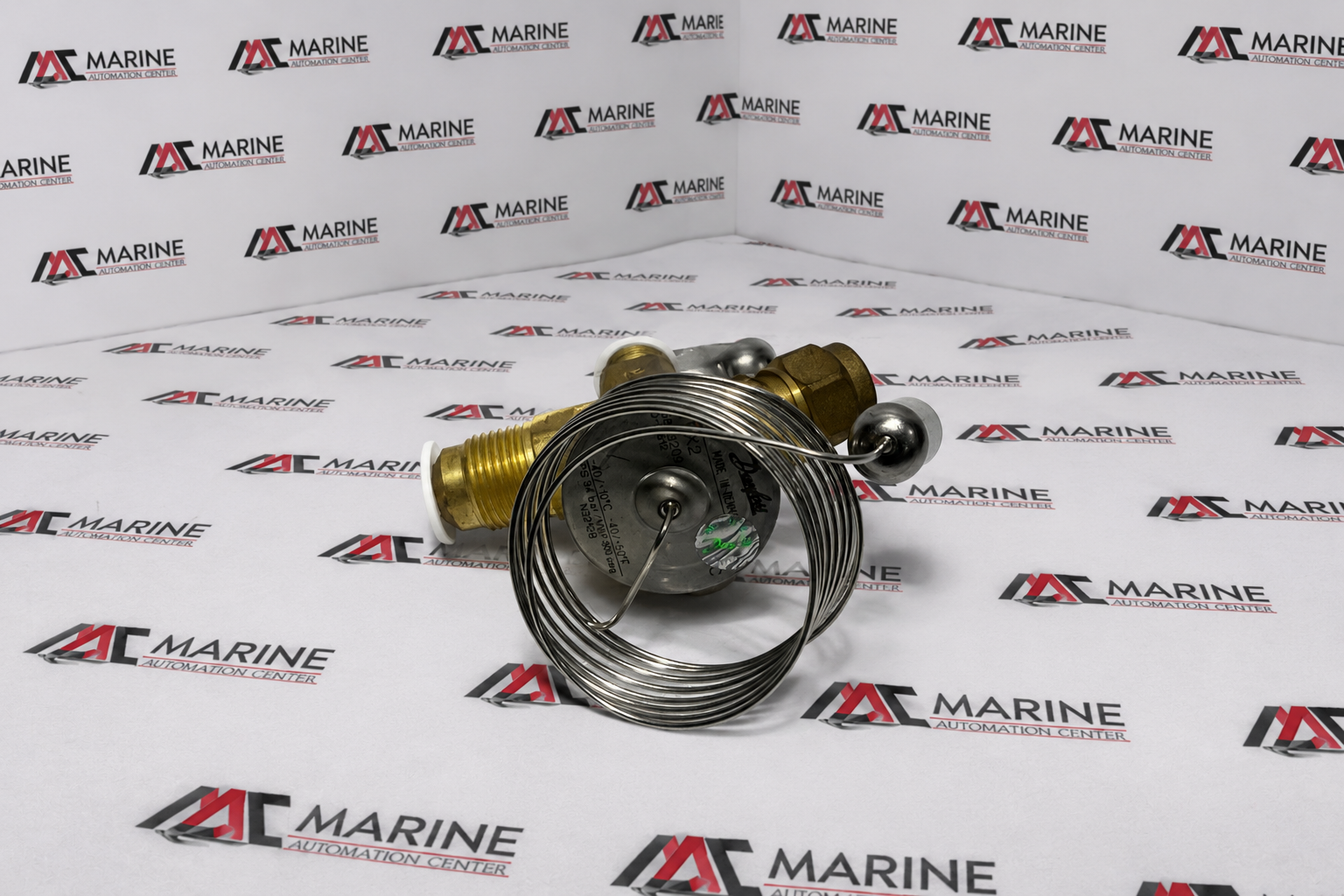

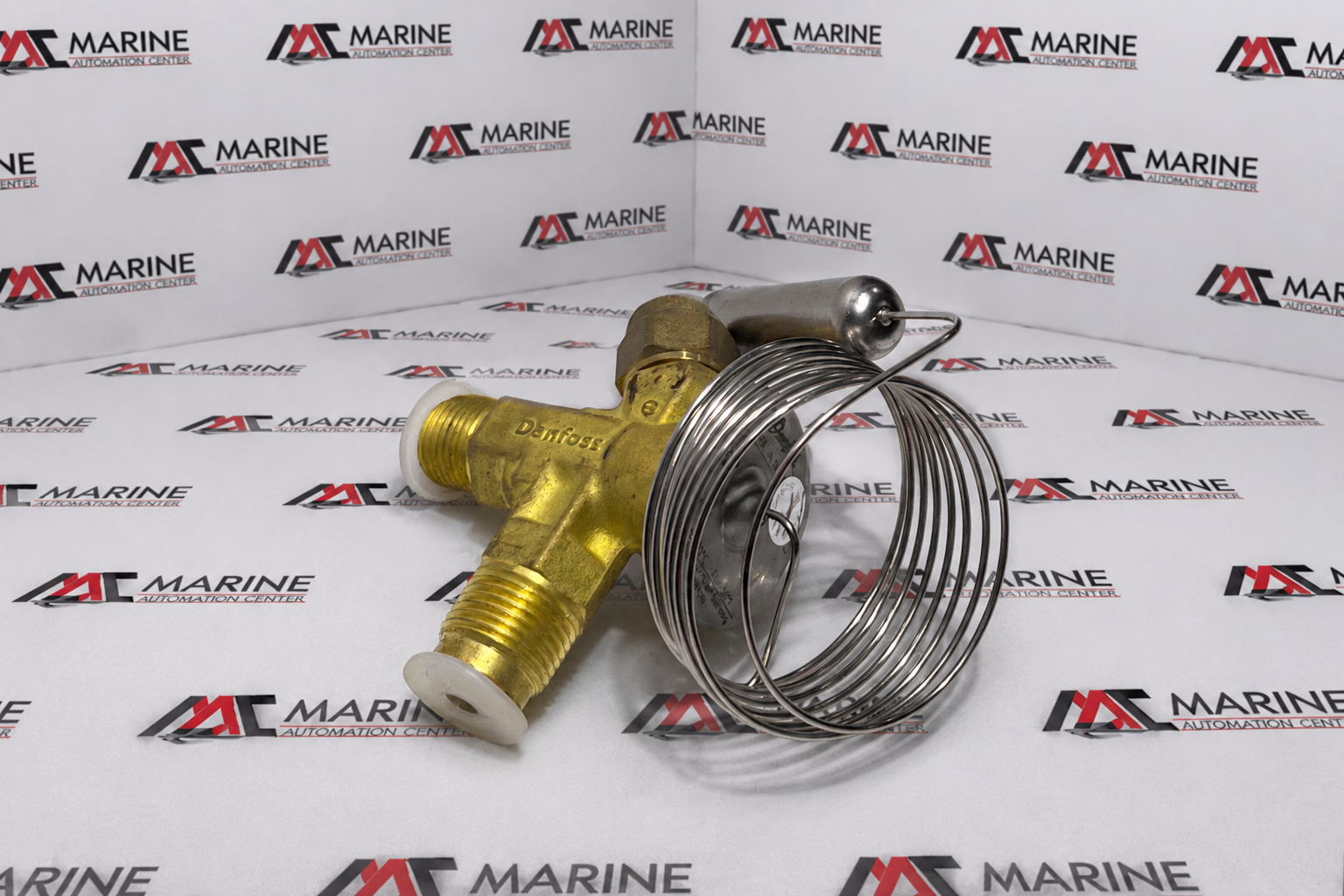

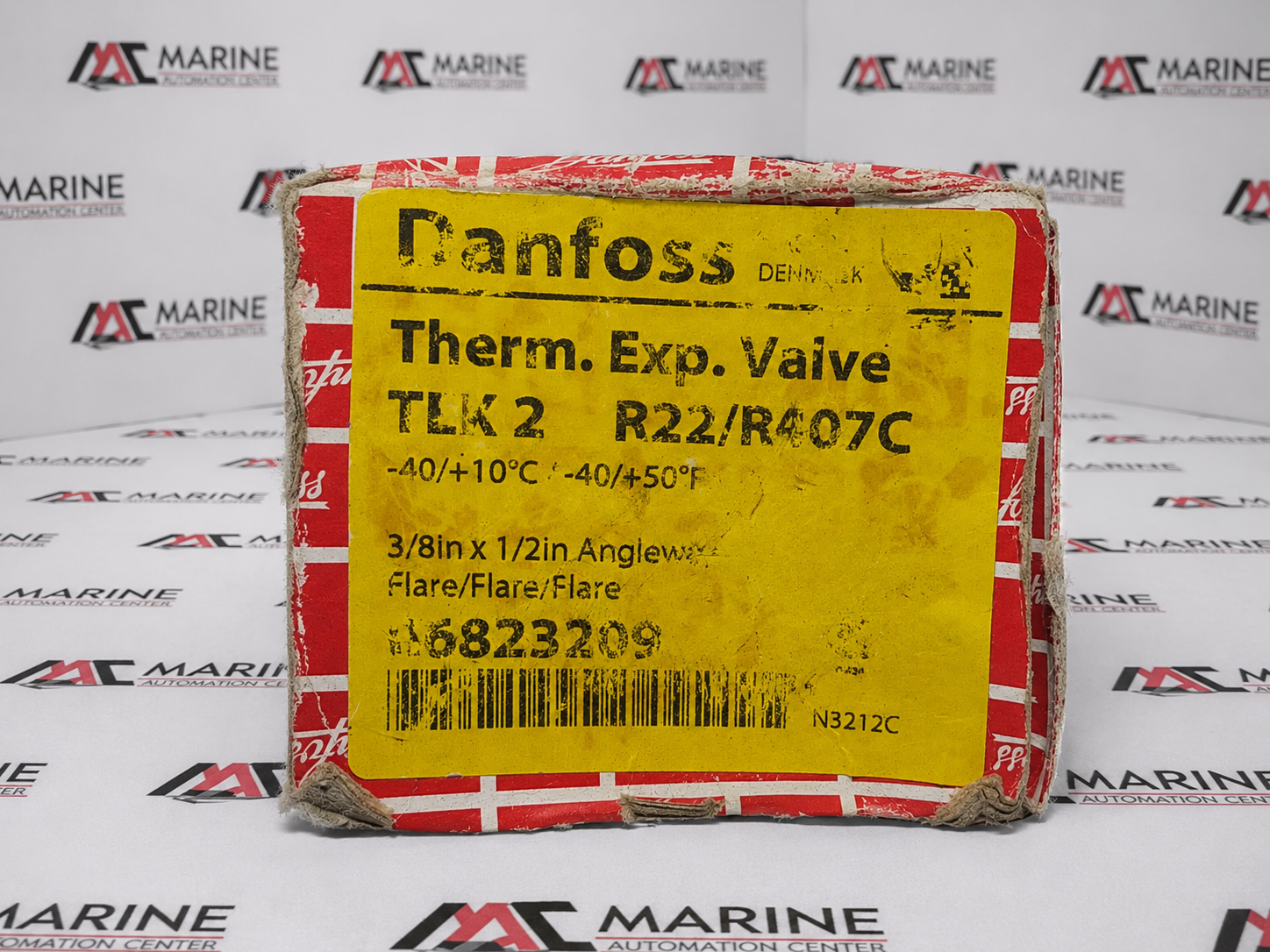

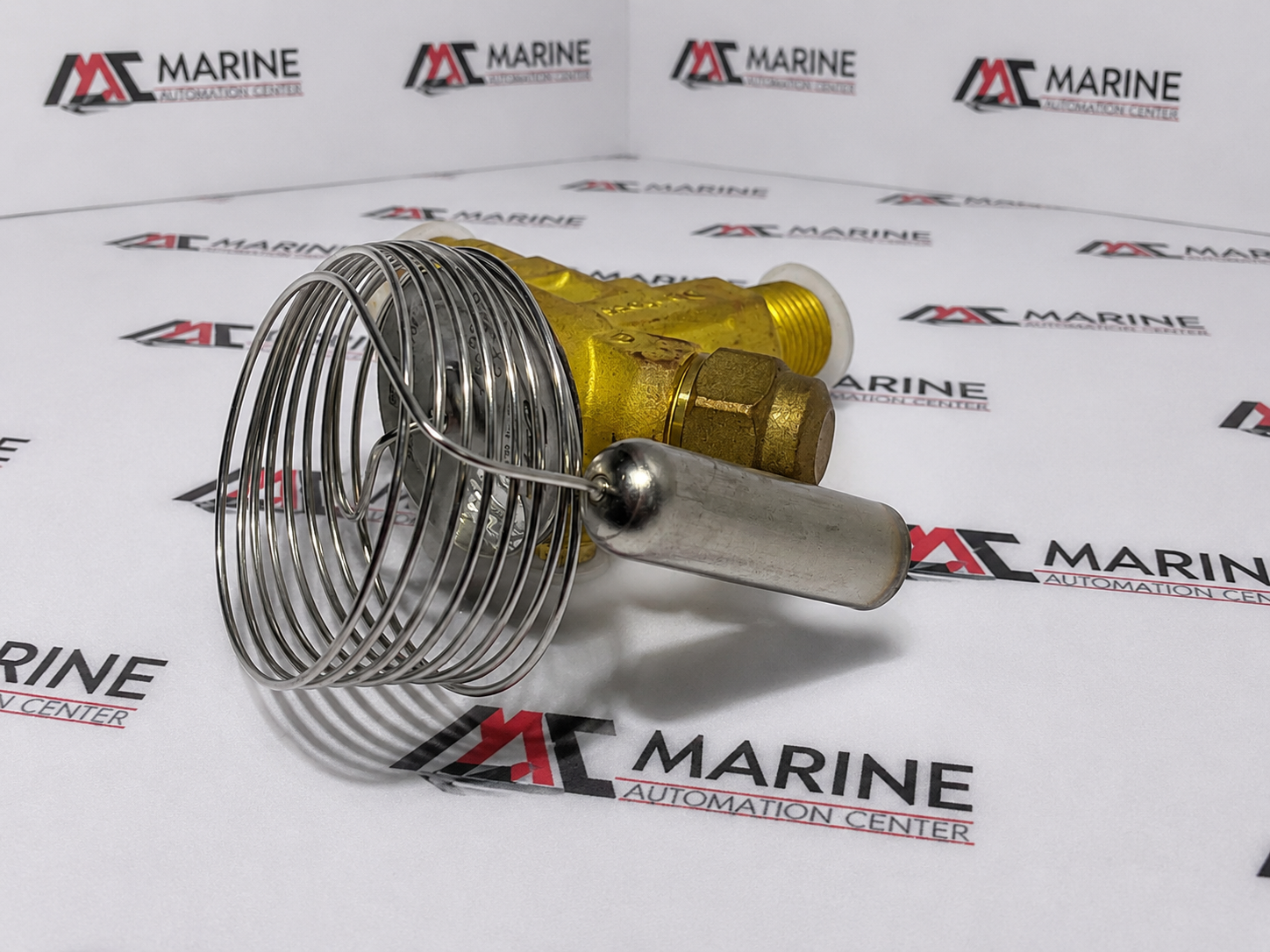

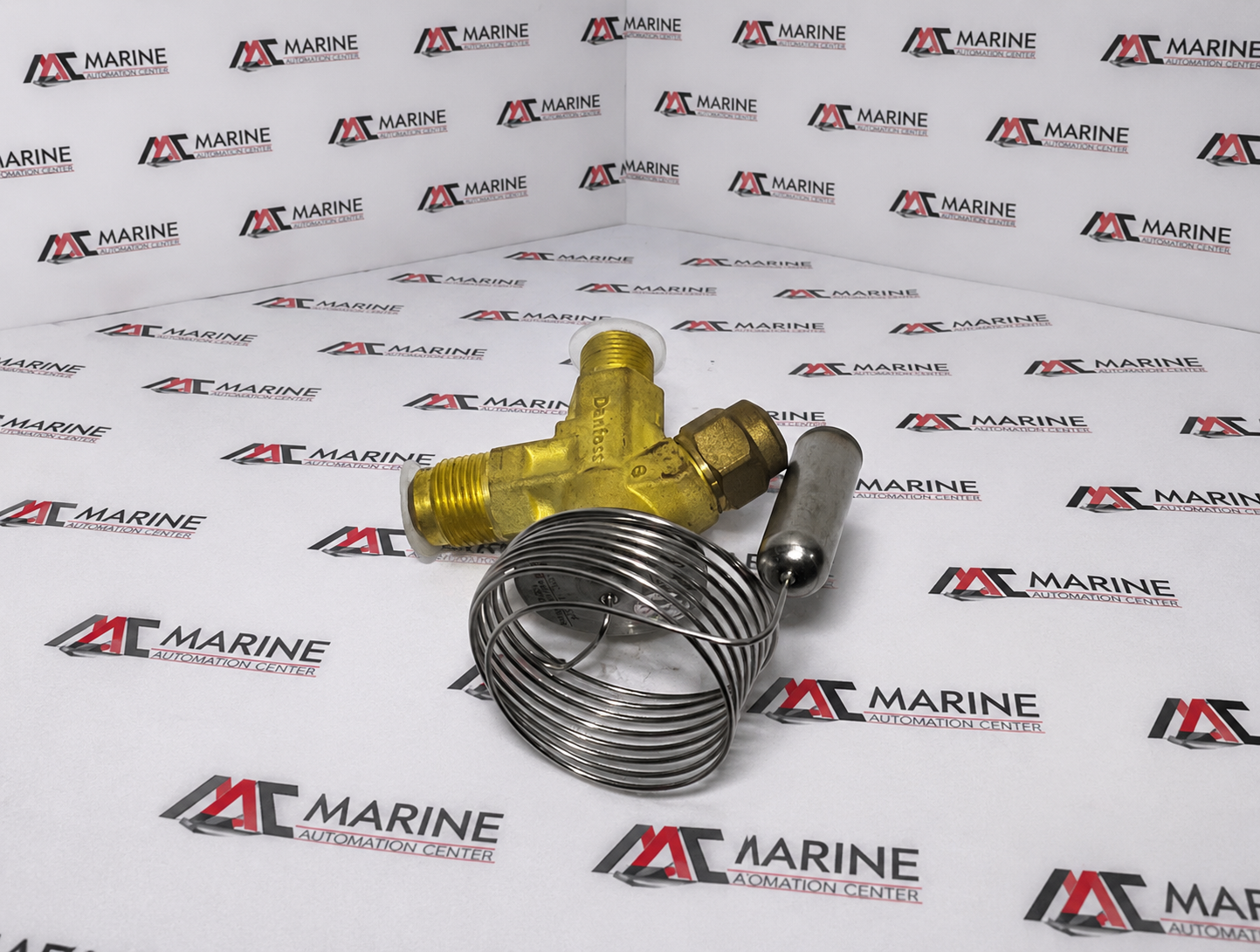

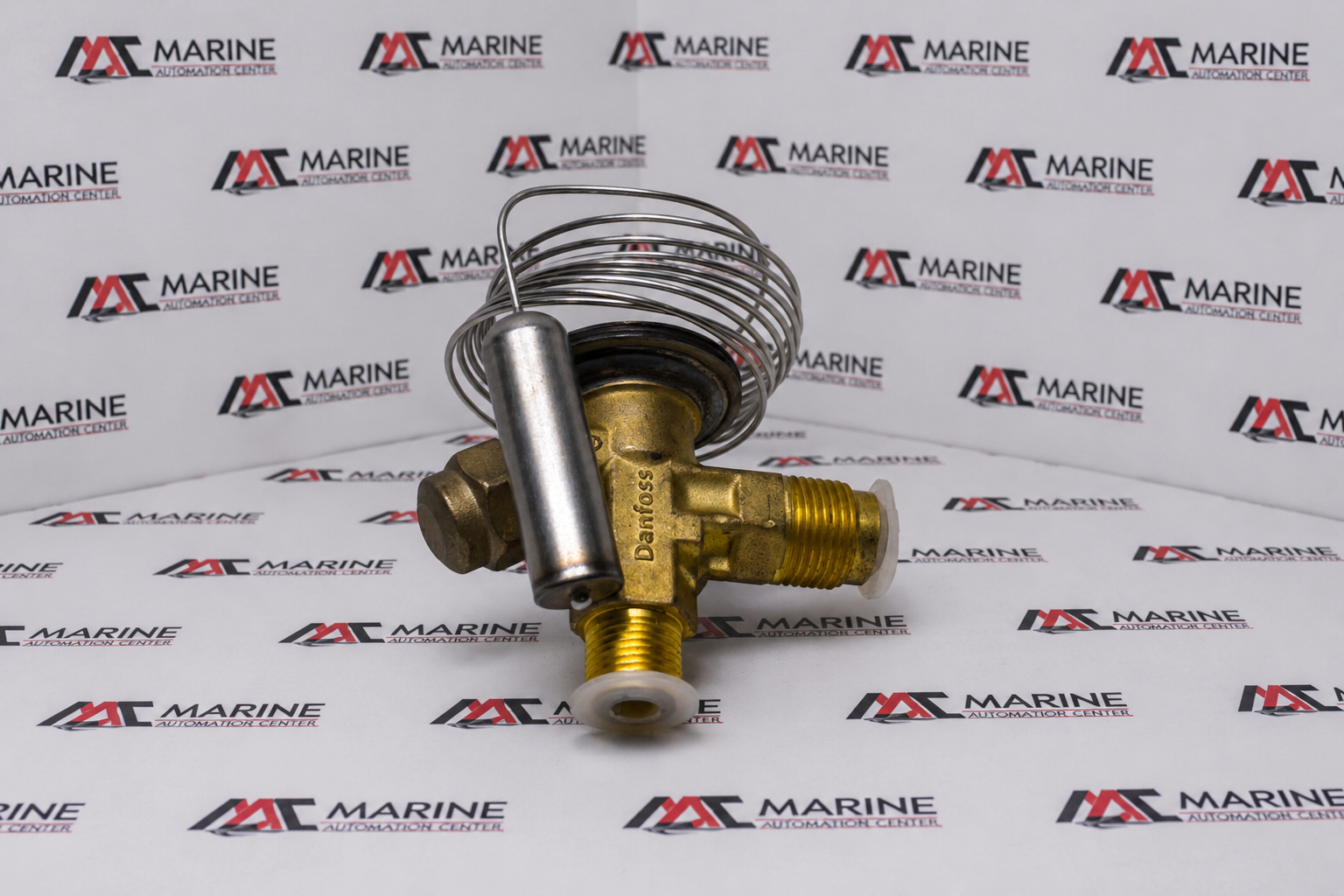

Danfoss Thermostatic Expansion Valve (TXV)
The Danfoss TEX 2 (Part No. 068Z3209) is a thermostatic expansion valve (TXV) designed to regulate refrigerant flow and maintain optimal superheat in refrigeration and air conditioning systems. It provides precise evaporator control, improves system efficiency, and ensures reliable performance in commercial, industrial, and marine refrigeration applications.
BRAND
Danfoss
TYPE
Thermostatic Expansion Valve (TXV)
PART NO.
068Z3209
MODEL
TEX 2
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Thermostatic Expansion Valve (TXV) |
| PART NO. | 068Z3209 |
| MODEL | TEX 2 |
| Application | Refrigeration and Air Conditioning systems for refrigerant flow control and evaporator superheat regulation |
| Product Group | Expansion Valves |
| Compatible Refrigerants | R22 / R407C |
| Connection Type | Flare × Flare |
| Connection Size | 3/8 in × 1/2 in |
| Body Configuration | Angleway |
| Pressure Equalization | External Equalization |
| Capillary Tube Length | 1500 mm (59 in) |
| Temperature Range | -40°C to +10°C (-40°F to +50°F) |
| Maximum Working Pressure | 34 bar (500 psig) |
| Static Superheat (SS) | 4°C (7.2°F) |
| Superheat Setting | Adjustable |
| Flow Direction | Bi-flow with Orifice 01–05 |
| Flow Direction Indicator | Embossed One-Way Arrow |
| Body Material | Brass |
| Connection Material | Brass |
| Fluid Group | Group 2 |
| Approval | EAC |
| Gross Weight | 0.316 kg |
| Net Weight | 0.294 kg |
| Volume | 0.489 L |
| EAN | 5702422117261 |
| Identical Product | 068Z3238 |
| EU RoHS Compliance | Yes (with exemptions 6(a), 6(c)) |
| China RoHS Compliance | Yes (with exemptions 7.1, 7.3) |
| Made In | Denmark |
| REF NO | 1227 |
