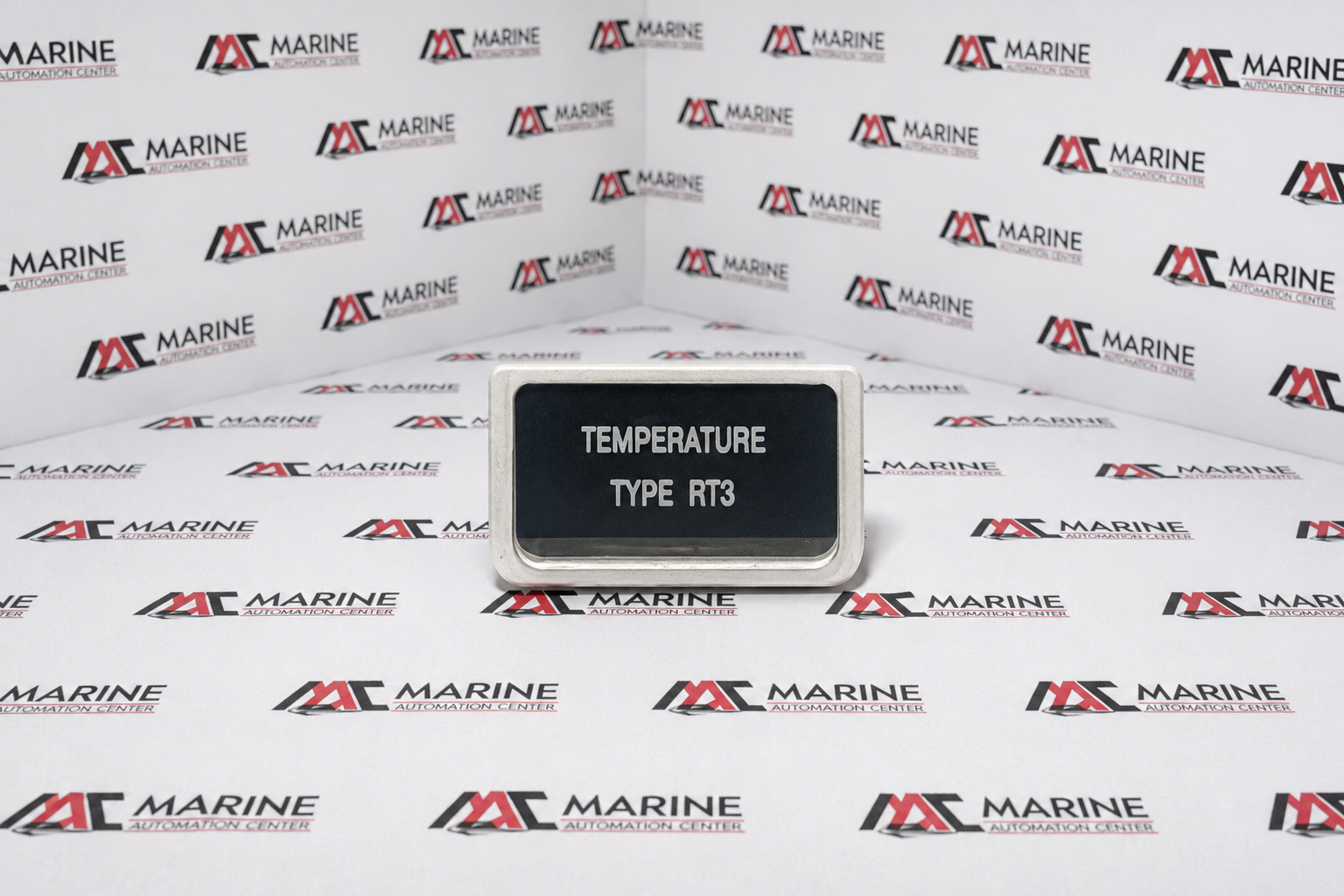

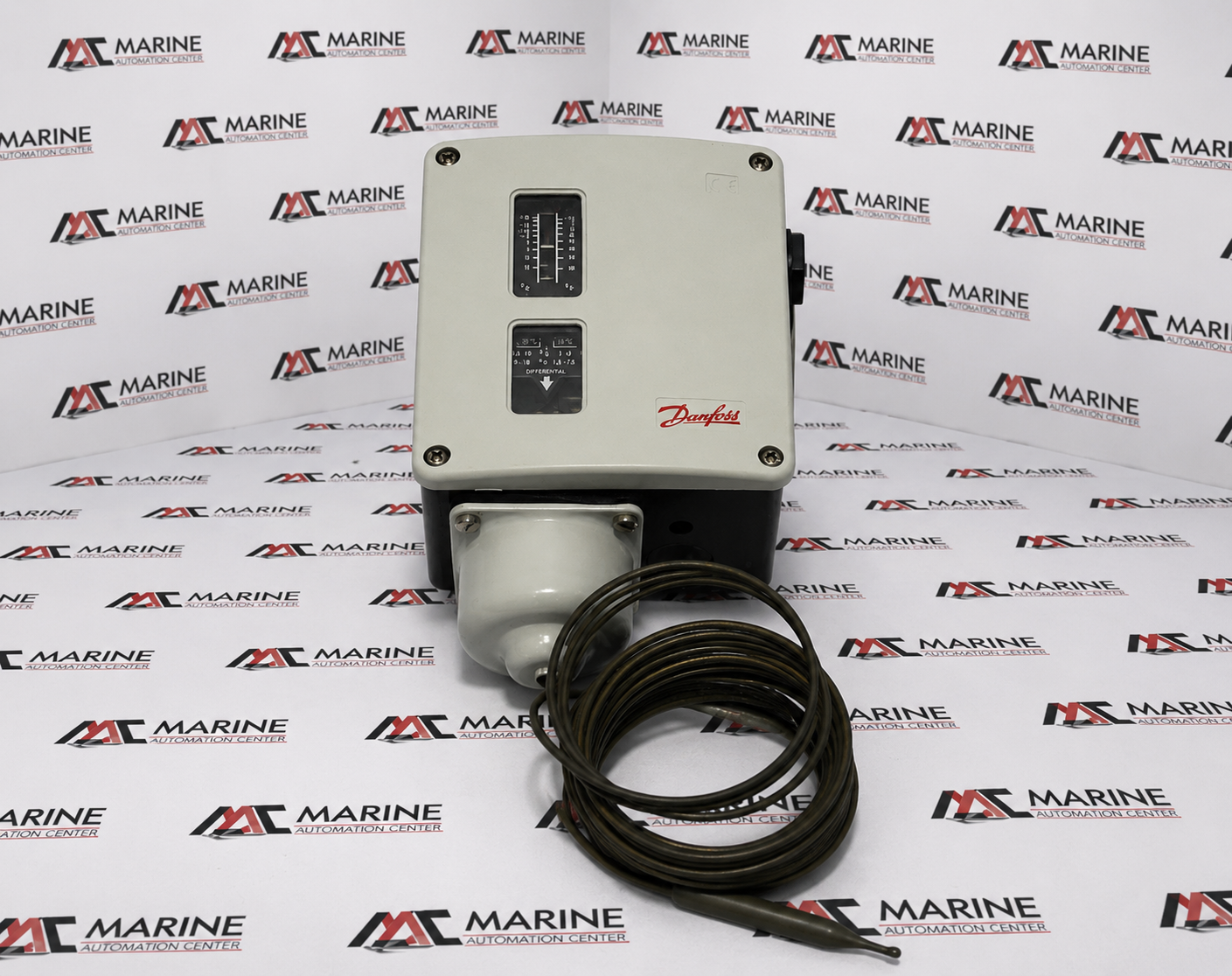

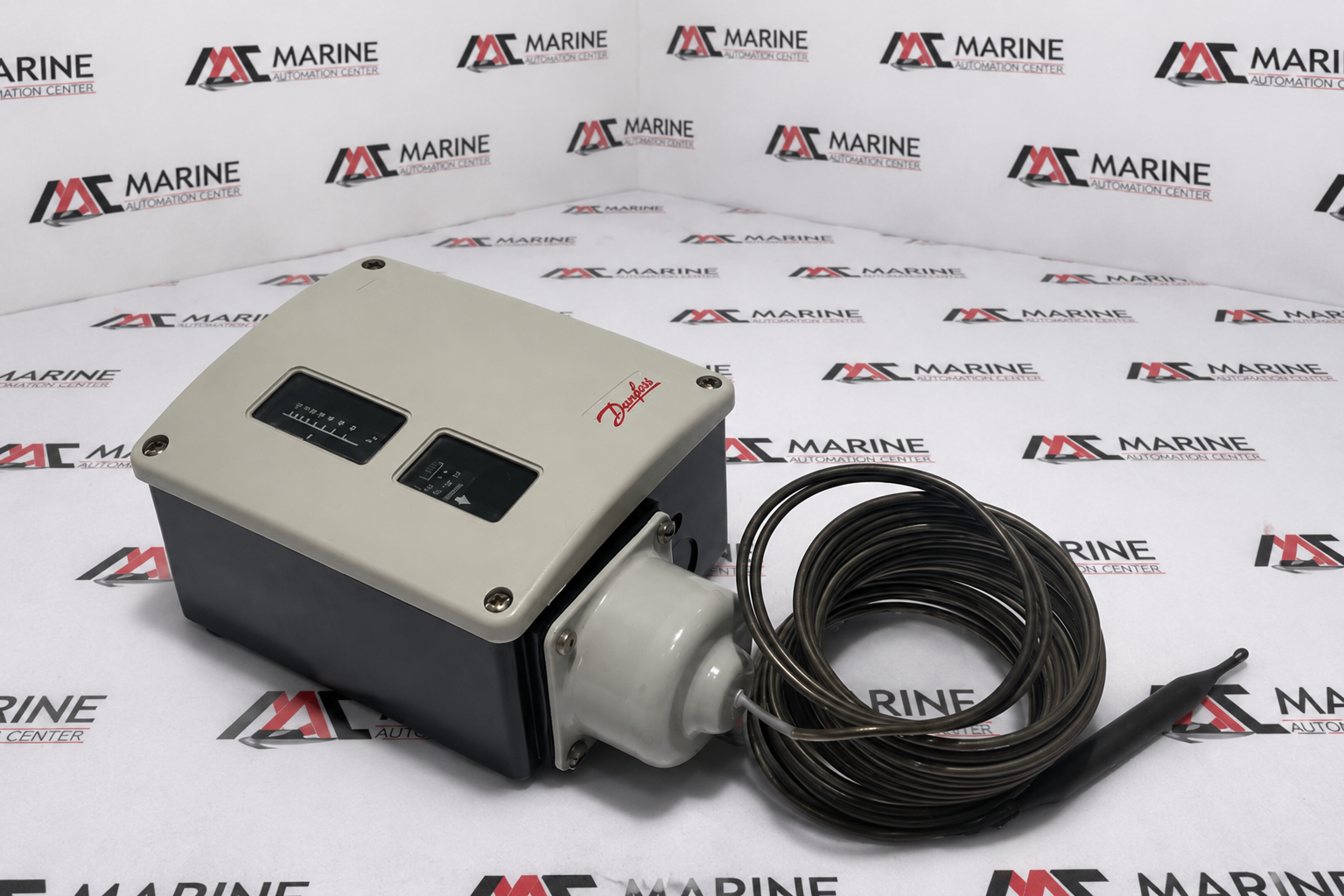

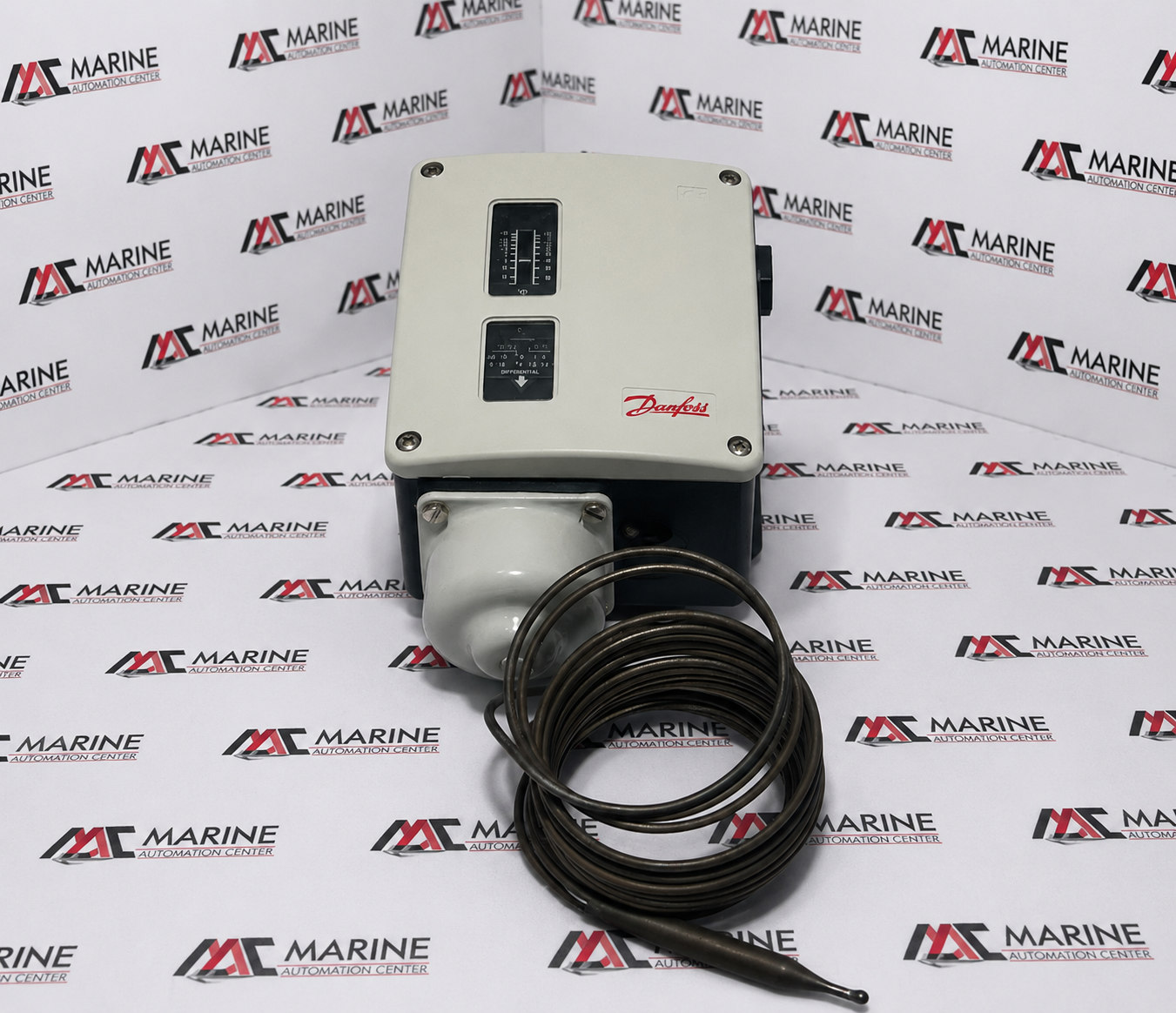

Danfoss RT3 Thermostat / Temperature Switch
Danfoss RT3 Thermostat / Temperature Switch (P/N 017-501666) is a durable industrial temperature control switch designed to monitor and regulate temperature in heating, cooling, and process control systems. It provides reliable switching action for temperature protection, alarm, and automatic control in demanding industrial applications
BRAND
DANFOSS
TYPE
TEMPERATURE SWITCH
PART NO.
017-501666
MODEL
RT3
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | DANFOSS |
| TYPE | TEMPERATURE SWITCH |
| PART NO. | 017-501666 |
| MODEL | RT3 |
| Voltage Rating | 400V AC (Insulation Rating) / Typical contact load up to 10A (AC-1) Pressure switch Type RT - Danfoss |
| Application | Used for temperature control, monitoring, and alarm signaling circuits in marine applications, commercial refrigeration plants, heating networks, and heavy-duty industrial systems Thermostat Type RT - Danfoss |
| IEC | Built to EN 60947-4/-5 and IEC 61508 safety standards (SIL 2 certified) 017-501666 - Temperature switches - Danfoss Product Store |

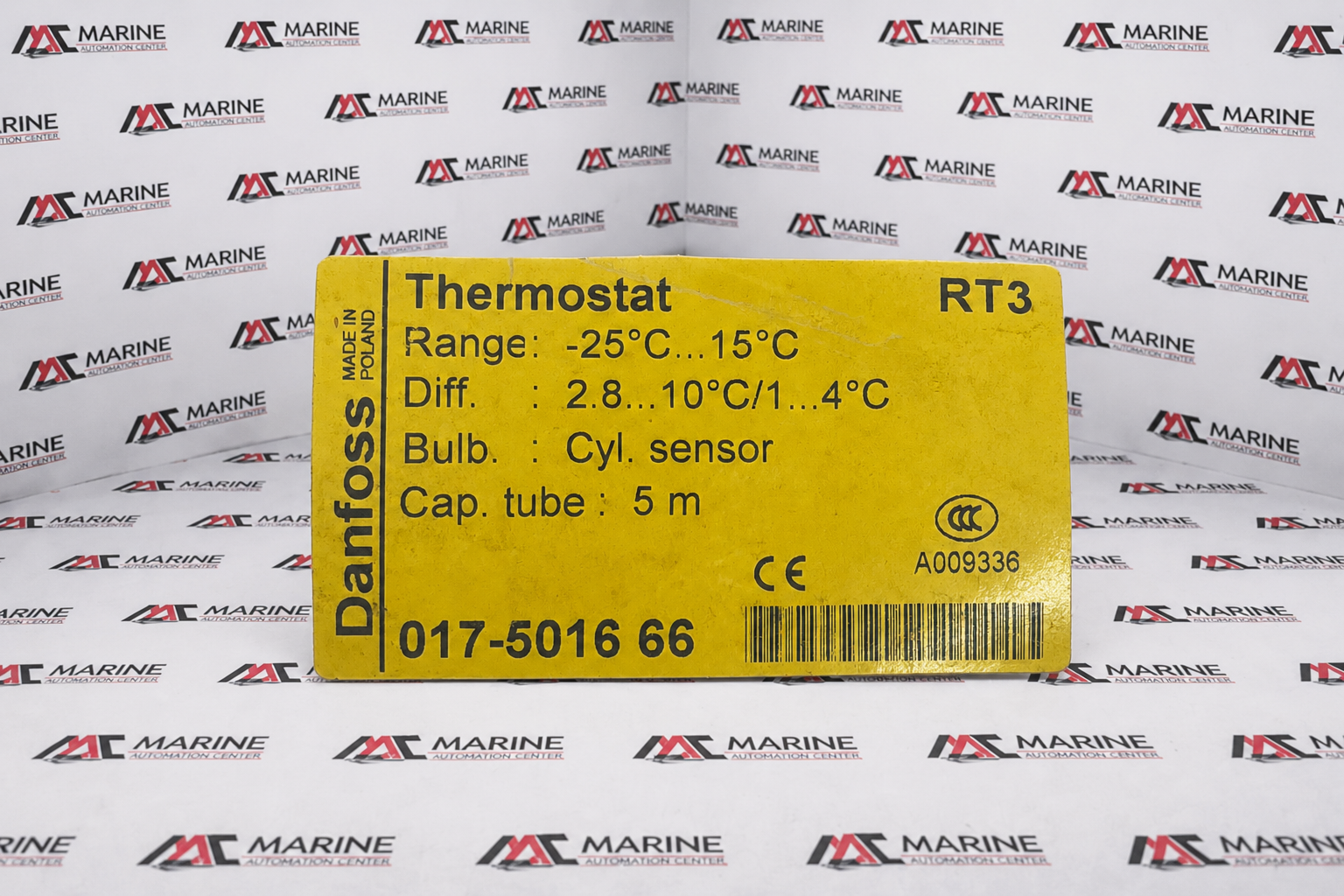

| Temperature Regulation Range | -25°C to 15°C |
| Mechanical Differential | Adjustable from 2.8°C to 10°C at the lowest range setting Thermostat, RT3 | RT | Temperature switches | Sensing solutions |
| Sensor/Bulb Type | Remote Cylindrical Bulb Sensor Thermostat, RT3 | RT | Temperature switches | Sensing solutions |
| Capillary Tube Length | 5 meters (5000 mm) Thermostat, RT3 | RT | Temperature switches | Sensing solutions |
| Reset Function | Automatic Reset (Auto) Thermostat, RT3 | RT | Temperature switches | Sensing solutions |
| Contact Function | SPDT (Single Pole Double Throw changeover switch) Thermostat, RT3 | RT | Temperature switches | Sensing solutions |
| Enclosure Protection Rating | IP66 (Dust-tight and powerful water jet resistant) Thermostat, RT3 | RT | Temperature switches | Sensing solutions |
| Regulatory Approvals | CE Marked, CCC Certified (China Compulsory Certificate) |
| Made In | Poland |
| REF NO | 1269 |
