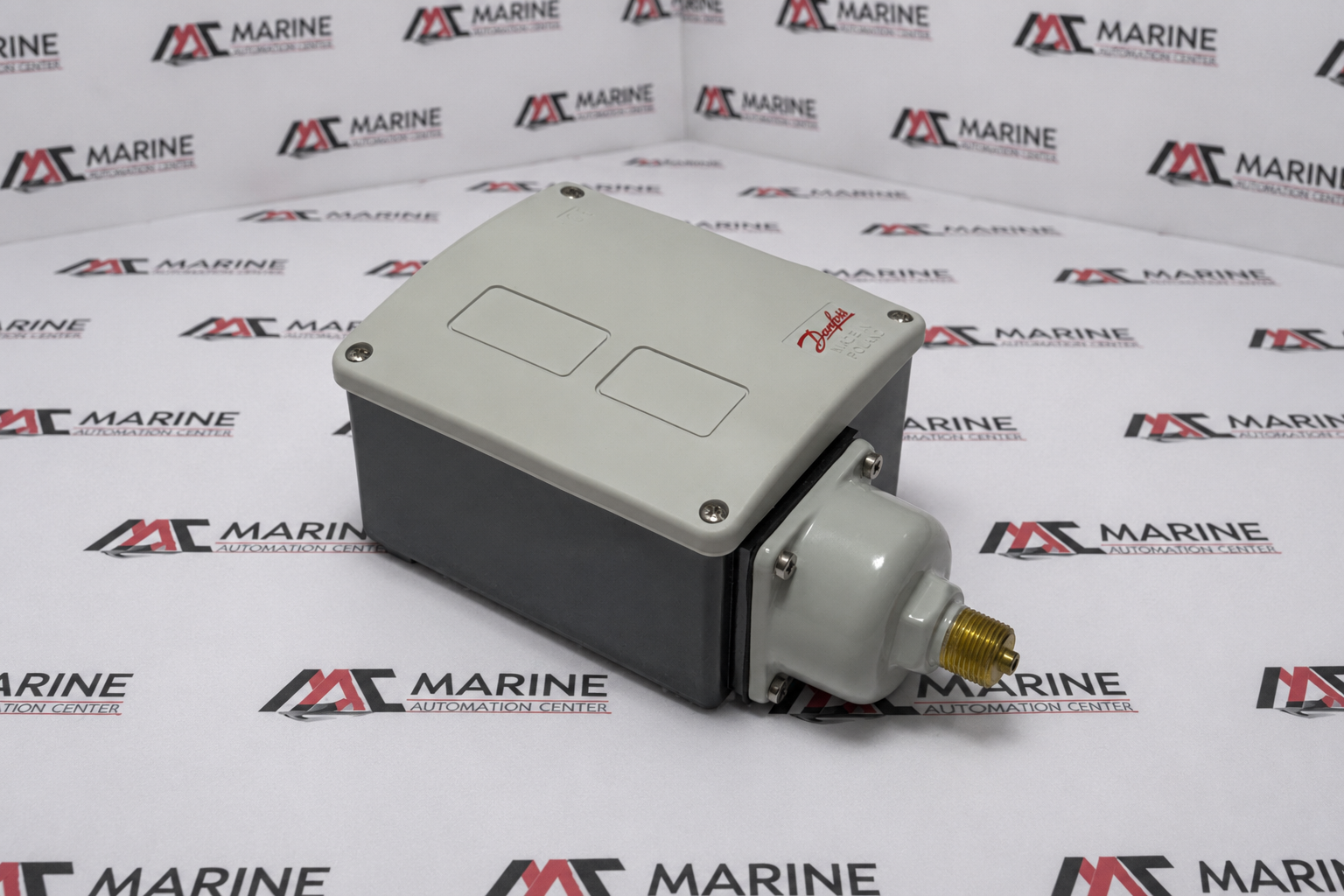

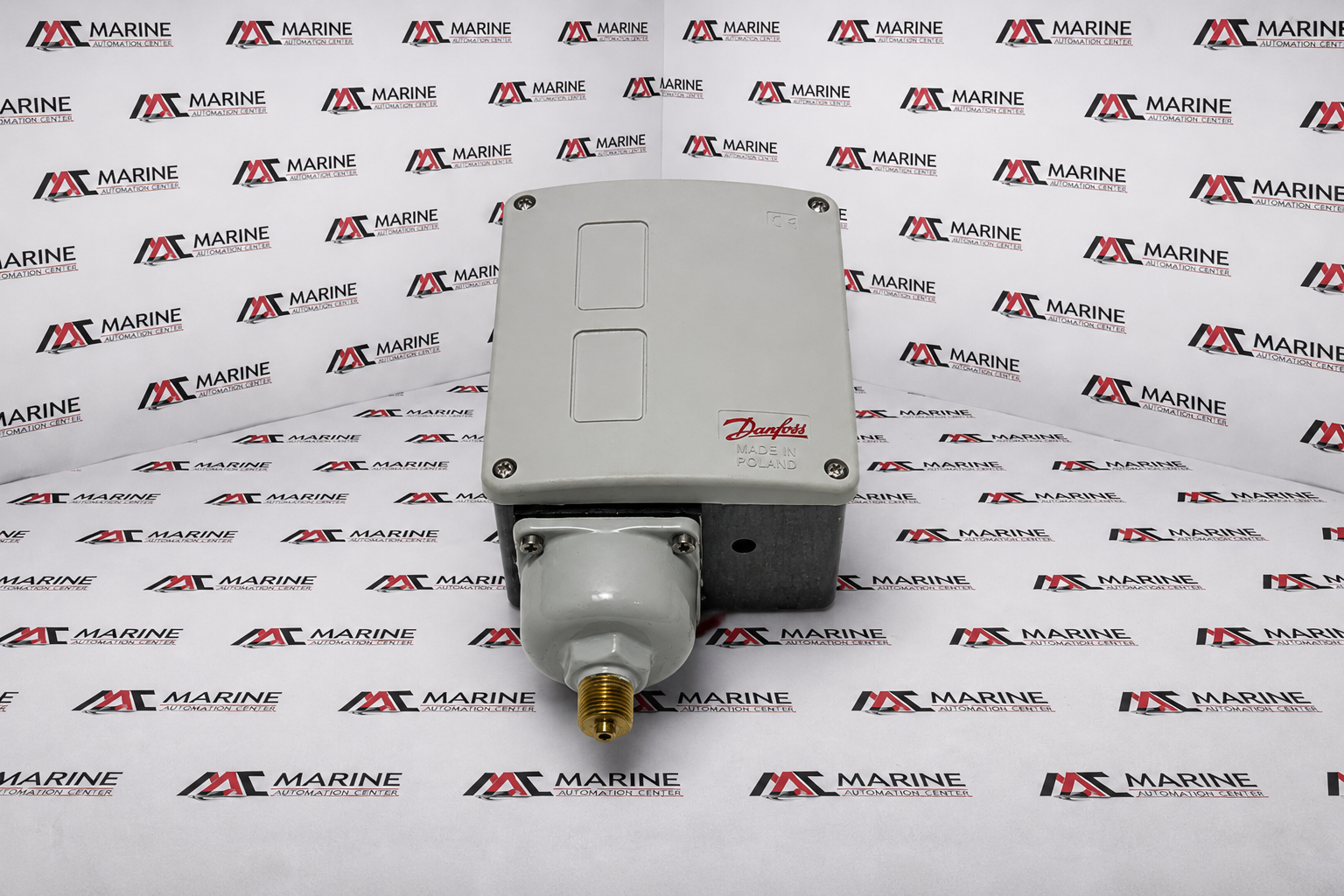

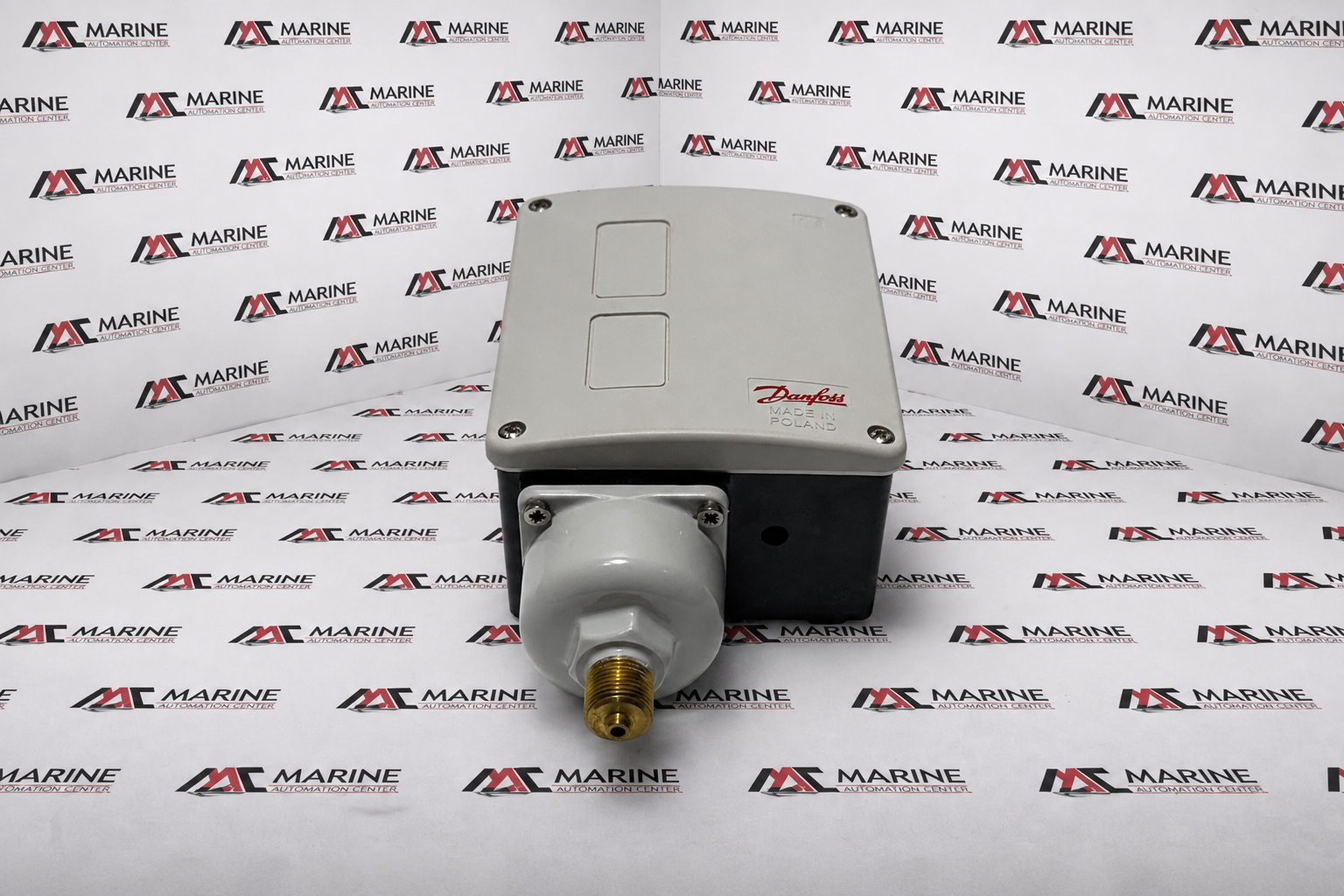

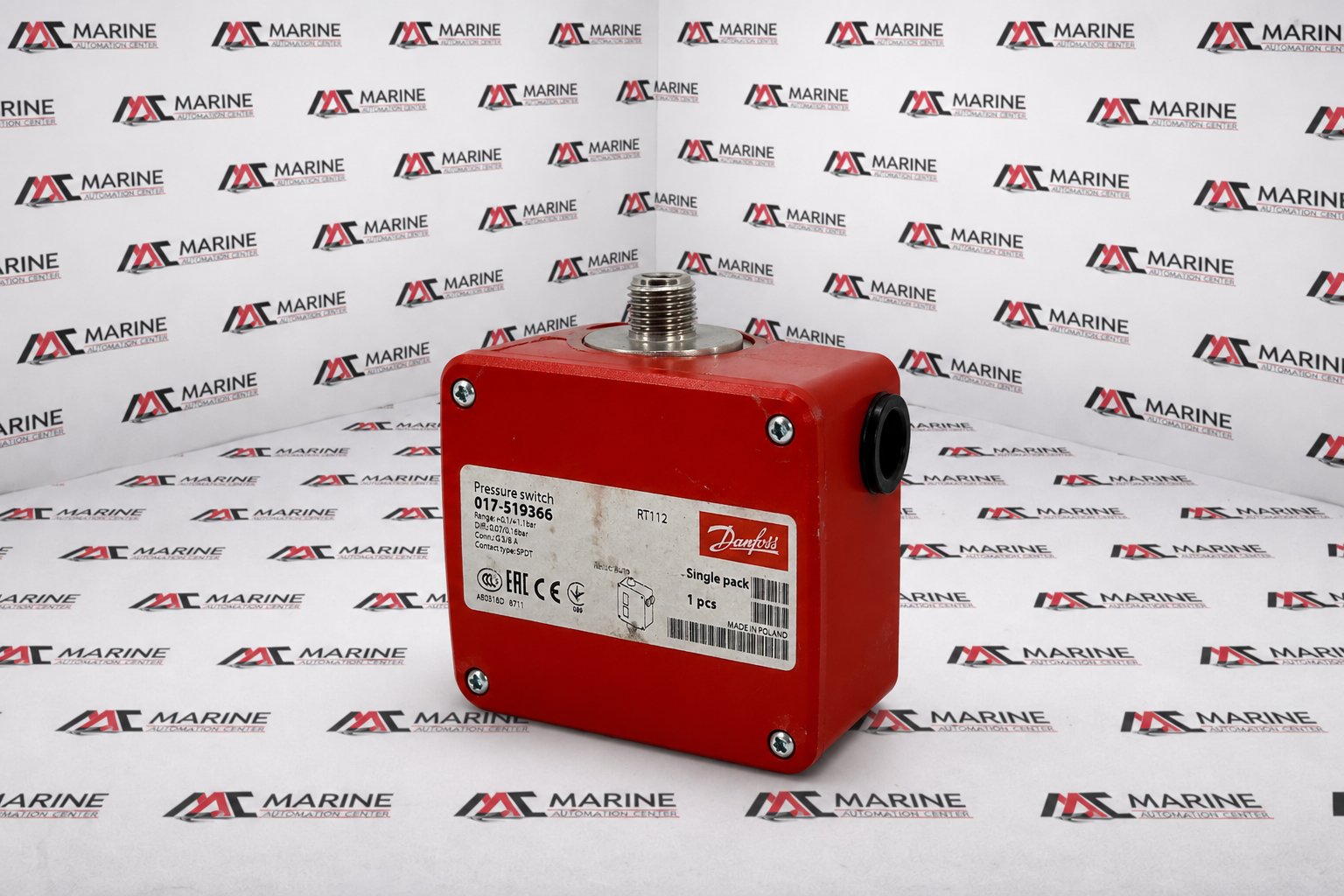

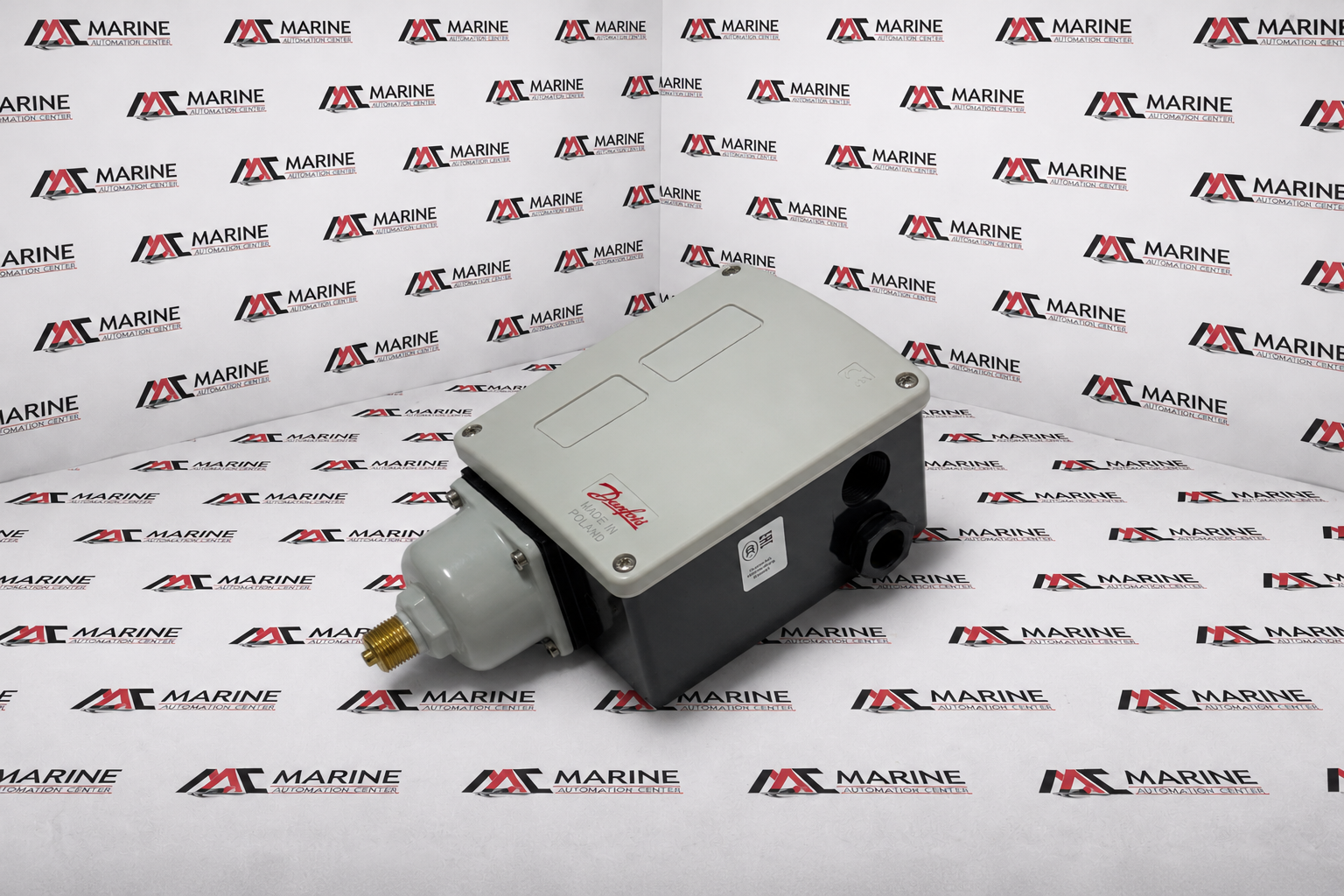

Danfoss RT112 Mechanical Pressure Switch
The Danfoss RT112 (Part No. 017-519366) is a robust mechanical pressure switch designed for precise pressure monitoring and control in industrial, HVAC, refrigeration, and process systems. It features an adjustable pressure range, automatic reset, SPDT switching contacts, and a durable IP66-rated enclosure, ensuring reliable performance in demanding operating environments
BRAND
Danfoss
TYPE
Pressure Switch
PART NO.
017-519366
MODEL
RT112
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Pressure Switch |
| PART NO. | 017-519366 |
| MODEL | RT112 |
| Application | Pressure monitoring and control for industrial, refrigeration, HVAC, hydraulic, pneumatic, and marine systems |
| Pressure Range | 0 to 16 bar |
| Differential | 0.2 to 1.6 bar |
| Pressure Connection | G3/8 A |
| Contact Type | SPDT (Single Pole Double Throw) |
| Reset | Automatic Reset |
| Mounting Orientation | Universal |
| Pressure Port Material | Stainless Steel |
| Enclosure Color | Red |
| Ingress Protection | Industrial enclosure |
| Certifications | CE, EAC, CCC |
| Operating Principle | Adjustable diaphragm-operated mechanical pressure switch with SPDT switching contacts |
| Made In | Poland |
| REF NO | 1535 |
