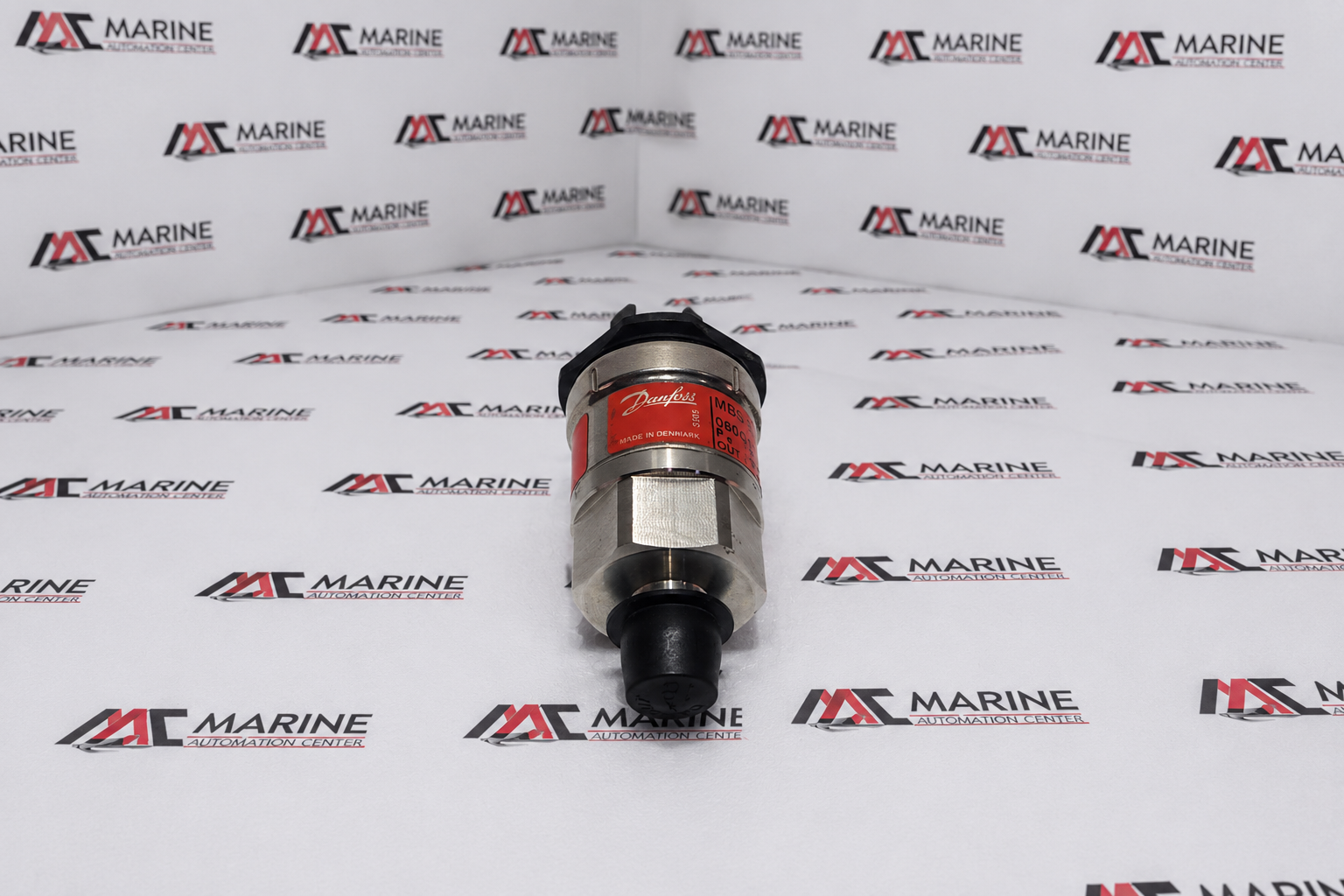

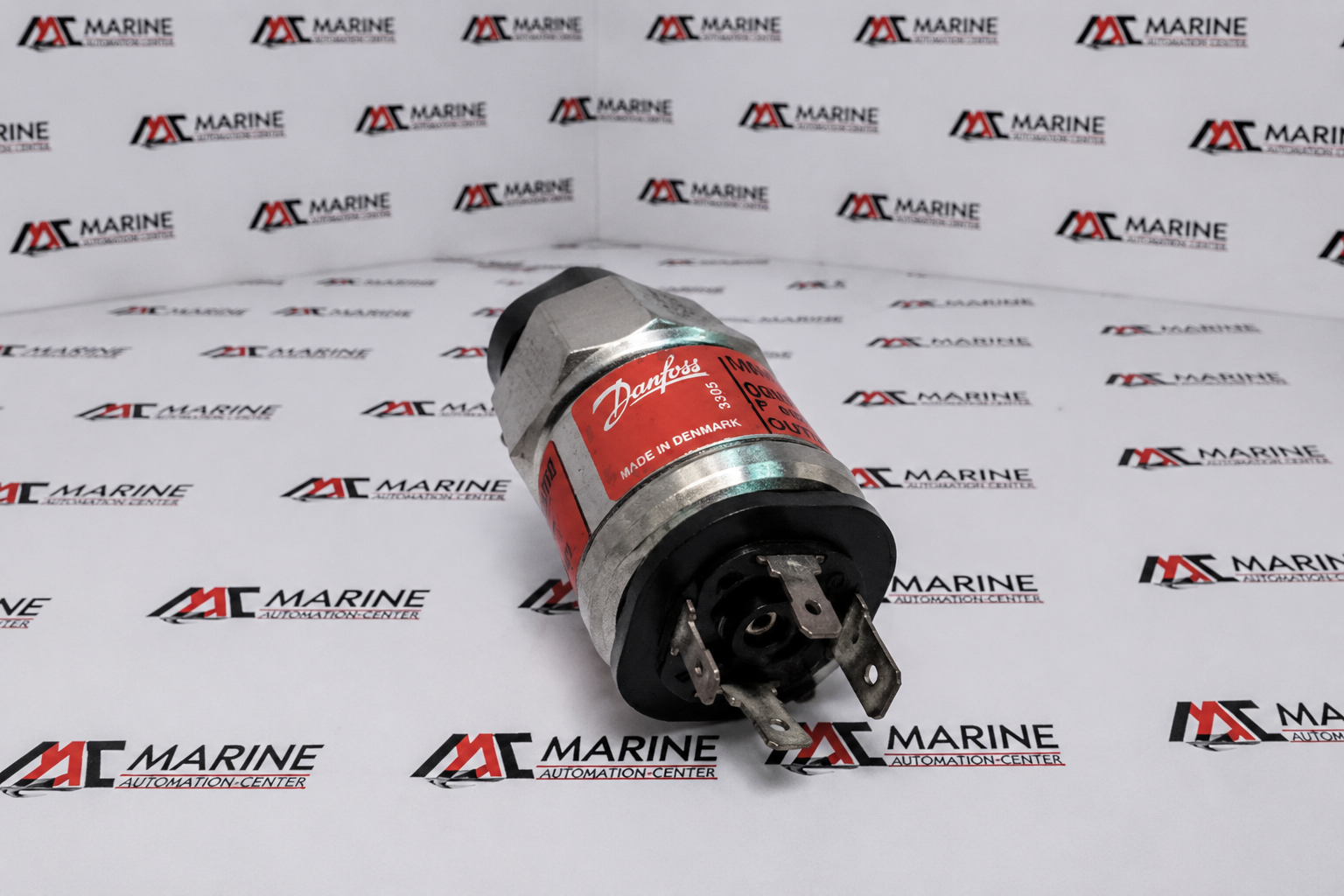

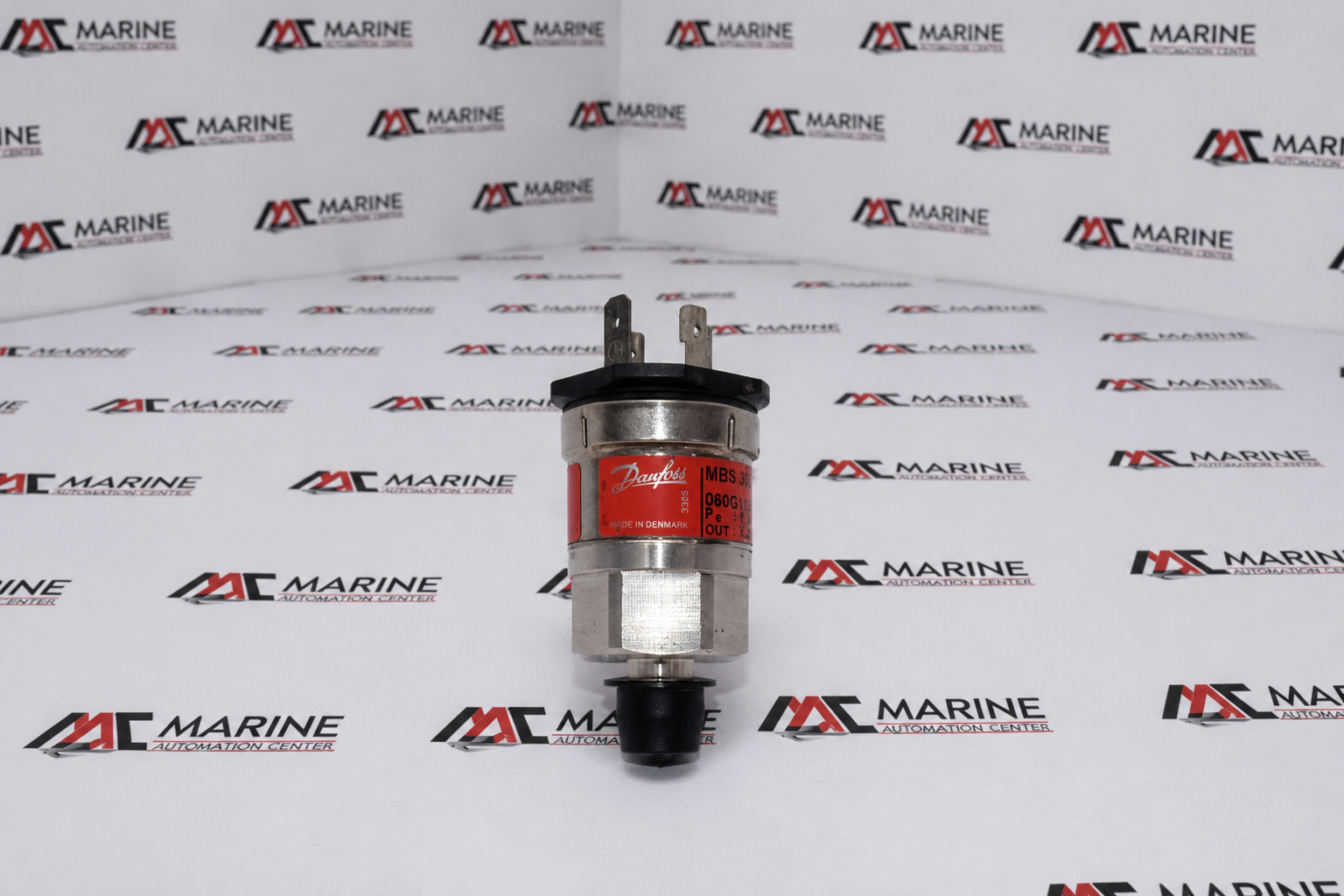

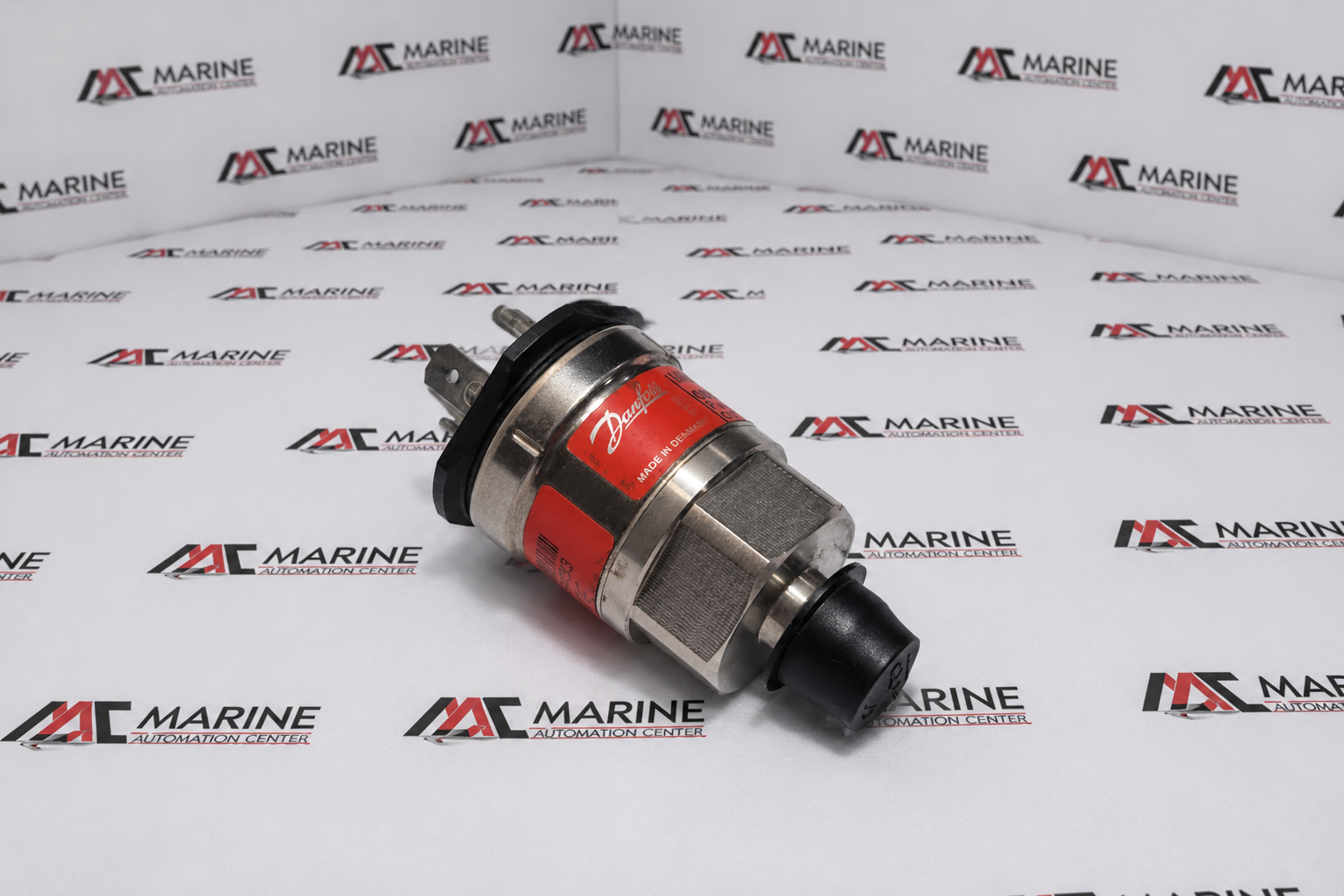

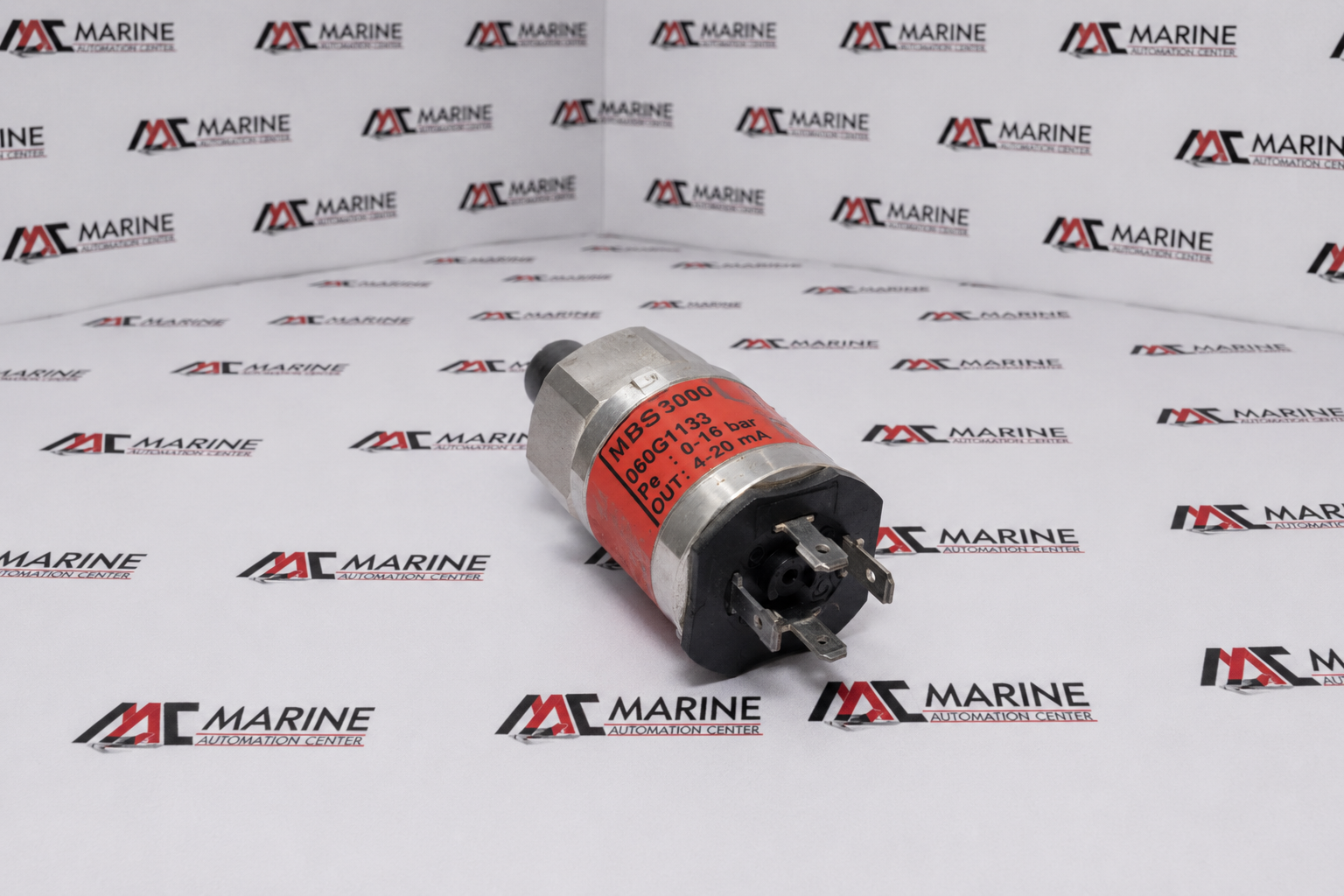

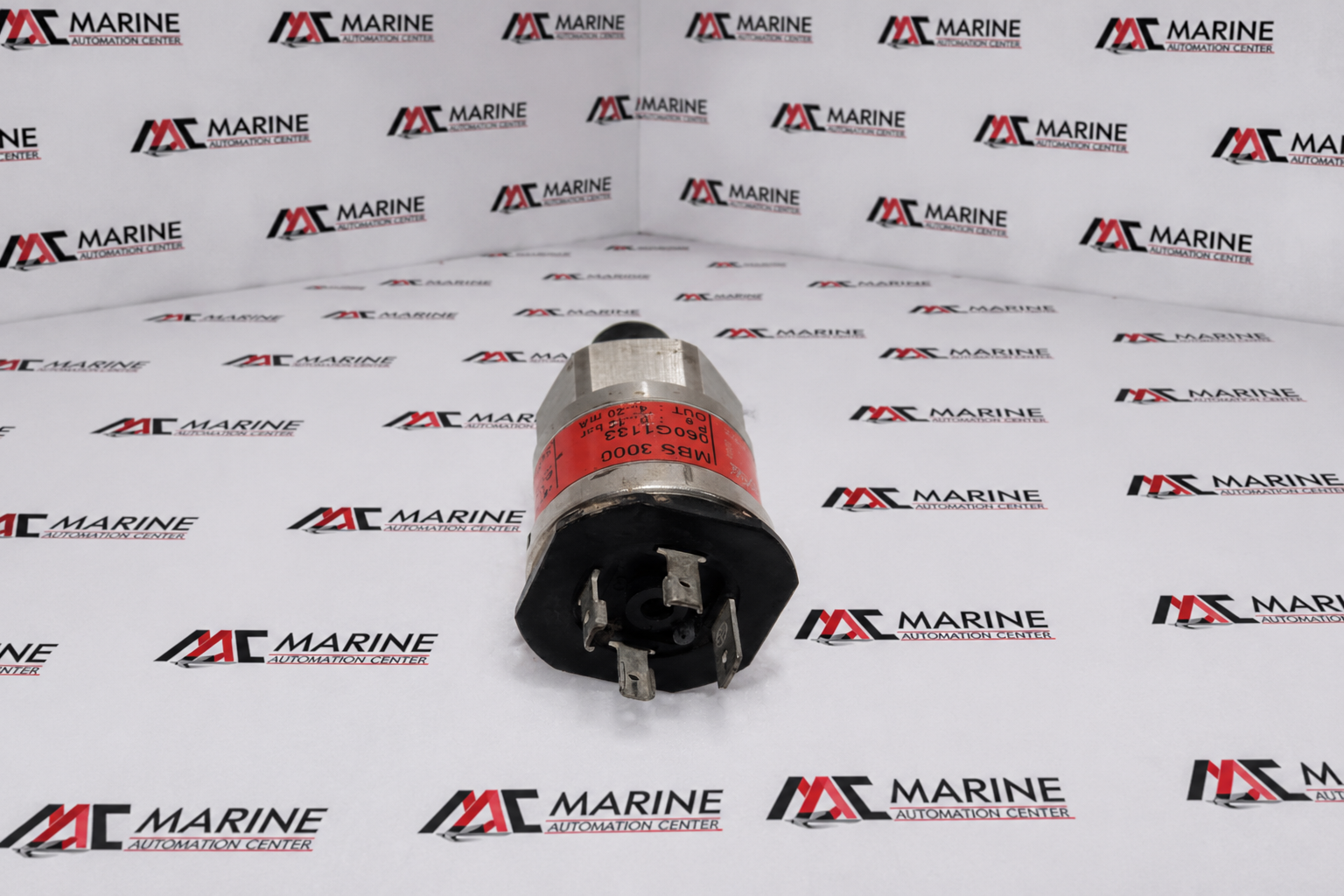

Danfoss Pressure Transmitter (Industrial Pressure Transmitter) MBS 3000
The Danfoss MBS 3000 (060G1133) is a compact industrial pressure transmitter designed for reliable pressure measurement in demanding industrial and marine applications. It features a 0–16 bar gauge pressure range, 4–20 mA output, robust stainless-steel construction, and excellent resistance to vibration, shock, and electromagnetic interference, making it ideal for hydraulic systems, compressors, pumps, water treatment, and process automation.
BRAND
Danfoss
TYPE
Pressure Transmitter (Industrial Pressure Transmitter)
PART NO.
060G1133
MODEL
MBS 3000
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Pressure Transmitter (Industrial Pressure Transmitter) |
| PART NO. | 060G1133 |
| MODEL | MBS 3000 |
| MANUFACTURER | Danfoss A/S |
| Pressure Range | 0 to 16 bar (Gauge / Relative Pressure) |
| Output Signal | 4–20 mA (2-wire current output) |
| Supply Voltage | 10–30 V DC |
| Pressure Reference | Gauge (Relative) |
| Pressure Connection | G1/4 Male (EN 837) |
| Electrical Connection | DIN 43650-A Plug (PG9) |
| Accuracy | ±0.5% Full Scale (Typical) |
| Operating Temperature | -40°C to +85°C |
| Enclosure Protection | IP65 |
| Housing Material | Stainless Steel (AISI 316L) |
| Wetted Parts | Stainless Steel (AISI 316L) |
| Output Response | Current Output (4–20 mA) |
| Application | Pressure measurement for hydraulic systems, pumps, compressors, marine systems, industrial automation, pneumatic systems, water treatment, and process control |
| IEC | IEC Compliant Industrial Pressure Transmitter |
| Pressure (Pe) | 0–16 bar |
| Output (Iout) | 4–20 mA |
| Pin Configuration | +Supply: Pin 1, Common: Pin 2 |
| Made In | Denmark |
| REF NO. | 1370 |
