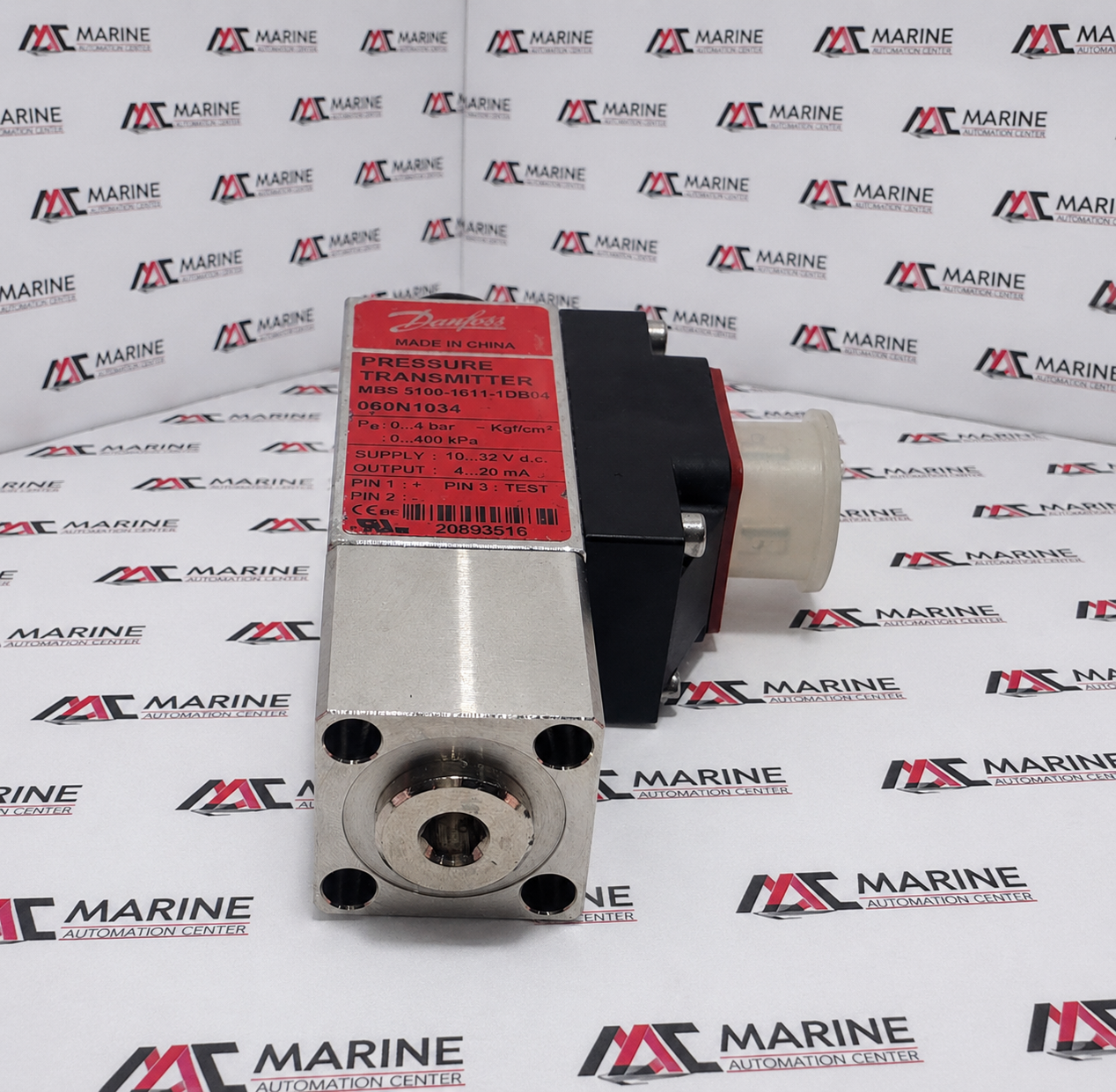

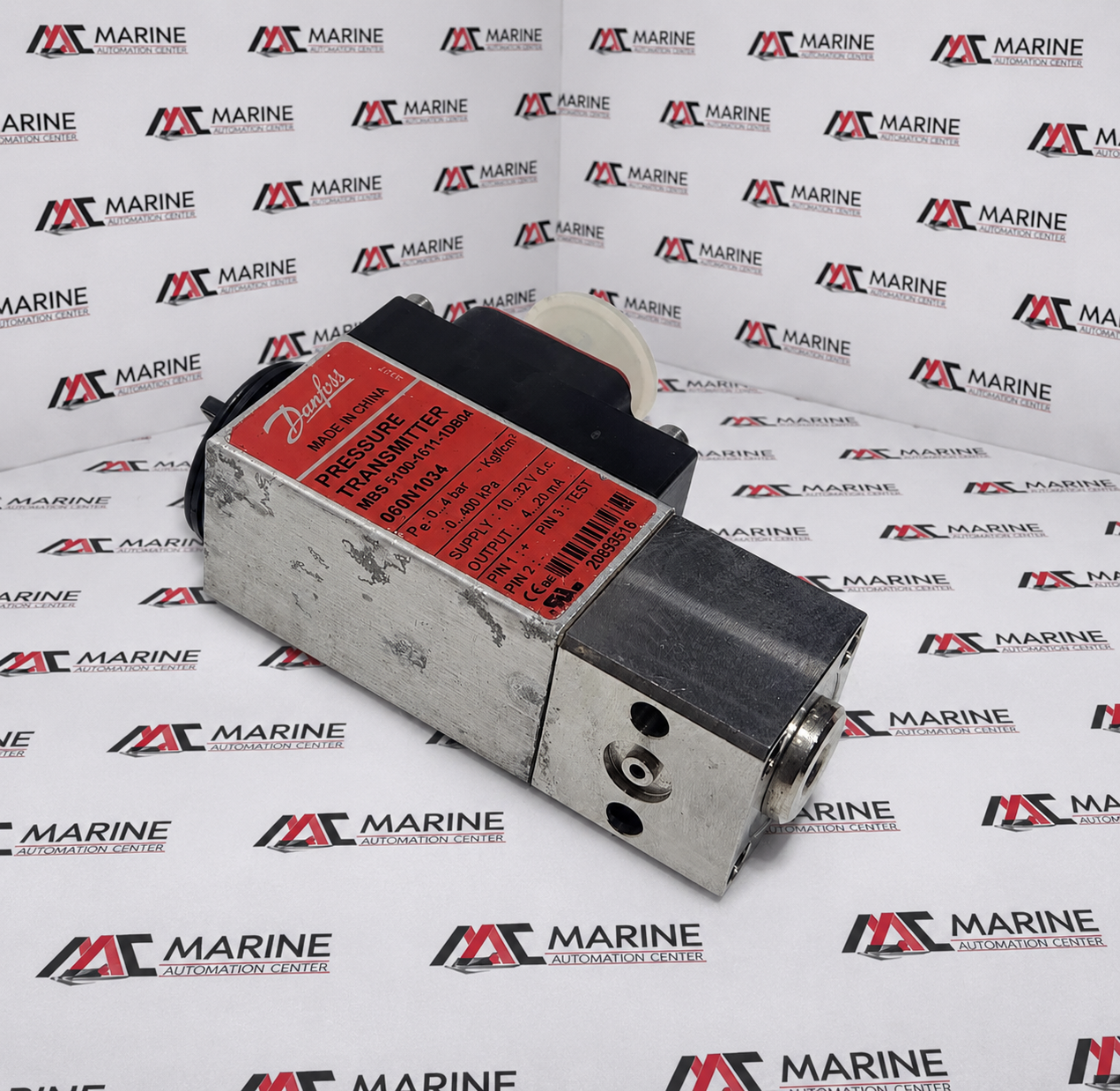

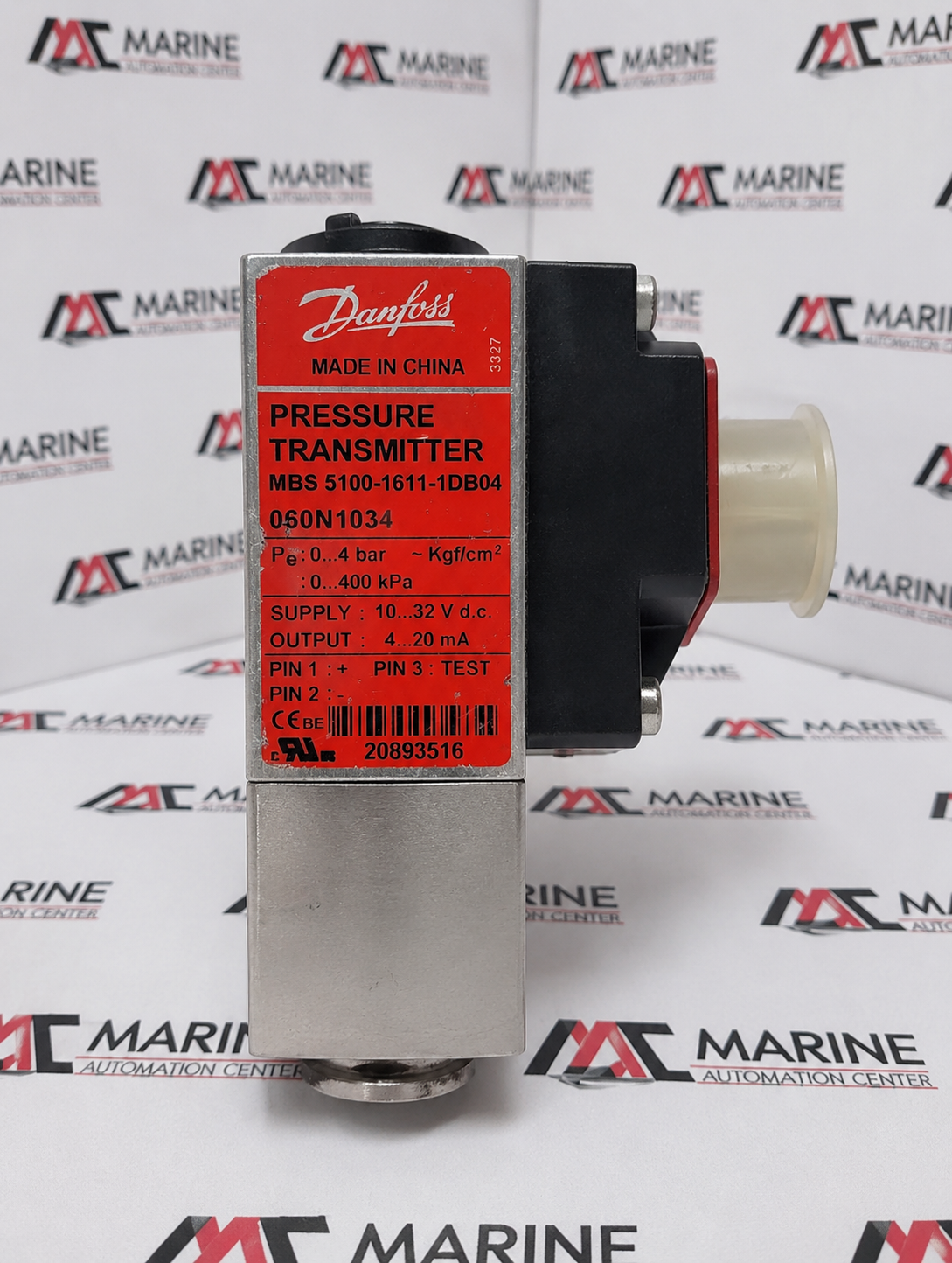

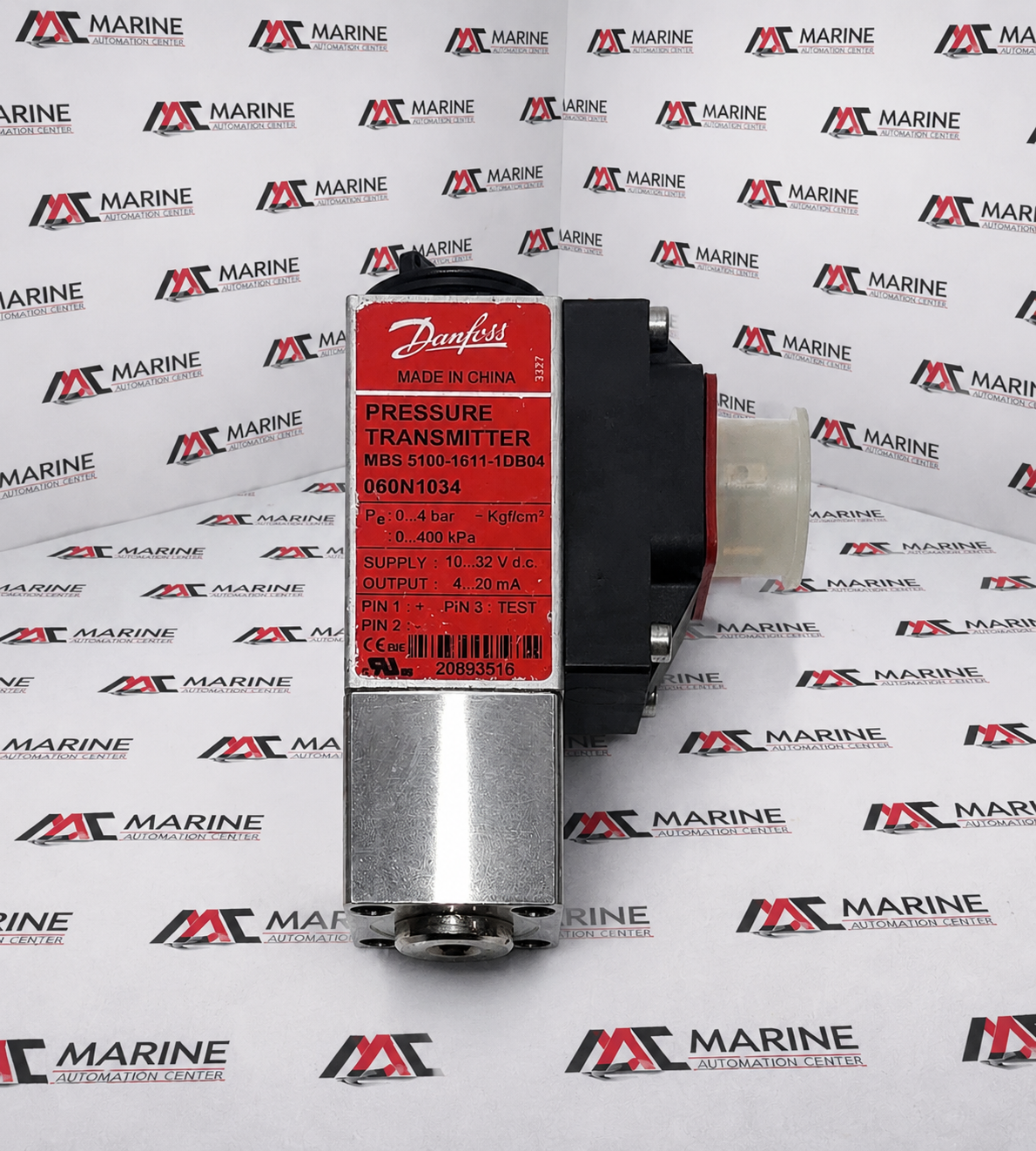

Danfoss MBS 5100-1611-1DB04 Pressure Transmitter
Danfoss MBS 5100-1611-1DB04 Pressure Transmitter (Part No. 060N1034) is a robust industrial pressure transmitter designed for accurate pressure measurement in hydraulic, pneumatic, marine, and industrial automation applications. It offers reliable performance, excellent long-term stability, and a durable design for operation in demanding environments, ensuring precise pressure monitoring and dependable process control.
BRAND
Danfoss
TYPE
Pressure Transmitter
PART NO.
060N1034
MODEL
MBS 5100-1611-1DB04
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Pressure Transmitter |
| PART NO. | 060N1034 |
| MODEL | MBS 5100-1611-1DB04 |
| MANUFACTURER | Danfoss |
| Pressure Range | 0 to 4 bar (0 to 400 kPa / Approx. 4 kgf/cm²) |
| Output Signal | 4–20 mA Current Loop |
| Supply Voltage | 10–32 V DC |
| Voltage Rating | 10–32 V DC (Max. 32 V DC) |
| Electrical Connection | 3-Pin Connector |
| Pin Configuration | Pin 1 (+): Supply Positive, Pin 2 (−): Common / Signal Negative, Pin 3: Test Signal |
| Test Signal | Pin 3 – Used to verify current loop performance without interrupting the process line |
| Pressure Connection | Block Design |
| Marine Approvals | DNV, LR, GL, ABS |
| Approvals | CE, cULus UL Recognized |
| Application | Pressure measurement and monitoring in marine, hydraulic, industrial automation, and process control systems |
| Made In | China |
| REF NO | 1369 |
