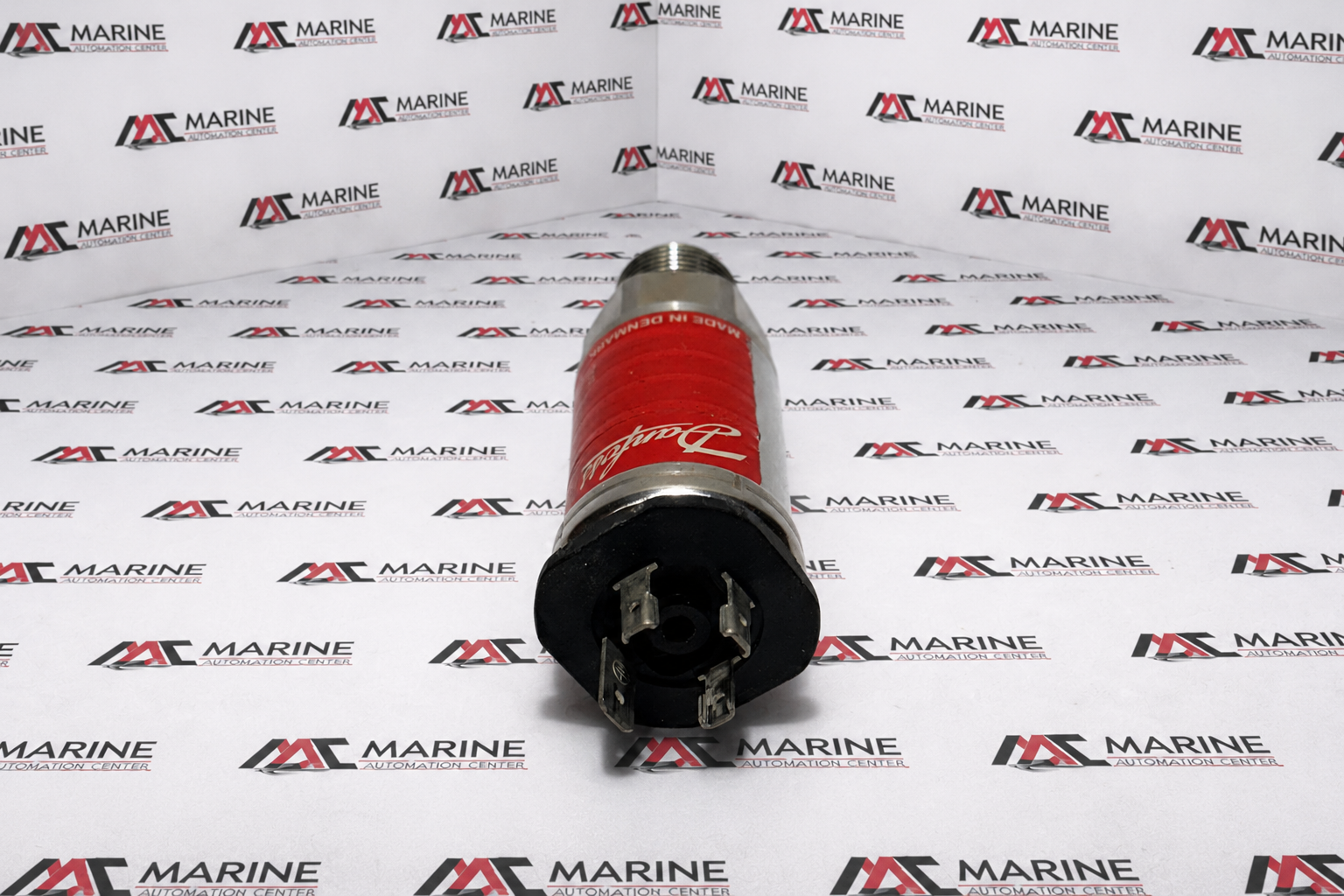

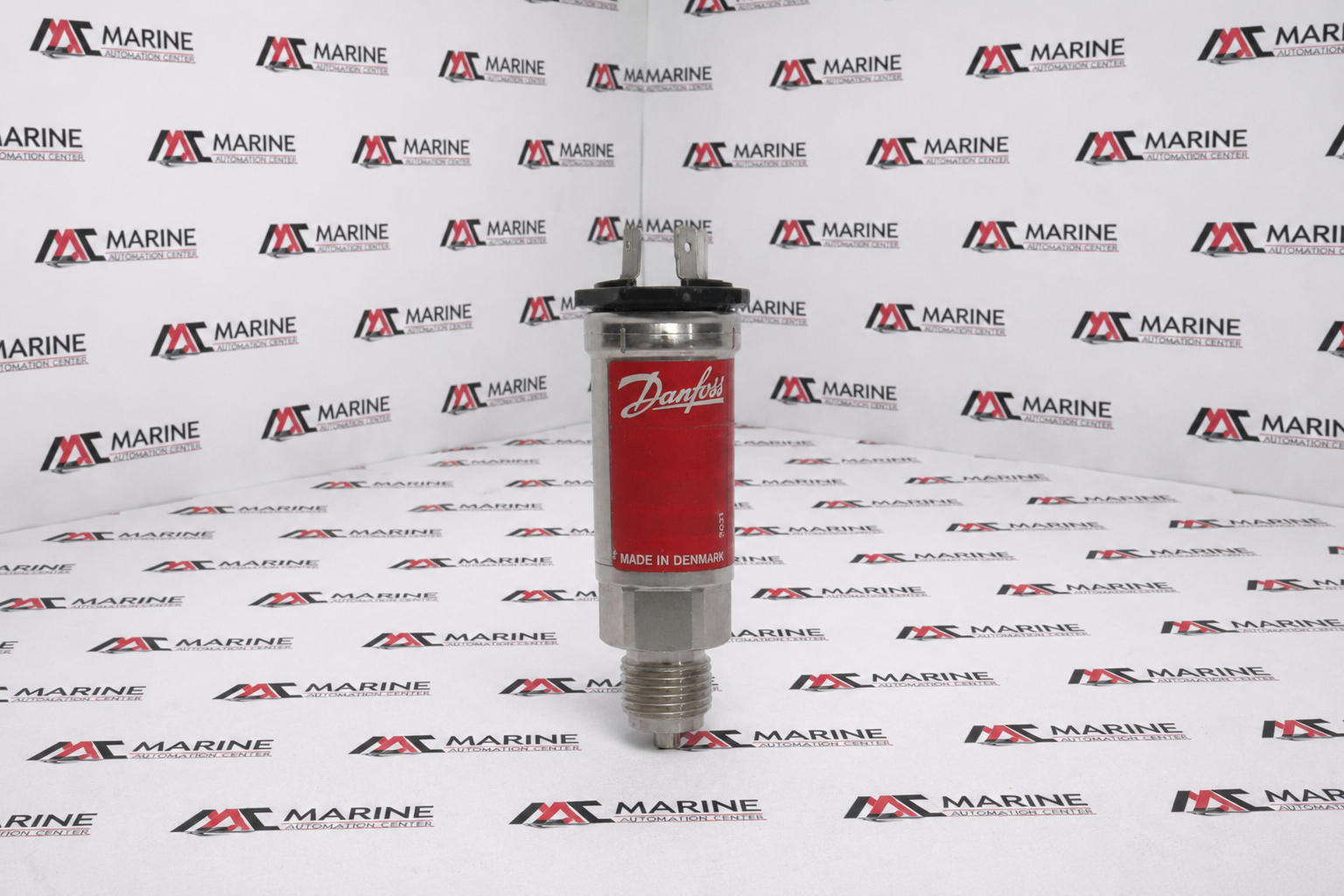

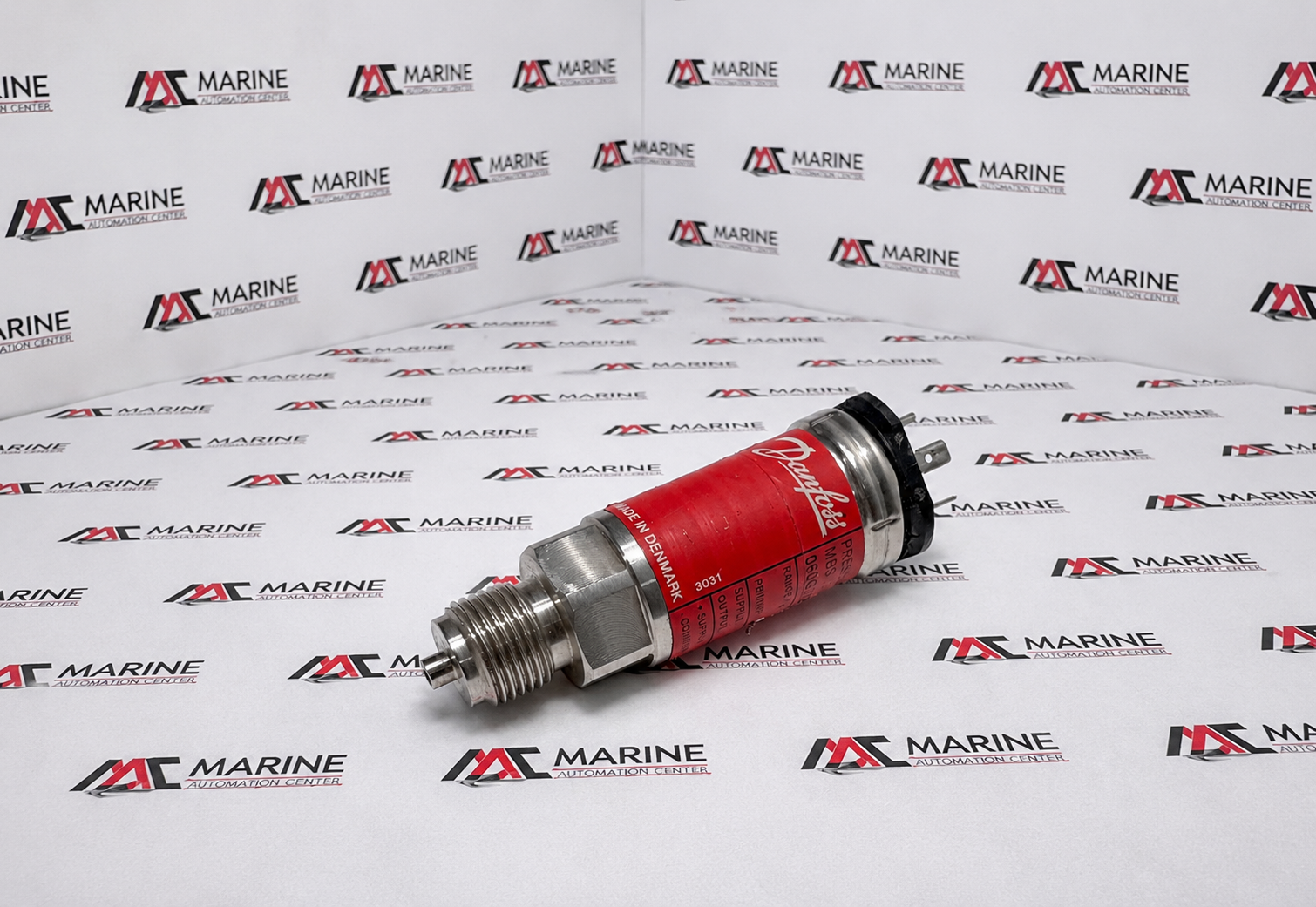

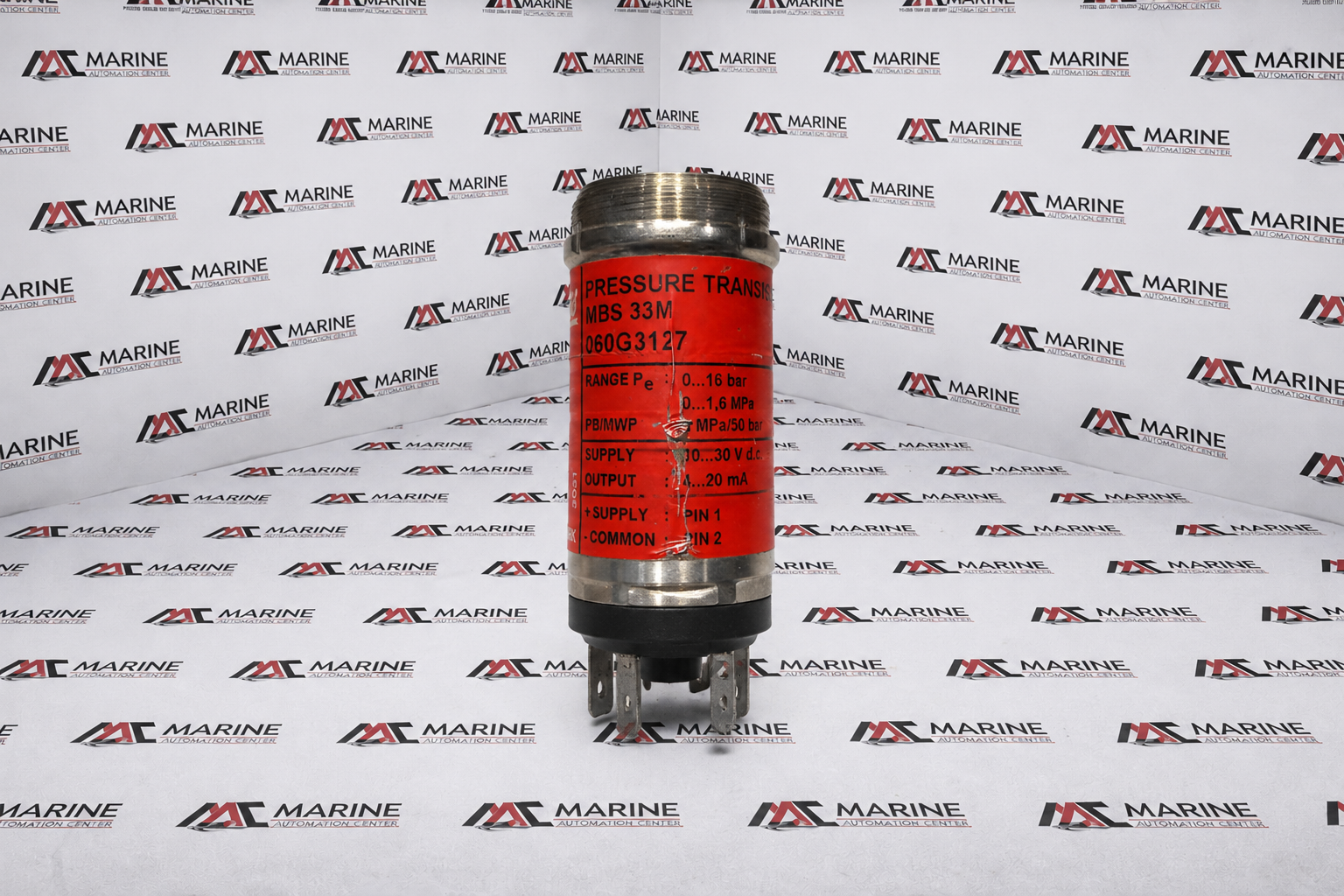

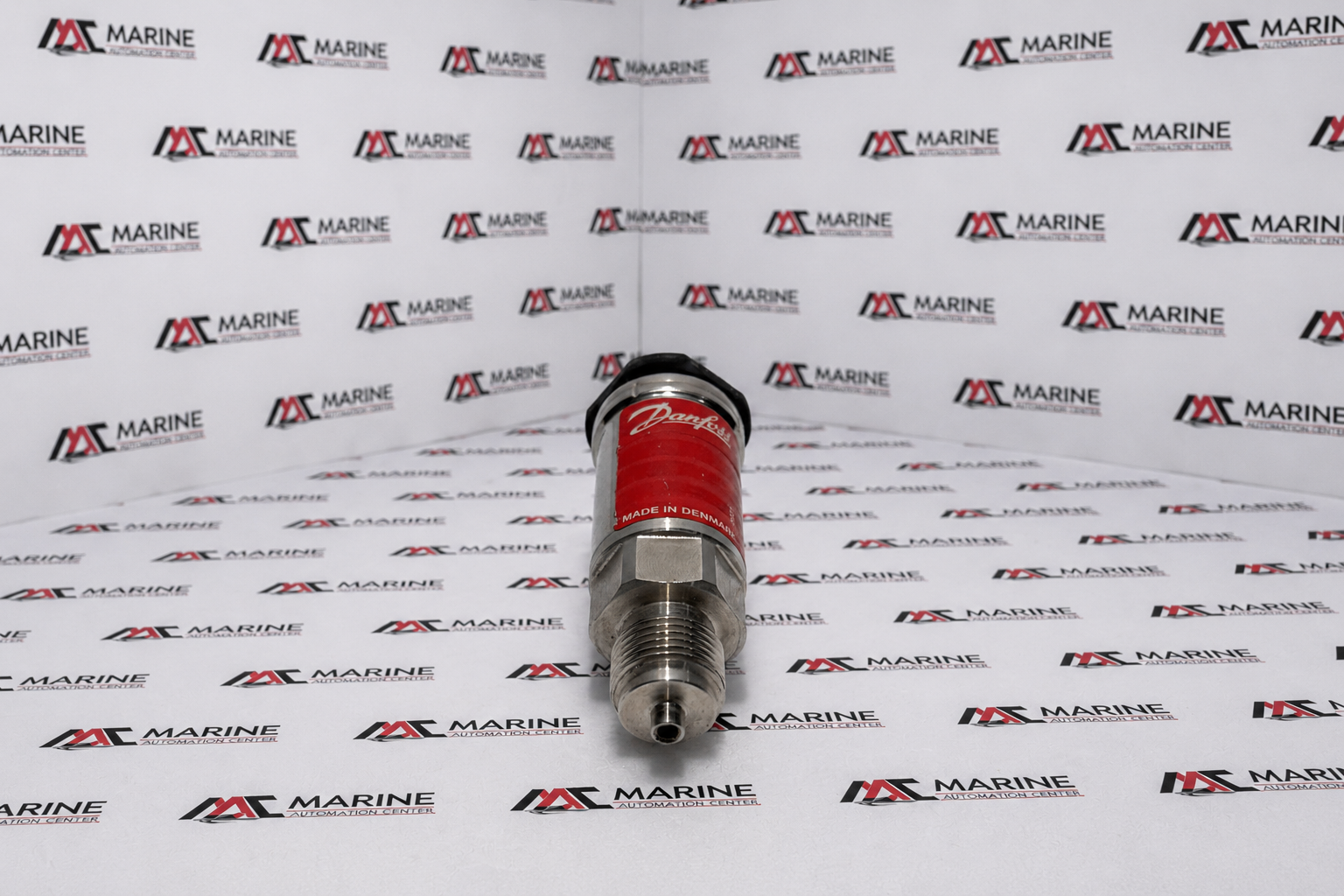

Danfoss MBS 33M Marine Pressure Transmitter
Danfoss MBS 33M (060G3127) is a marine-grade pressure transmitter designed for reliable pressure measurement in demanding marine and offshore applications. Built with a robust stainless steel construction, it delivers accurate, stable performance under harsh operating conditions, including vibration, shock, and temperature variations. It is ideal for monitoring hydraulic systems, pumps, compressors, and other marine process equipment
BRAND
Danfoss
TYPE
Pressure Transmitter
PART NO.
060G3127
MODEL
MBS 33M
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Pressure Transmitter |
| PART NO. | 060G3127 |
| MODEL | MBS 33M |
| Voltage Rating | Supply Voltage: 10 V DC ... 30 V DC (Max. supply current: 28 mA) |
| Application | Heavy-duty pressure monitoring and processing in marine engine rooms, hydraulics, pneumatic networks, cooling water systems, and cargo pipeline manifolds. |
| IEC | Enclosure protection class IP65 (when matching plug is fully connected); EMC emission conforms to EN 61000-6-3, and immunity to EN 61000-6-2 |
| Measurement Scale Range | 0 to 16 bar / 0 to 1.6 MPa |
| Overload Limits | Maximum working pressure (PB/MWP) is rated at 5.0 MPa / 50 bar |
| Analog Output Current | 2-wire system yielding a standard 4 to 20 mA linear current loop |
| Marine Class Certifications | DNV, GL, LR, ABS, BV, RINA, PRS, and NKK |
| Made In | Denmark / EU |
| REF NO | 1474 |
