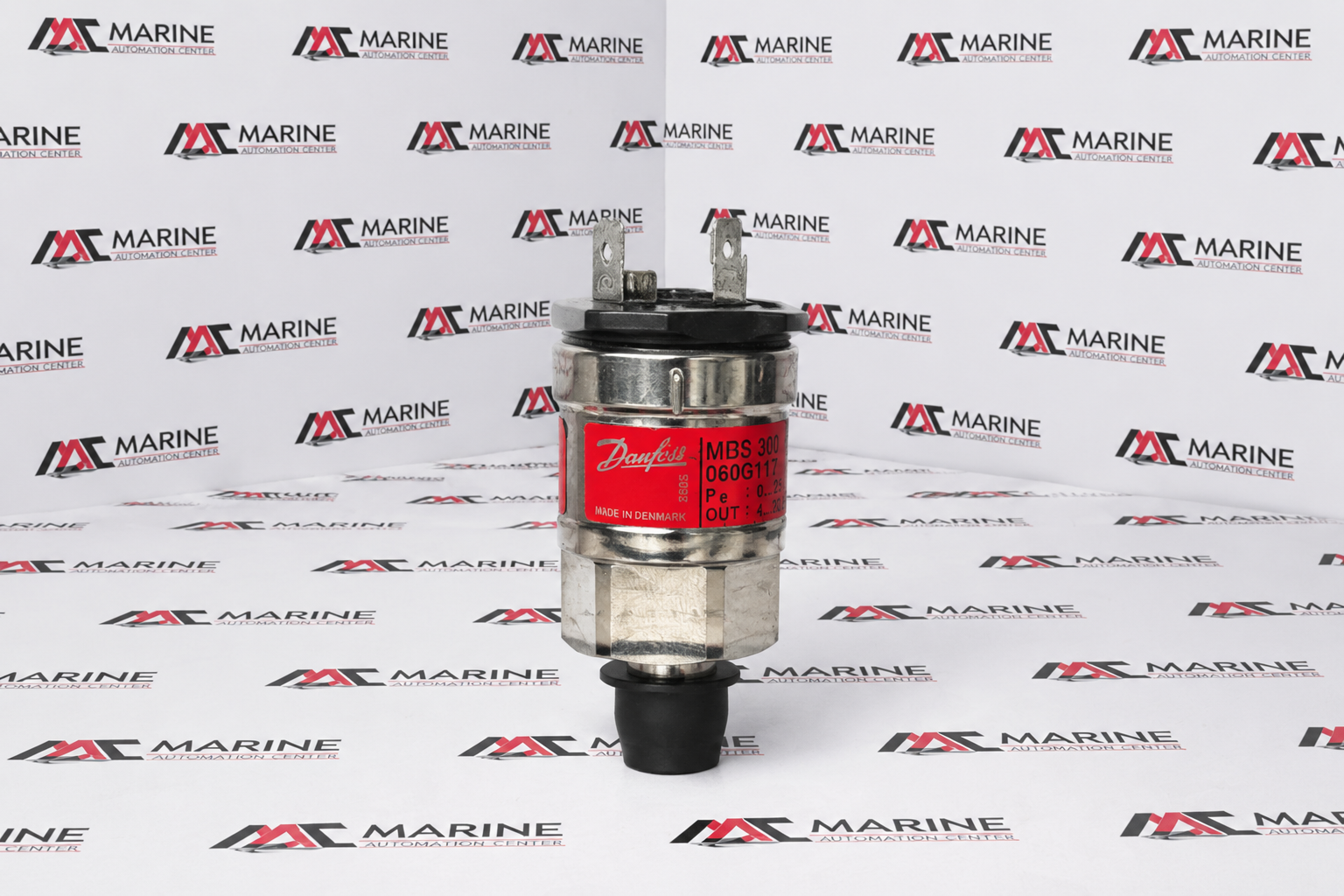

Danfoss MBS 3000 Pressure Transmitter
Danfoss MBS 3000 Pressure Transmitter (Part No. 060G1133) is a rugged industrial pressure transmitter designed for accurate and reliable pressure measurement in hydraulic, pneumatic, refrigeration, and industrial automation systems. Engineered for high accuracy, long-term stability, and durable performance, it ensures dependable pressure monitoring in demanding operating environments.
BRAND
Danfoss
TYPE
Pressure Transmitter
PART NO.
060G1133
MODEL
MBS 3000
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Pressure Transmitter |
| PART NO. | 060G1133 |
| MODEL | MBS 3000 |
| MANUFACTURER | Danfoss |

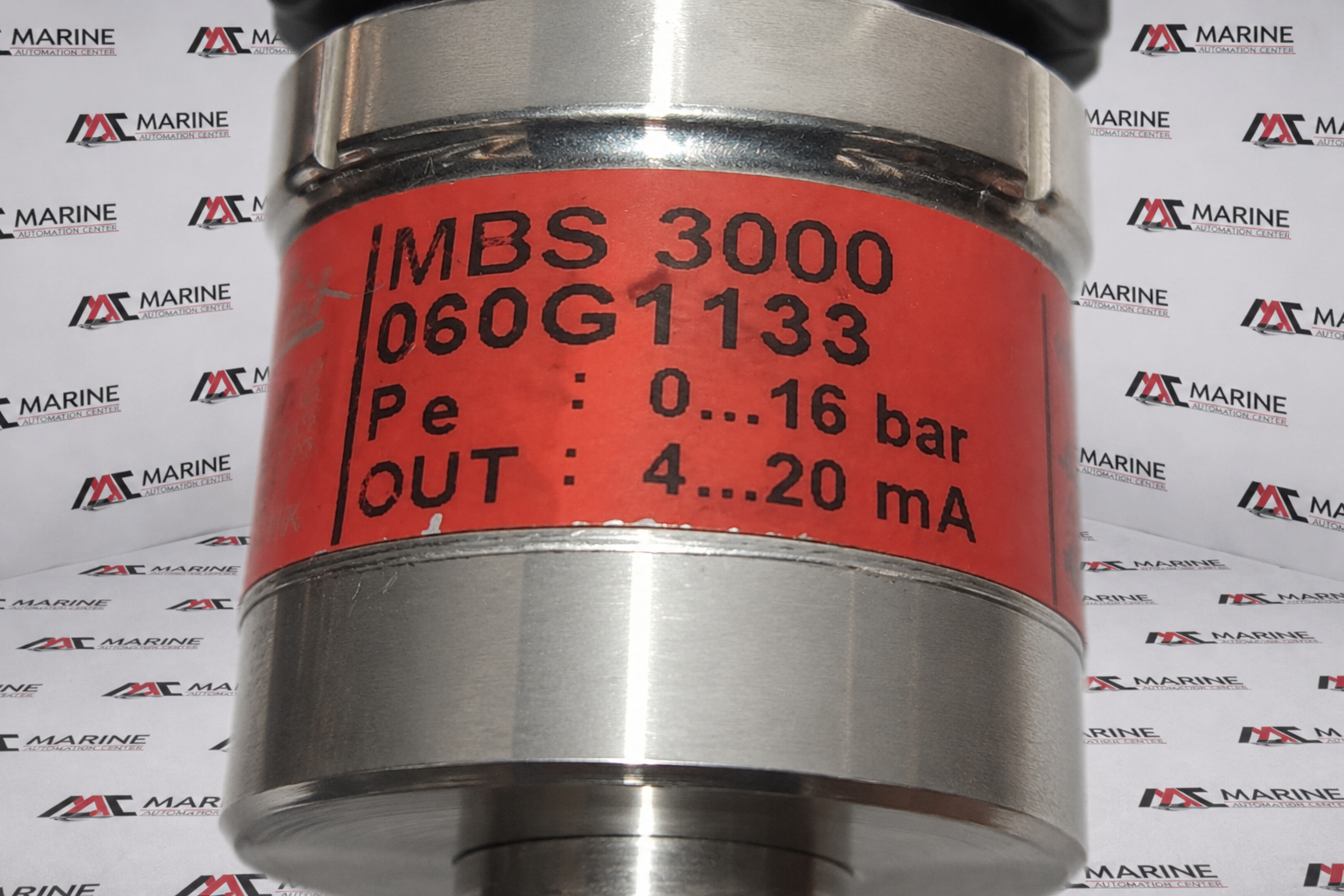

| Pressure Range | 0 to 16 bar (Relative/Gauge Pressure) |
| Output Signal | 4–20 mA Analog Current Loop |
| Supply Voltage | 9–32 V DC (Typical Operating: 10–30 V DC) |
| Voltage Rating | 9–32 V DC |
| Process Connection | G 1/4 A Male Thread (EN 837 Standard) |
| Pressure Connection Type | G |
| Pressure Connection Size | 1/4" |
| Pressure Connection HEX | 27 mm |
| Electrical Connection | Angular Connector / DIN Plug (DIN 43650-A) |

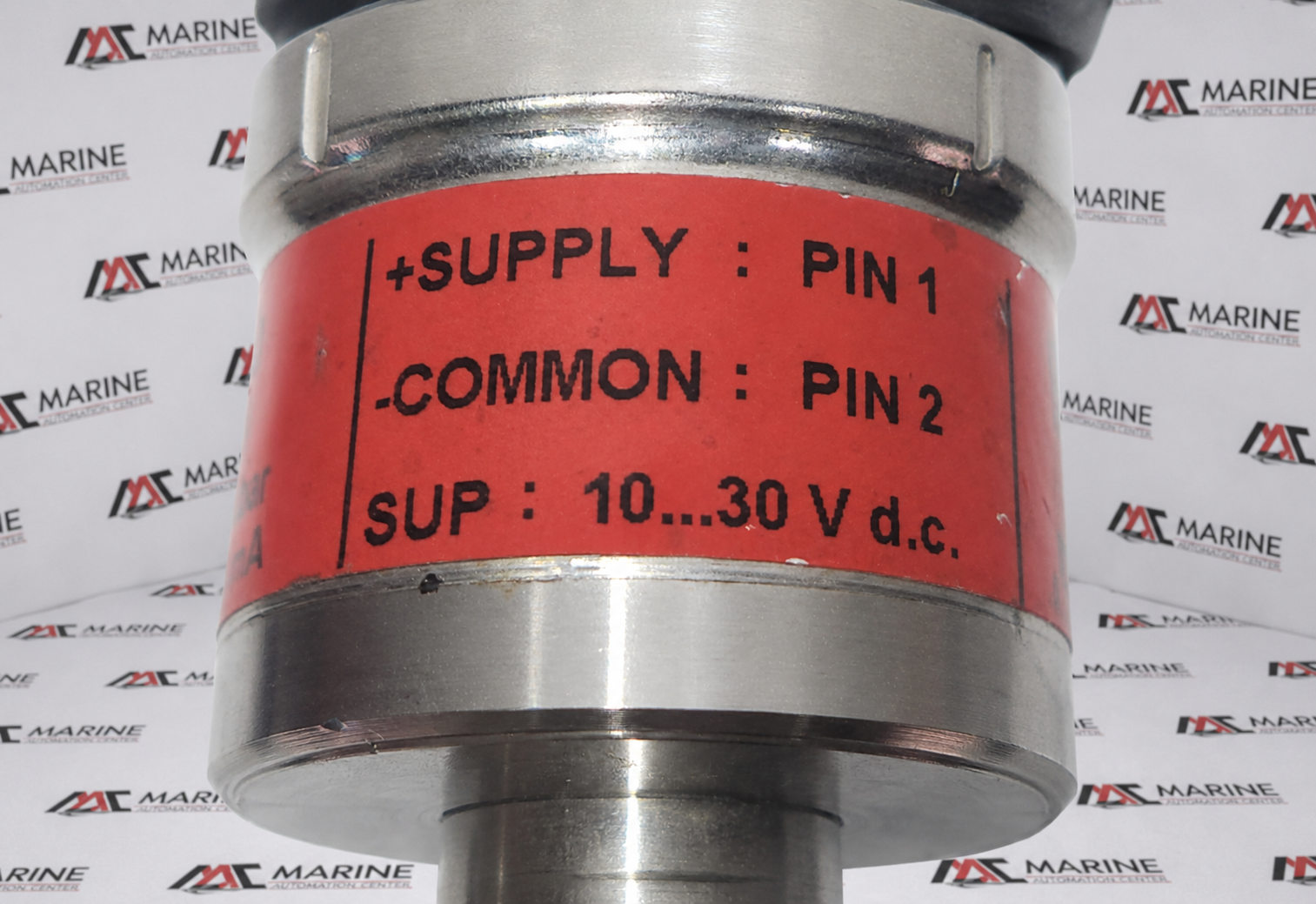

| Pin Configuration | Pin 1: +Supply, Pin 2: –Common |
| Wetted Parts Material | Acid-Resistant Stainless Steel (AISI 316L) |
| Enclosure Protection | IP65 |
| Approvals | ATEX, cULus UL Recognized, CE |
| Application | Pressure measurement and monitoring in hydraulic, refrigeration, marine, industrial automation, and process control systems |

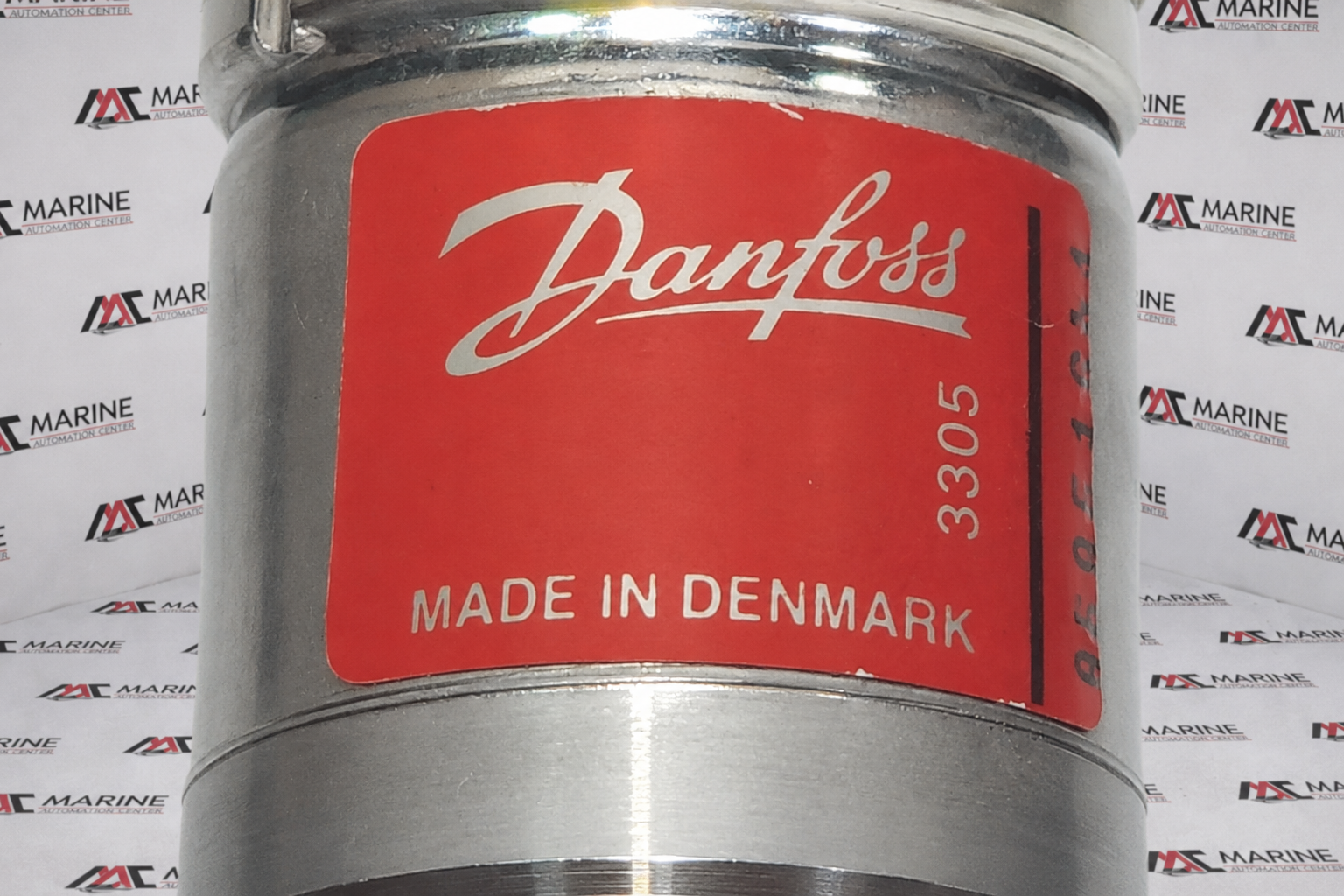

| Made In | Denmark |
| REF NO | 1368 |
