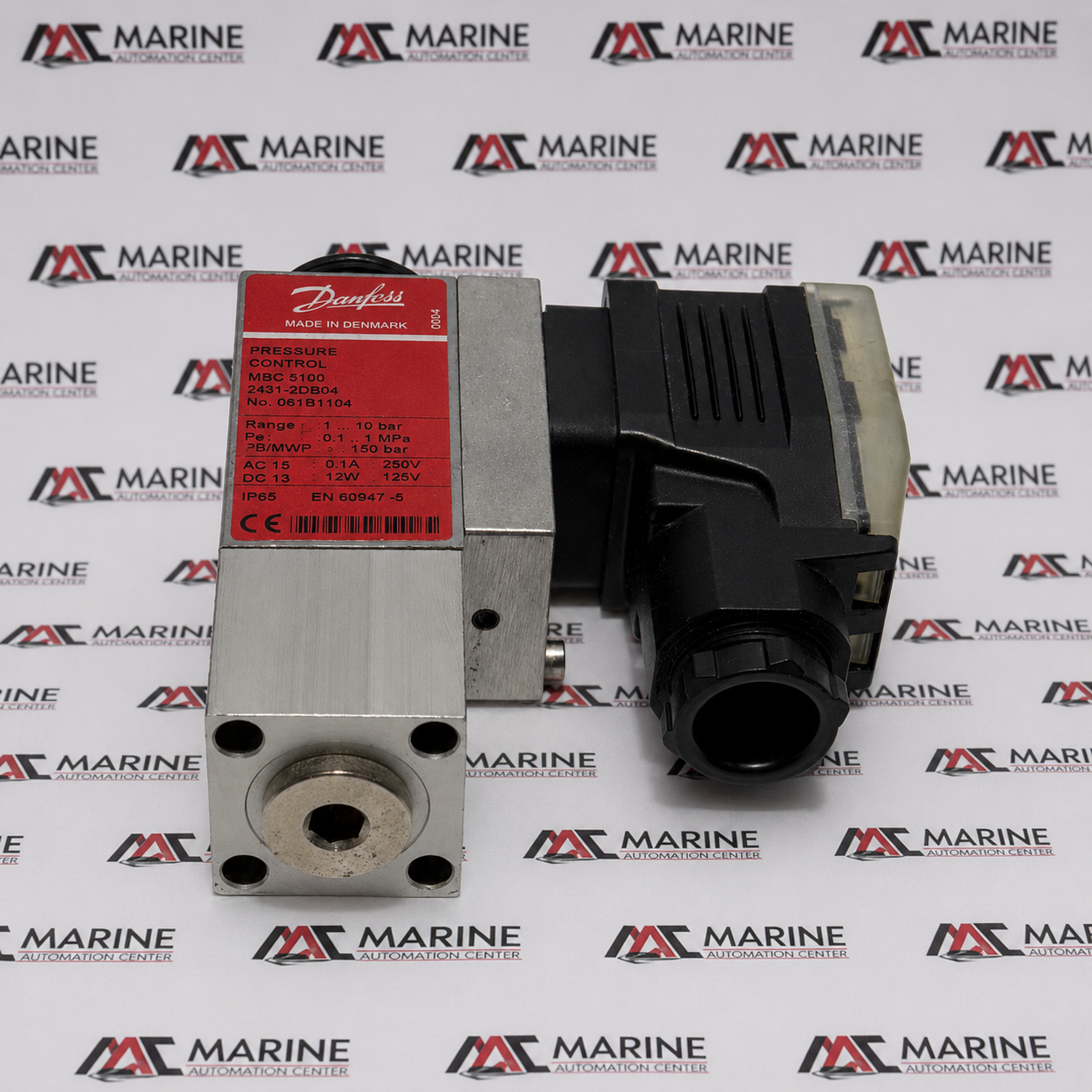

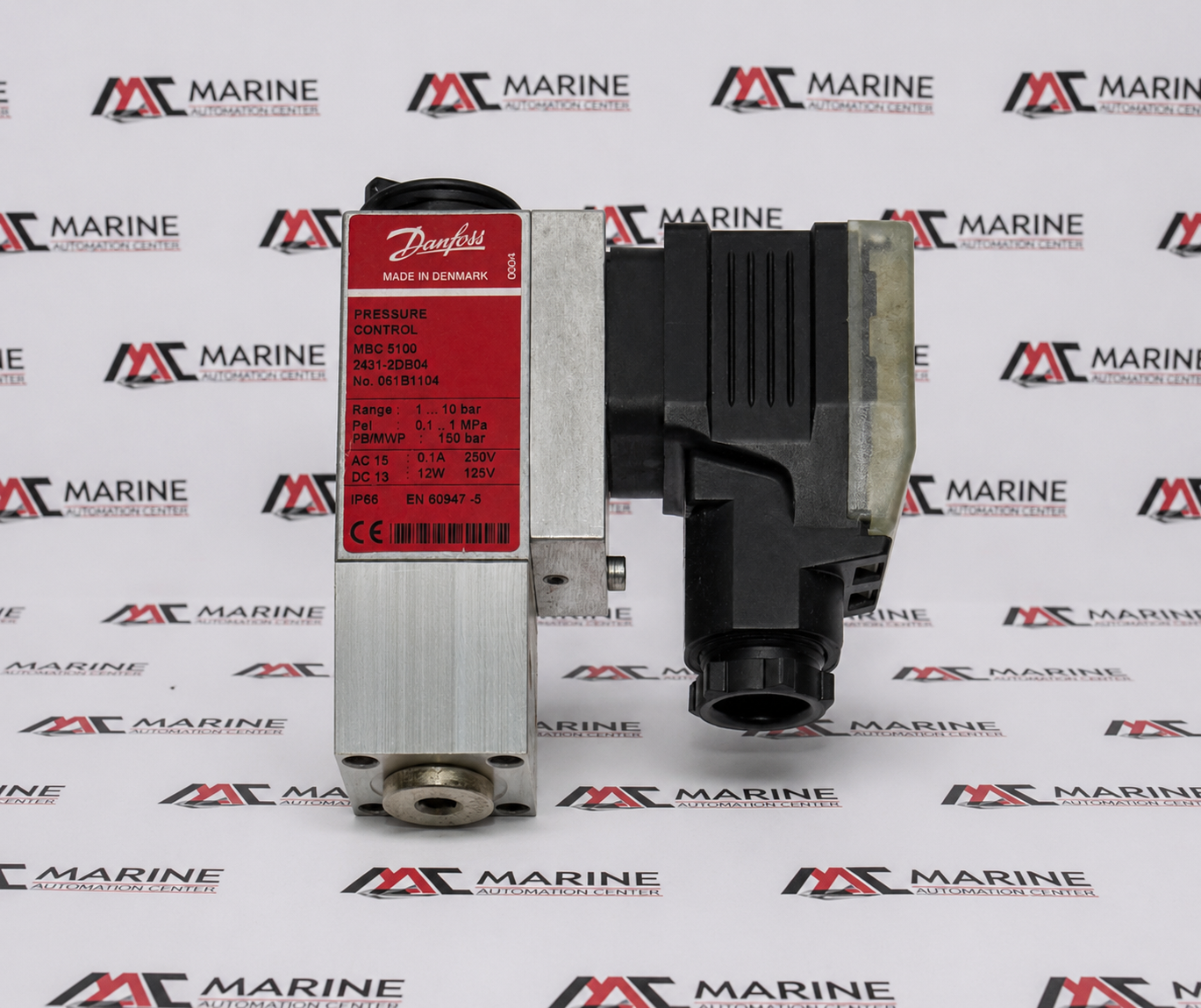

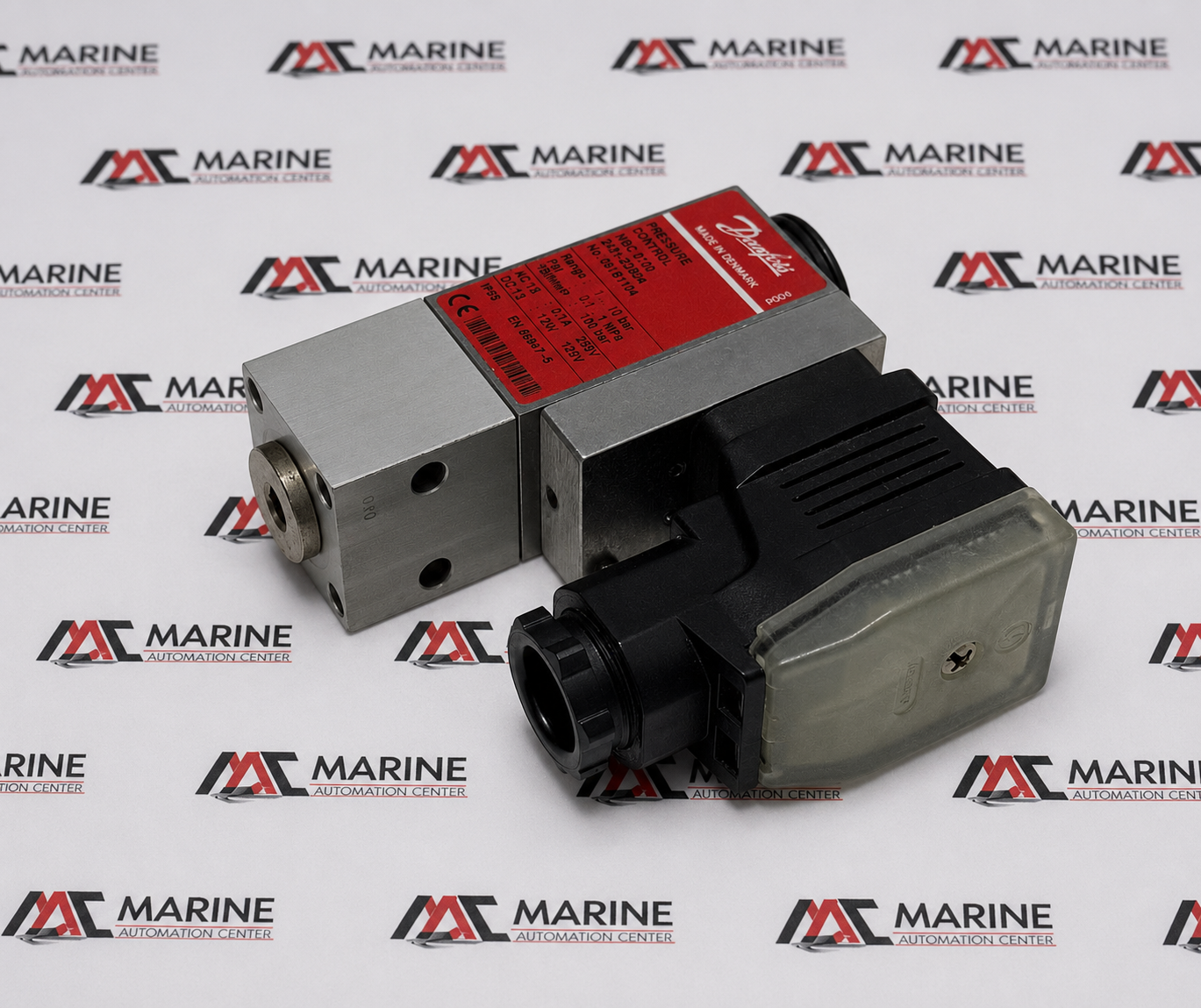

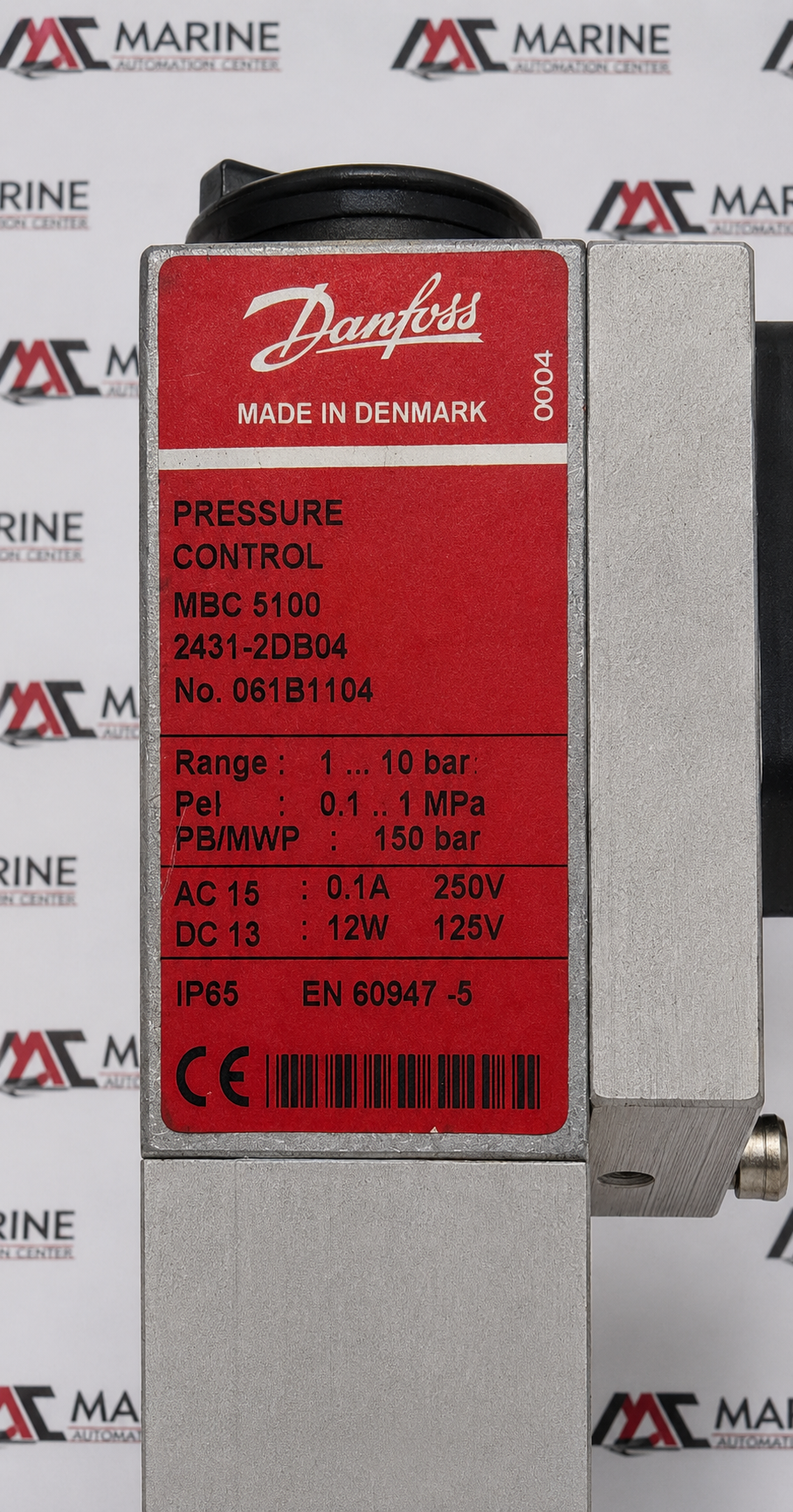

Danfoss MBC 5100 Pressure Switch
Danfoss MBC 5100 Pressure Switch (Part No. 061B1104) is a robust industrial pressure switch designed for accurate pressure monitoring and control in demanding applications. It provides reliable switching performance, durable construction, and dependable operation under harsh conditions, making it ideal for hydraulic systems, compressors, marine equipment, industrial machinery, and process automation.
BRAND
Danfoss
TYPE
Pressure Switch
PART NO.
061B1104
MODEL
MBC 5100 (2431-2DB04)
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Pressure Switch |
| PART NO. | 061B1104 |
| MODEL | MBC 5100 (2431-2DB04) |
| MANUFACTURER | Danfoss |
| Voltage Rating | AC 250 V / DC 125 V (Contact Rating) |
| Application | Industrial pressure monitoring, hydraulic systems, compressors, marine equipment, pumps, and process automation |
| Pressure Operating Range | 1–10 bar (0.1–1 MPa) |
| Maximum Working Pressure (PB/MWP) | 150 bar |
| Reset Function | Automatic |
| AC-15 Contact Rating | 0.1 A at 250 V AC |
| DC-13 Contact Rating | 12 W at 125 V DC |
| Enclosure Rating | IP65 |
| Compliance Standard | EN 60947-5 |
| Mounting Type | Direct Process Mount |
| Made In | Denmark |
| REF NO | 1479 |
