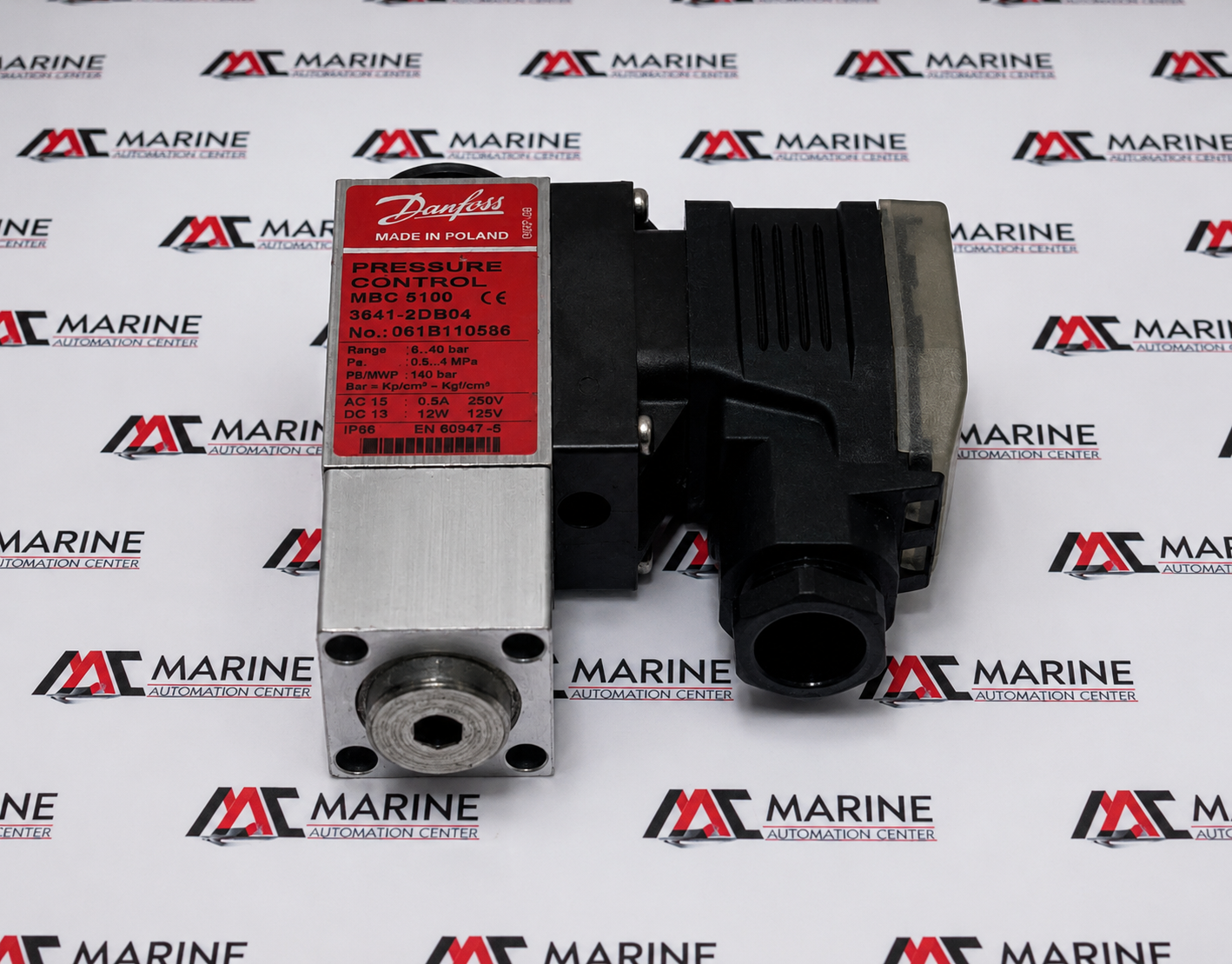

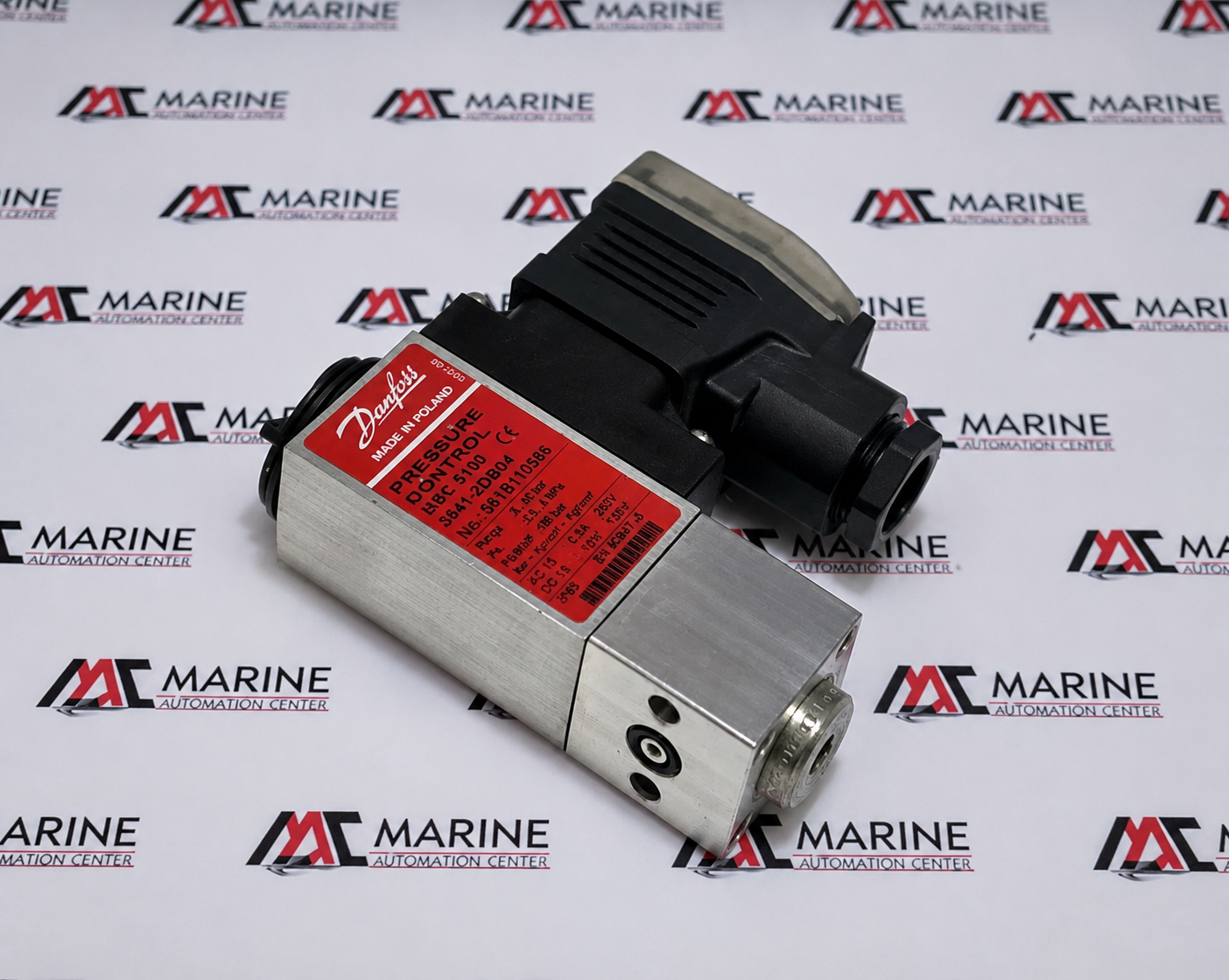

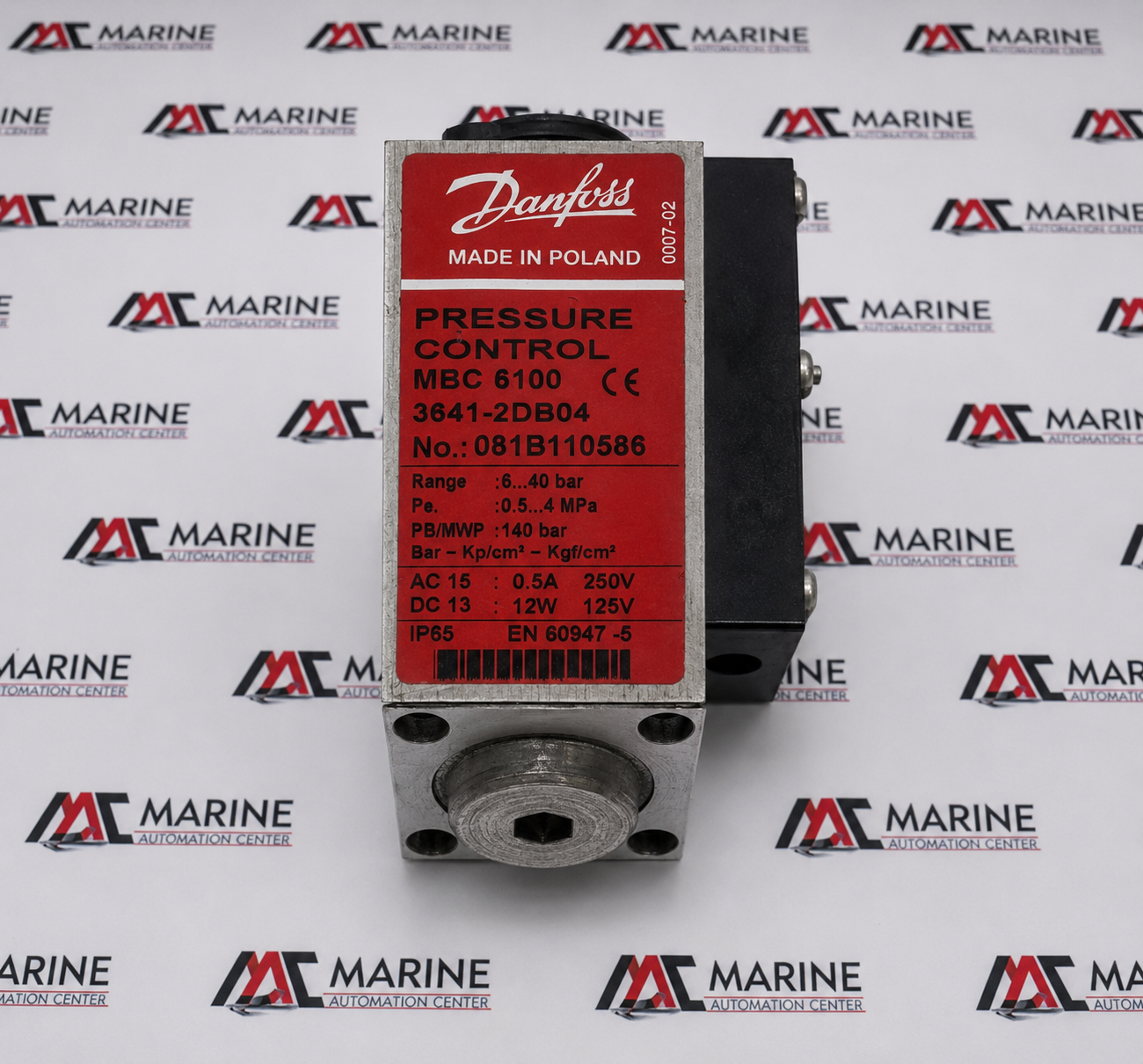

Danfoss MBC 5100 Pressure Control Switch
The Danfoss MBC 5100 Pressure Control Switch (Part No. 061B110566) is a rugged industrial pressure switch designed for monitoring and controlling pressure in hydraulic, pneumatic, and marine applications. It provides accurate switching at preset pressure levels to protect equipment and automate system operation. Engineered for harsh environments, the MBC 5100 offers high reliability, excellent vibration resistance, and long service life, making it ideal for marine engines, compressors, pumps, an
BRAND
Danfoss
TYPE
Pressure Control / Switch
PART NO.
061B110566
MODEL
MBC 5100 (Specification key: 3641-2DB04)
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Pressure Control / Switch |
| PART NO. | 061B110566 |
| MODEL | MBC 5100 (Specification key: 3641-2DB04) |
| Voltage Rating | AC 15: 0.5A 250V / DC 13: 12W 125V |
| Application | Marine & Heavy Industrial Applications (motors, gears, compressors, etc.) |
| IEC | EN 60947-5 |
| Gross weight | 0.338 Kilogram |
| Net weight | 0.282 Kilogram |
| EAN | 5702423218707 |
| Diff.@Max. range setting [bar] | 7 bar |
| Diff.@Min. range setting [bar] | 2 bar |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | M20 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Out of scope |
| Max. test pressure [bar] Pe | 150 bar |
| Max. test pressure [psig] | 2176 psig |
| Max. Working Pressure [bar] | 150 bar |
| Reset function | Automation |
| Pressure connection | G 1/4 female |
| Made In | Poland |
| REF NO | 1206 |
