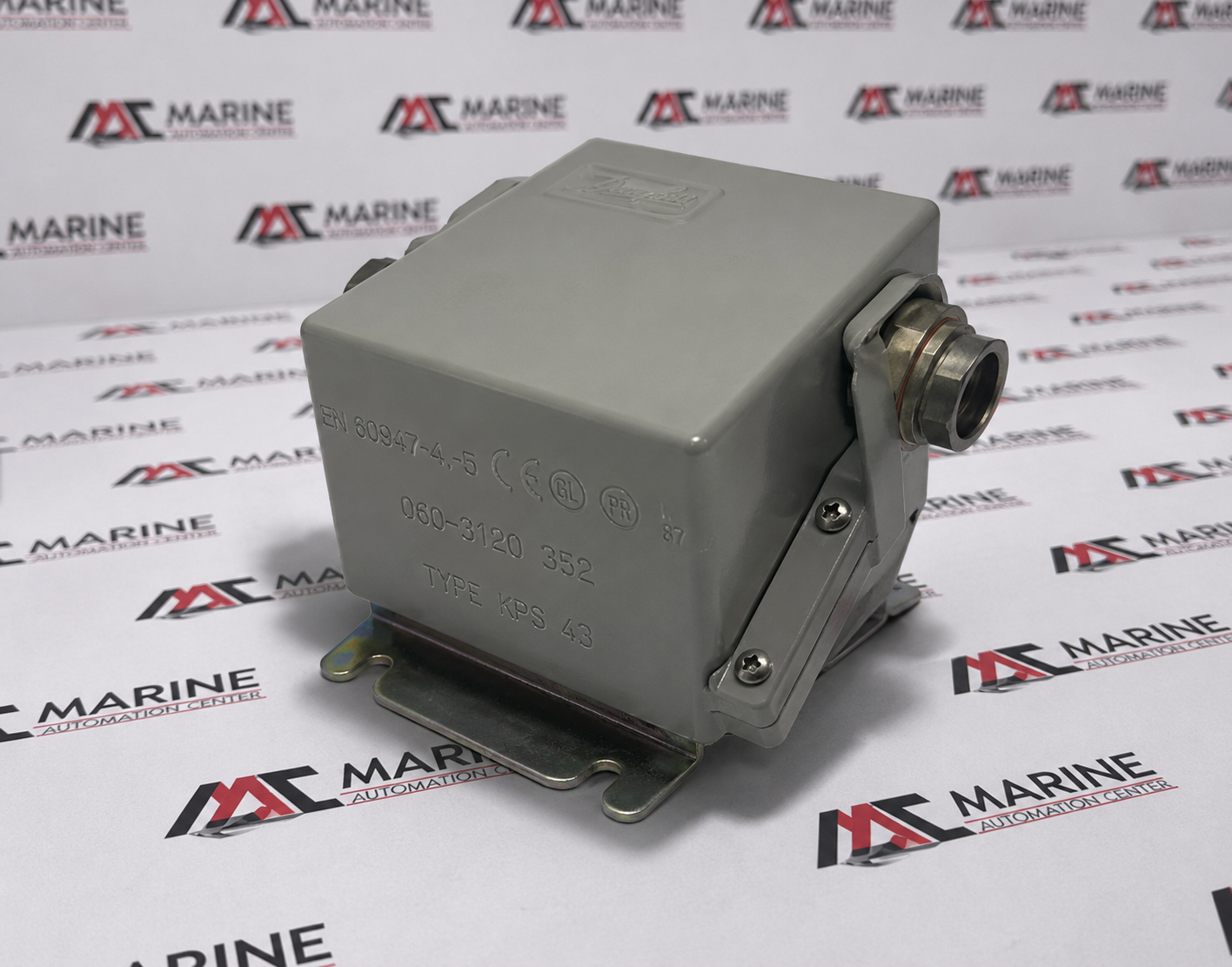

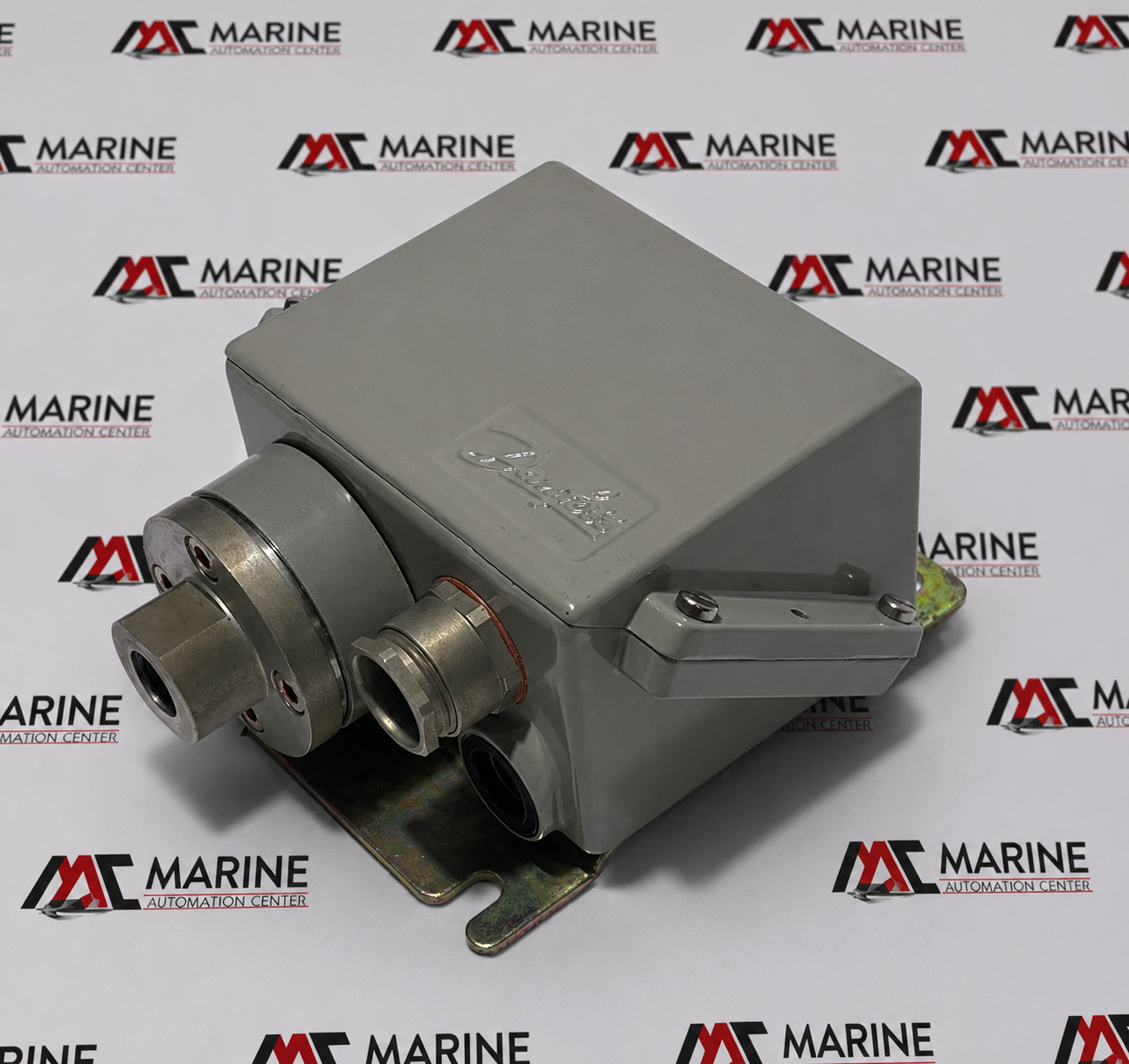

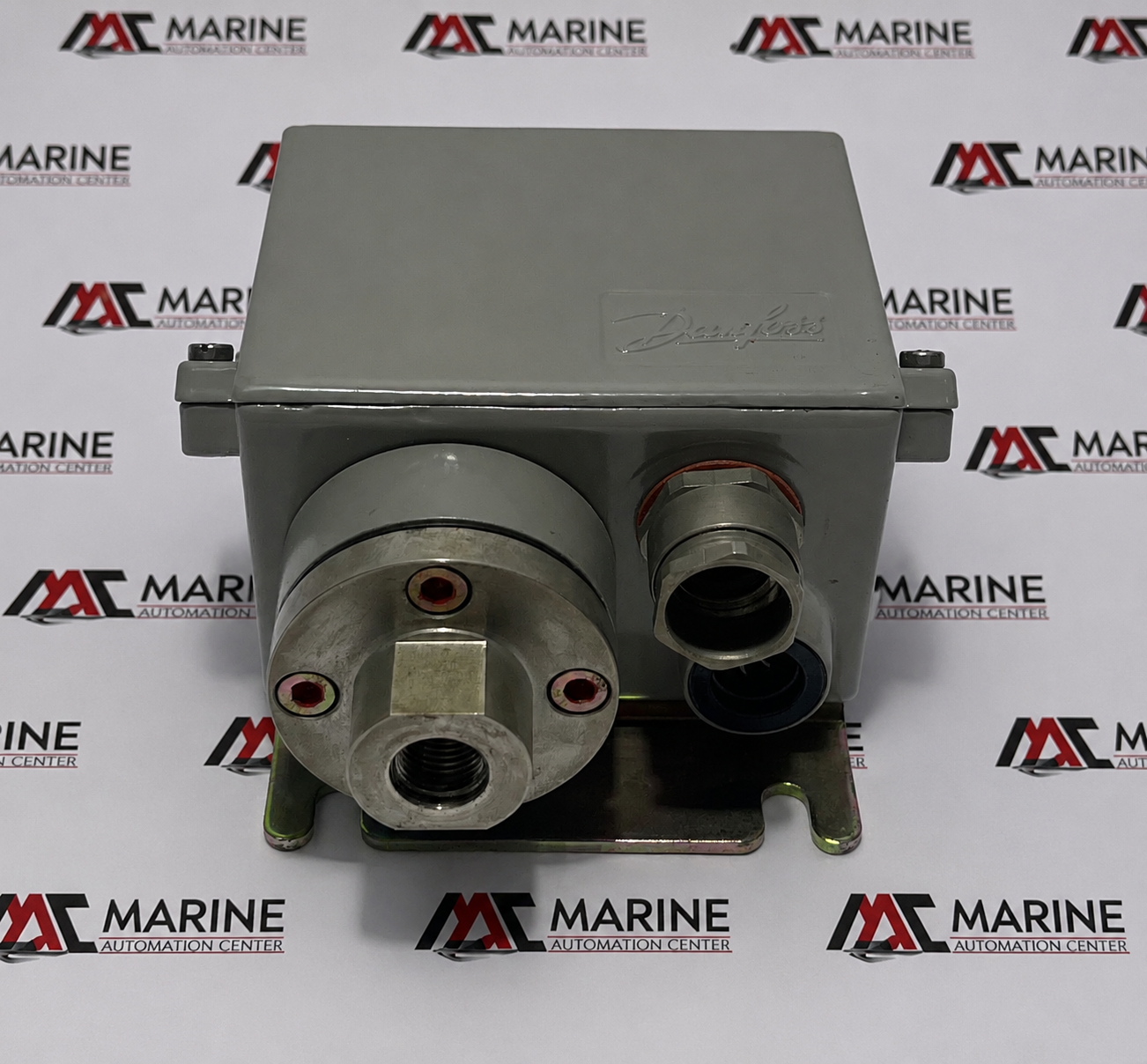

Danfoss KPS 43 Heavy Duty Pressure Switch
Danfoss KPS 43 Heavy Duty Pressure Switch (Part No. 060-3120) is a robust industrial pressure switch designed for reliable monitoring and control of pressure in demanding applications. It features an adjustable pressure range, high mechanical durability, SPDT switching contacts, and a rugged enclosure, making it ideal for compressors, pumps, hydraulic systems, marine equipment, and industrial automation.
BRAND
Danfoss
TYPE
Heavy Duty Pressure Switch
PART NO.
0603120
MODEL
KPS 43
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Heavy Duty Pressure Switch |
| PART NO. | 0603120 |
| MODEL | KPS 43 |
| Voltage Rating | 440 V AC / 220 V DC |
| Application | Monitoring, alarm, and regulation systems in factories, diesel plant systems, heavy-duty compressors, power stations, and on-board ships |
| IEC | EN 60947-4 and EN 60947-5 compliant |
| Pressure Regulation Range | 1 to 10 bar (\(P_{e}\)) |
| Adjustable Differential Range | 0.7 to 2.8 bar |
| Maximum Working Pressure (MWP) | 120 bar |
| Enclosure Sealing Rating | IP67 according to IEC 60529 / EN 60529 |
| Contact Material | Silver with heavy-duty gold plating. |
| Electrical Load Capacity | Ohmic (AC-1): 10 A, 440 V Inductive (AC-3): 6 A, 440 V Inductive (AC-15): 4 A, 440 V Direct Current (DC-13): 12 W, 220 V |
| Operating Ambient Temperature | -25°C to +70°C |
| Pressure Sensing Capsule Elements | Diaphragm capsule assembly |
| Pressure Inlet Thread Interface | G 1/4 inch female pipeline connection |
| Made In | Poland |
| REF NO | 1322 |
