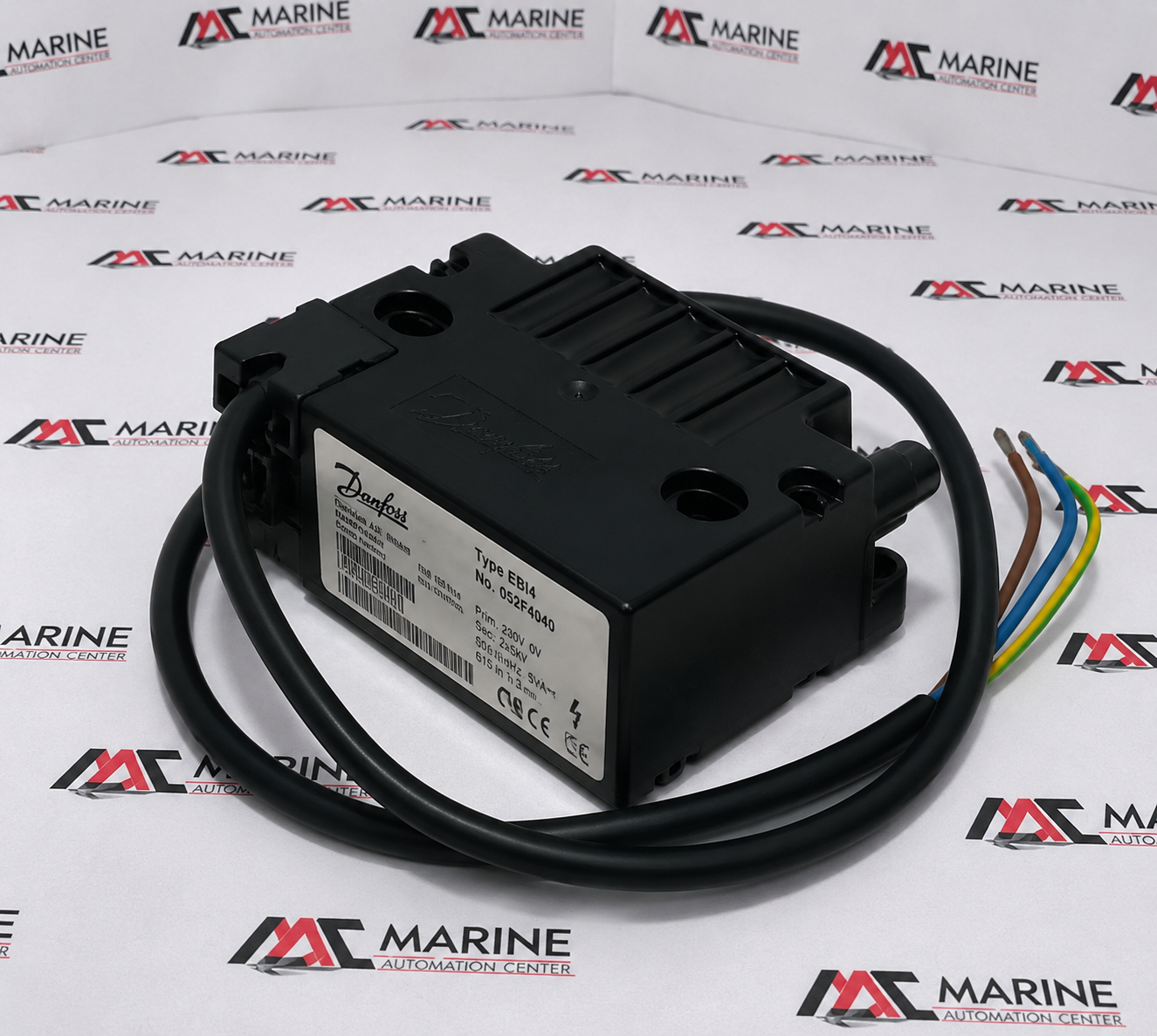

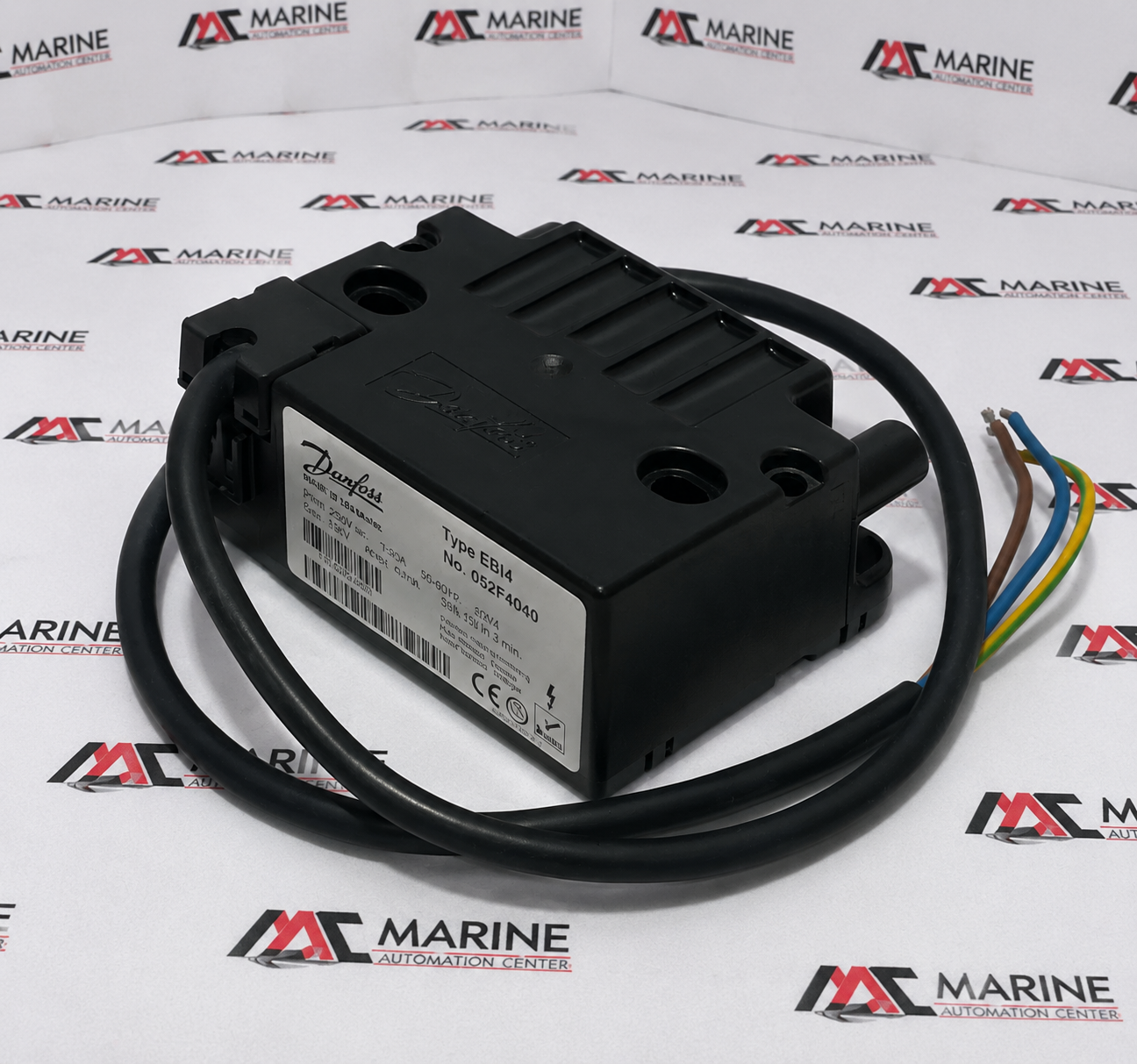

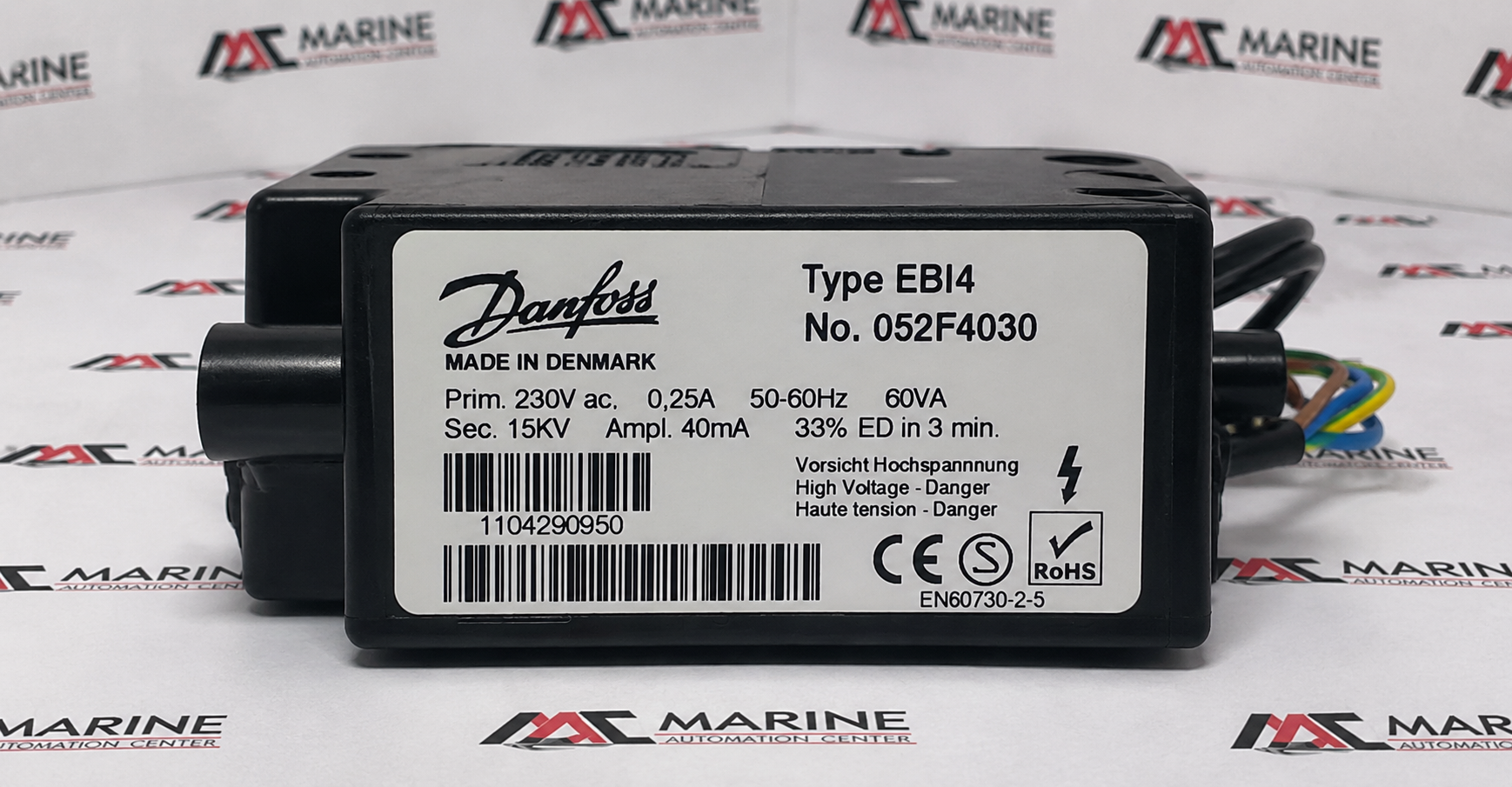

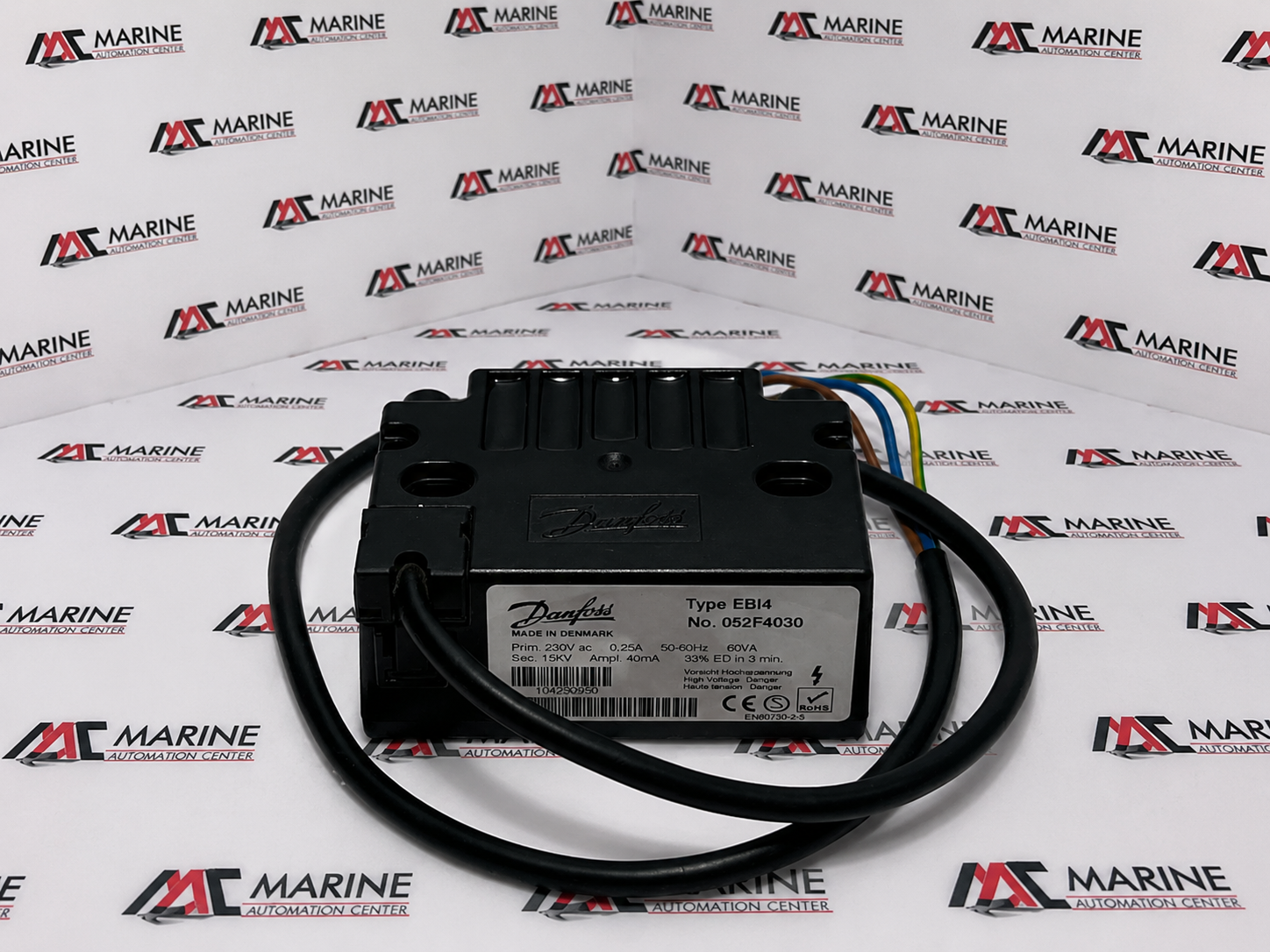

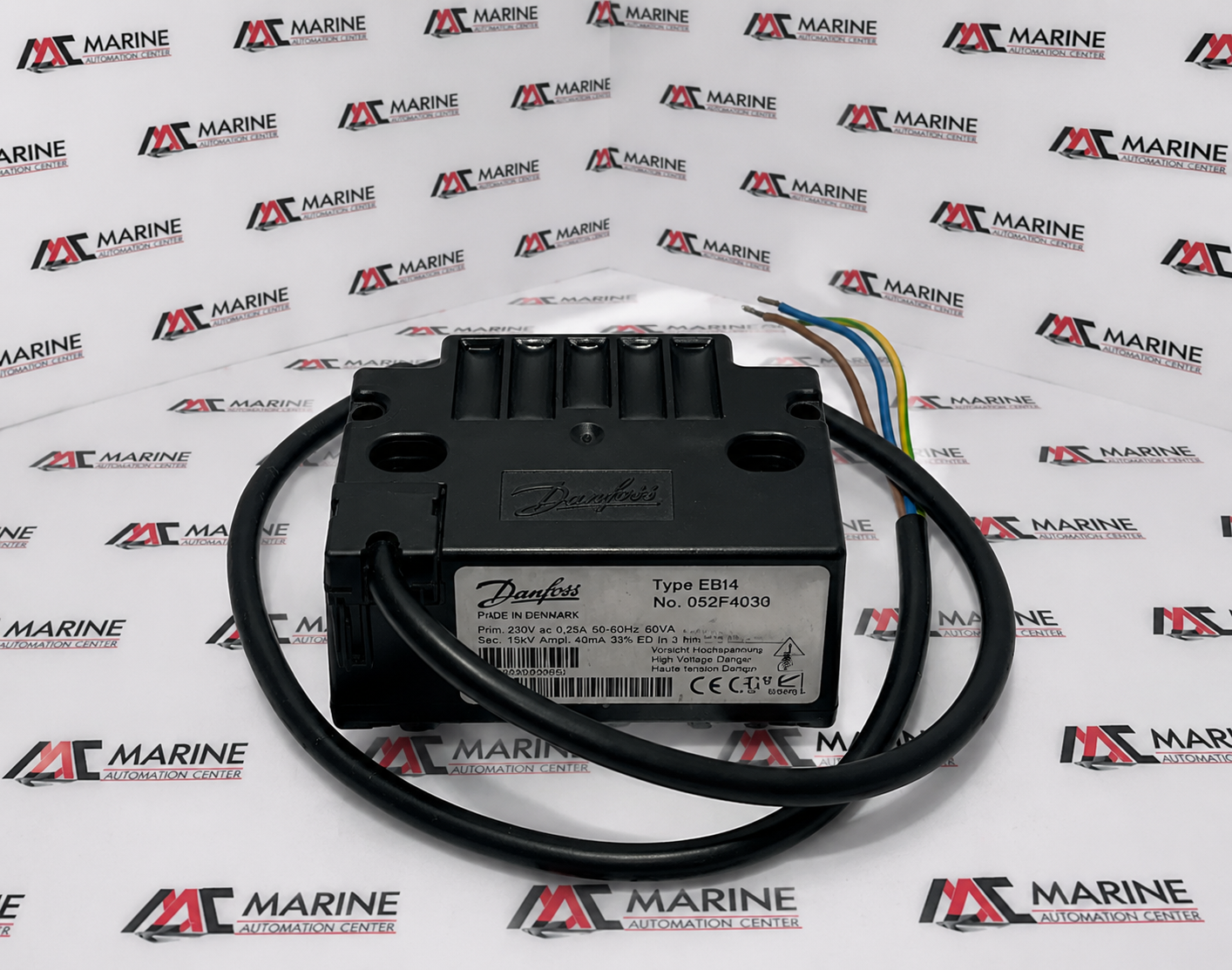

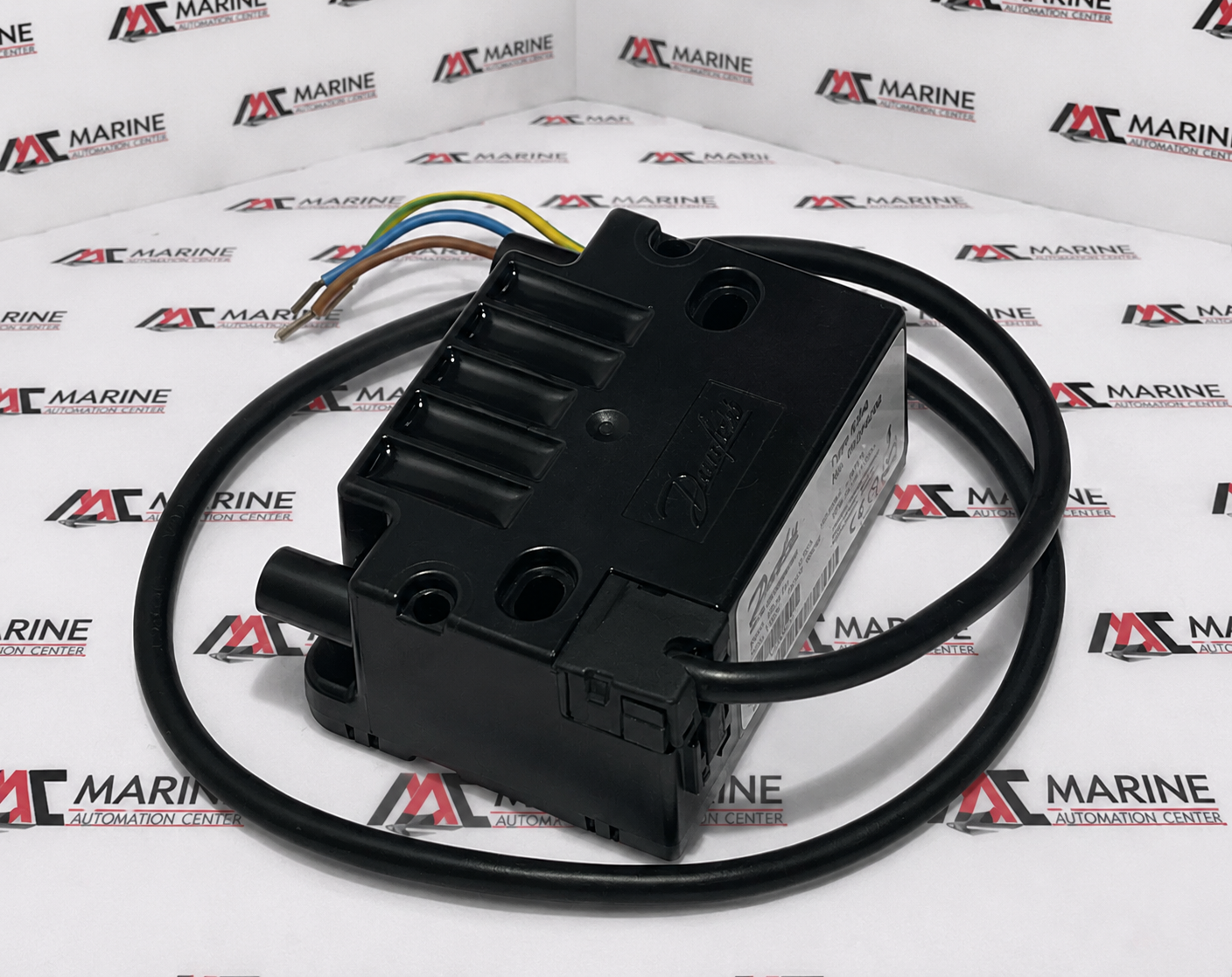

Danfoss EBI4 Ignition Transformer
Danfoss EBI4 Ignition Transformer (P/N 052F4030) is a high-voltage ignition unit designed for reliable ignition of oil and gas burners. It generates the required spark energy to ensure safe and stable flame start-up in combustion systems, offering robust performance and long service life in industrial heating applications.
BRAND
Danfoss
TYPE
Ignition Transformer
PART NO.
052F4030
MODEL
EBI4
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Ignition Transformer |
| PART NO. | 052F4030 |
| MODEL | EBI4 |
| SUPPLY VOLTAGE | 230 V AC (Operating Range: 187–255 V AC) |
| PRIMARY CURRENT | 0.25 A |
| PRIMARY FREQUENCY | 50–60 Hz |
| POWER CONSUMPTION | 60 VA |
| SECONDARY PEAK VOLTAGE | 15 kV |
| SECONDARY CURRENT | 40 mA |
| DUTY CYCLE | 33% ED in 3 Minutes |
| ENCLOSURE RATING | IP40 |
| HOUSING | Standard Housing |
| MAIN FUSE | Minimum 10 A |
| STANDARD | EN60730-2-5 |
| CERTIFICATIONS | CE, RoHS |
| APPLICATION | Electronic ignition for oil and gas burners, burner management systems, industrial heating equipment, boilers, and combustion systems. Suitable for intermittent ignition between two electrodes or one electrode and ground |
| SERVICE KIT | Danfoss EBI Service Kit |
| BARCODE NO. | 1104290950 |
| HIGH VOLTAGE WARNING | High Voltage – Danger |
| MADE IN | Denmark |
| REF NO. | 1272 |
