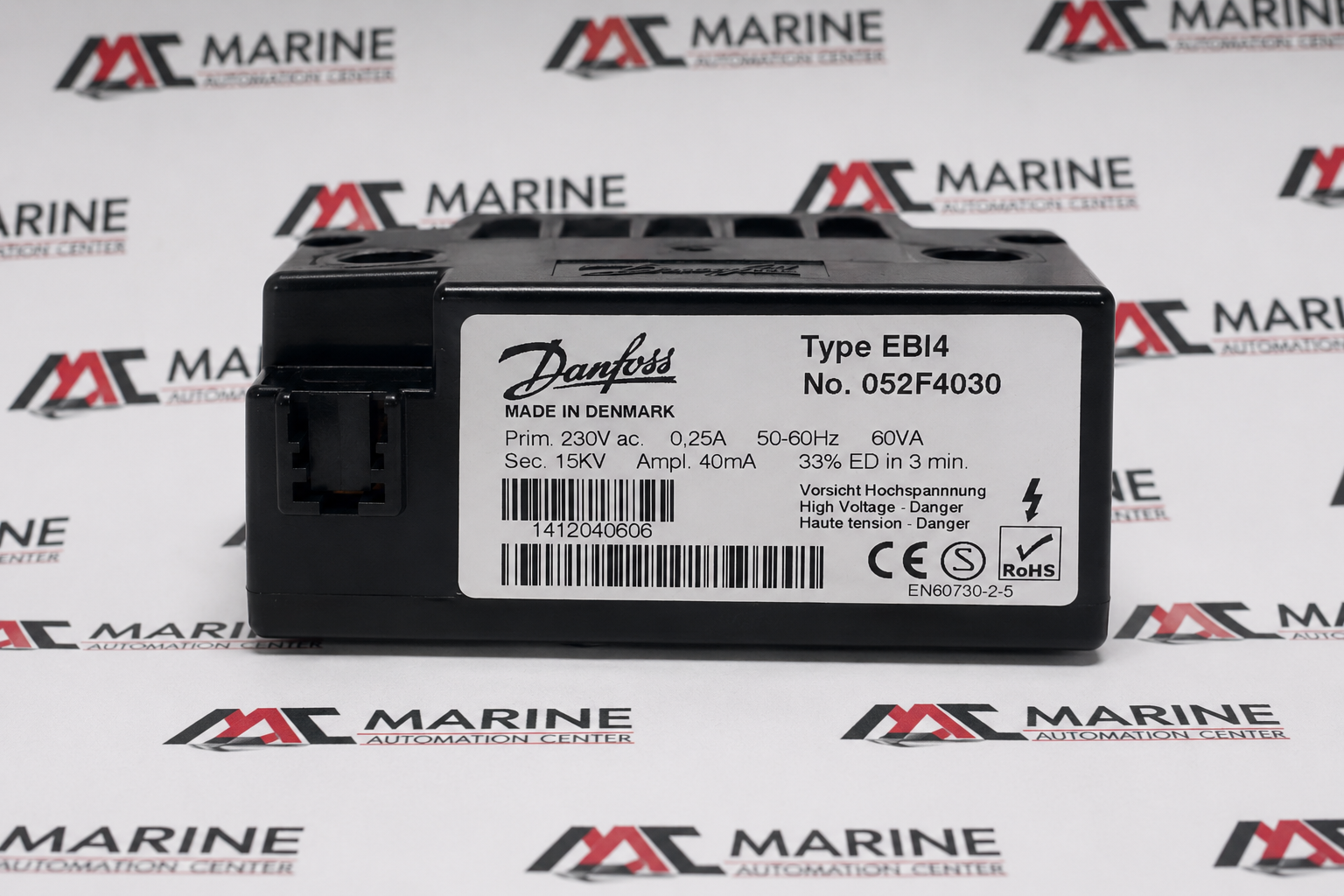

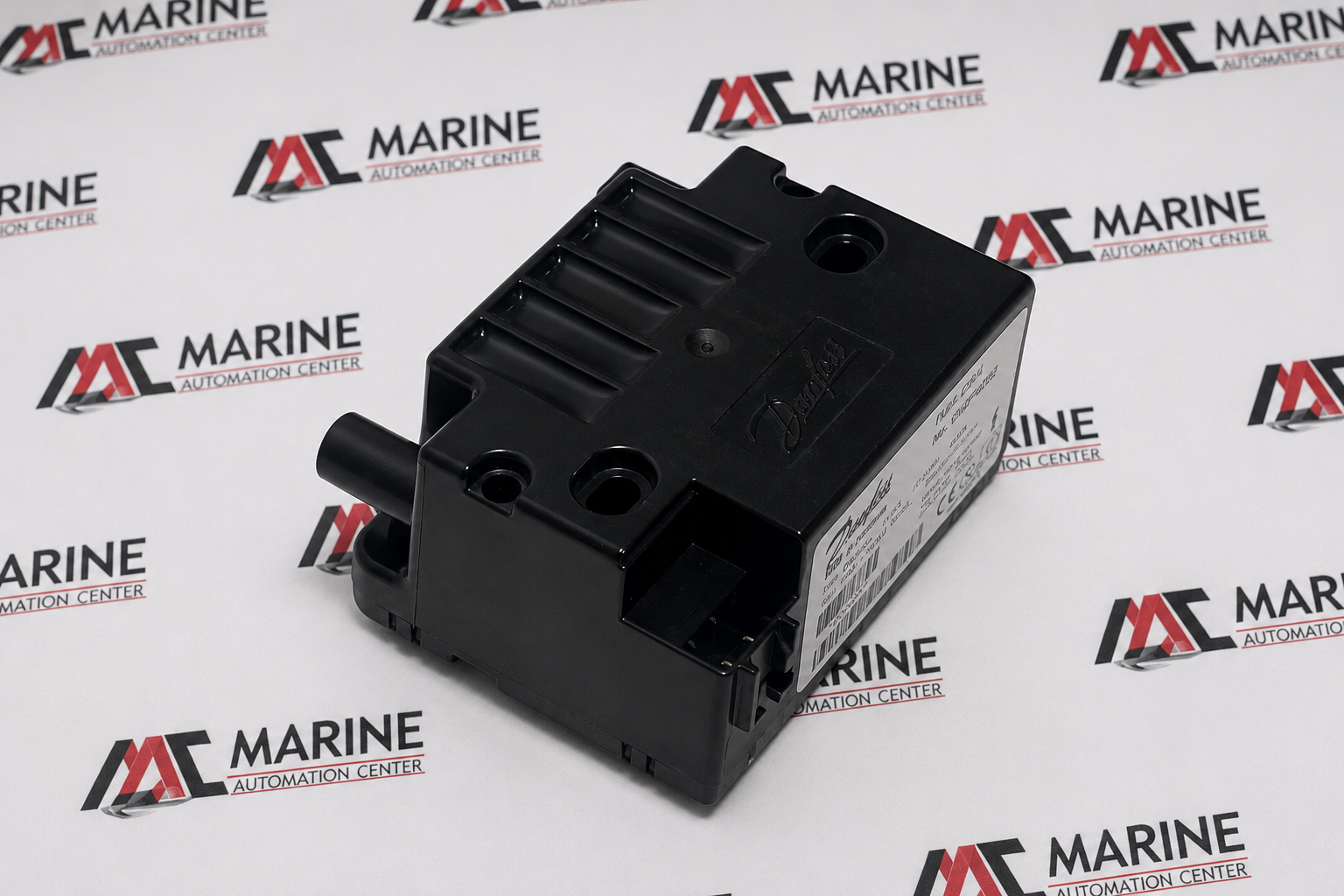

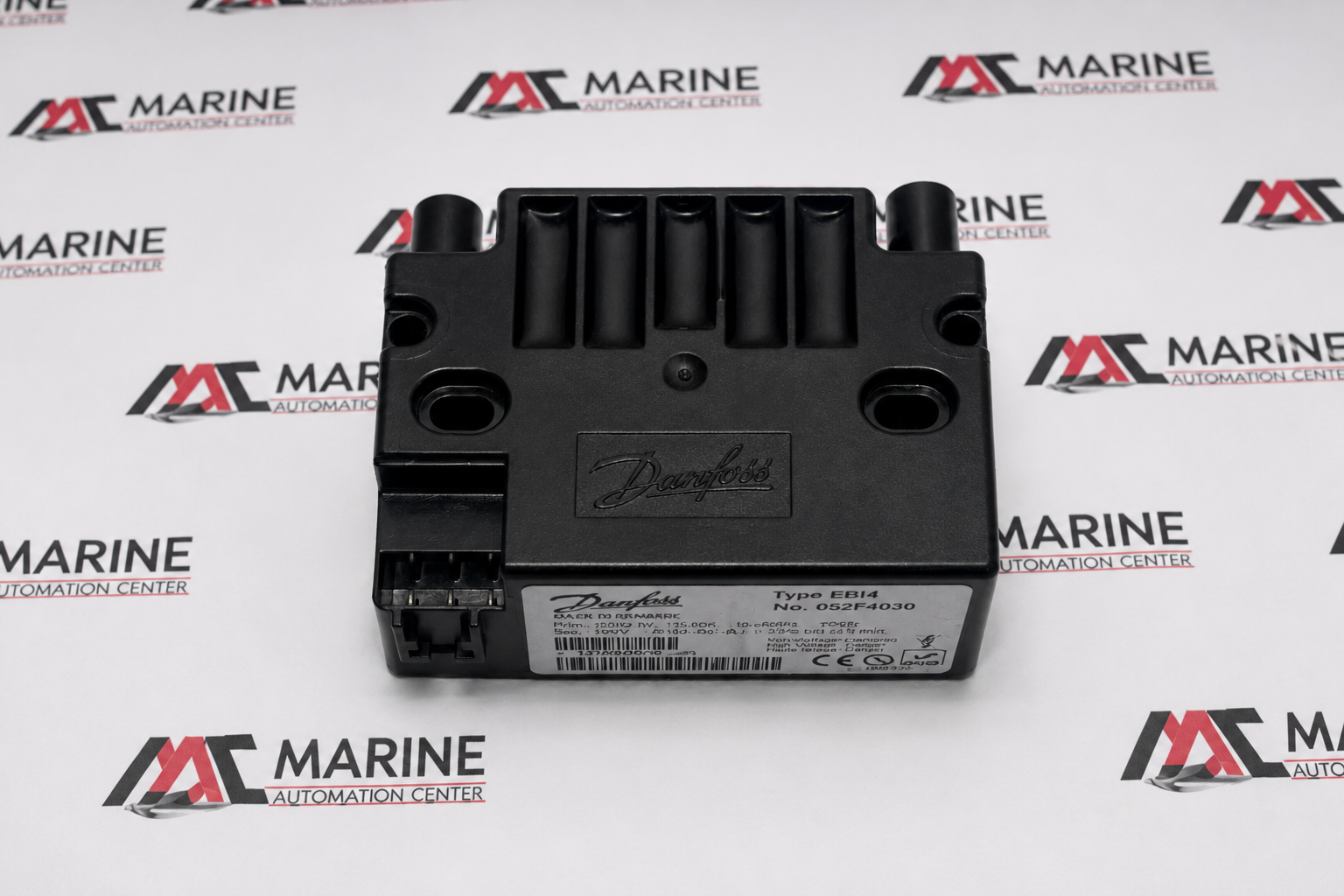

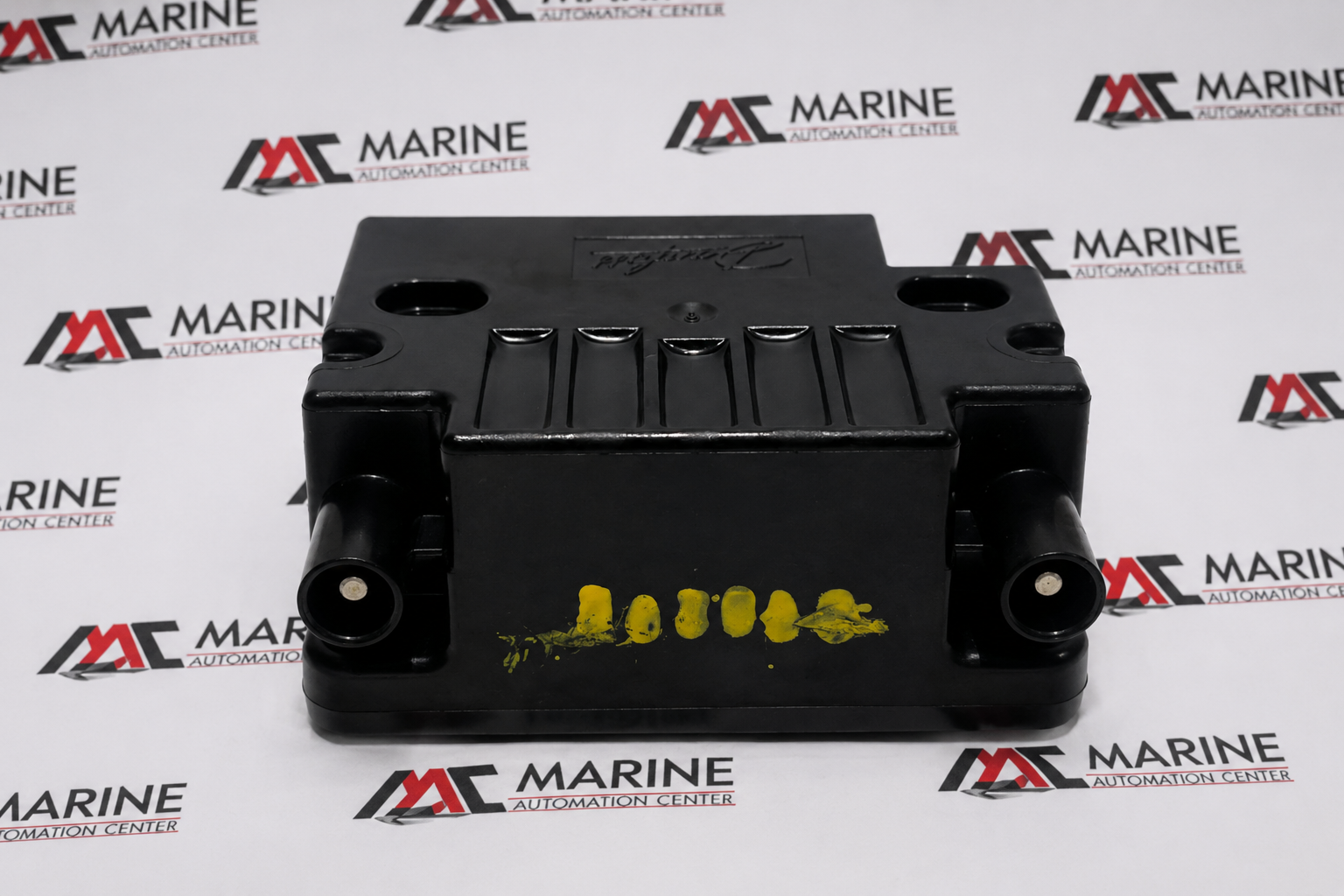

Danfoss EBI4 Electronic Ignition Unit / Ignition Transformer
The Danfoss EBI4 Electronic Ignition Unit (Part No. 052F4030) is a compact, high-voltage ignition transformer designed to provide reliable spark ignition for oil and gas burners. It delivers consistent ignition performance, ensuring safe burner start-up and stable combustion in boilers, furnaces, and industrial heating systems. The EBI4 is widely used in commercial, industrial, and marine burner applications for dependable and efficient ignition control.
BRAND
Danfoss
TYPE
Electronic Ignition Unit / Ignition Transformer
PART NO.
052F4030
MODEL
EBI4
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Electronic Ignition Unit / Ignition Transformer |
| PART NO. | 052F4030 |
| MODEL | EBI4 |
| Voltage Rating | Primary: 230V AC (Operating range 187–255V AC), 50–60Hz, 0.25A, 60VA |
| Application | Electronic ignition unit for intermittent ignition in oil burners and gas burners. Suitable for small and medium-sized domestic and light commercial burners. Used to generate a high-voltage spark between ignition electrodes for burner ignition. |
| IEC / Standard | EN60730-2-5 |
| Secondary Output Voltage | 15 kV |
| Secondary Output Current | 40 mA |
| Duty Cycle | 33% ED (3 minutes operating cycle) |
| Safety Warning | High Voltage – Danger (Vorsicht Hochspannung / Haute Tension – Danger) |
| Certifications / Standards | CE, RoHS, EN 60730-2-5 |
| Made In | Denmark |
| REF NO | 1186 |
