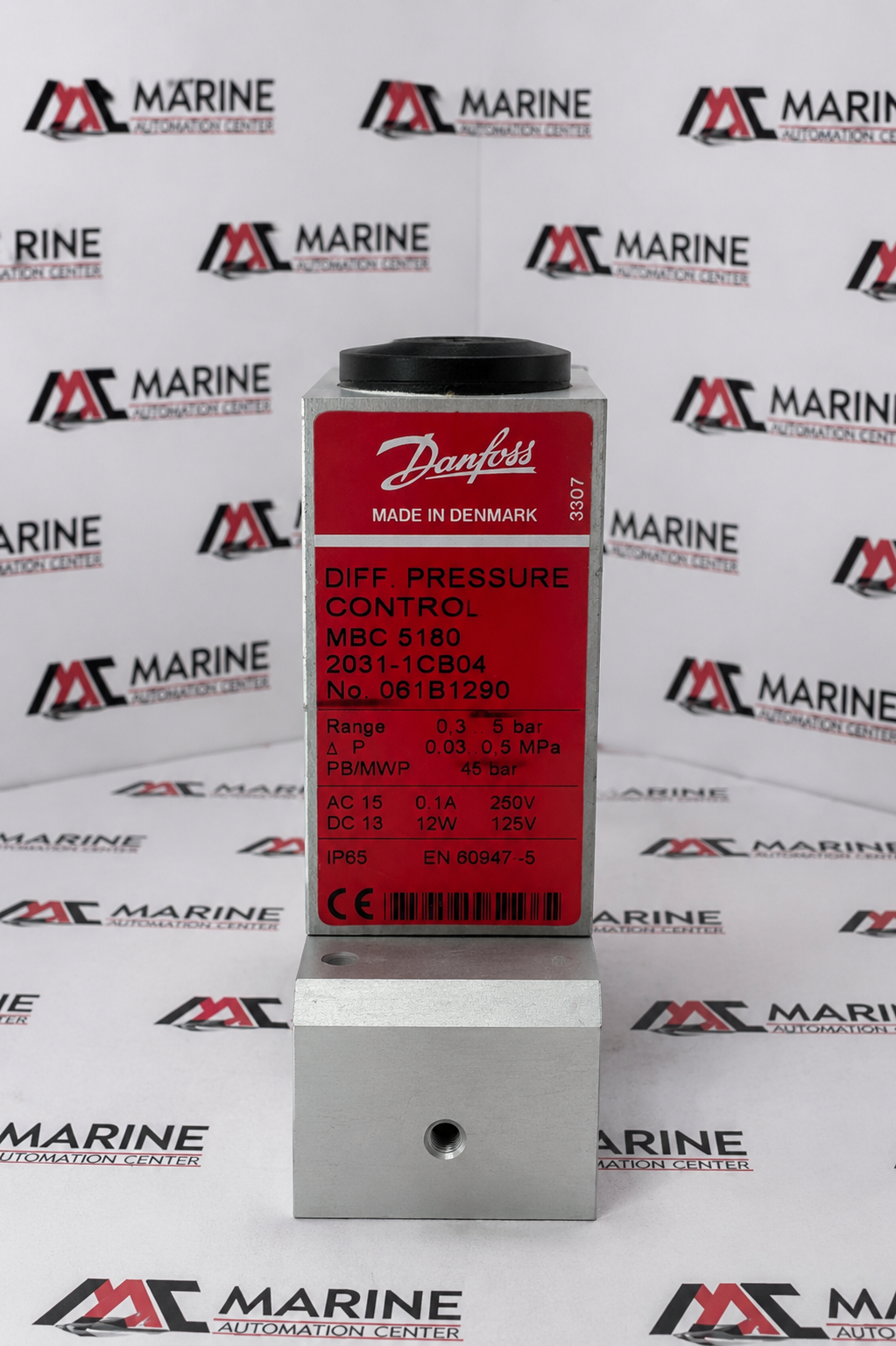

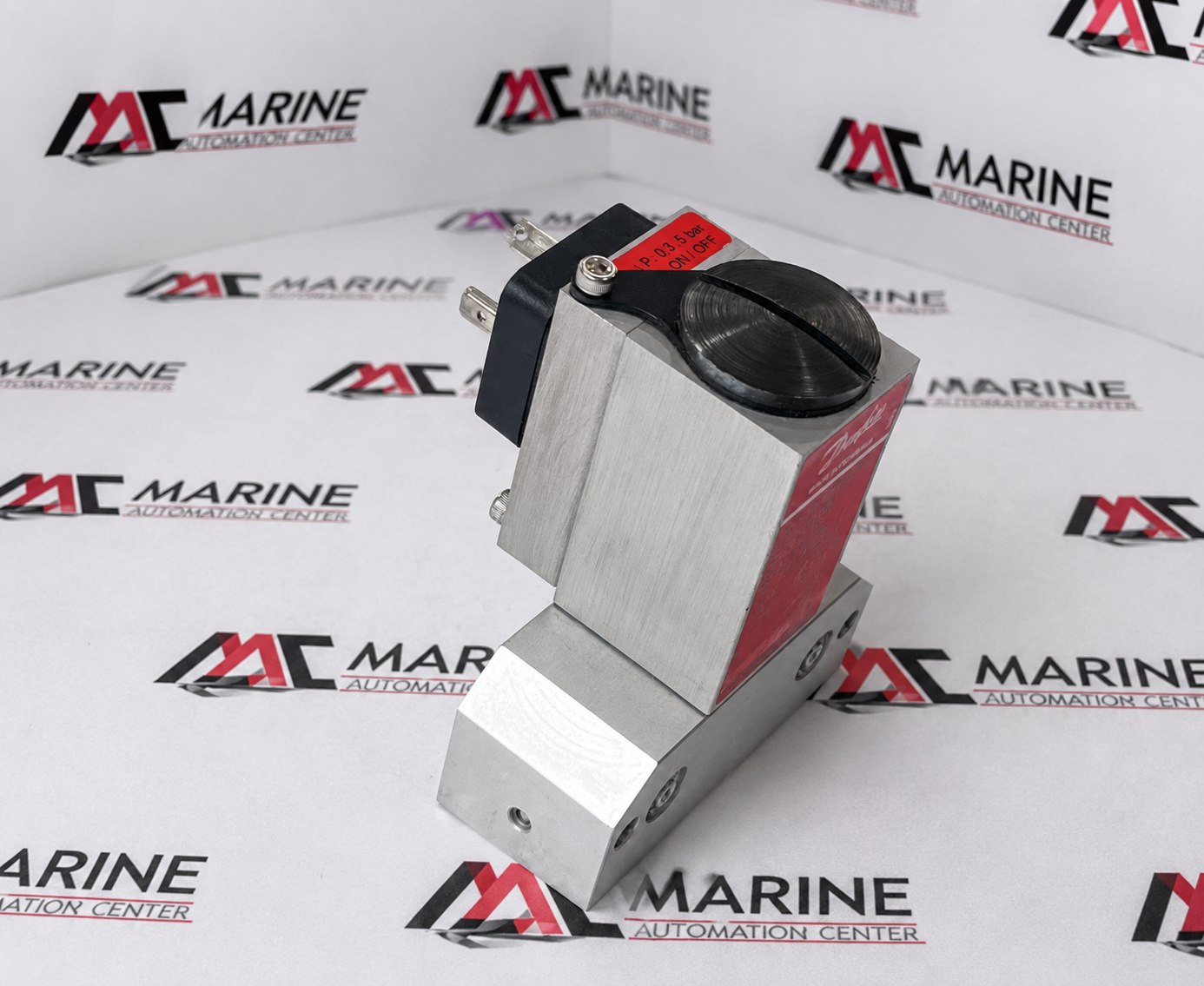

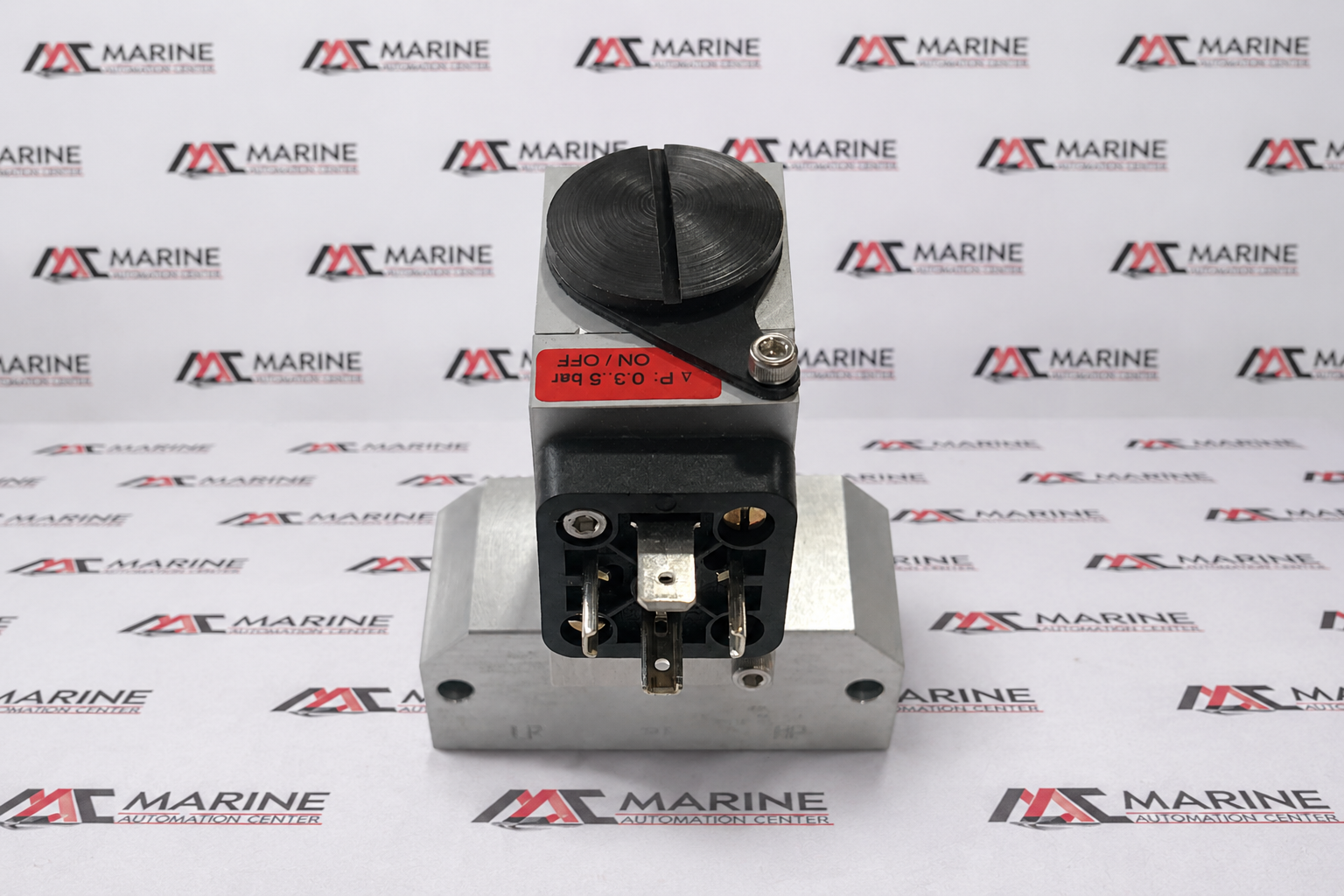

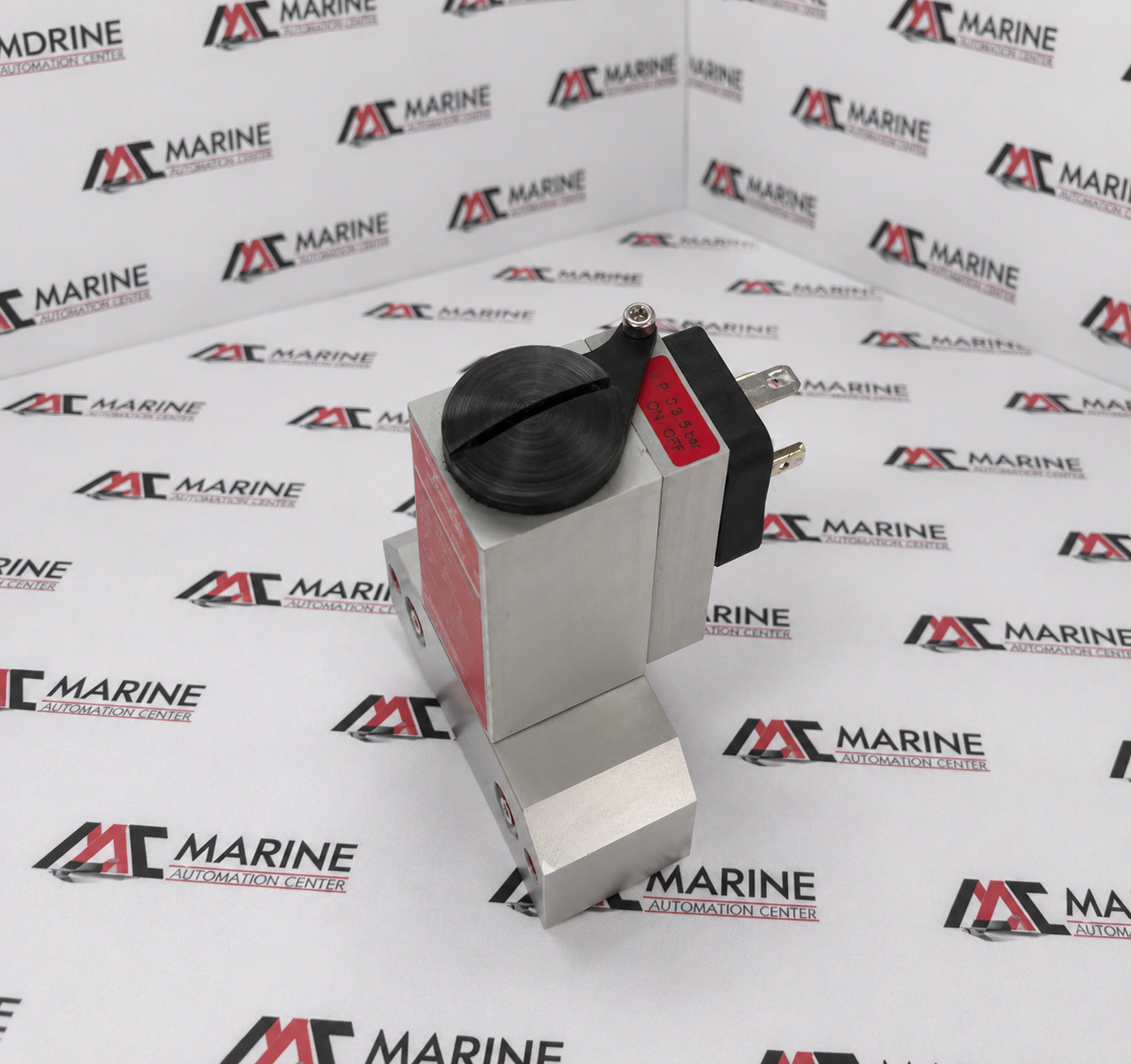

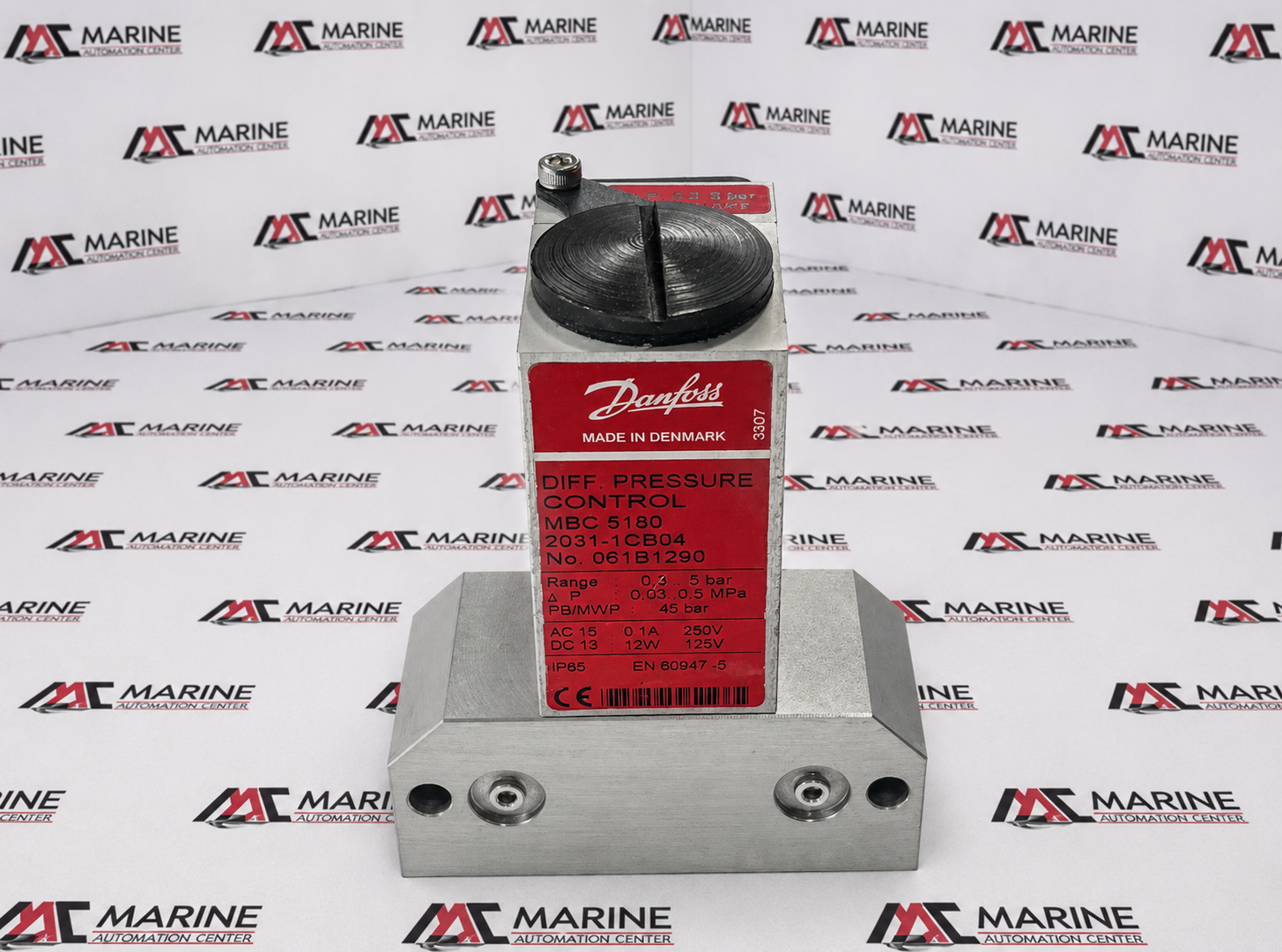

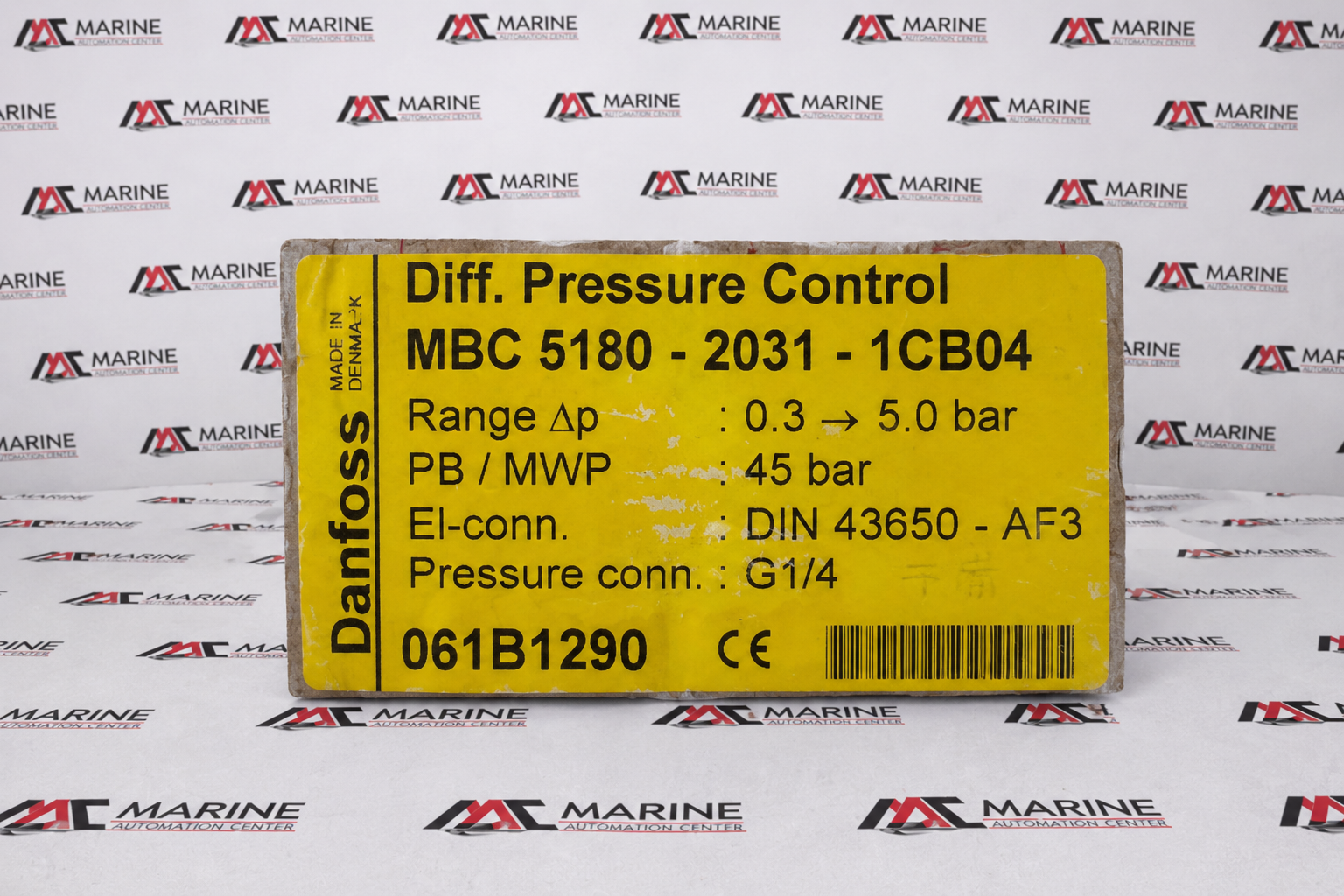

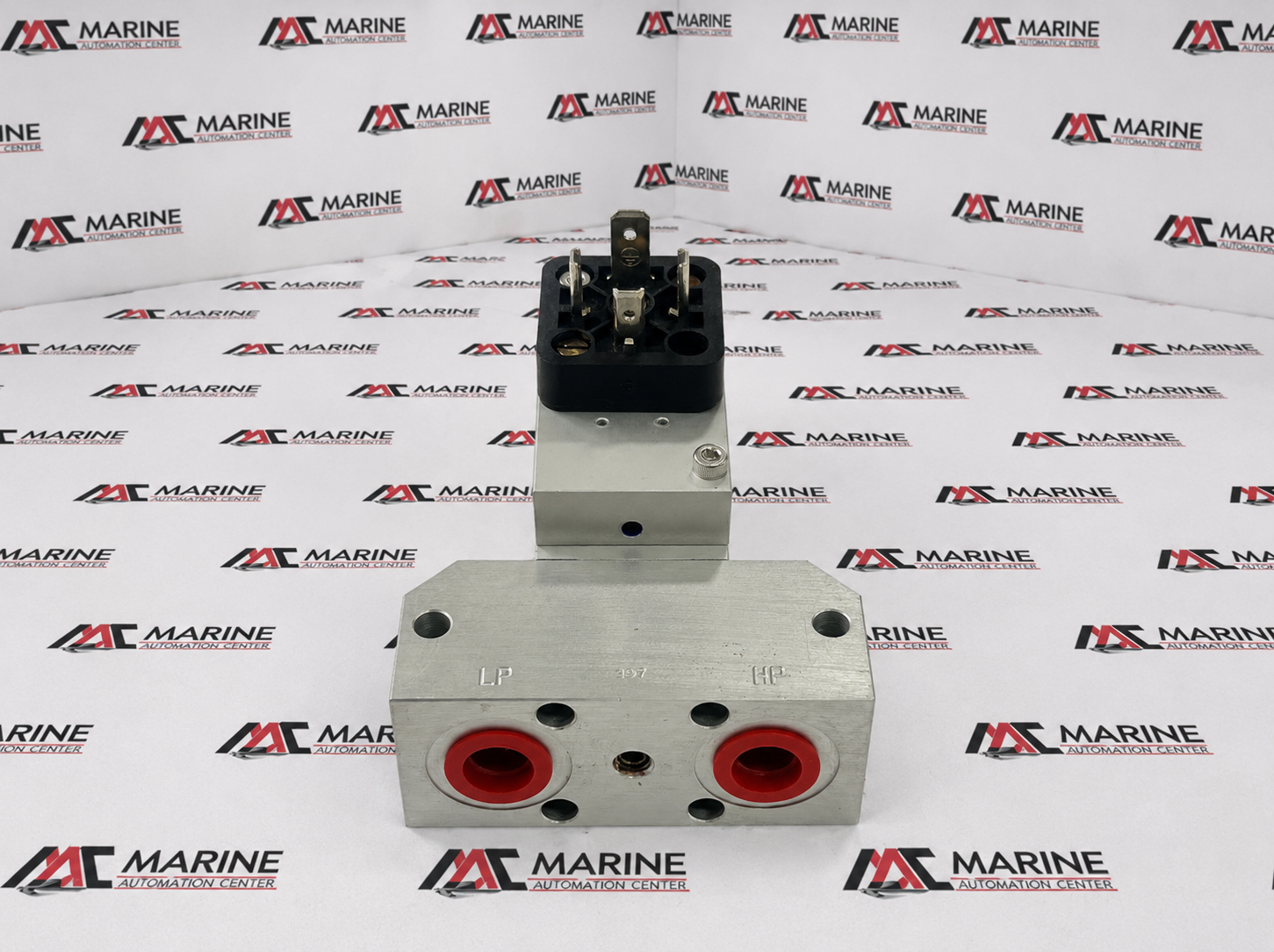

Danfoss Differential Pressure Switch MBC 5180
The Danfoss MBC 5180 Differential Pressure Switch (P/N: 2031-1CB04) is a robust industrial pressure switch designed to monitor differential pressure between two points in hydraulic, lubrication, cooling, and filtration systems. It provides accurate switching for alarm, control, and equipment protection, ensuring reliable operation in marine, industrial, and process automation applications.
BRAND
Danfoss
TYPE
Differential Pressure Switch
PART NO.
2031-1CB04
MODEL
MBC 5180
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Differential Pressure Switch |
| PART NO. | 2031-1CB04 |
| MODEL | MBC 5180 |
| SERIES | MBC 5100 Series |
| PRESSURE RANGE | 0.3 – 5.0 bar |
| BURST PRESSURE | 90 bar |
| MAXIMUM TEST PRESSURE | 68 bar |
| LOW PRESSURE OPERATING RANGE | 0 – 30 bar |
| MATERIAL | Aluminium Housing |
| APPLICATION | Differential pressure monitoring and protection for compressors, pumps, refrigeration, marine systems, hydraulic and industrial process equipment. |
| MADE IN | Denmark |
| REF NO | 485 |
