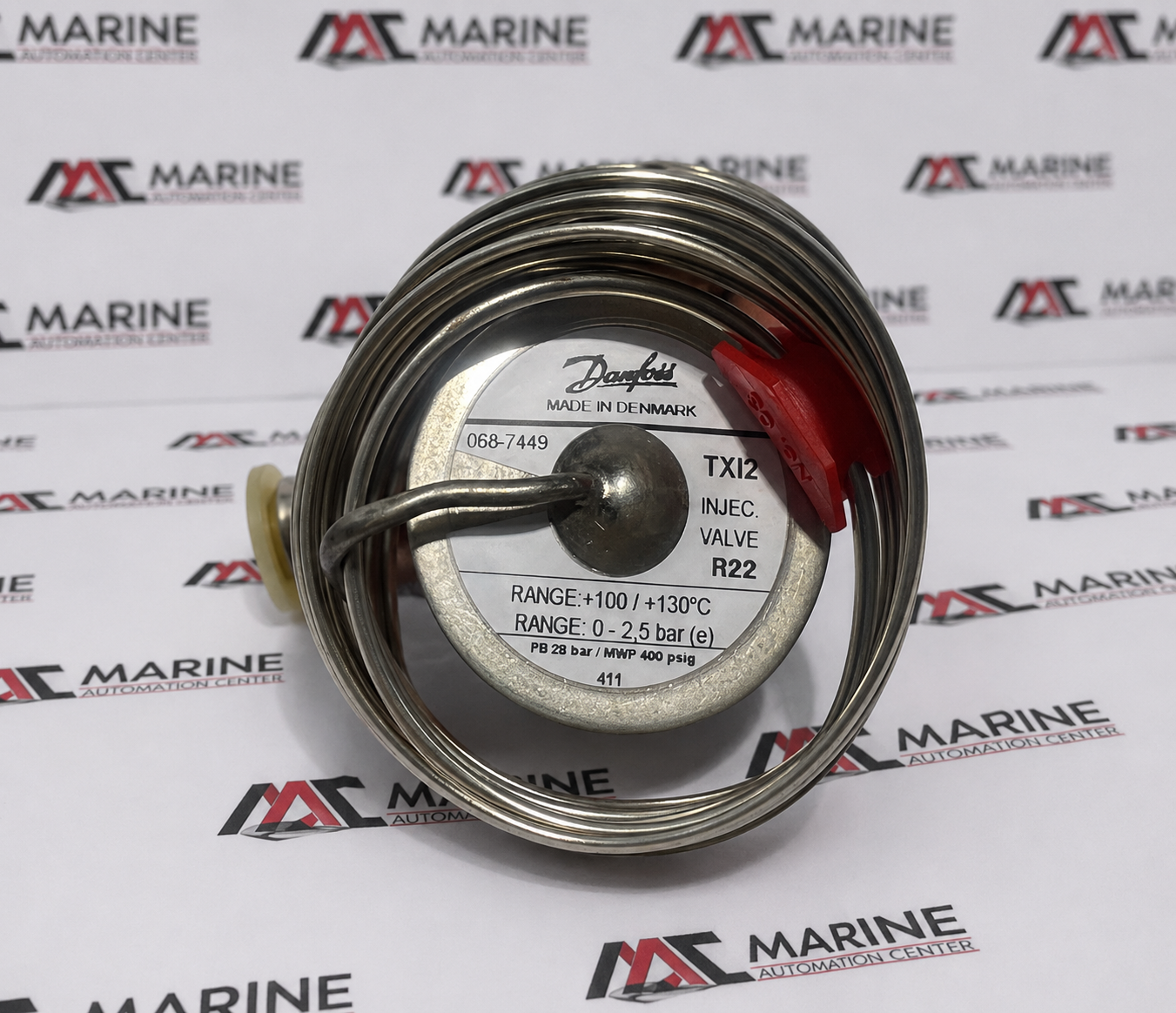

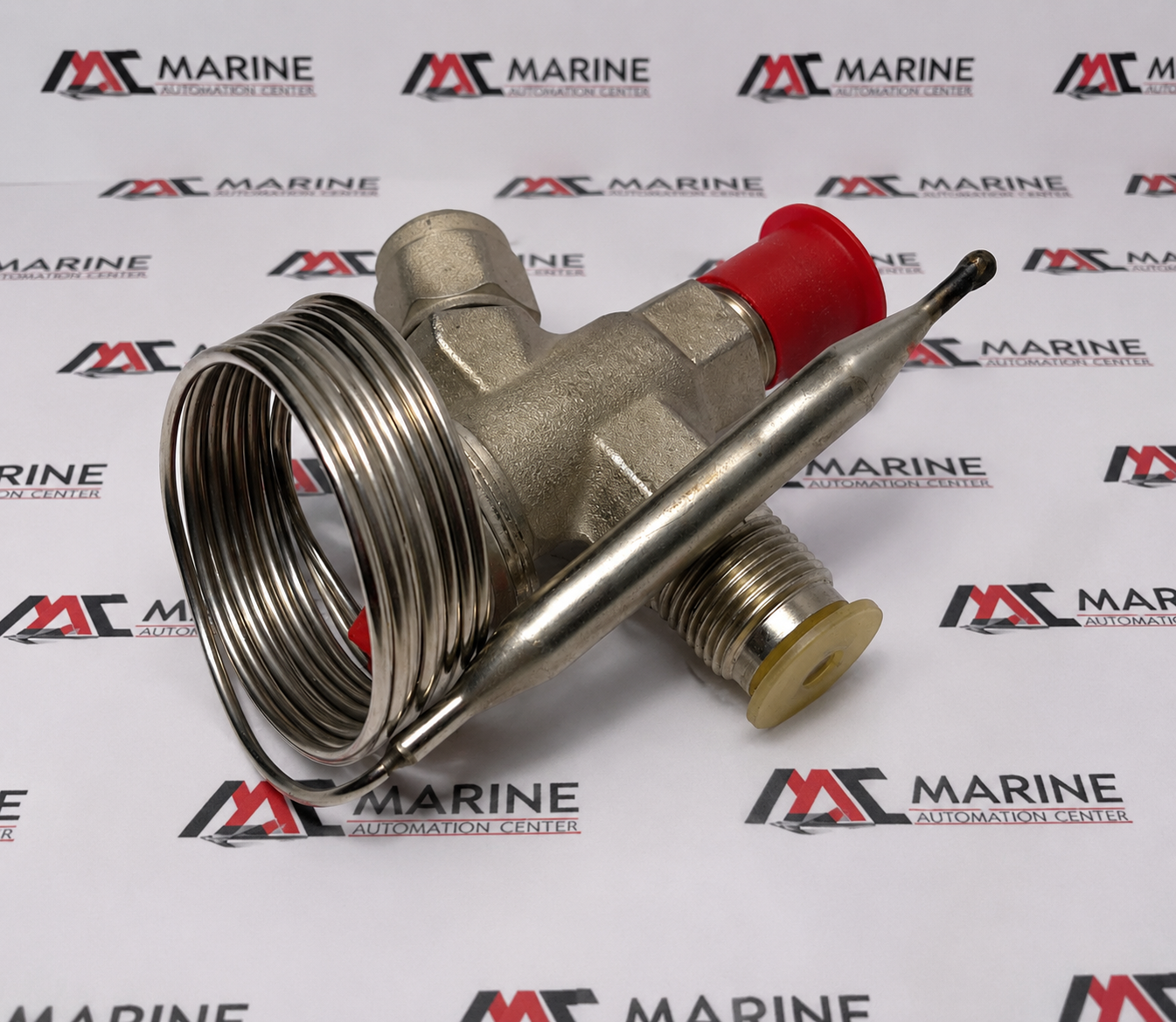

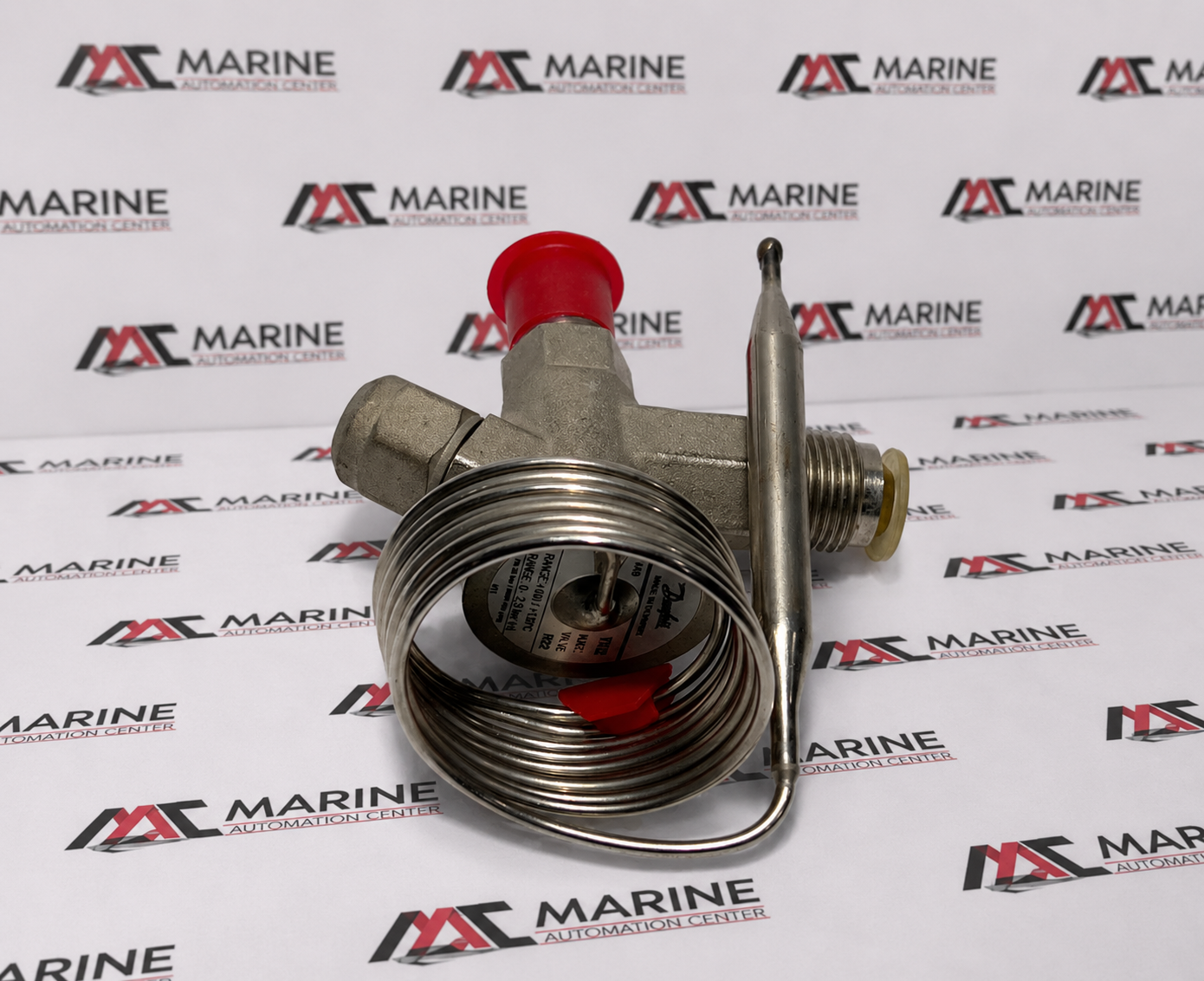

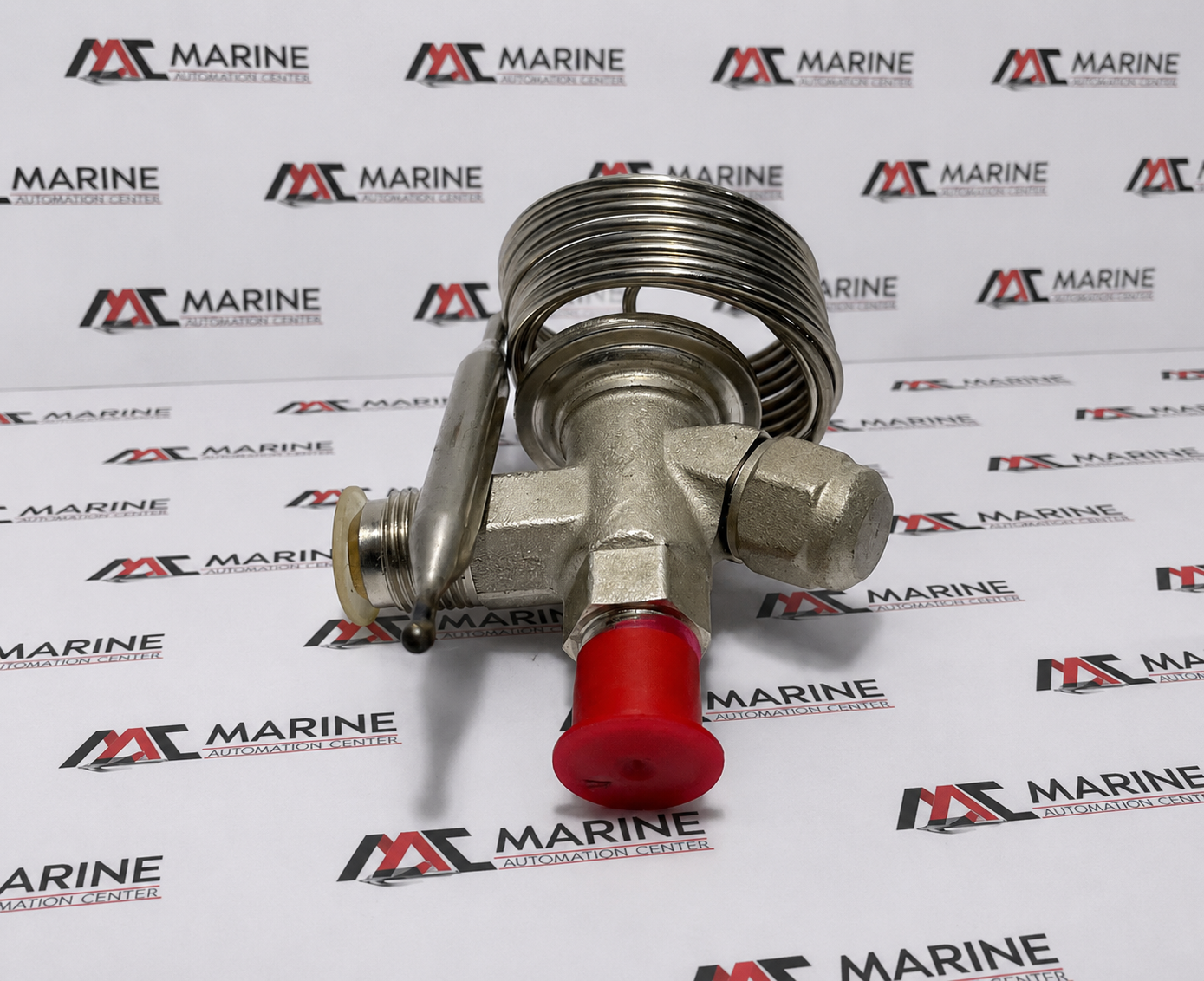

Danfoss Desuperheating / Thermostatic Injection Valve TXI 2
**Danfoss TXI2 Thermostatic Injection Valve (Part No. 068-7449)** is a high-quality desuperheating valve designed to regulate refrigerant injection and maintain precise temperature control in refrigeration and industrial cooling systems. Engineered for reliable performance and efficient operation, it helps optimize system efficiency and protect critical equipment. Ideal for replacement, maintenance, and HVAC/refrigeration applications.
BRAND
Danfoss
TYPE
Thermostatic Injection Valve (Desuperheating Valve)
PART NO.
068-7449
MODEL
TXI 2
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Thermostatic Injection Valve (Desuperheating Valve) |
| PART NO. | 068-7449 |
| MODEL | TXI 2 |
| MANUFACTURER | Danfoss |
| Application | Refrigeration and Air Conditioning Systems – Refrigerant Injection / Desuperheating |
| Refrigerant Compatibility | R22 |
| Body Material | Brass |
| Direction | Angleway |
| Capillary Tube Length | 1500 mm (59 in) |
| Inlet Connection Type | Flare |
| Inlet Size | 3/8 in |
| Outlet Connection Type | Flare |
| Outlet Size | 1/2 in |
| Temperature Range | +100°C to +130°C (212°F to 265°F) |
| Pressure Range (Pi) | 0–2.5 bar (Scale), Operational Range: 1–5 bar |
| Maximum Working Pressure | 28 bar (400 psig), Rated up to 34 bar (500 psig) |
| Static Superheat | 140°C (252°F) |
| Fluid Group | 2 |
| Approval | EAC, LLC CDC TYSK |
| EU RoHS Compliance | Yes, with exemptions (6(a), 6(c)) |
| Contains Batteries | No |
| Made In | Denmark |
| REF NO | 1214 |
