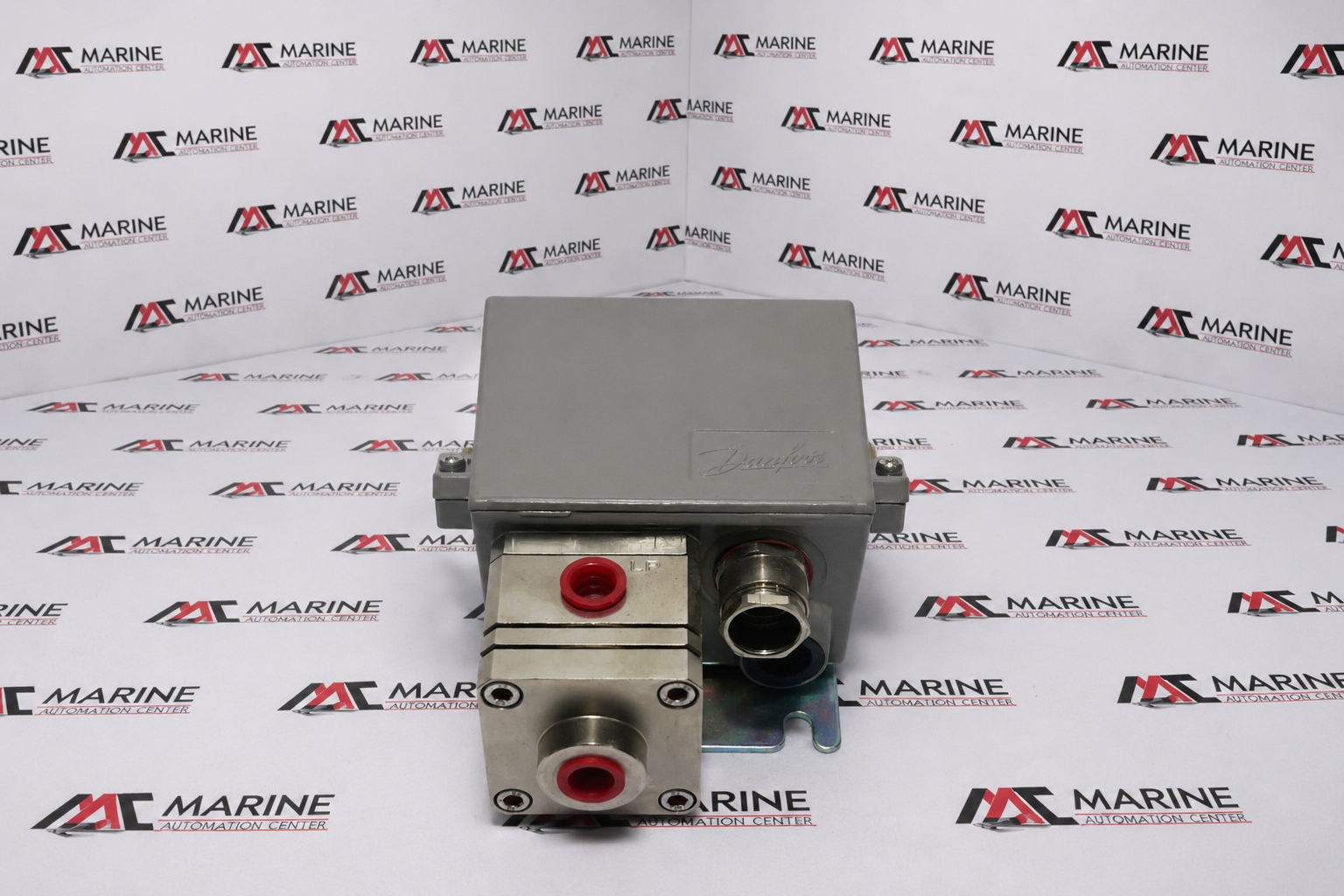

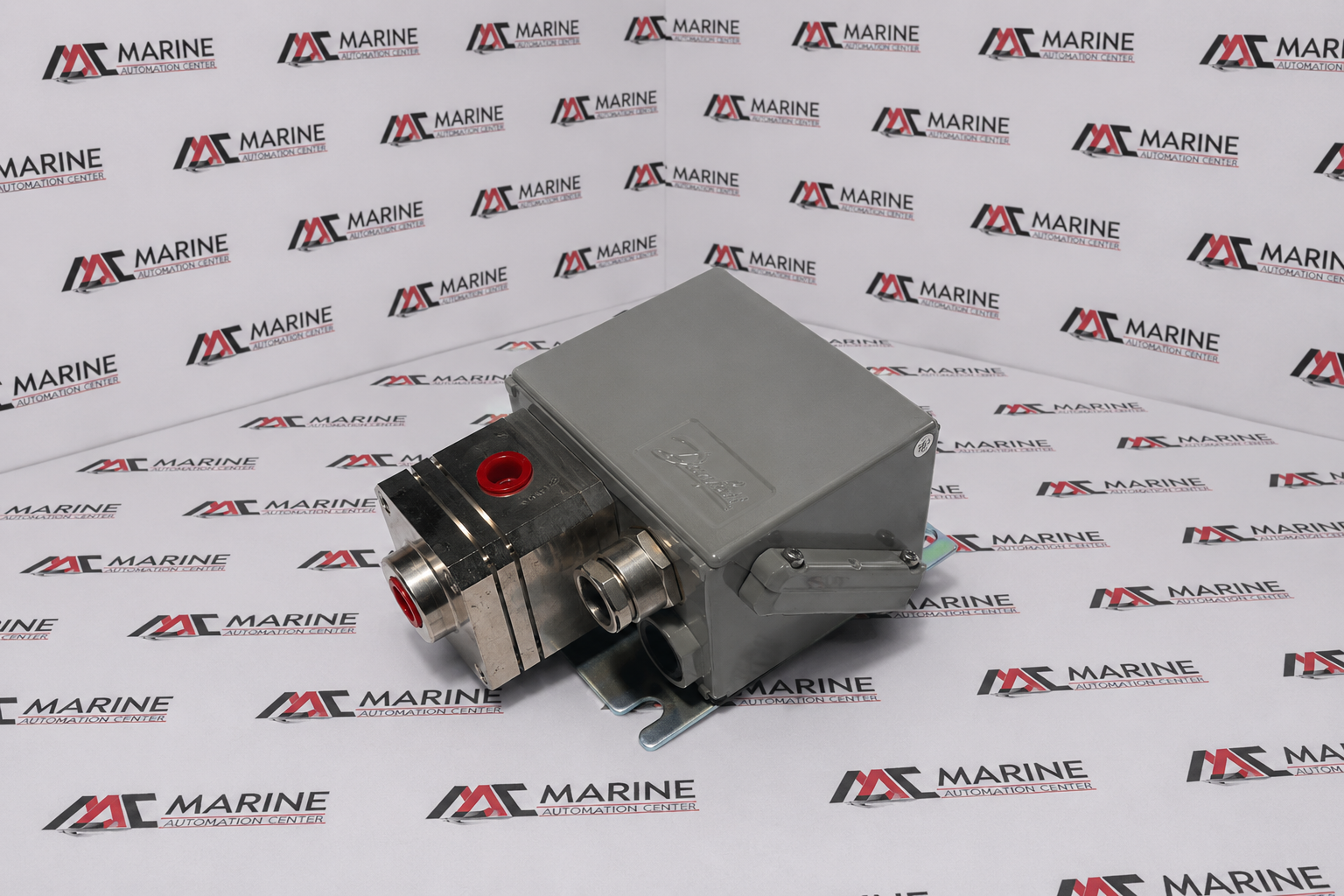

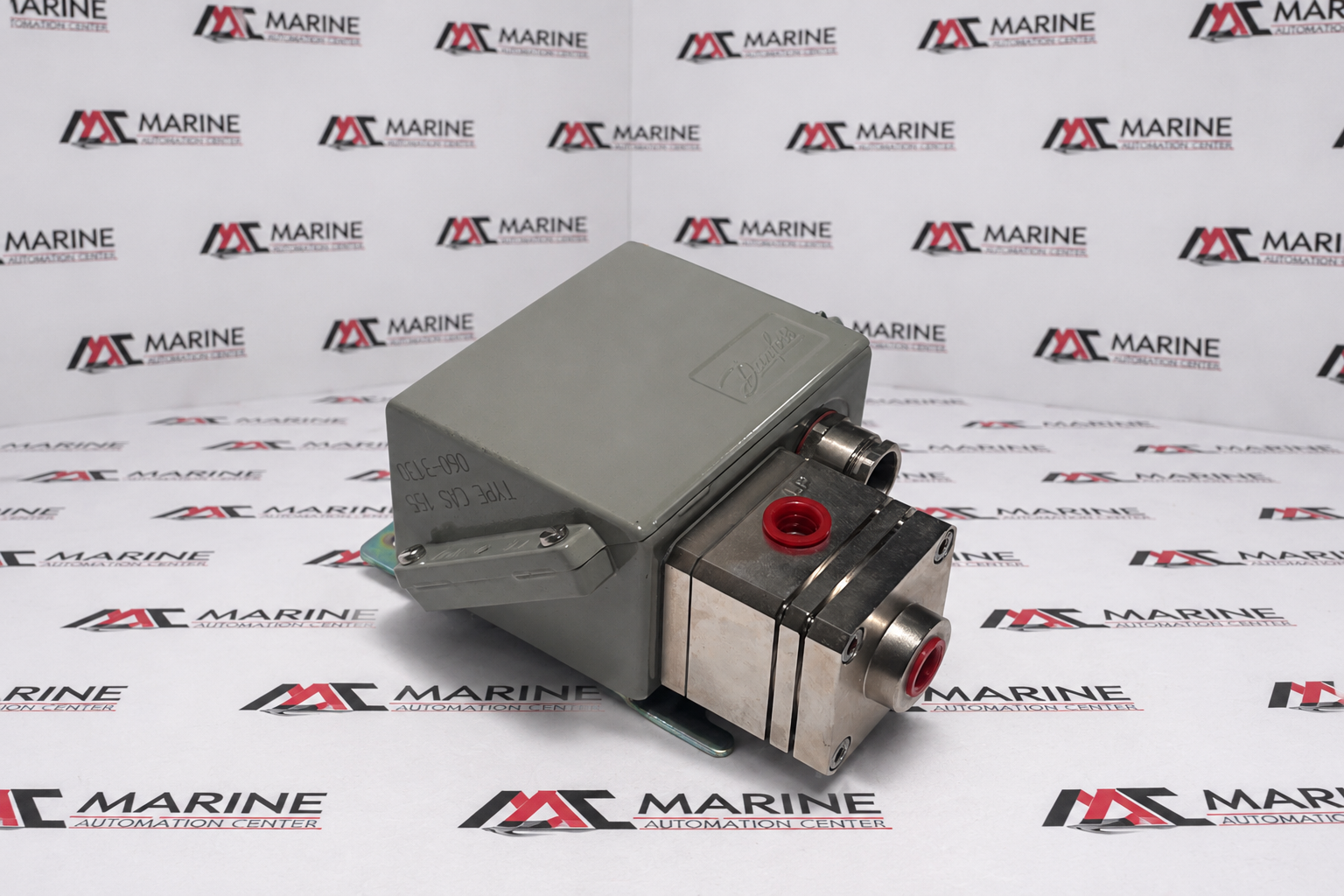

Danfoss CAS 155 Differential Pressure Control Switch
Danfoss CAS 155 Differential Pressure Control (P/N 060-3130 / 060-313066) is a robust industrial differential pressure switch designed to monitor and control pressure differences in hydraulic, lubrication, and process systems. It provides reliable switching for alarm, safety, and control applications, ensuring dependable operation in demanding industrial environments.
BRAND
Danfoss
TYPE
Differential Pressure Control
PART NO.
060-3130 / 060-313066
MODEL
CAS 155
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Differential Pressure Control |
| PART NO. | 060-3130 / 060-313066 |
| MODEL | CAS 155 |
| Voltage Rating | AC-15: 0.1 A, 250 V ~ / DC-13: 12 W, 125 V |
| Application | Marine automation, multi-stage alarms, filter clogging monitoring, pump control, high-vibration engine rooms |
| IEC | IP67 protection rating according to IEC 60529 (fully dust-tight & temporary immersion proof) |
| Differential Setting Range | 0.2 to 2.5 Bar Pe (0.02 to 0.25 MPa) |
| Fixed Contact Differential (Δ P) | 0.1 Bar fixed mechanical hysteresis |
| Maximum Working Pressure (MWP) | 320 Psig |
| Permissible Bellows Test Pressure (Pb) | 22 Bar |
| Contact Function / Switch Type | SPDT microswitch |
| Pressure Connection Entry | 2 x G 1/4 female thread connections |
| Approximate Net Weight | 1.540 Kg to 1.650 Kg |
| Made In | Poland |
| REF NO | 1266 |
