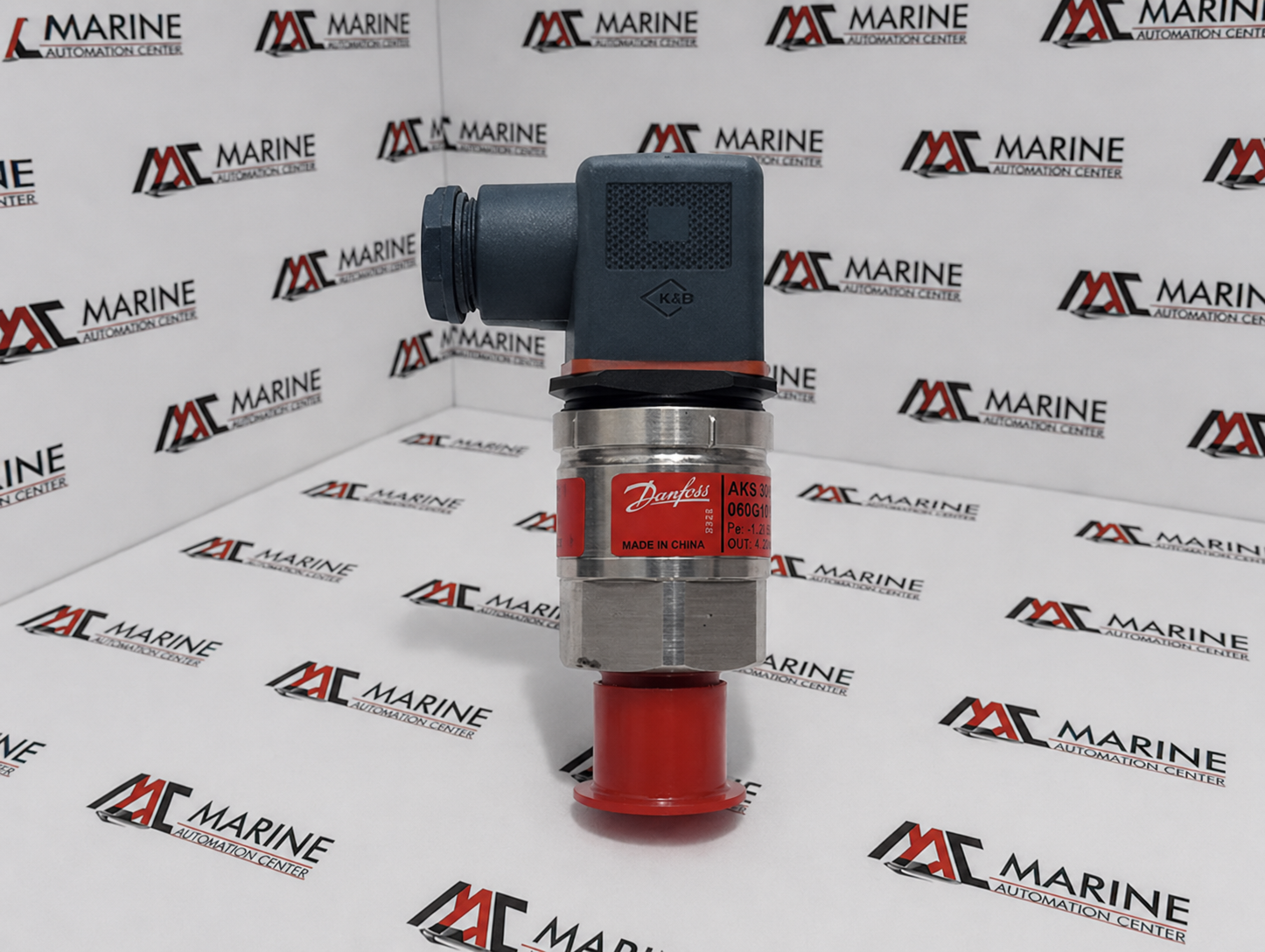

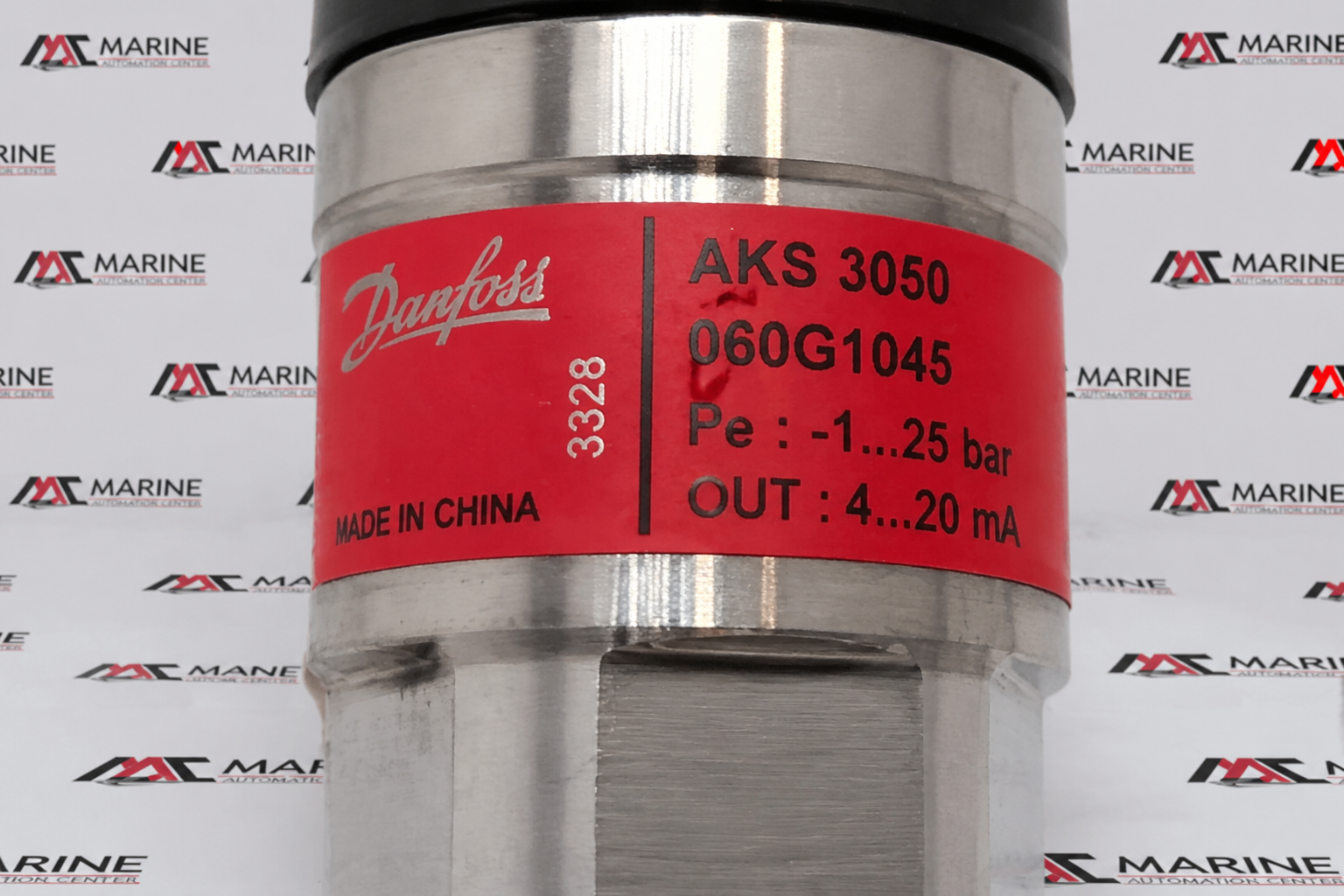

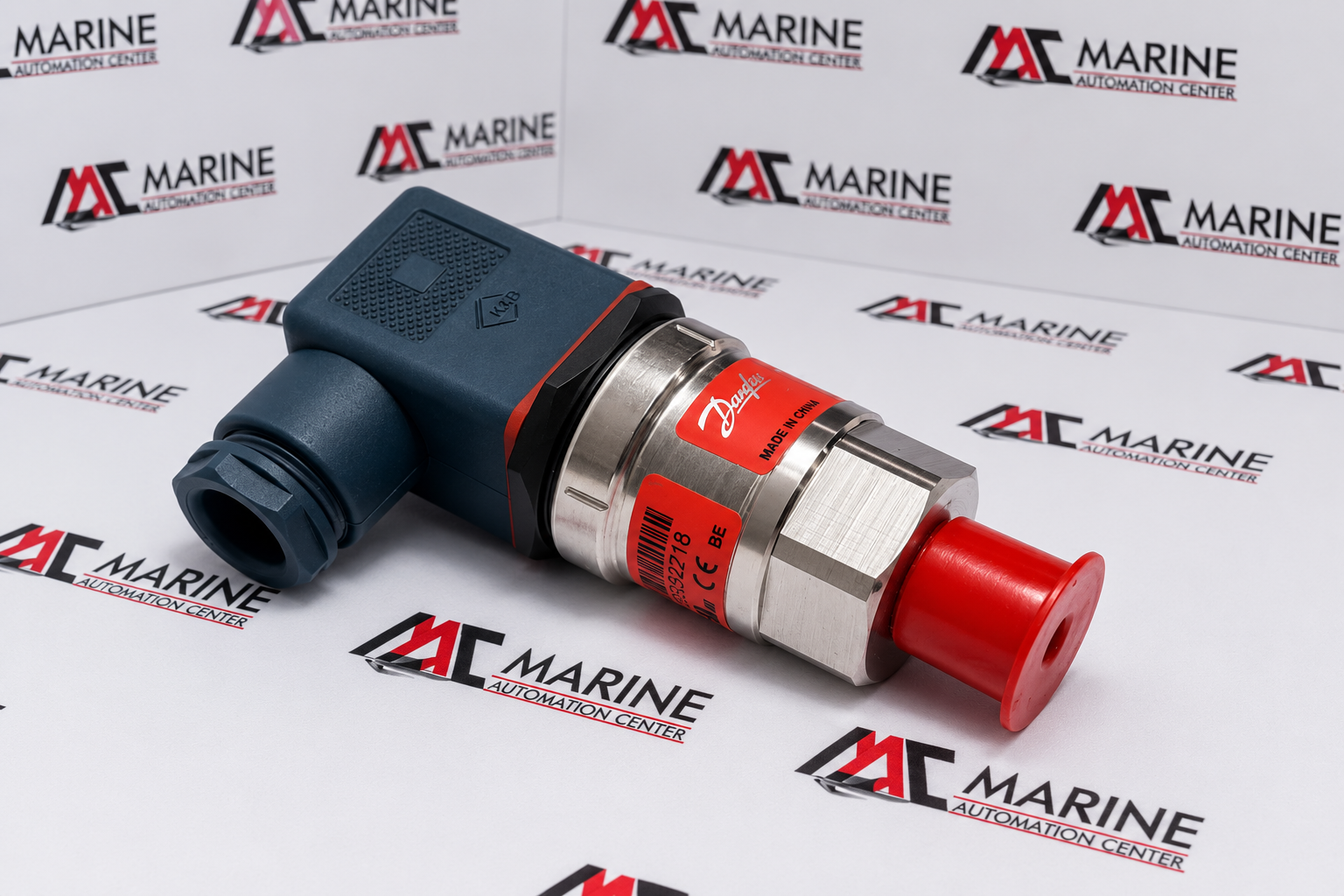

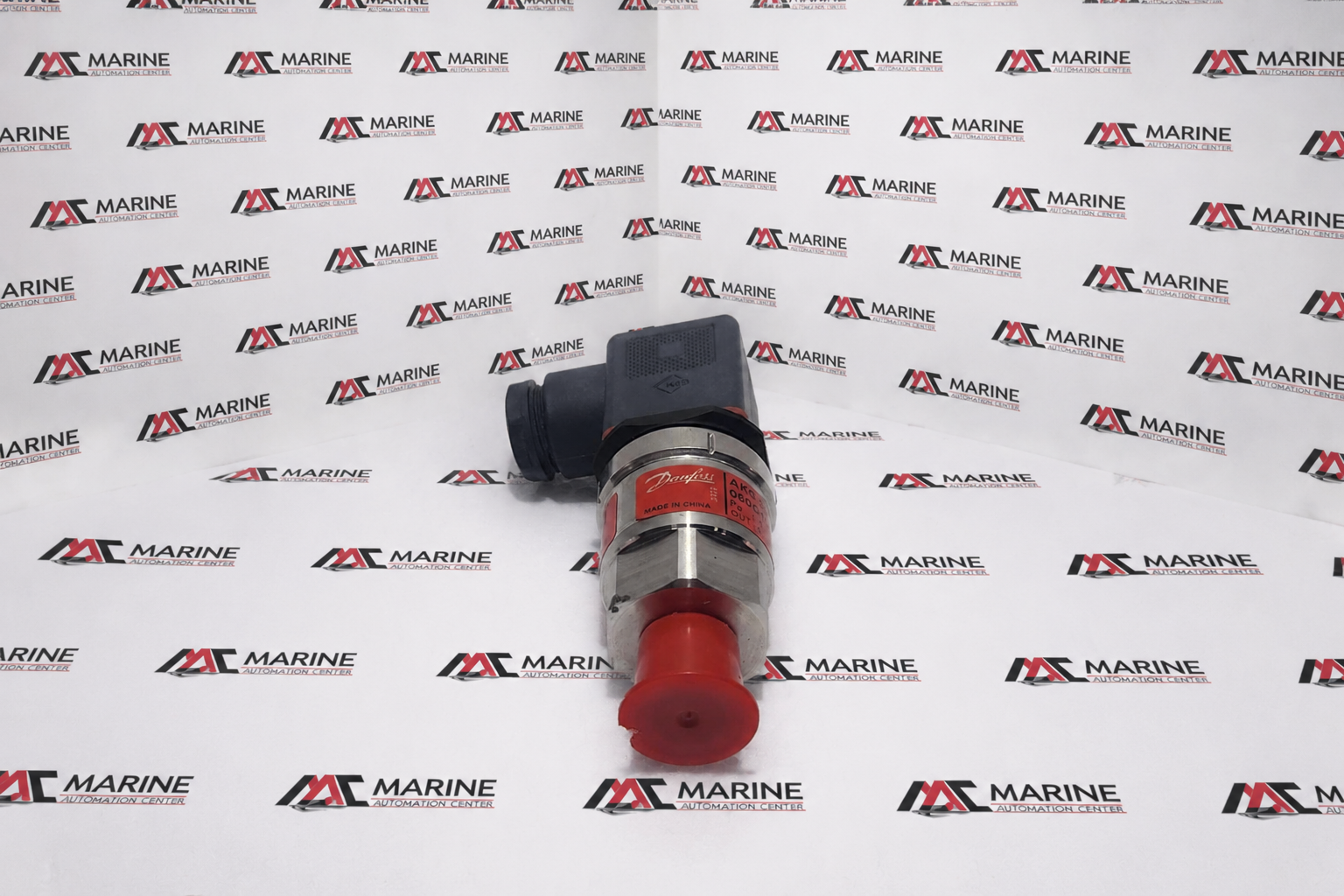

Danfoss AKS 3050 Pressure Transmitter
Danfoss AKS 3050 Pressure Transmitter (Part No. 060G1045) is a high-precision pressure transmitter designed for accurate pressure measurement in refrigeration, HVAC, and industrial automation systems. It delivers reliable pressure monitoring, excellent long-term stability, and robust performance in demanding environments, making it ideal for process control, compressor protection, and refrigeration applications.
BRAND
Danfoss
TYPE
Pressure Transmitter
PART NO.
060G1045
MODEL
AKS 3050
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Pressure Transmitter |
| PART NO. | 060G1045 |
| MODEL | AKS 3050 |
| Pressure Range | -1 to 25 bar (-14.5 to 362.6 psi) |
| Output Signal | 4–20 mA Analog Current Loop |
| Supply Voltage | 10–32 V DC (Max. 32 V DC) |
| Voltage Rating | 32 V DC Max. |
| Electrical Connection | Angular Connector |
| Electrical Connection Size | 4-pin |

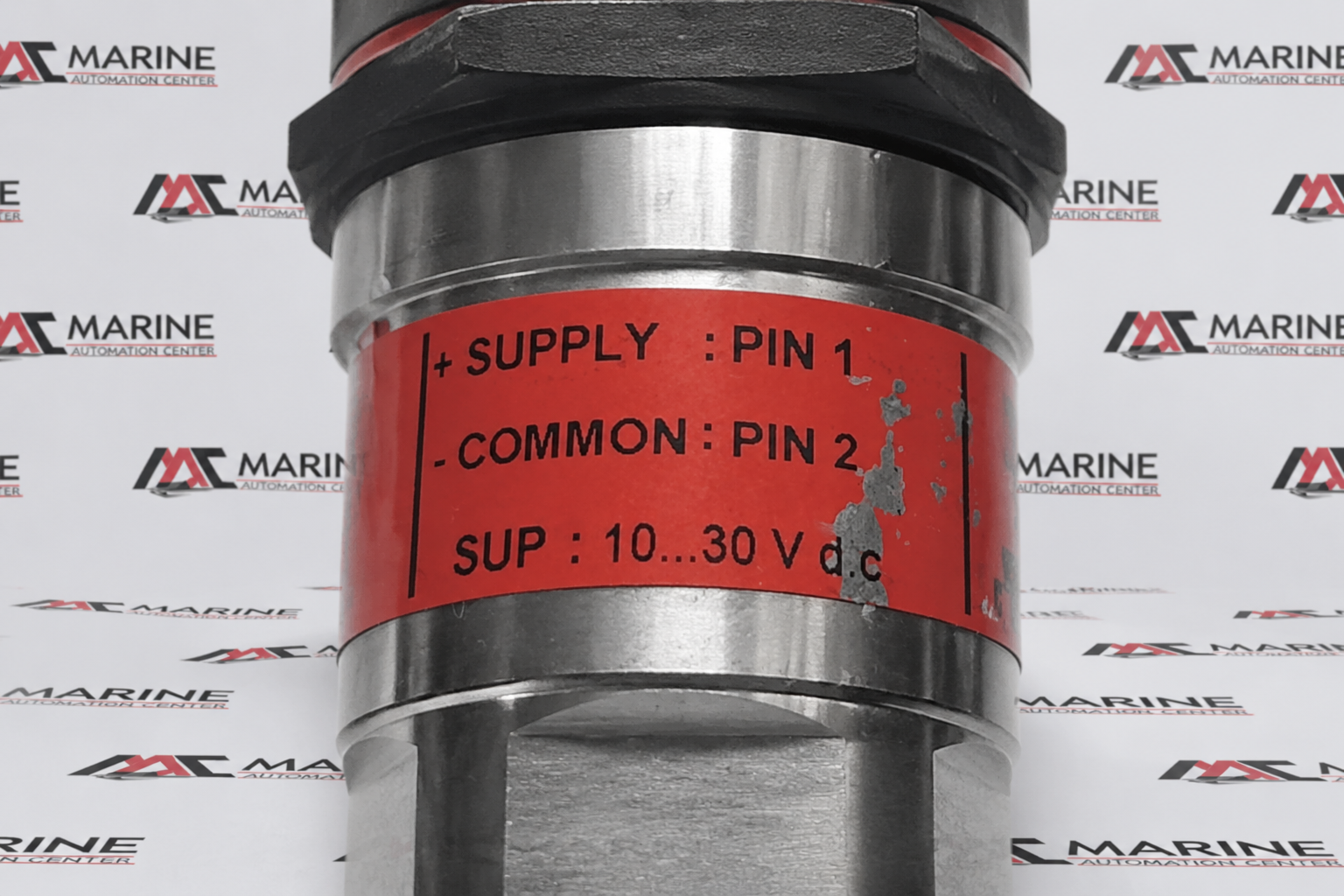

| Pin Configuration | Pin 1: + Supply, Pin 2: – Common |
| Enclosure Rating | IP65 |
| Ambient Temperature | -40°F to 185°F (-40°C to 85°C) |
| Approvals | ATEX, cULus UL Recognized, CE |
| Application | Pressure measurement and monitoring in refrigeration, HVAC, hydraulic, and industrial process systems |
| Made In | China |
| REF NO | 1367 |
