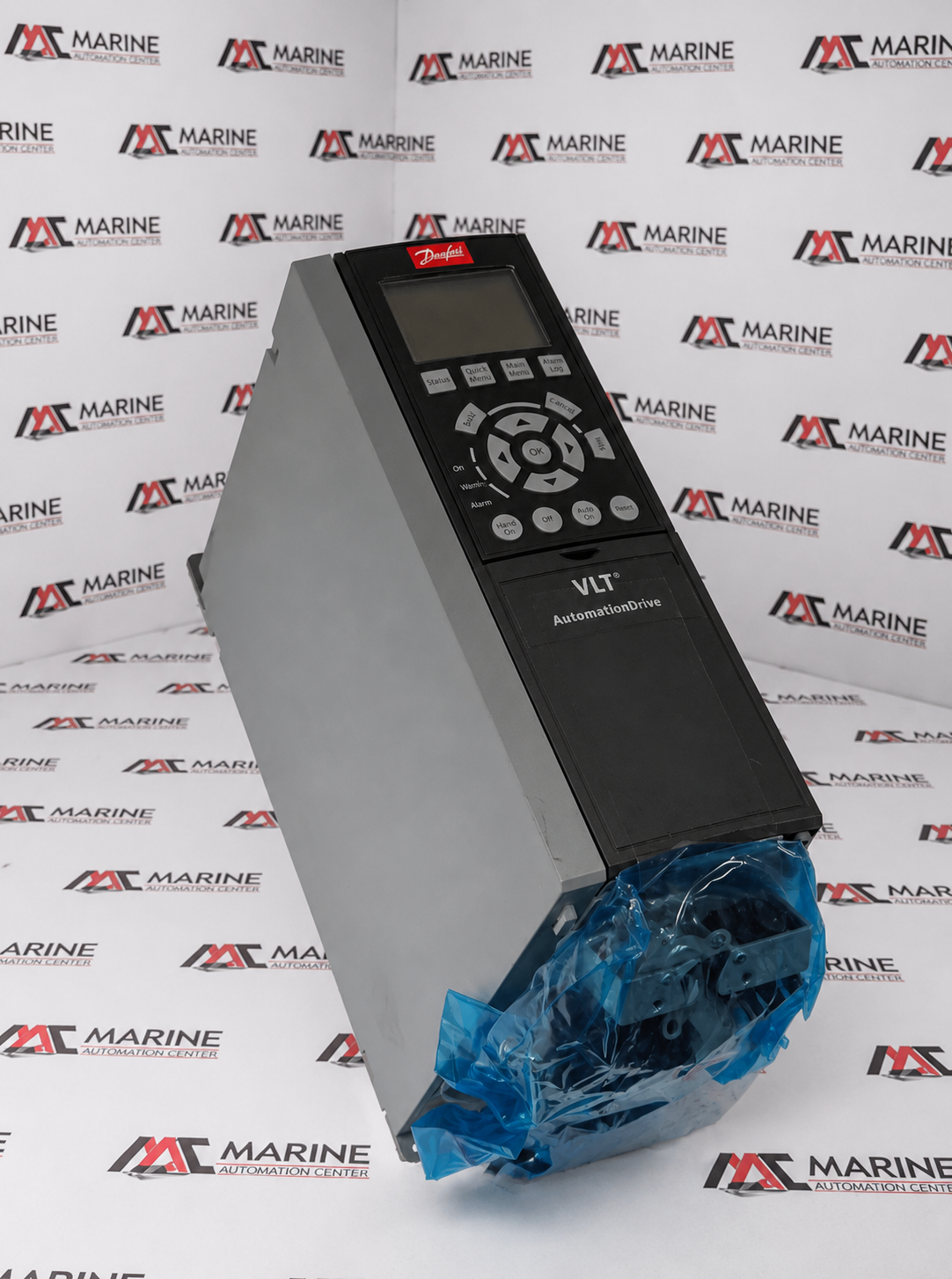

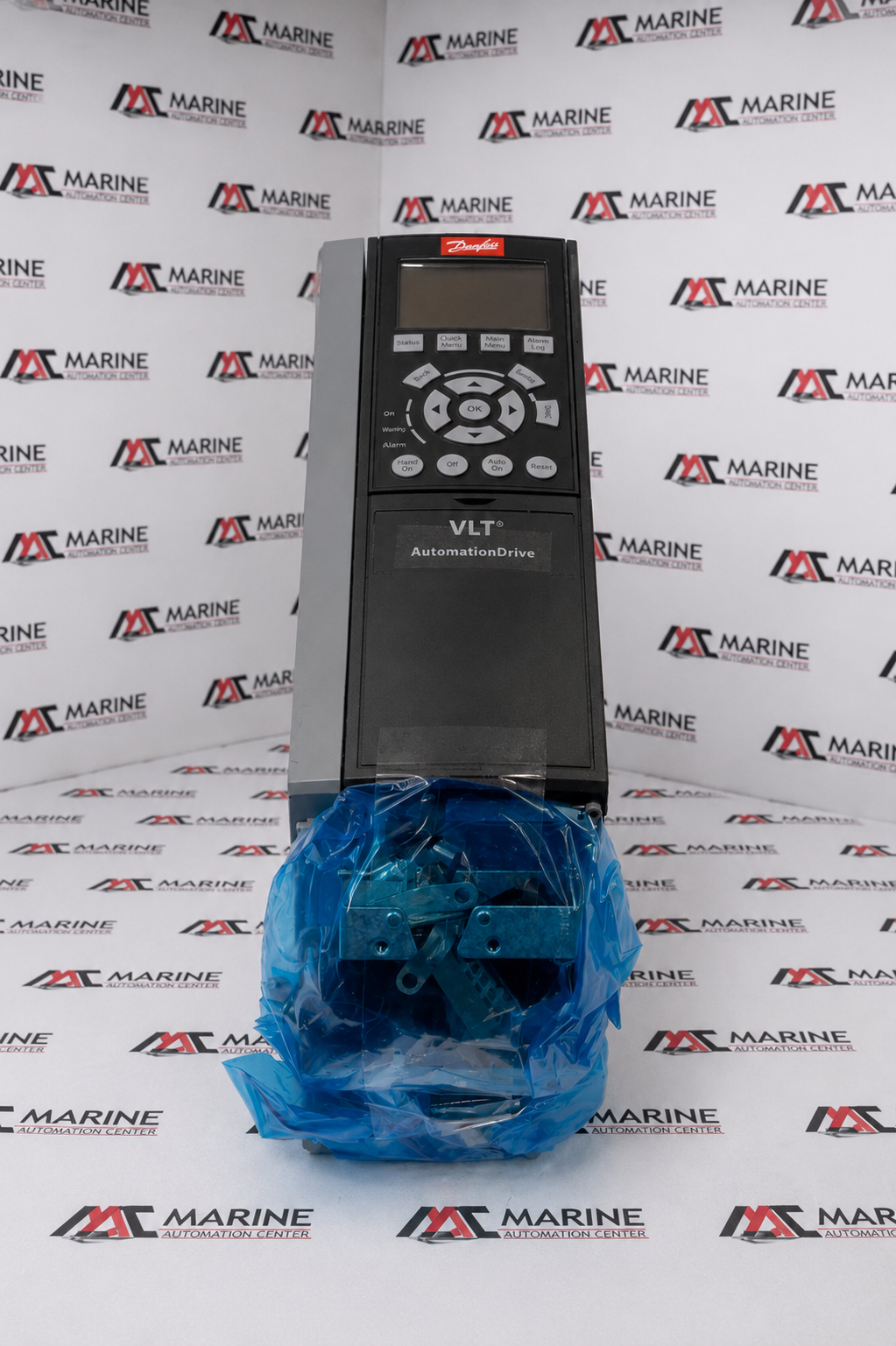

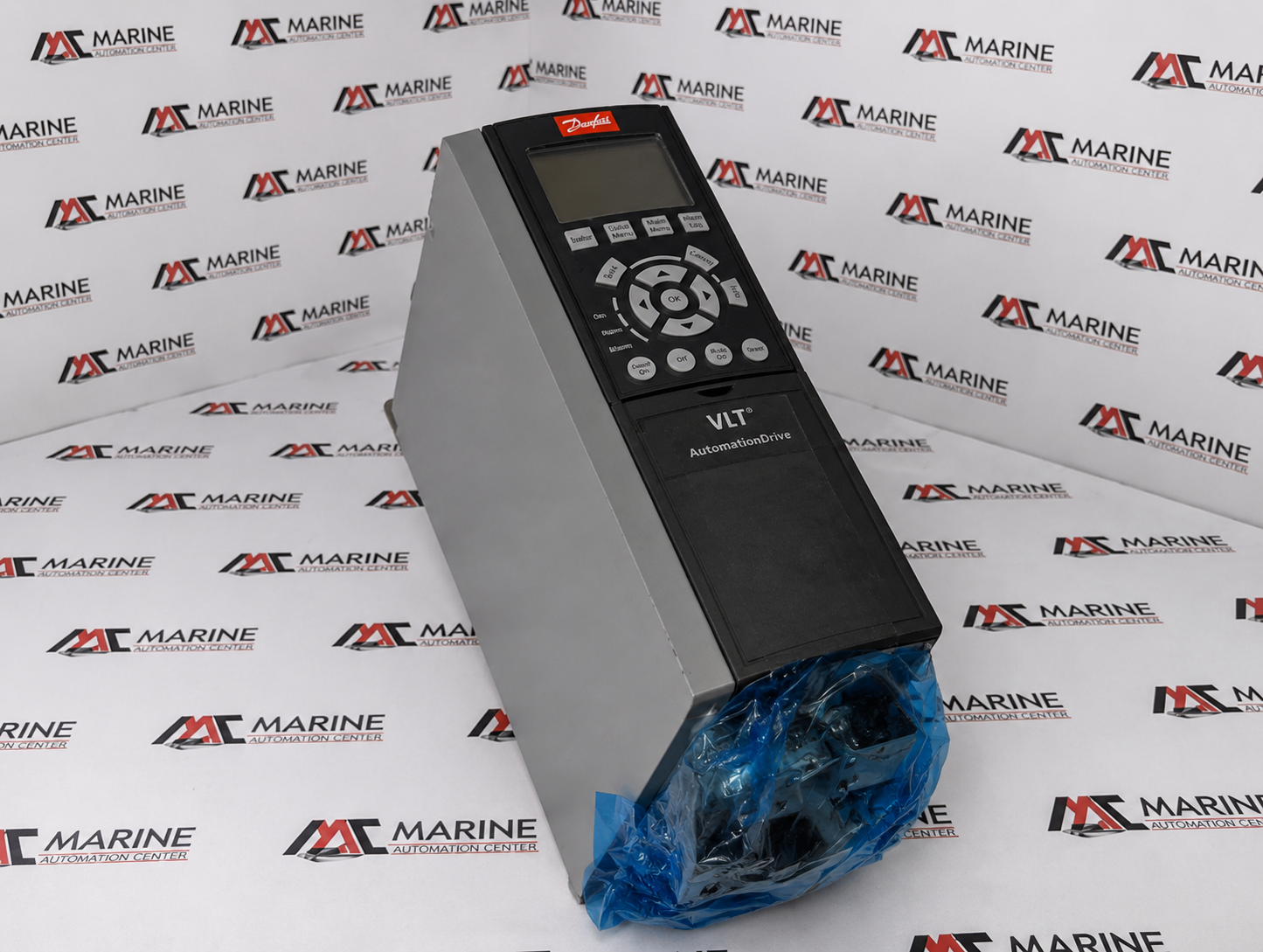

Danfoss A/S Frequency Inverter VLT® AutomationDrive FC-301
Danfoss VLT® AutomationDrive FC-301 (Part No. 131B1002) is a high-performance variable frequency drive (VFD) designed for precise speed and torque control of AC induction motors in industrial automation applications. It features advanced motor control, energy-saving operation, integrated protection functions, and flexible communication options, making it ideal for pumps, fans, conveyors, compressors, mixers, and other demanding process control systems.
BRAND
Danfoss
TYPE
Frequency Inverter
PART NO.
131B1002
MODEL
VLT® AutomationDrive FC-301
Full Technical Specifications ▶

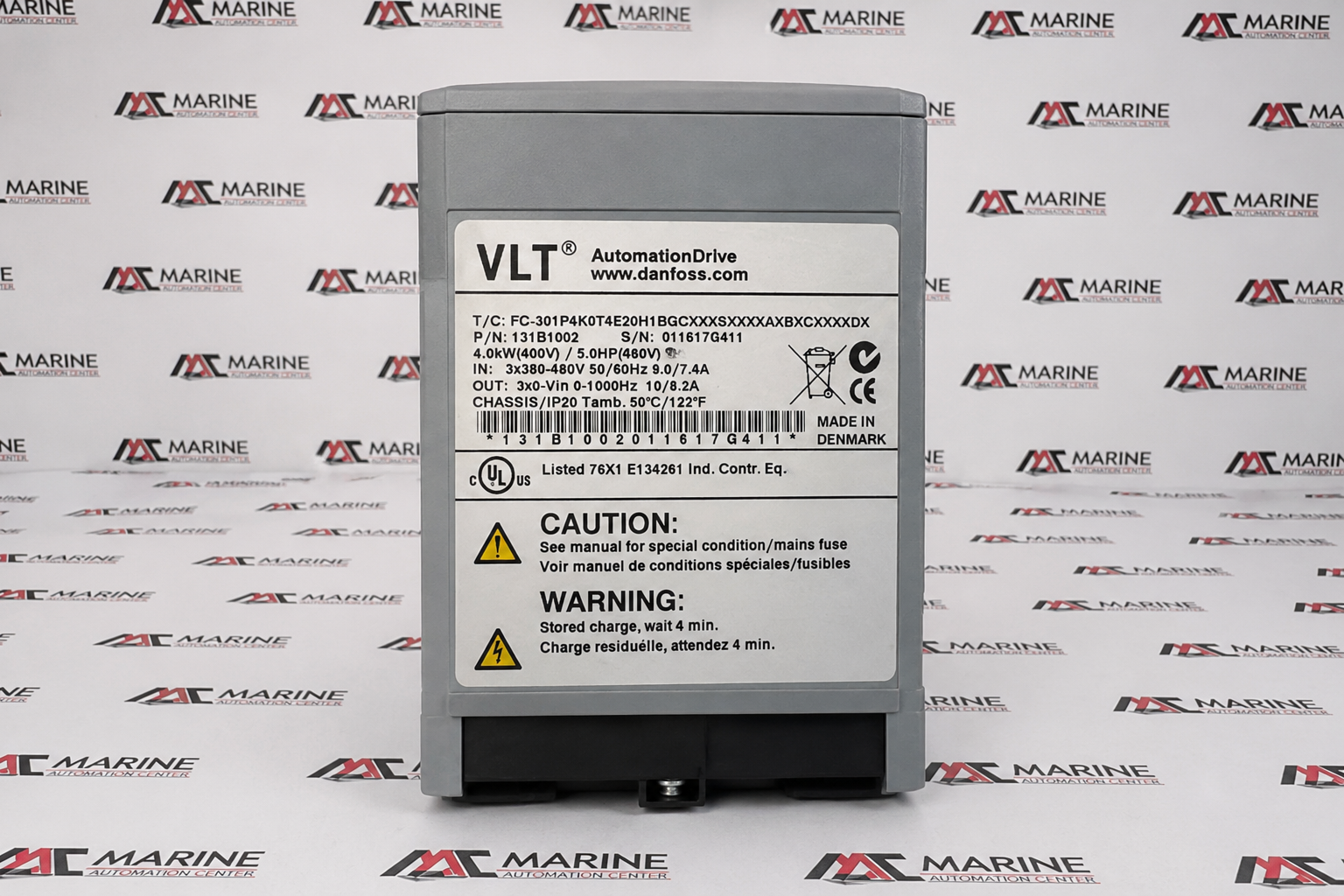

| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Frequency Inverter |
| PART NO. | 131B1002 |
| MODEL | VLT® AutomationDrive FC-301 |
| MANUFACTURER | Danfoss A/S |
| Series | VLT® AutomationDrive |
| Power Rating | 4.0 kW (400 V) / 5.0 HP (460 V) |
| Input Voltage | 3 × 380–480 V AC |
| Input Frequency | 50/60 Hz |
| Input Current | 9.0 / 7.4 A |
| Output Voltage | 3 × 0 V to Input Voltage |
| Output Frequency | 0–1000 Hz |
| Output Current | 10.0 / 8.2 A |
| Enclosure Rating | Chassis / IP20 |
| Application | Variable speed control of AC induction motors for industrial automation, conveyors, pumps, fans, compressors, mixers, marine machinery and process control systems. The FC-301 is designed for robust industrial motor control and high operational reliability |
| Made In | Denmark |
| REF NO | 499 |
