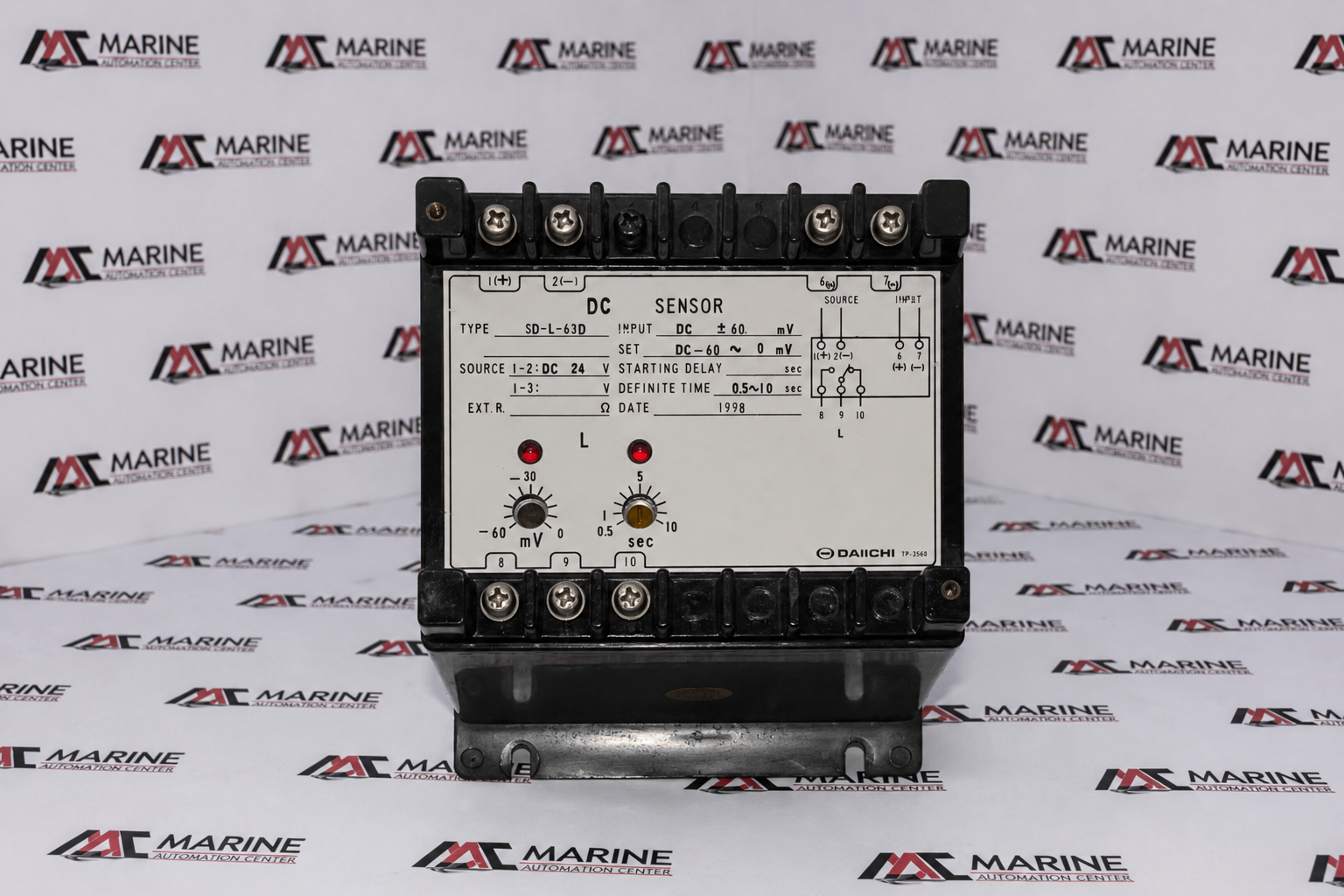

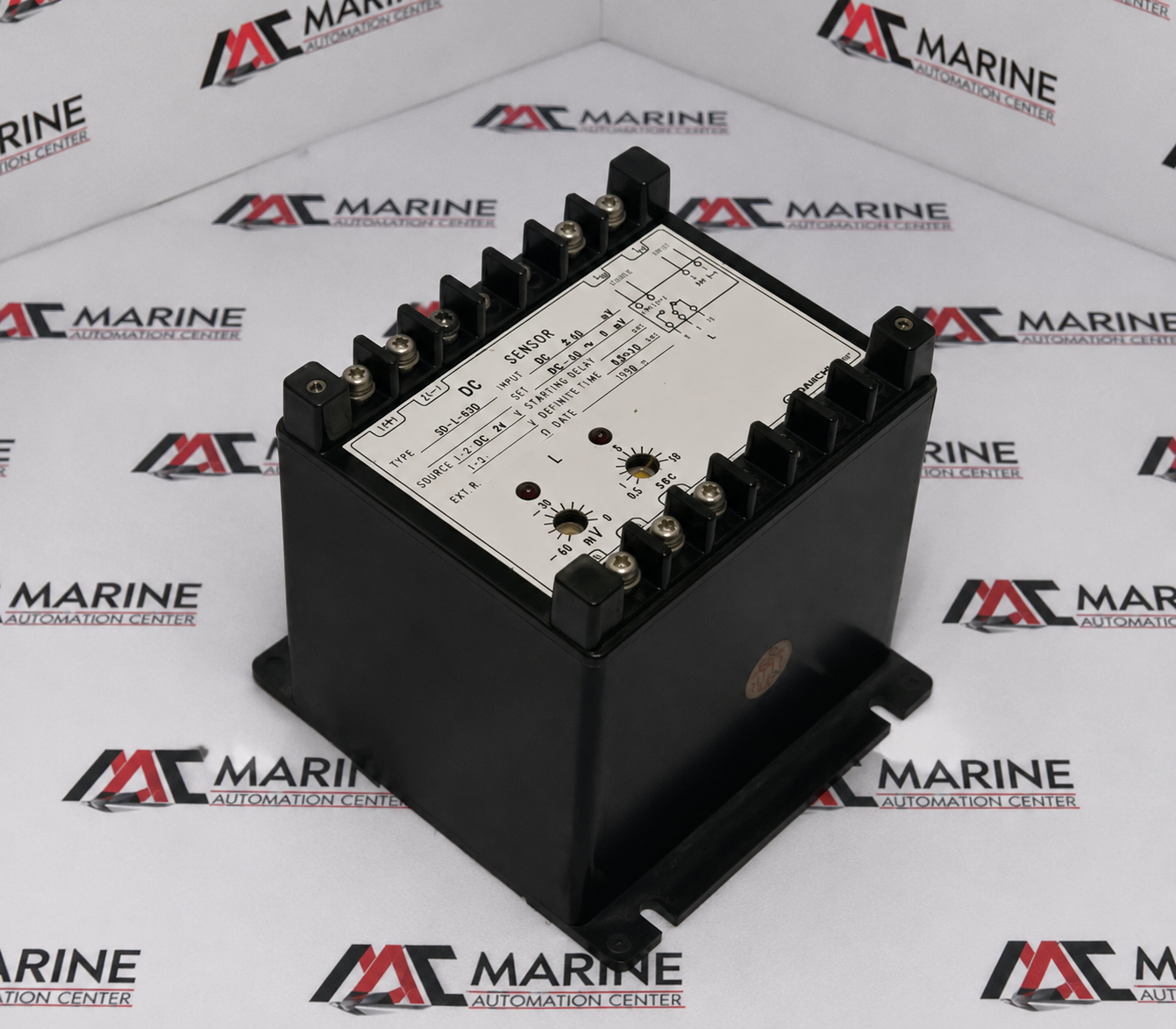

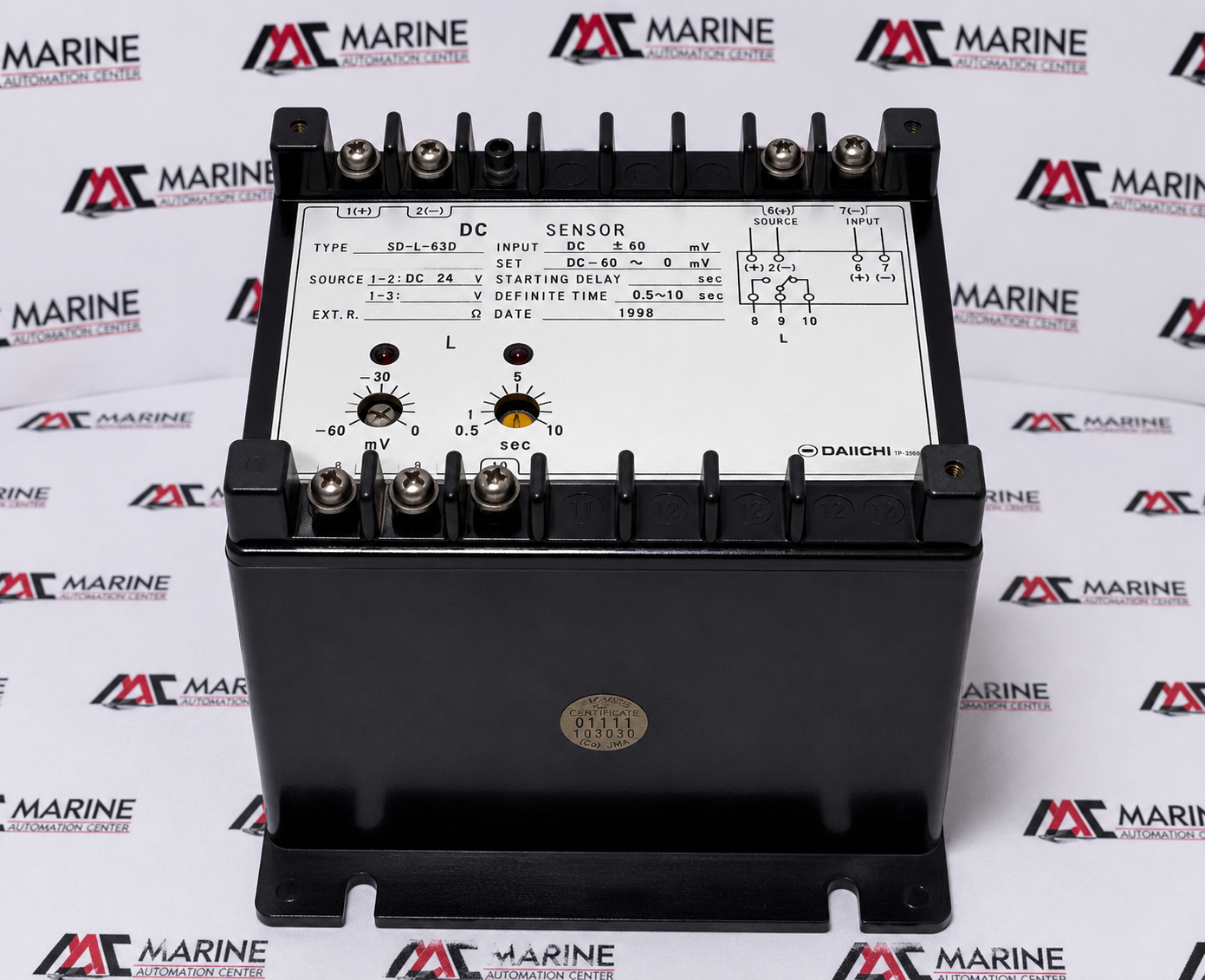

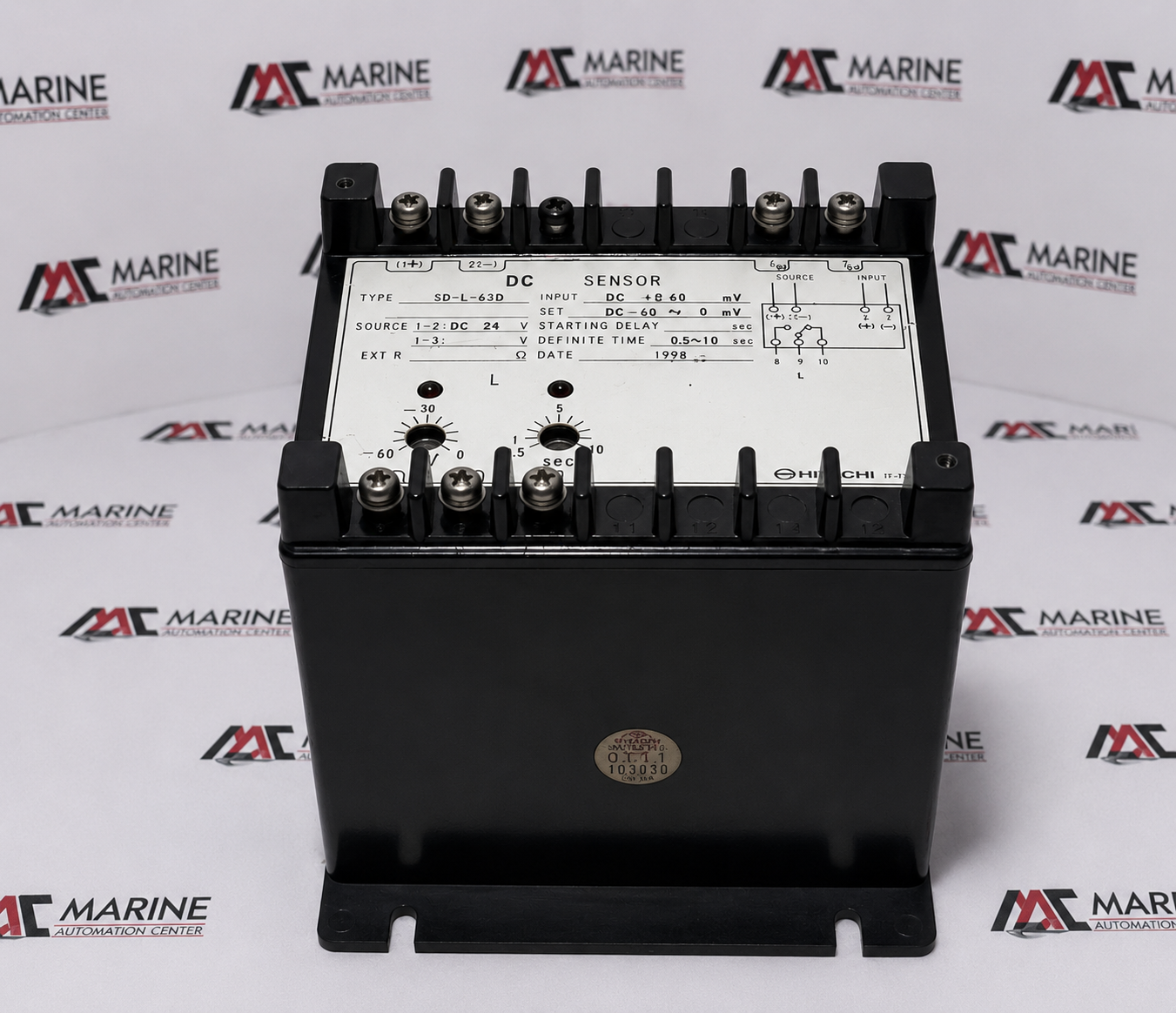

Daiichi Electric DC Sensor SD-L-63D
The Daiichi Electric Co., Ltd. SD-L-63D DC Sensor is an industrial DC current sensor designed for accurate monitoring and measurement of direct current in electrical power and automation systems. It provides reliable current detection for protection, control, and monitoring applications, making it suitable for marine switchboards, power distribution panels, and industrial control systems.
BRAND
Daiichi
TYPE
DC SENSOR
PART NO.
Daiichi Electric DC Sensor SD-L-63D
MODEL
SD-L-63D
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Daiichi |
| TYPE | DC SENSOR |
| PART NO. | Daiichi Electric DC Sensor SD-L-63D |
| MODEL | SD-L-63D |
| SERIES | SD Series |
| PRODUCT CODE | TP-3560 |
| Input Signal | DC ±60 mV |
| Set Range | DC -60 to 0 mV (Adjustable) |
| Power Supply | DC 24 V |
| Supply Terminals | 1 (+), 2 (-) |
| Input Terminals | 6 (+), 7 (-) |
| Status Indication | Dual Red LED Indicators |
| Adjustment Controls | Sensitivity (mV) & Definite Time (sec) potentiometers |
| Application | DC voltage monitoring, sensor signal detection, alarm/trip control, marine automation, industrial control panels, monitoring systems |
| Mounting Type | Panel / Plug-in Mount |
| Made In | Japan |
| REF NO | 1341 |
