Dahms

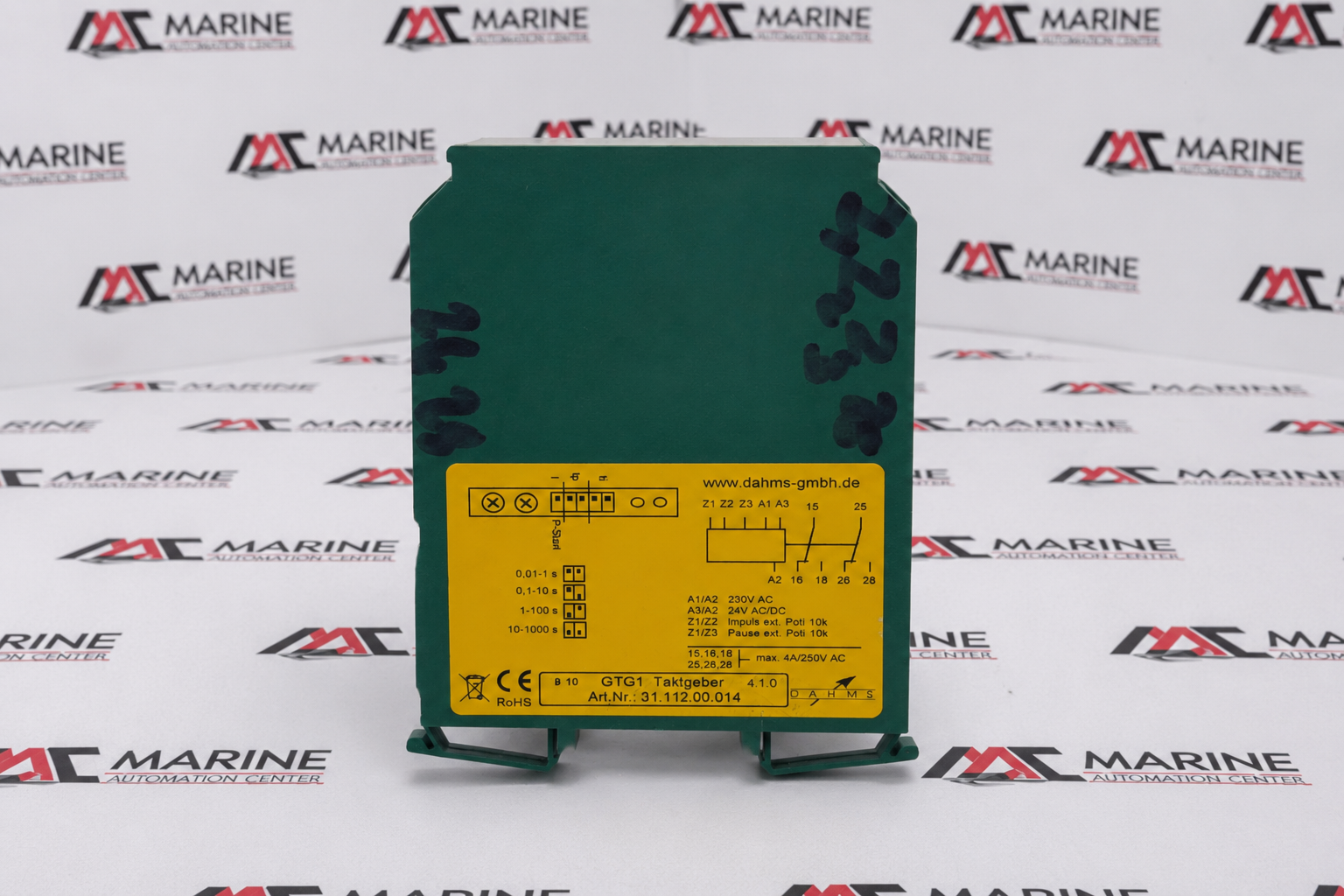

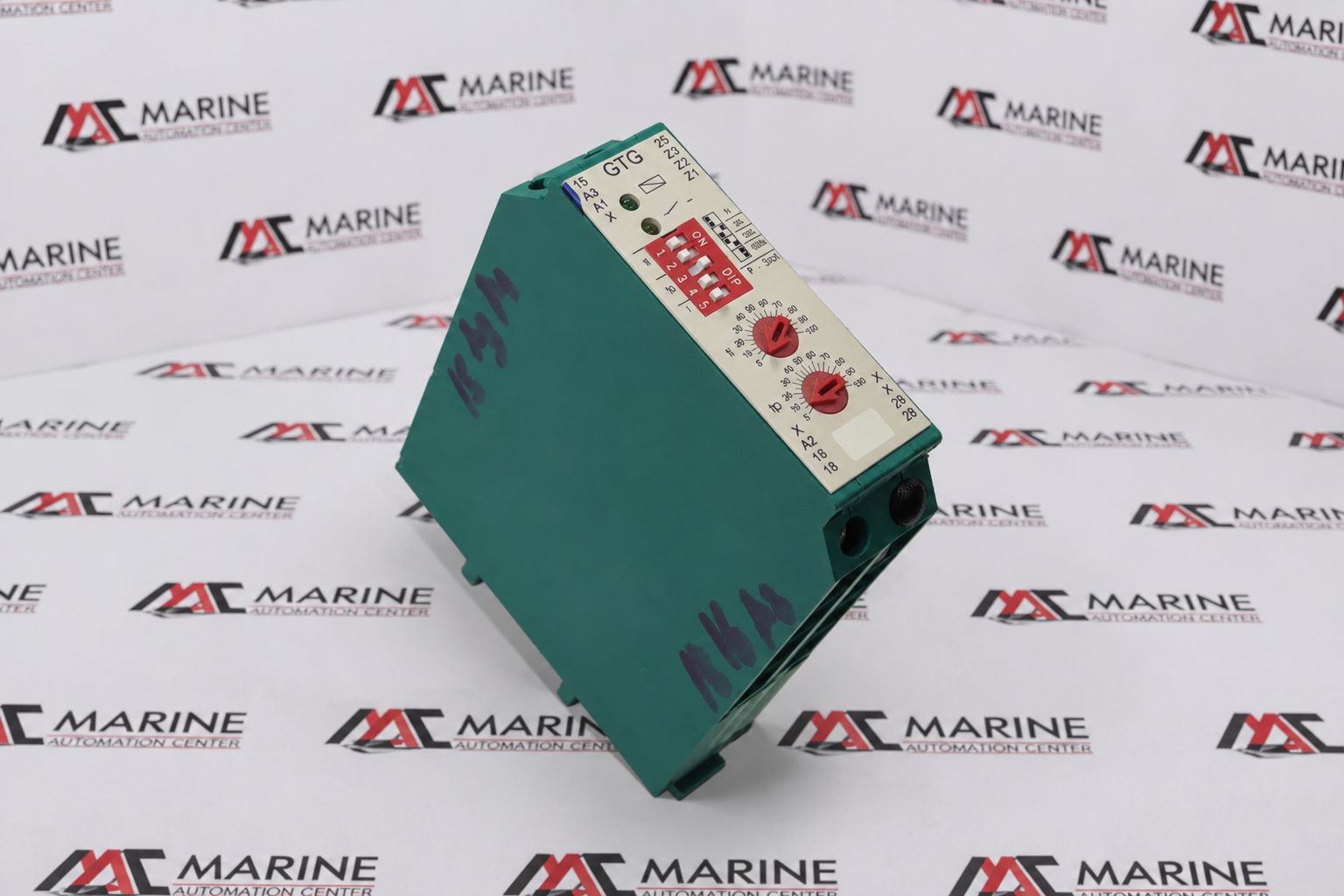

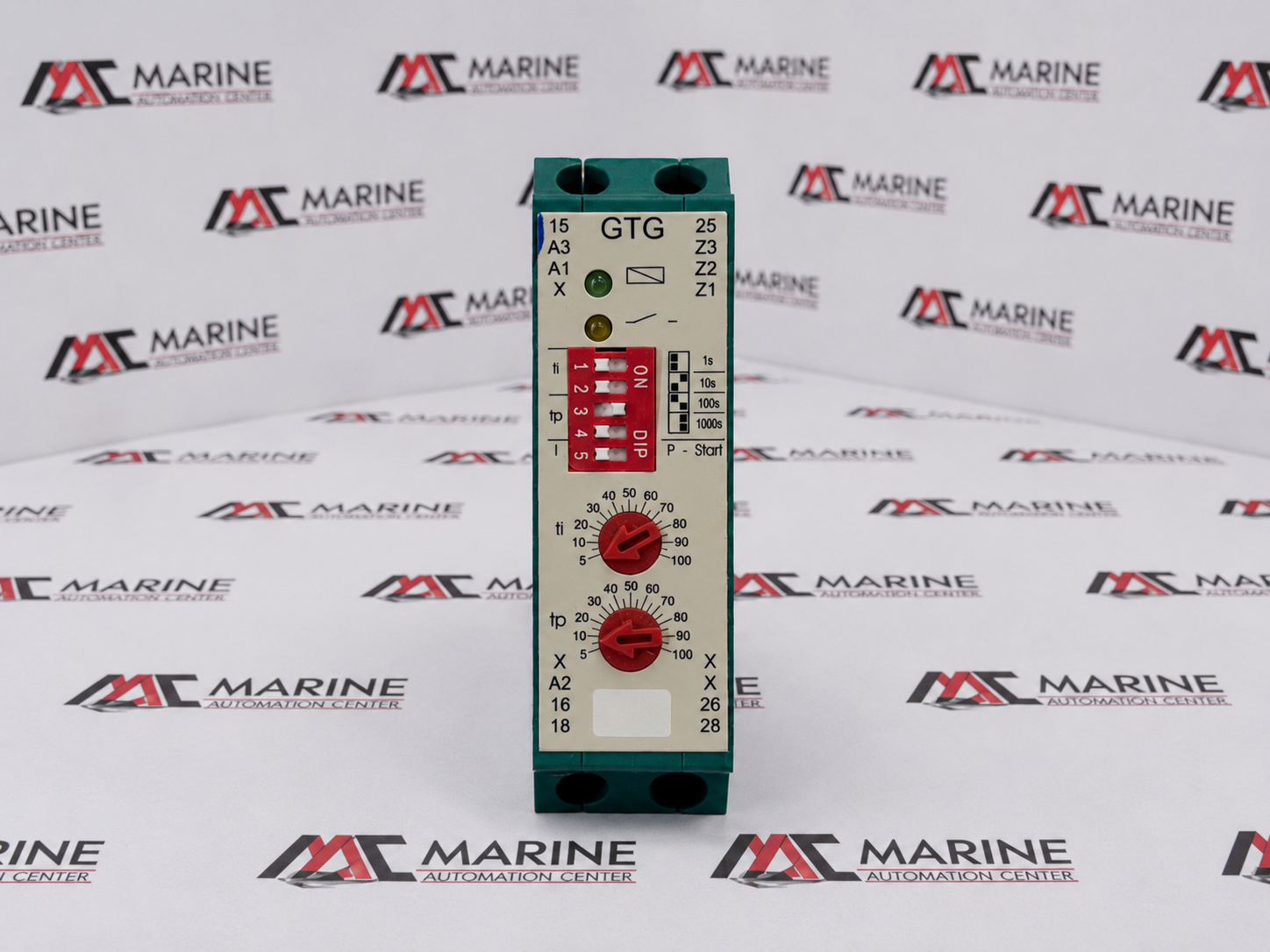

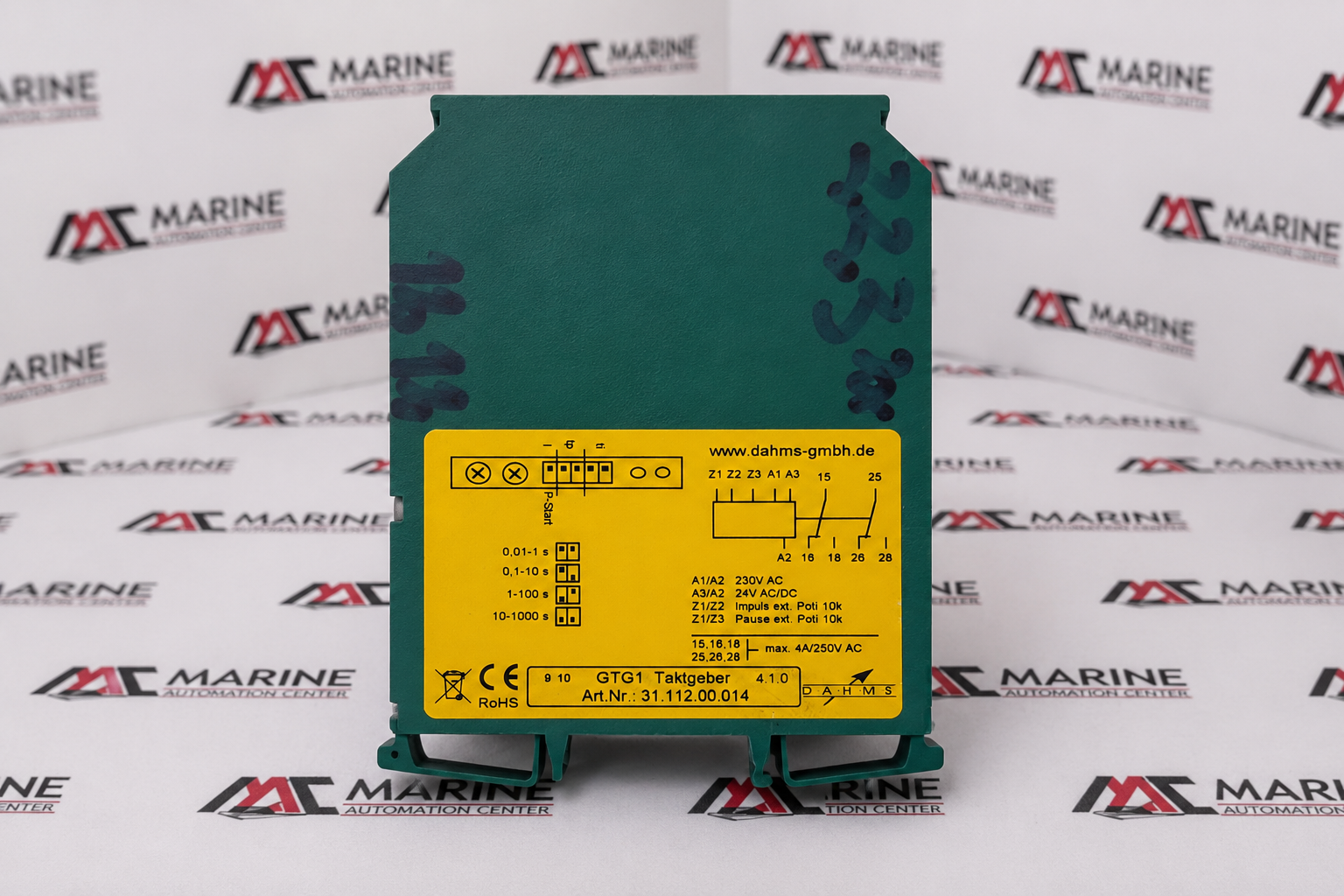

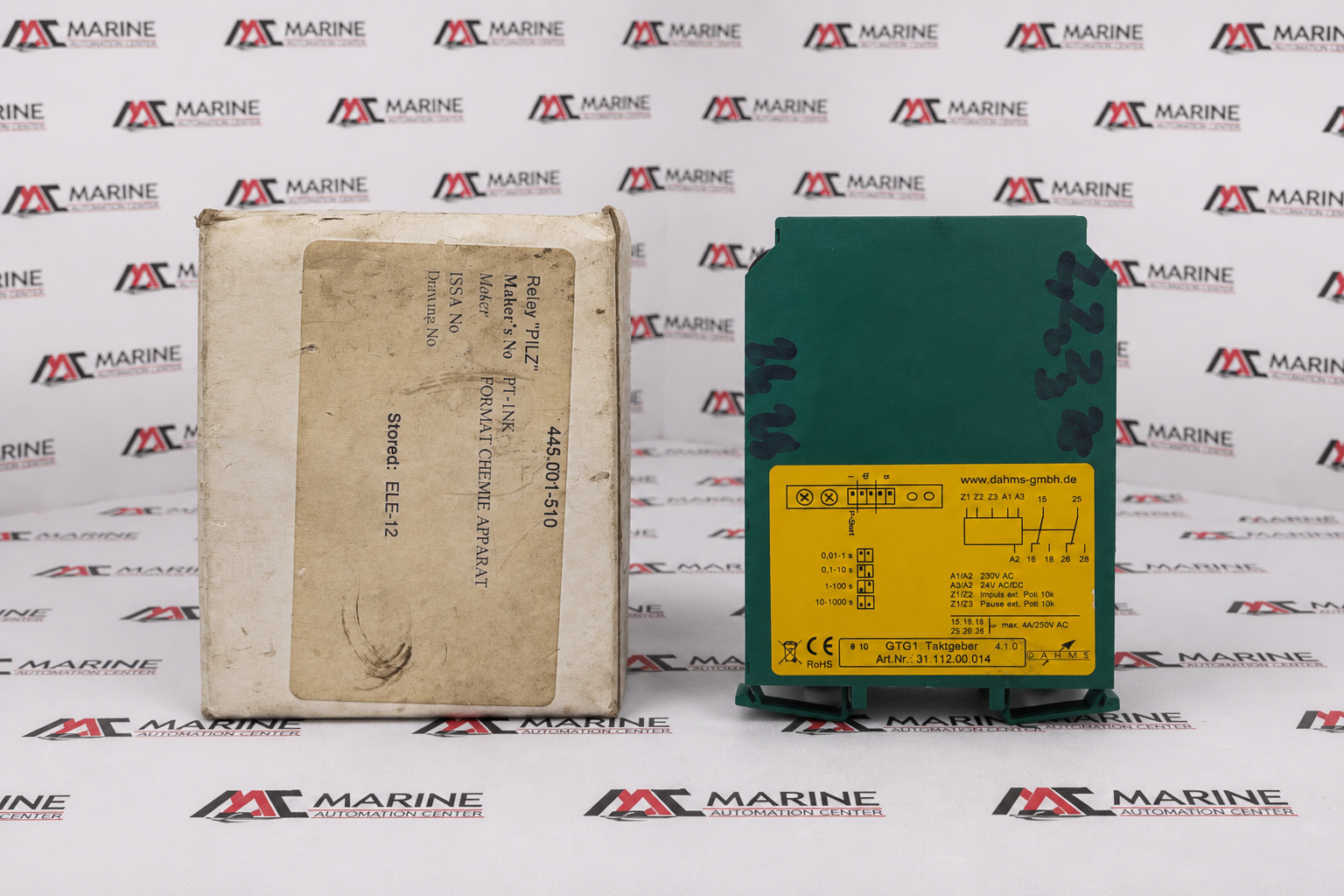

The Dahms GTG1 GTG 445.001-510 Taktgeber (Timer Relay) is an industrial electronic pulse/timer relay designed to generate cyclic ON/OFF timing sequences for automation and control applications. It provides accurate, repeatable pulse and pause intervals, making it ideal for controlling relays, contactors, warning lights, signaling devices, and other sequential industrial processes. The GTG series is DIN-rail mountable and is commonly used in machine control panels and industrial automation system
BRAND
Dahms
TYPE
GTG1 Taktgeber
PART NO.
31.112.00.014
MODEL
GTG1
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Dahms |
| TYPE | GTG1 Taktgeber |
| PART NO. | 31.112.00.014 |
| MODEL | GTG1 |
| VERSION | 4.1.0 |
| DEVICE FUNCTION | Taktgeber |
| SUPPLY VOLTAGE (A1/A2) | 230 V AC |
| ALTERNATE SUPPLY VOLTAGE (A3/A2) | 24 V AC/DC |
| CONTACT RATING | Max. 4 A / 250 V AC |
| TIME RANGE | Selectable: 0.01–1 s, 0.1–10 s, 1–100 s, 10–1000 s |
| CONTROL TERMINALS | Z1, Z2, Z3, A1, A2, A3 |
| OUTPUT TERMINALS | 15, 16, 18, 25, 26, 28 |
| Made in | germany |
| Ref no | 512 |
