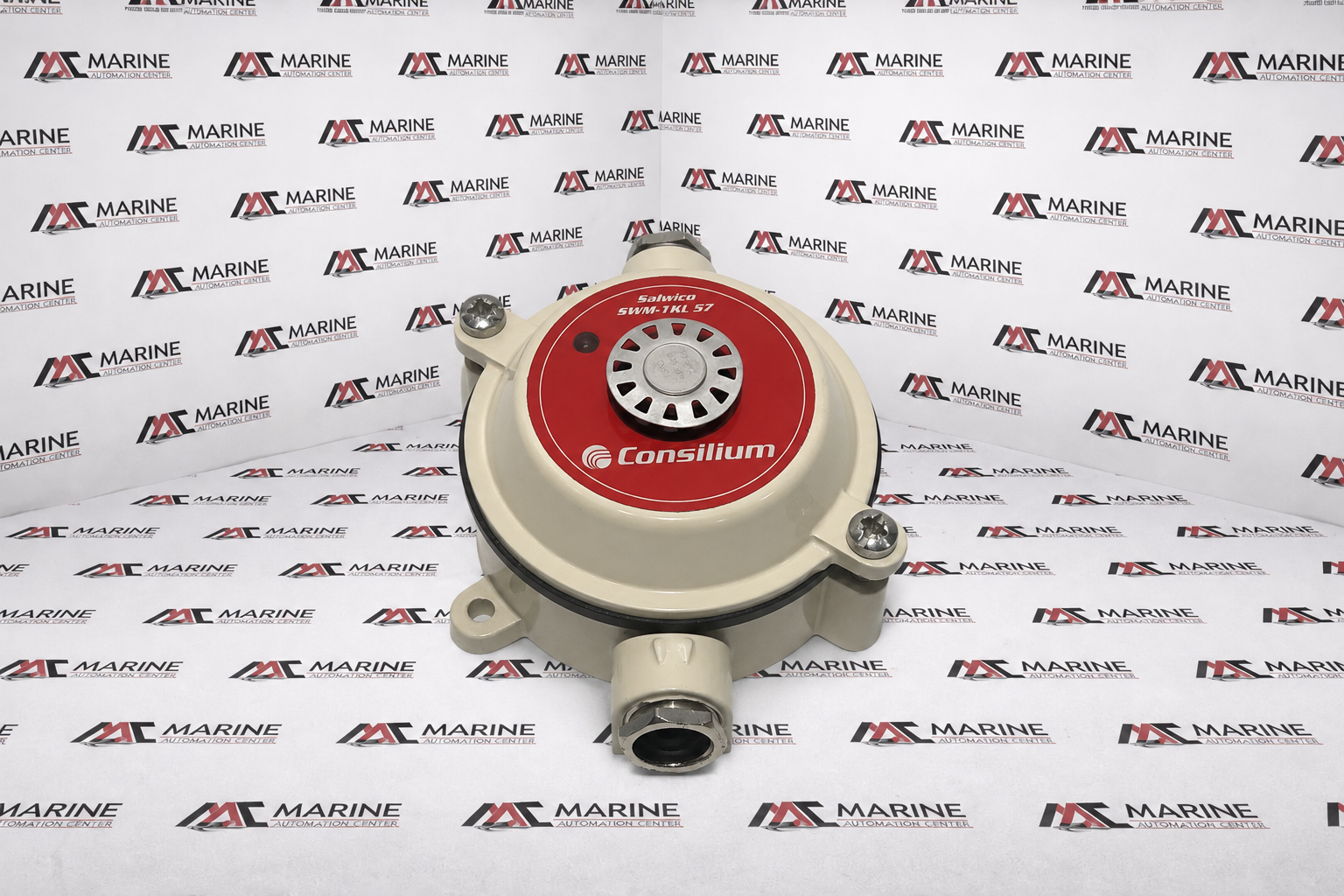

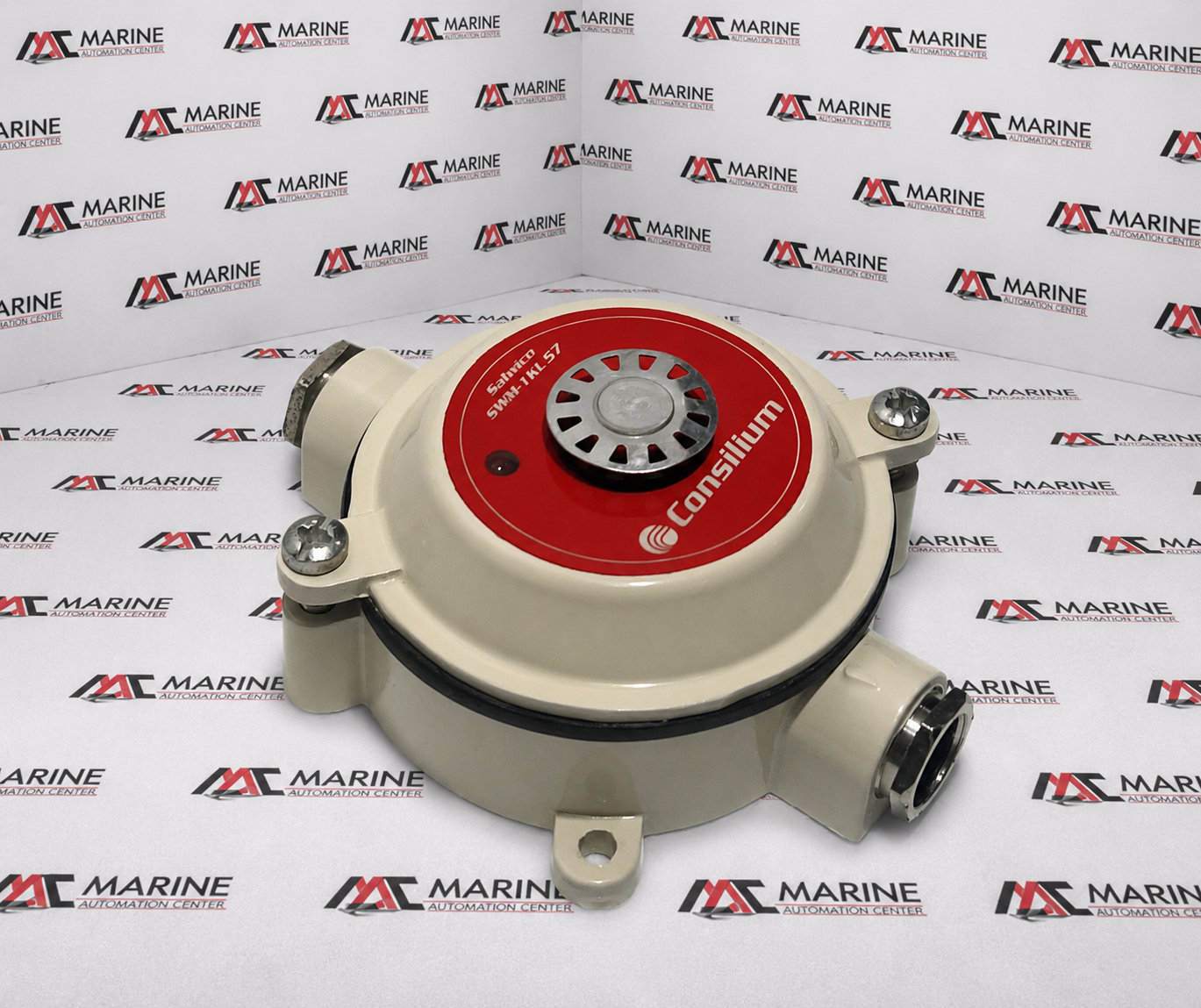

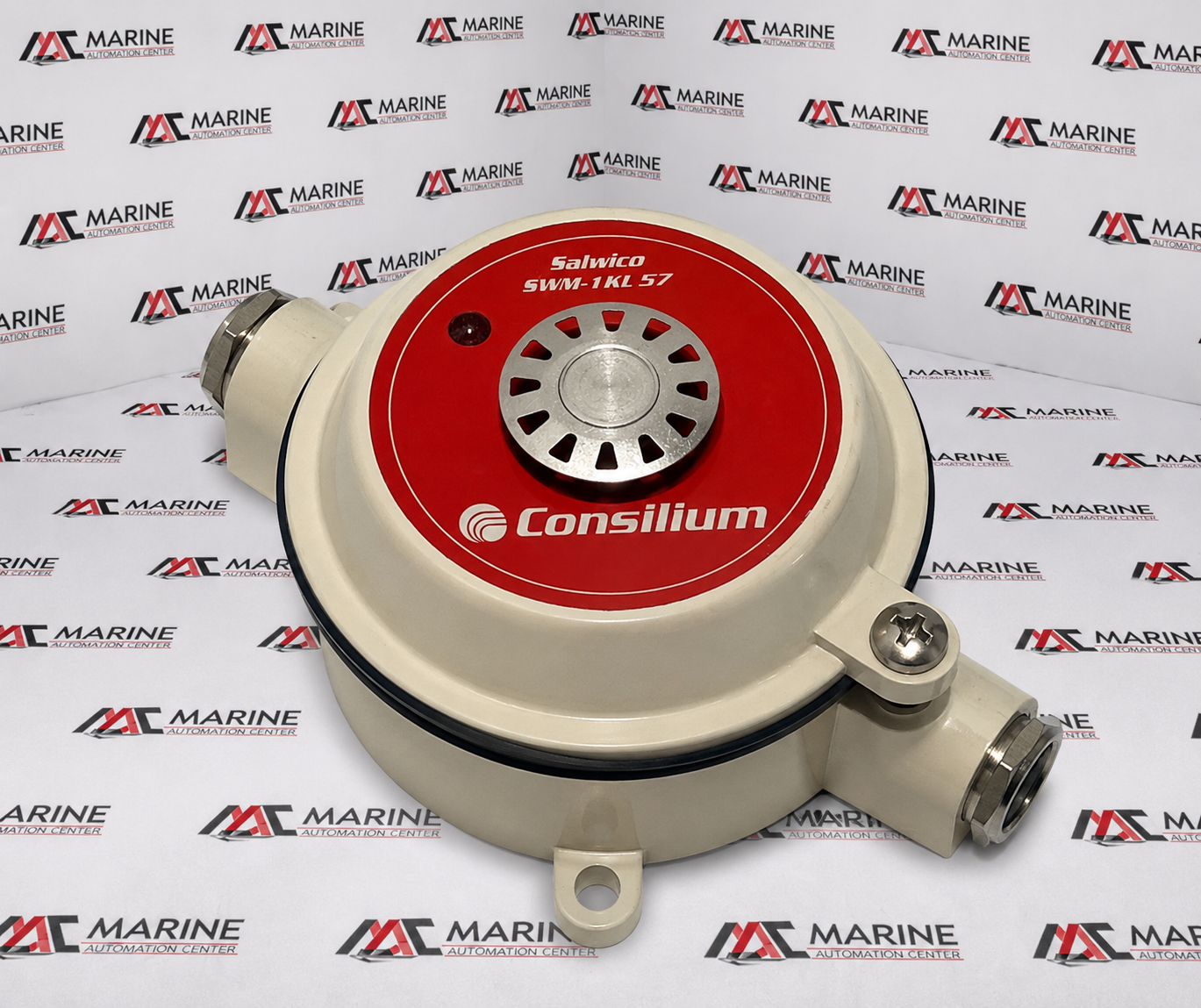

Consilium Salwico SWM-1KL 57 Heat Detector
The Consilium Salwico SWM-1KL 57 Heat Detector is a dependable fixed-temperature fire detection device designed for marine and industrial safety systems. It activates an alarm when the ambient temperature reaches 57°C (134.6°F), providing early fire detection and reliable protection. Featuring a built-in bimetallic thermostat, a red LED alarm indicator, and an IP65-rated enclosure, it is suitable for harsh and demanding environments.
BRAND
Consilium / Salwico
TYPE
Heat Detector
PART NO.
37170
MODEL
SWM-1KL 57
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Consilium / Salwico |
| TYPE | Heat Detector |
| PART NO. | 37170 |
| MODEL | SWM-1KL 57 |
| Manufacturer | Consilium Salwico |
| Primary Use & Function | Fixed temperature fire detection and contact closing at alarm threshold |
| Target Environments | Damp spaces, marine vessels, industrial automation, and safety systems |
| Core Technology | Bimetallic thermostat with built-in red optical LED alarm indicator |
| Nominal / Working Voltage | 24 VDC (Working range: 17 – 31 VDC) |
| Working / Alarm Current | Working: 0.005 mA | Alarm: Max 100 mA |
| Alarm Resistance | 300 Ω |
| Ingress Protection (IP) | IP65 (Dust tight and water-jet protected) |
| Operating Temperature | -10°C to +70°C |
| System Compatibility | Compatible with all Salwico Fire Alarm Systems (e.g., CS4000, CS3000) |
| Made in | Sweden |
| Ref no | 1234 |
