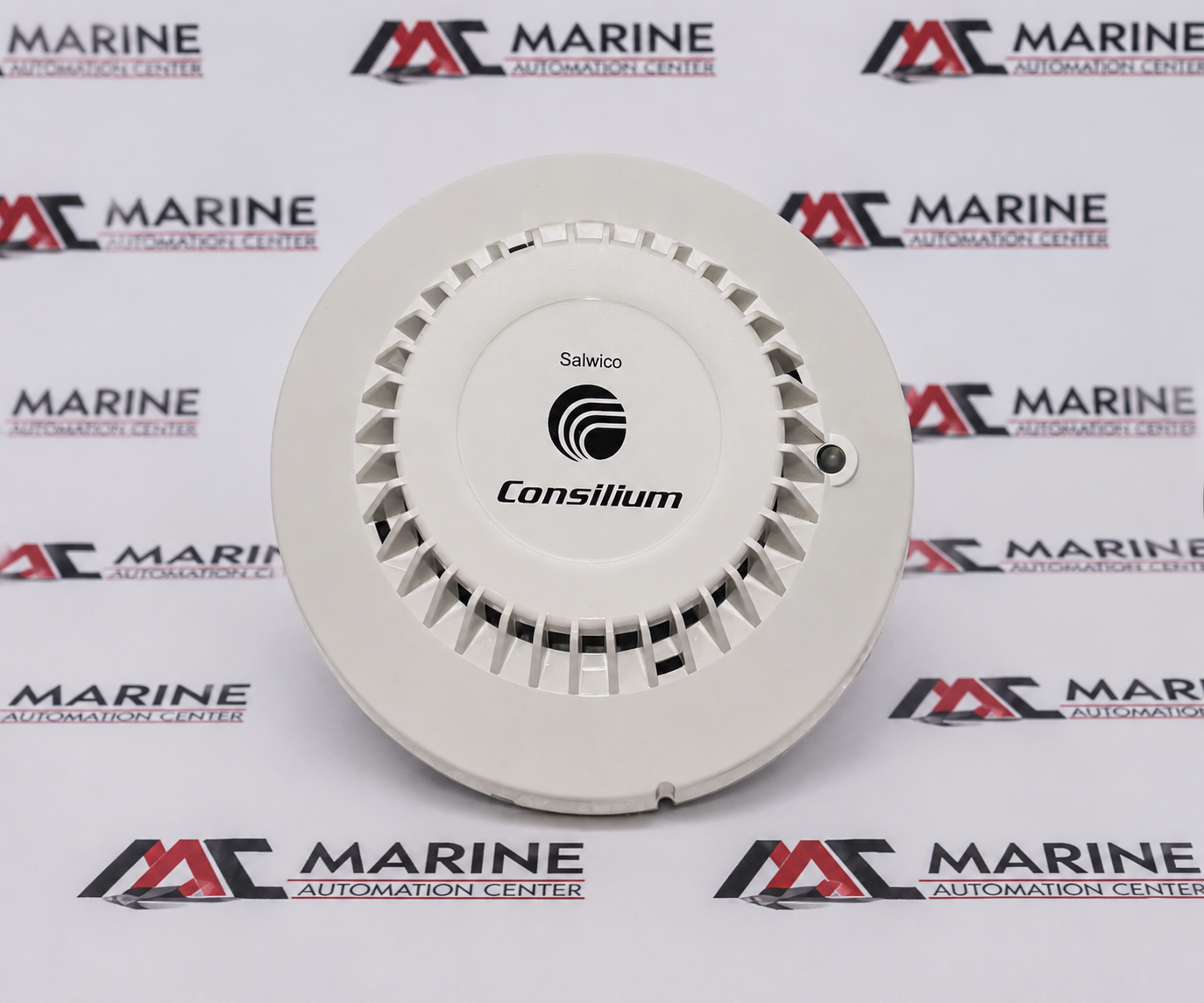

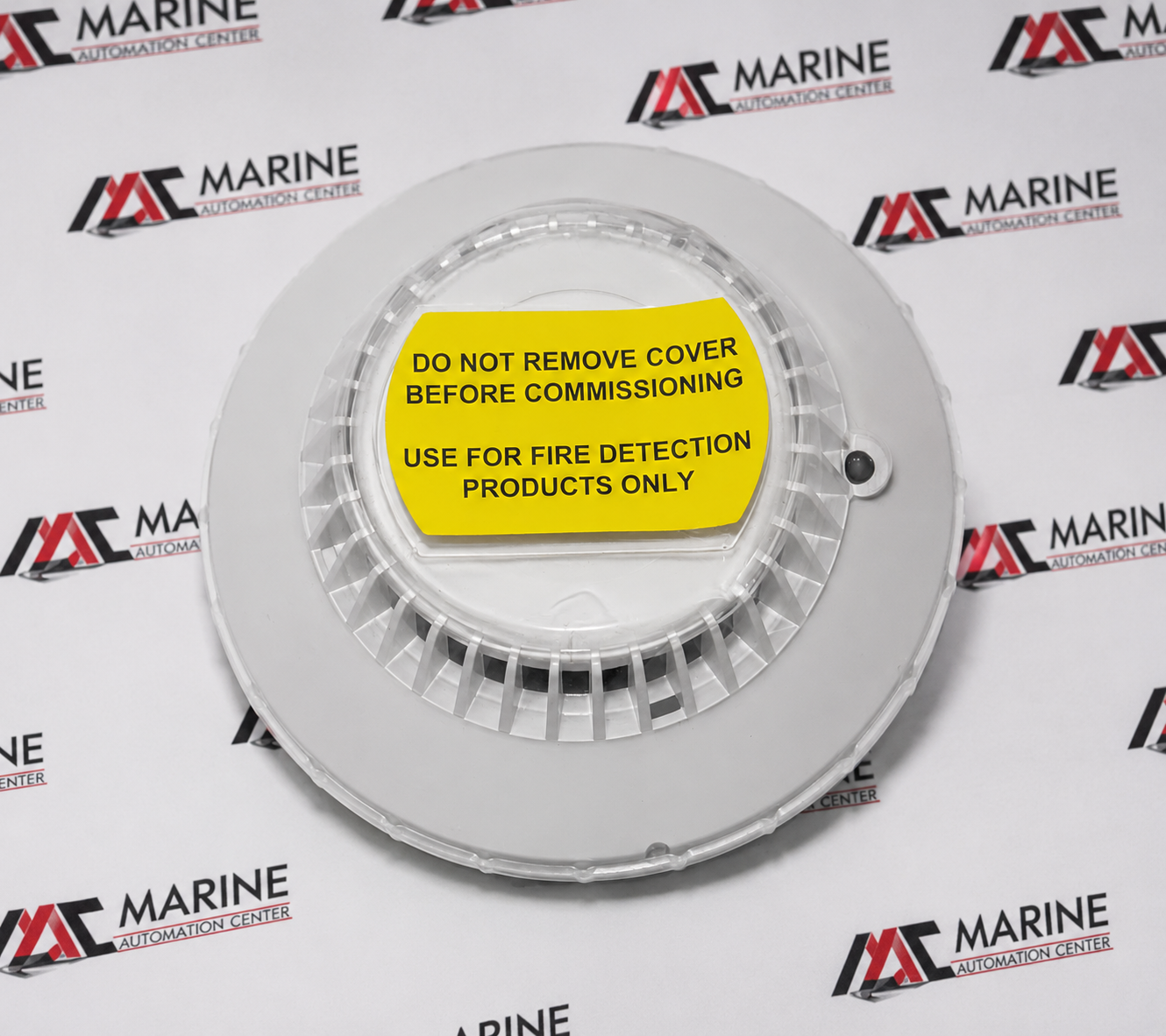

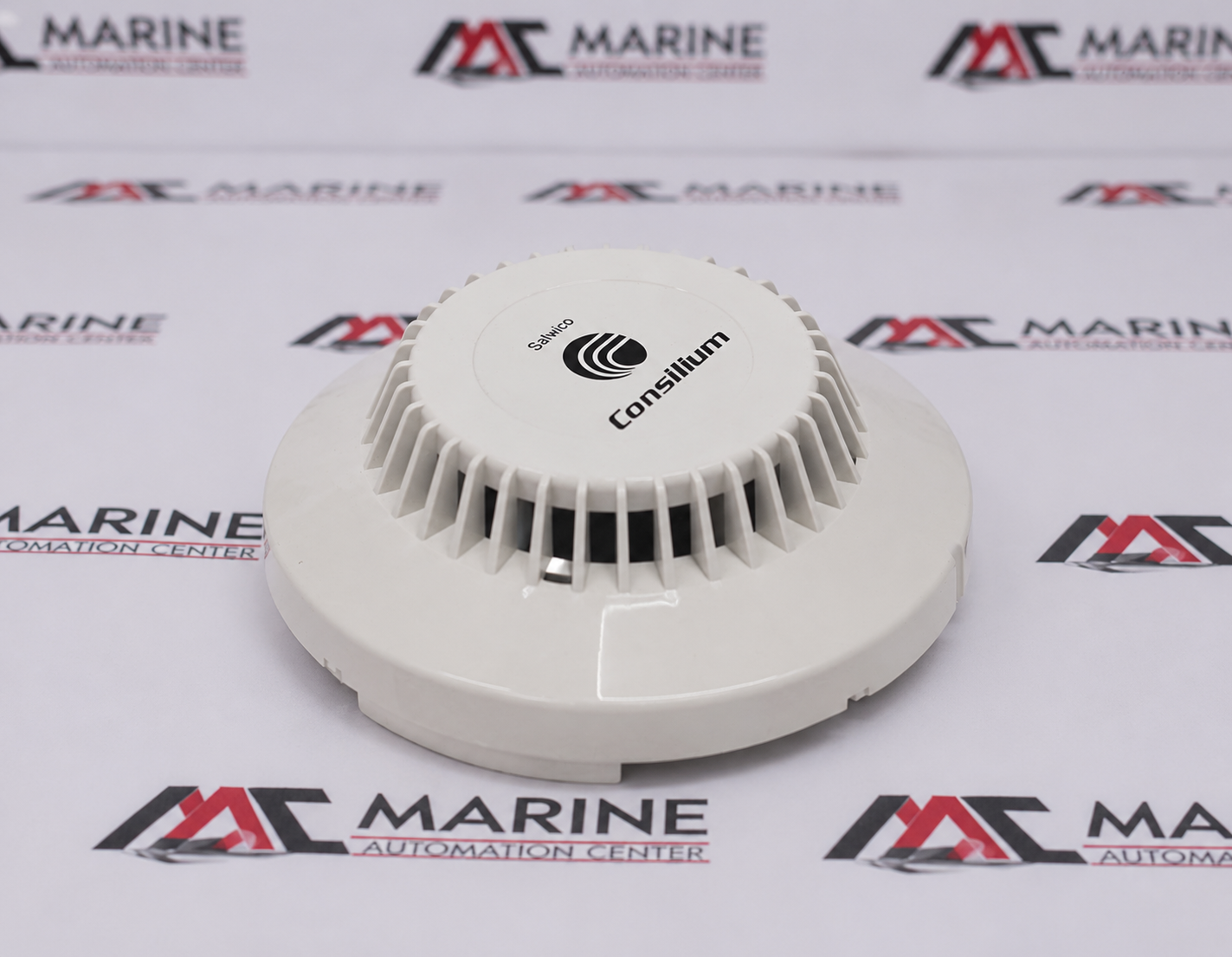

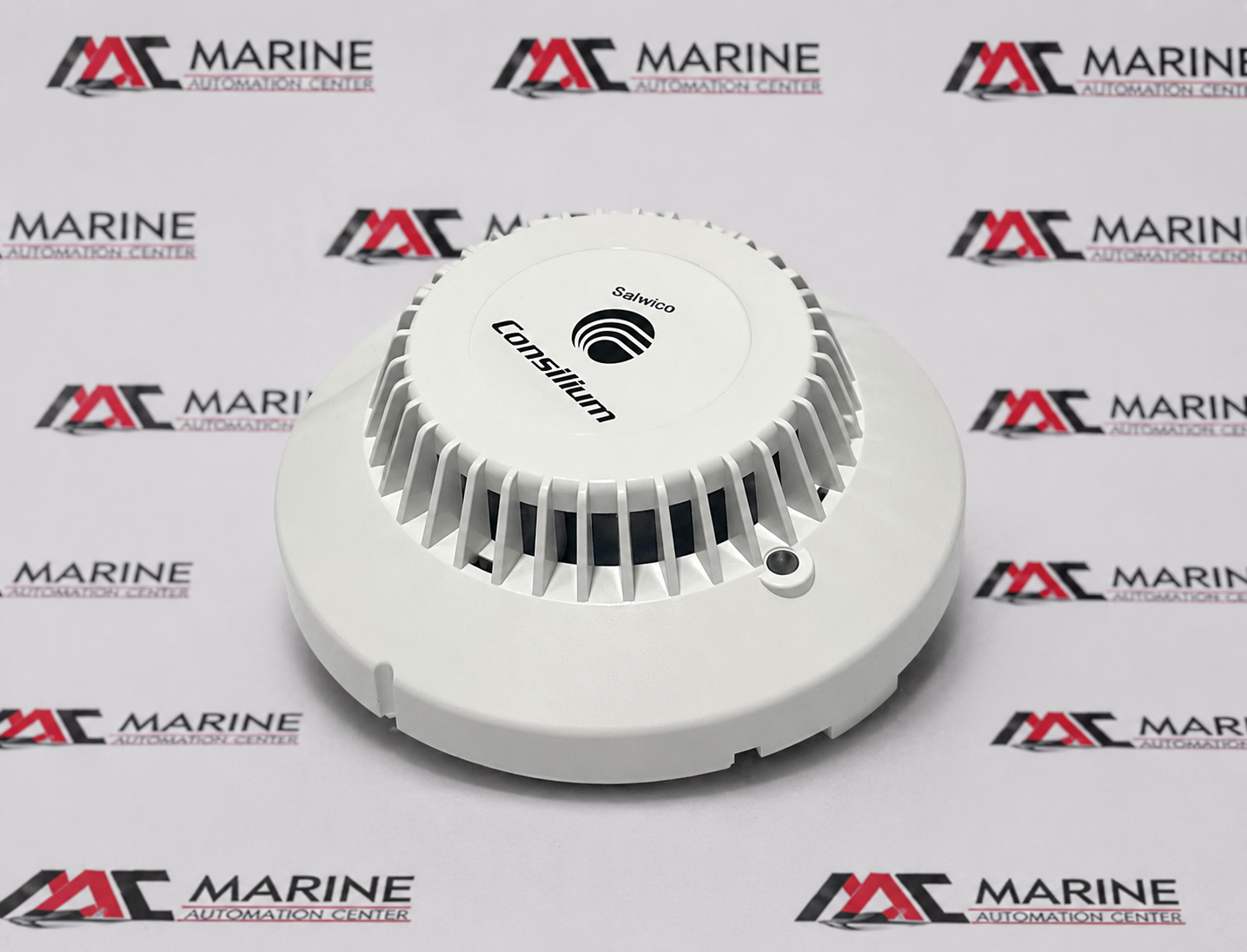

CONSILIUM SALWICO DOS3 OPTICAL SMOKE DETECTOR
The Consilium Salwico DOS3 Optical Smoke Detector (P/N: N1115) is a high-performance photoelectric smoke detector designed for early fire detection in marine and industrial environments. Utilizing advanced optical sensing technology, it provides fast and reliable smoke detection while minimizing false alarms. Engineered for compatibility with Salwico fire alarm systems, it ensures dependable fire protection in demanding applications.
BRAND
CONSILIUM SALWICO
TYPE
Optical Smoke Detector
PART NO.
N1115
MODEL
DOS3
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | CONSILIUM SALWICO |
| TYPE | Optical Smoke Detector |
| PART NO. | N1115 |
| MODEL | DOS3 |
| MANUFACTURER | Consilium Safety Group |
| OPERATING PRINCLE | Optical, Infrared Light Scattering Type |
| NOMINAL VOLTAGE | 24 VDC |
| SUPPLY / SIGNAL VOLTAGE | +VE 16-32 VDC |

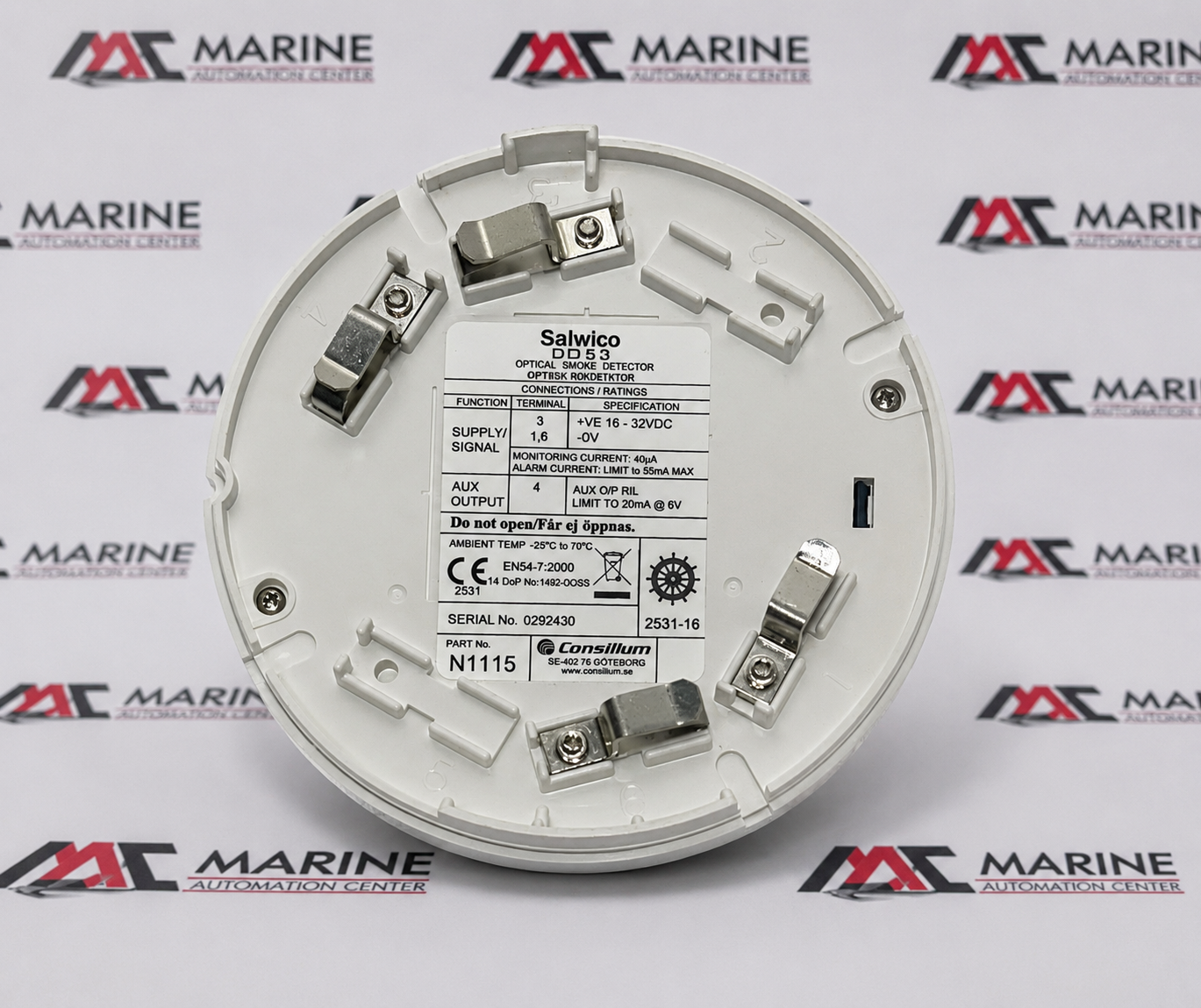

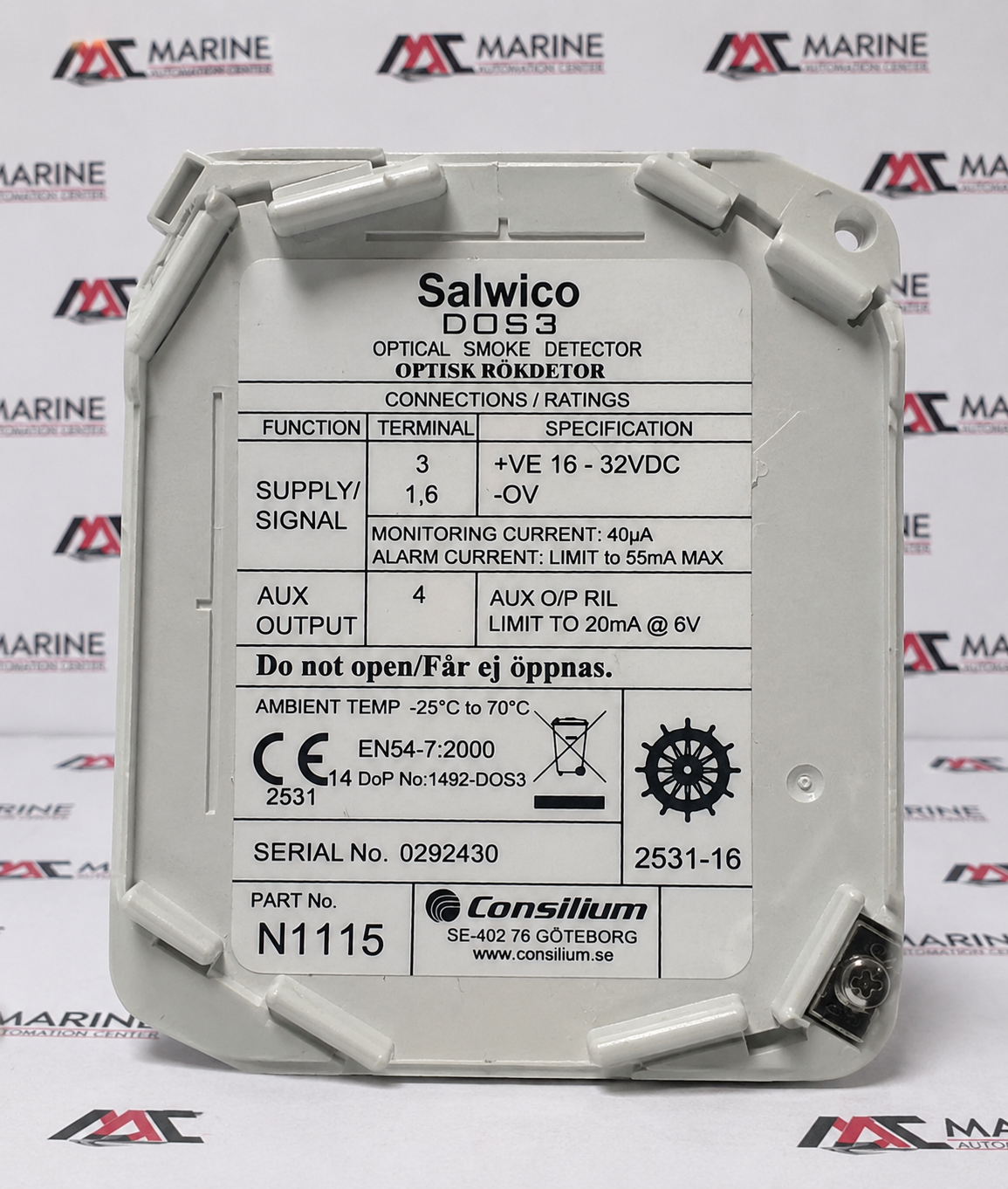

| TERMINALS | Terminal 3: +VE, Terminals 1 & 6: -0V |
| MONITORING CURRENT | Max. 40 µA |
| ALARM CURRENT | Limited to 55 mA Max |
| ALARM RESISTANCE | 430 Ω |
| AMBIENT OPERATING TEMPERATURE | -25°C to +70°C |
| AMBIENT HUMIDITY | 0 – 95% RH |
| INGRESS PROTECTION | IP42 / IP55 |
| SERIAL NUMBER | 0292430 |
| APPLICATION | Fire detection in marine vessels, offshore installations, industrial facilities, accommodation spaces, machinery rooms, and commercial buildings |
| MOUNTING TYPE | Ceiling / Base Mounted |
| Made in | Sweden |
| REF NO | 1240 |
