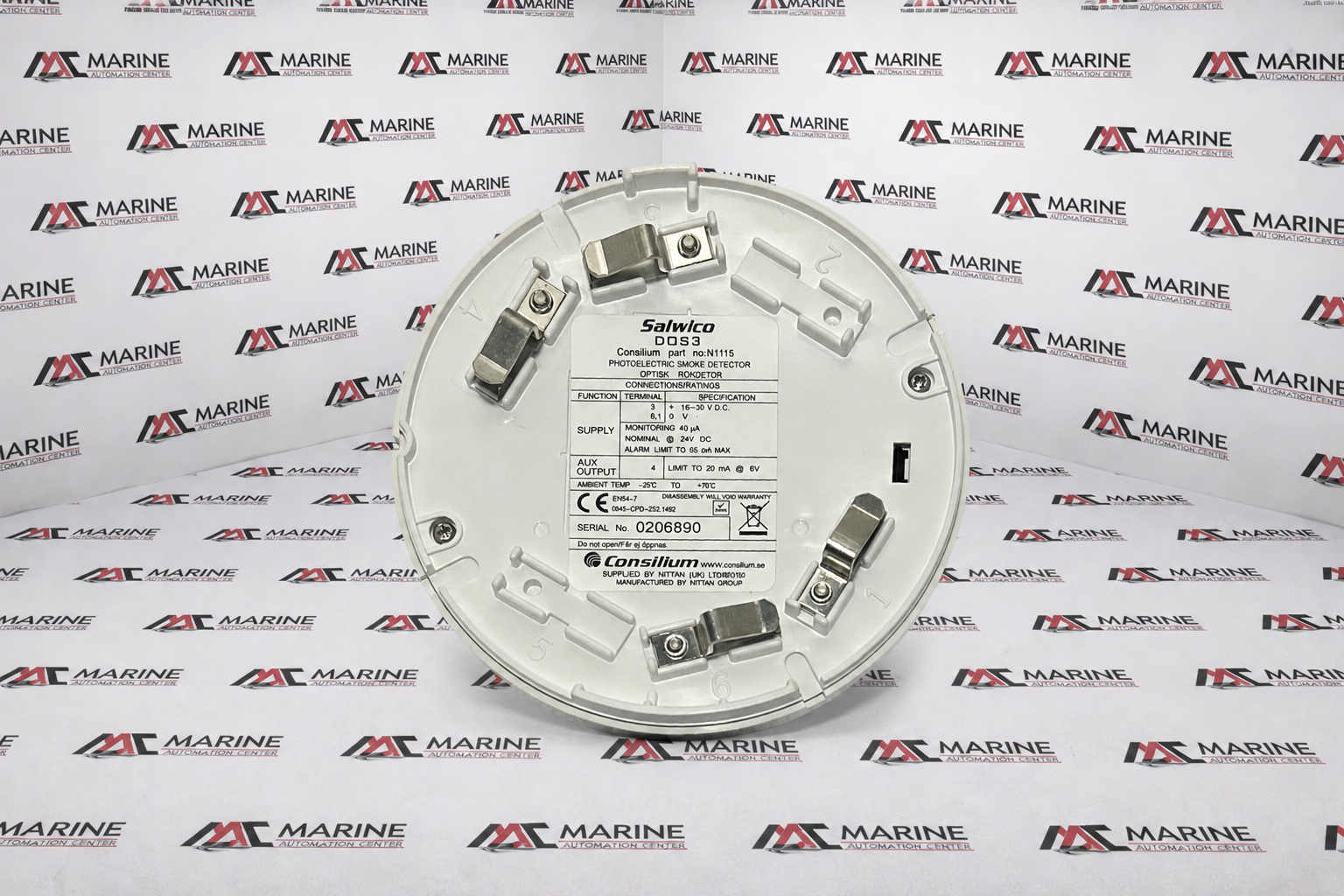

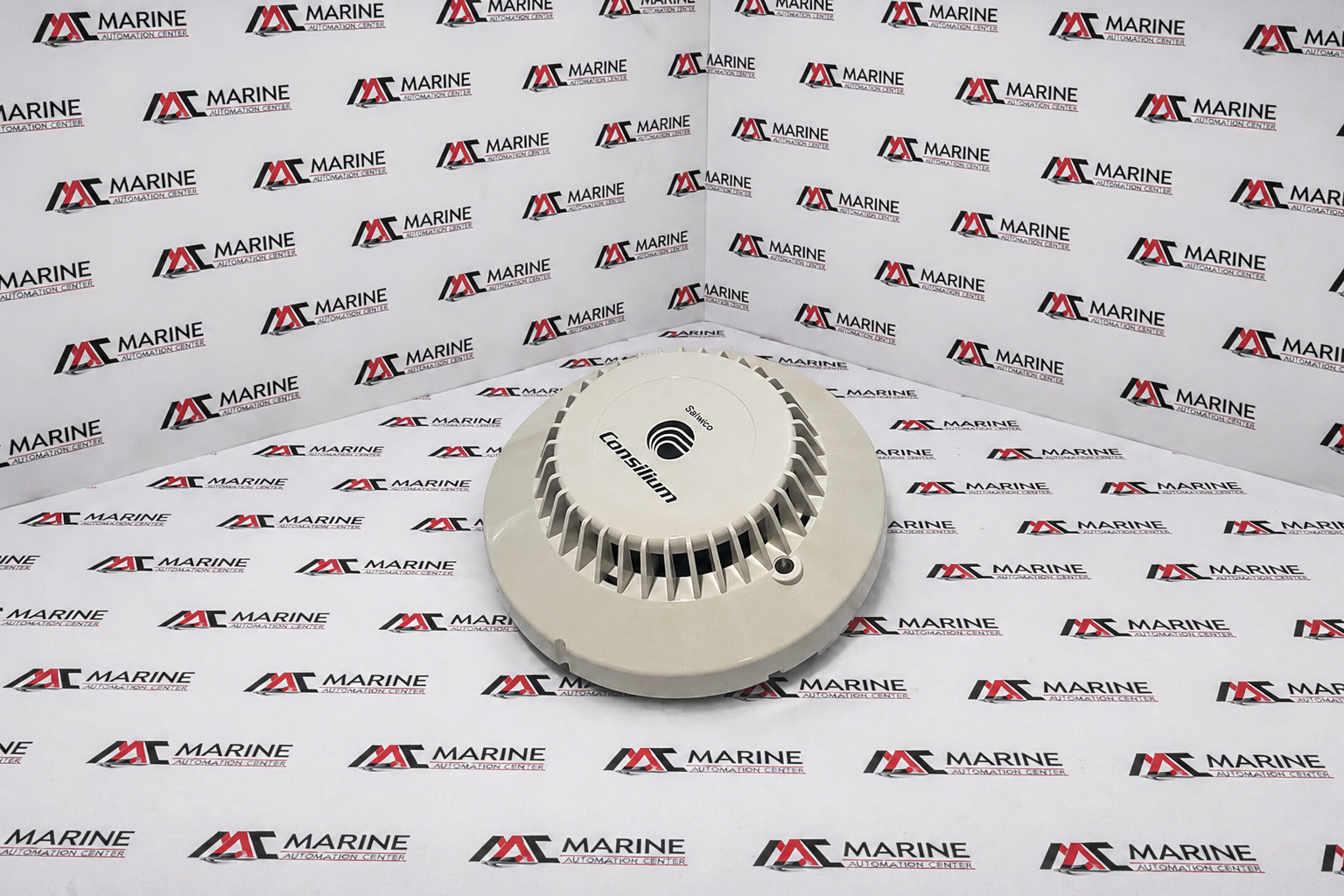

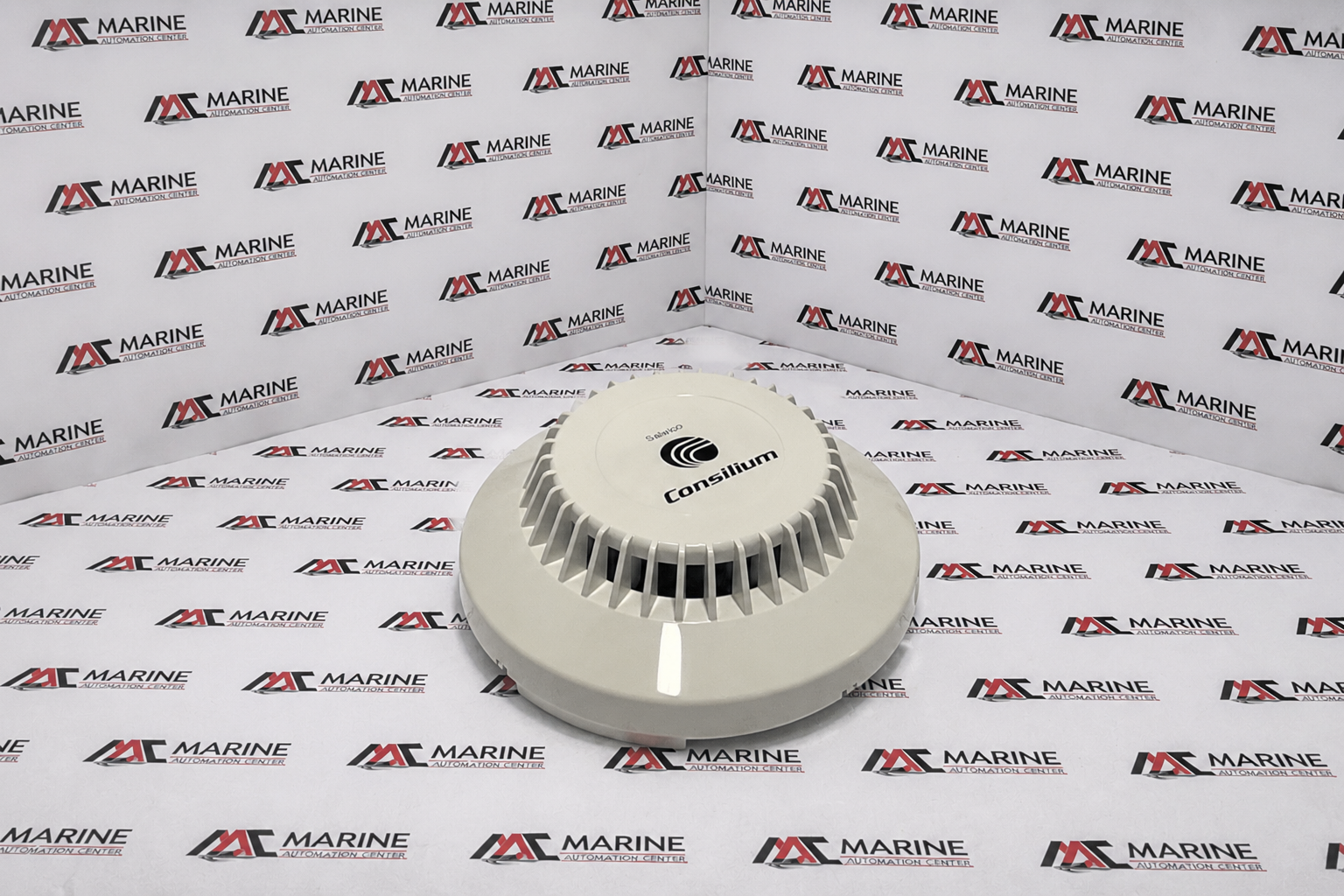

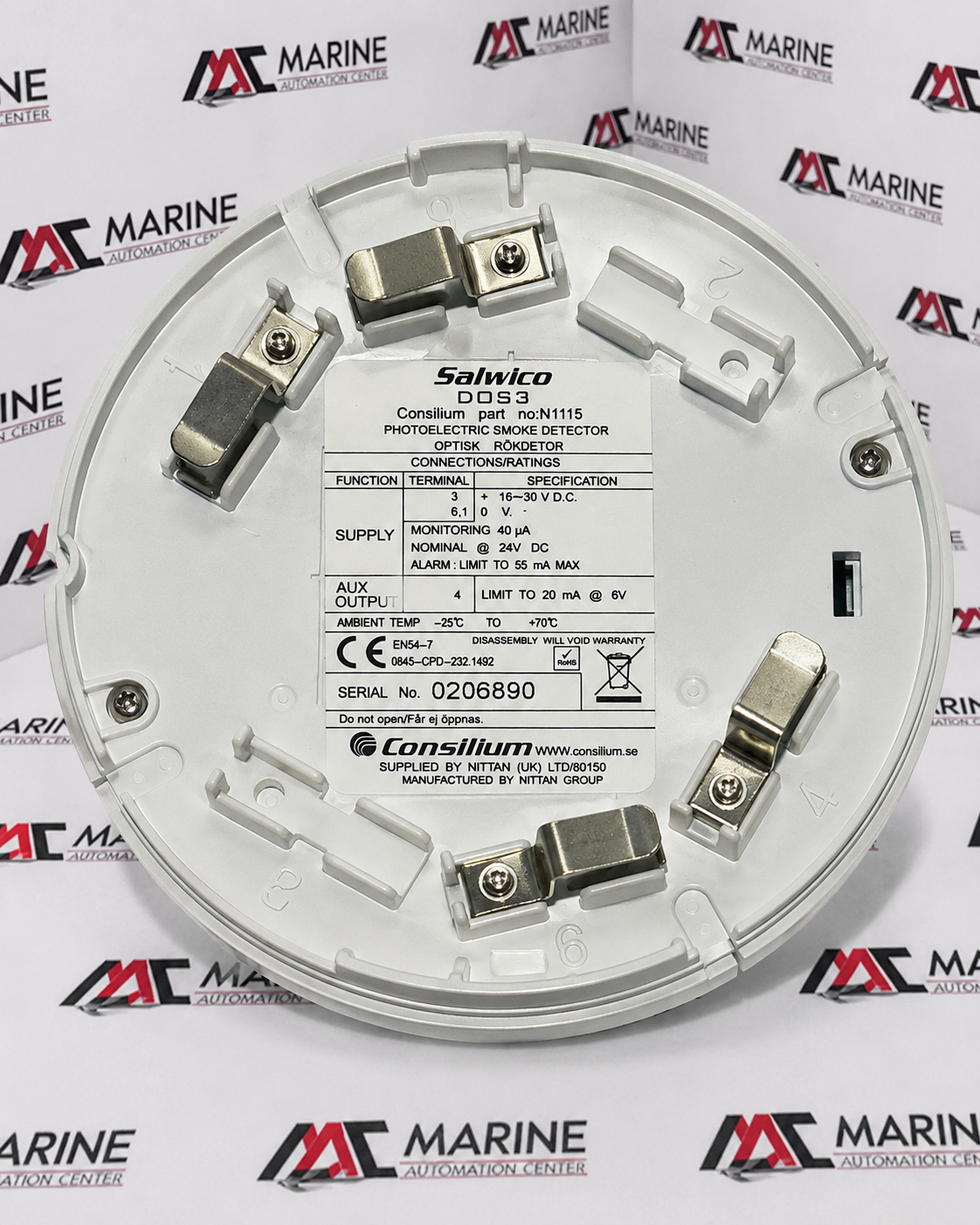

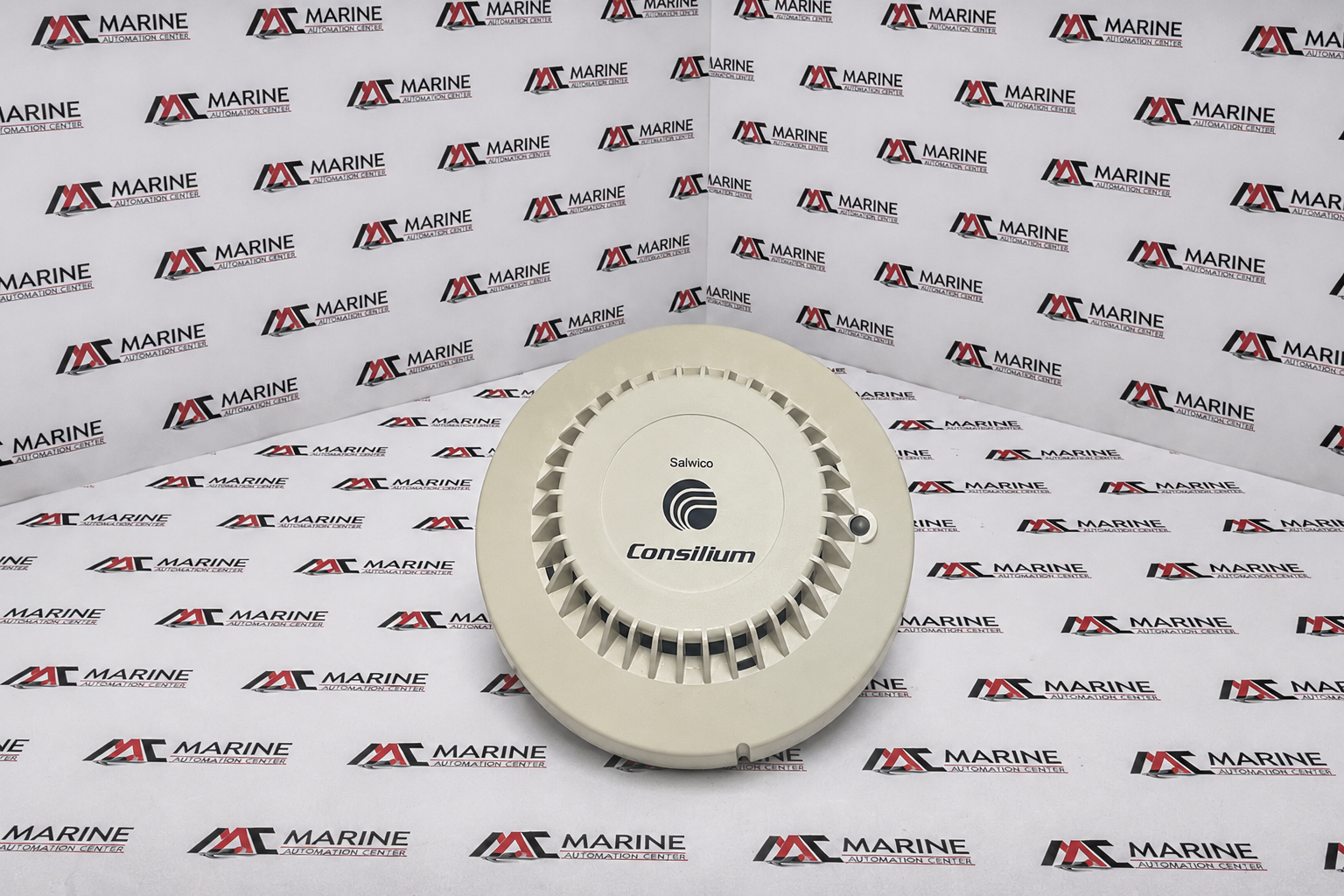

Consilium Salwico DOS3 Addressable Photoelectric Smoke Detector
The Consilium Salwico DOS3 Addressable Photoelectric Smoke Detector (P/N: N1115) is a high-performance fire detection device designed for early and reliable smoke detection in marine and industrial environments. Using advanced photoelectric sensing technology, it quickly detects visible smoke while minimizing false alarms. Compatible with Salwico addressable fire alarm systems, it provides dependable fire protection for safety-critical applications.
BRAND
Consilium Salwico
TYPE
Smoke Detector
PART NO.
N1115
MODEL
DOS3
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Consilium Salwico |
| TYPE | Smoke Detector |
| PART NO. | N1115 |
| MODEL | DOS3 |
| MANUFACTURER | Consilium AB (Manufactured by Nittan Group) |
| Supply Voltage | 16–30 V DC |
| Nominal Operating Voltage | 24 V DC |
| Monitoring Current | 40 µA |
| Alarm Current | Limited to 55 mA max |
| Auxiliary Output | Terminal 4 – Limited to 20 mA @ 6 V |
| Operating Temperature | −25°C to +70°C |
| Detection Principle | Photoelectric (Optical Smoke Detection) |
| Detector Type | Addressable Intelligent Smoke Detector |
| Application | Marine fire detection and alarm systems, offshore platforms, engine rooms, accommodation spaces, machinery spaces and industrial fire alarm installations |
| Approvals | EN54-7, CE, RoHS |
| IEC | EN54-7 compliant (IEC compatible fire detection standard) |
| Made In | UK |
| REF NO. | 1250 |
