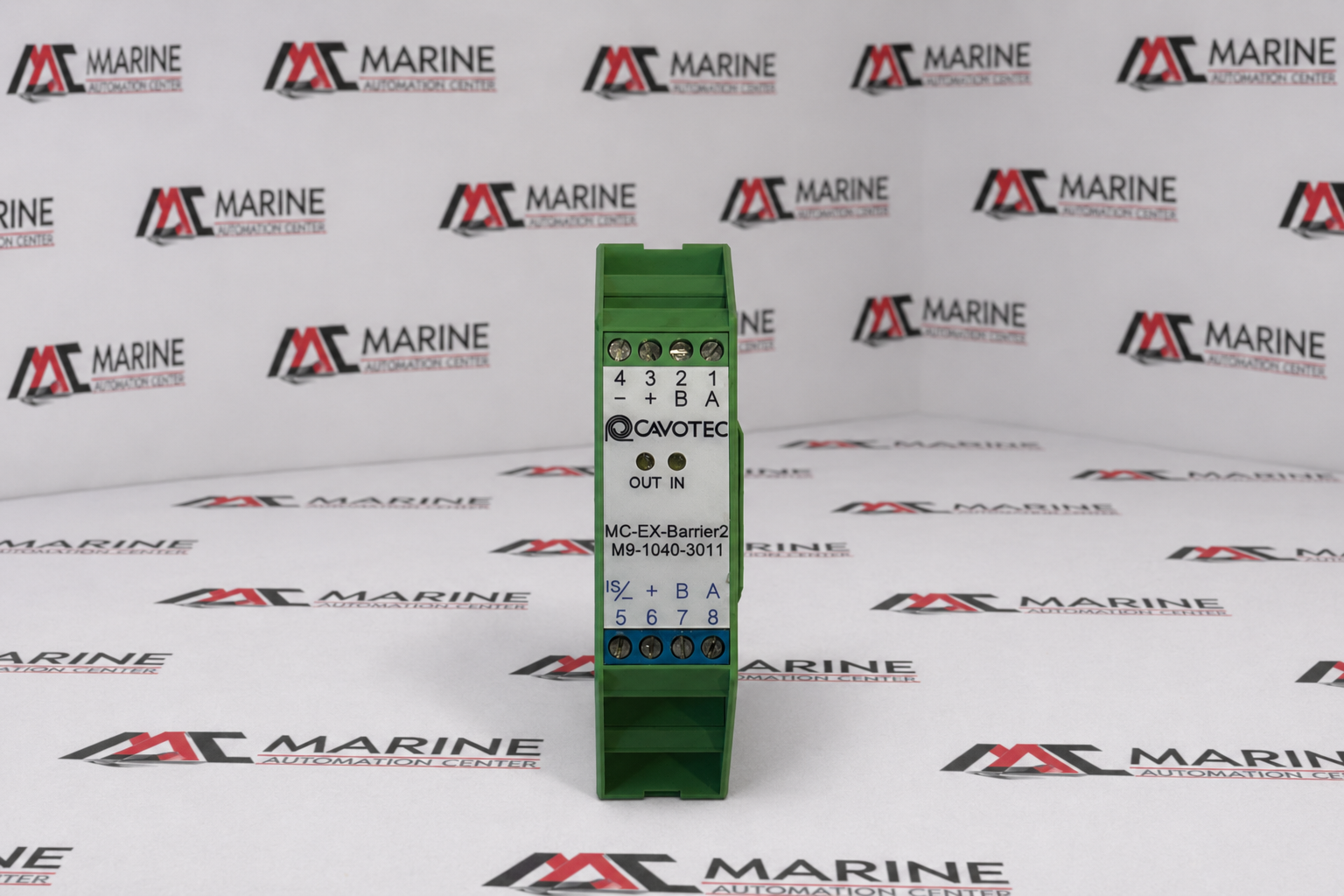

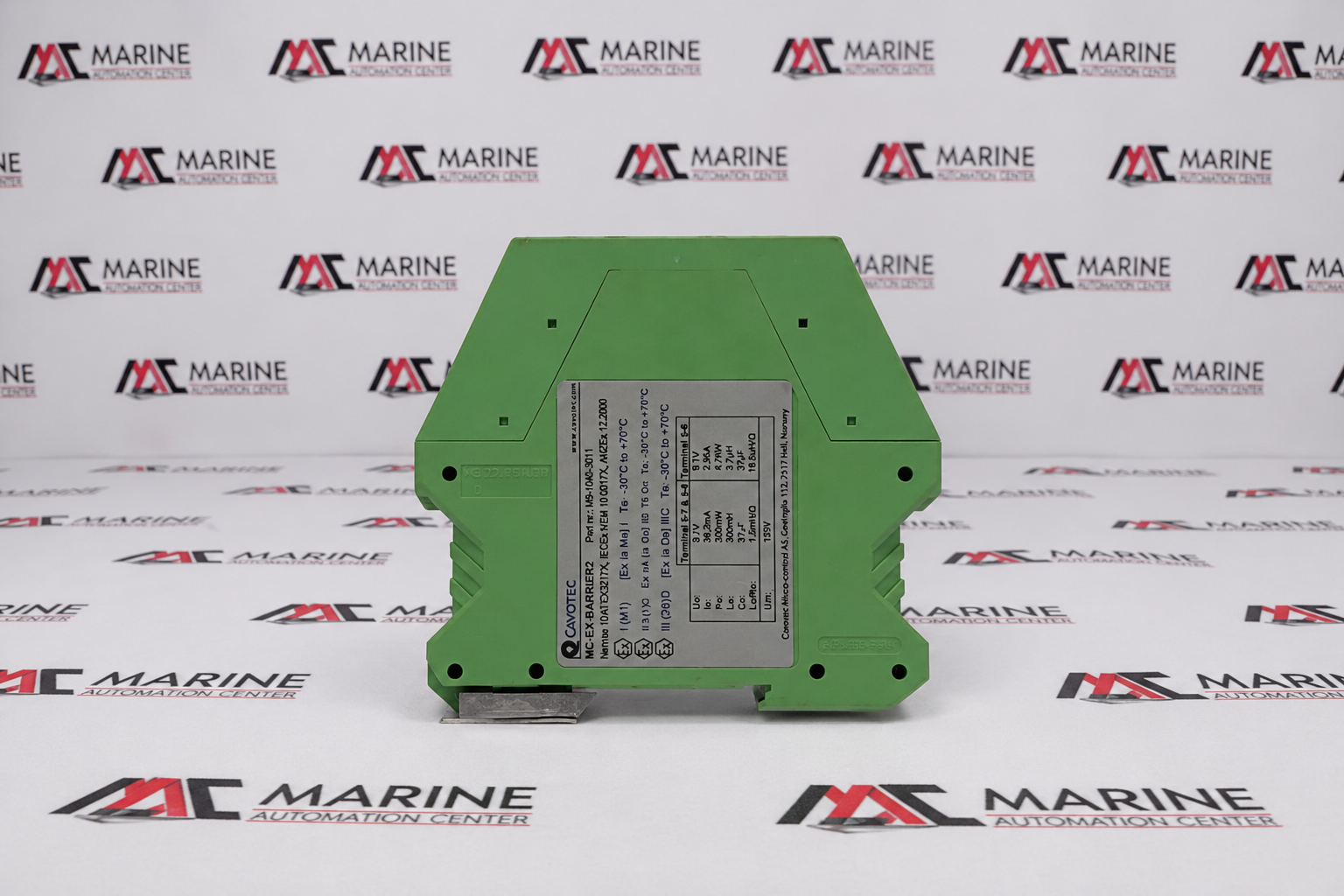

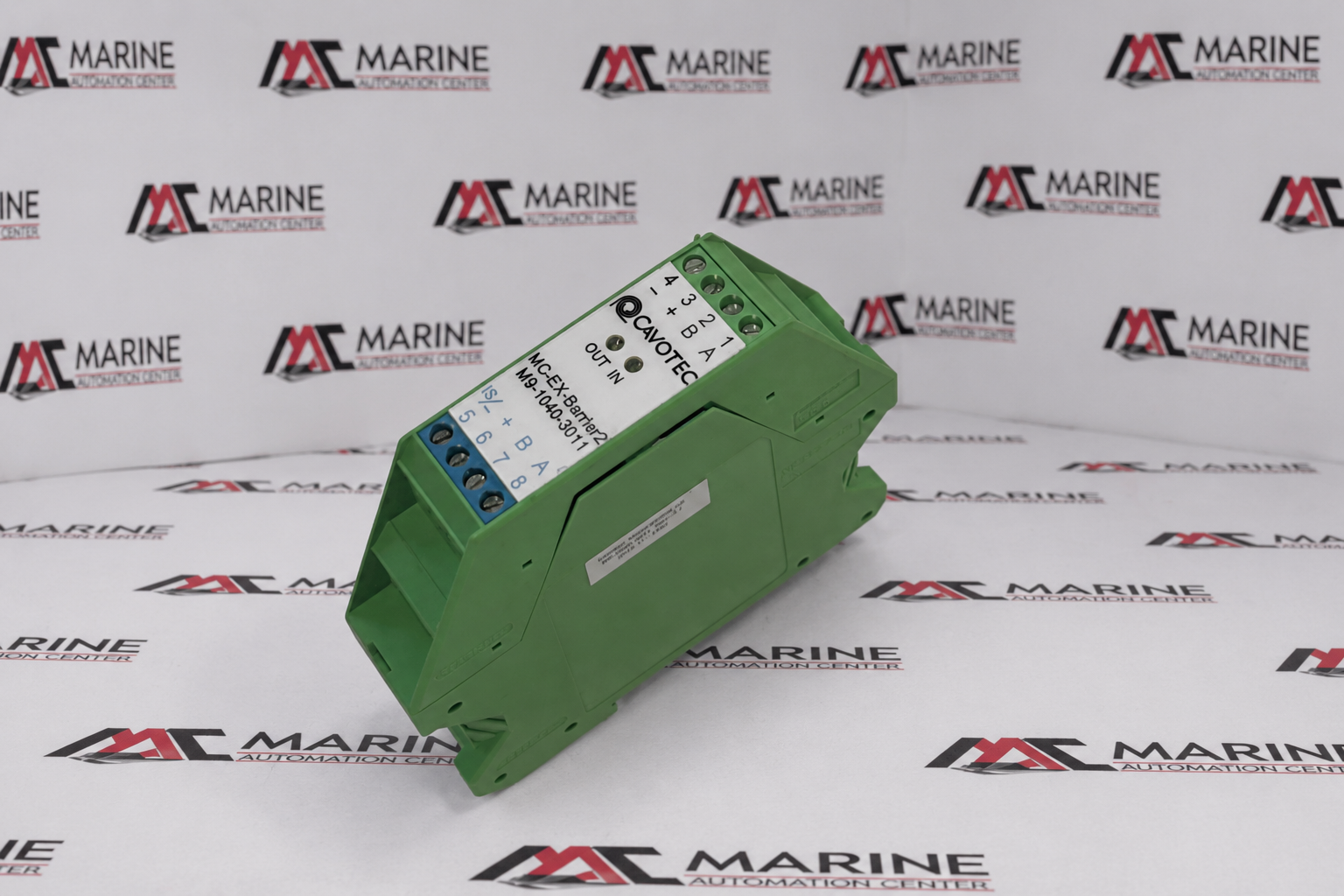

Cavotec Micro-control MC-EX-BARRIER2 Intrinsically Safe Safety Barrier
Cavotec MC-EX-BARRIER2 (Part No. M9-1040-3011) is an intrinsically safe safety barrier module designed to provide secure signal isolation and protection between hazardous and safe areas. It limits electrical energy transferred to field devices, ensuring safe operation in explosive environments while maintaining reliable signal transmission for industrial automation and control applications
BRAND
Cavotec
TYPE
MC-EX-BARRIER2 Safety Barrier Module
PART NO.
M9-1040-3011
MODEL
MC-EX-BARRIER2
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Cavotec |
| TYPE | MC-EX-BARRIER2 Safety Barrier Module |
| PART NO. | M9-1040-3011 |
| MODEL | MC-EX-BARRIER2 |
| Voltage Rating | Maximum Allowed Voltage is 125V |
| Application | Explosion protection interface for industrial radio remote controls used on heavy winches, marine crane assemblies, and offshore material handling rigs |

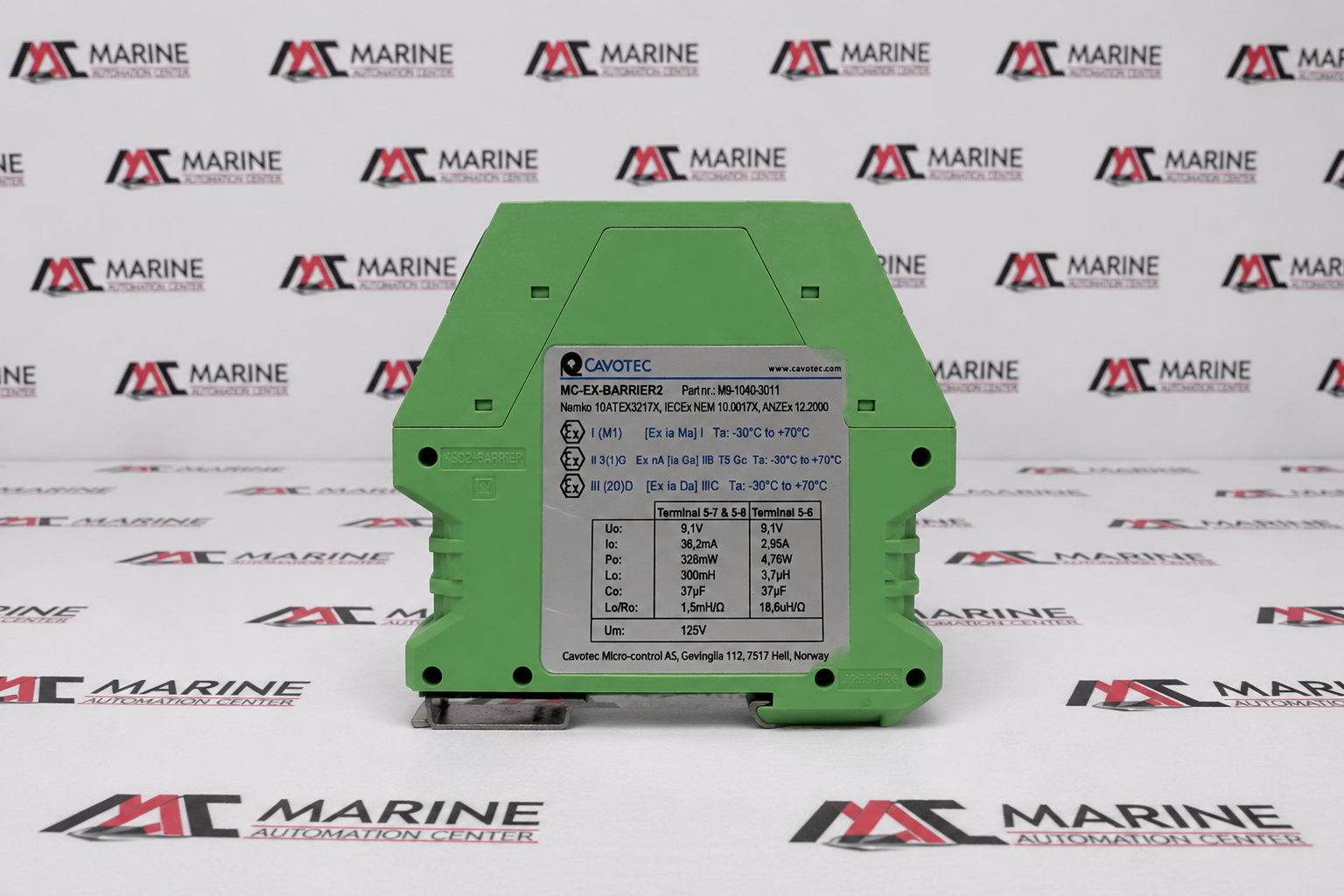

| IEC / Explosion Cert. | IECEx NEM 10.0017X / Nemko 10ATEX3217X / ANZEx 12.2000 | Ex I (M1) [Ex ia Ma] I | Ex II 3(1)G Ex nA [ia Ga] IIB T5 Gc | Ex III (20)D [Ex ia Da] IIIC |
| Maximum Output Voltage | 9.1V |
| Maximum Output Current | 36.2mA |
| Maximum Output Power | 328mW |
| Max External Inductance | 3.7μH |
| Weight | 200 Gm |
| Thermal Performance Criteria | ambient operating atmospheres expanding across a thermal span from -30°C to +70°C |
| Cabinet Mounting Footprint | Features a standard green industrial housing block optimized to easily clip onto standard symmetrical 35mm DIN rail setups within decentralized maritime electrical enclosures |
| Compact Footprint Elements | 35mm standard DIN rails |
| Made In | Norway |
| REF NO | 458 |
