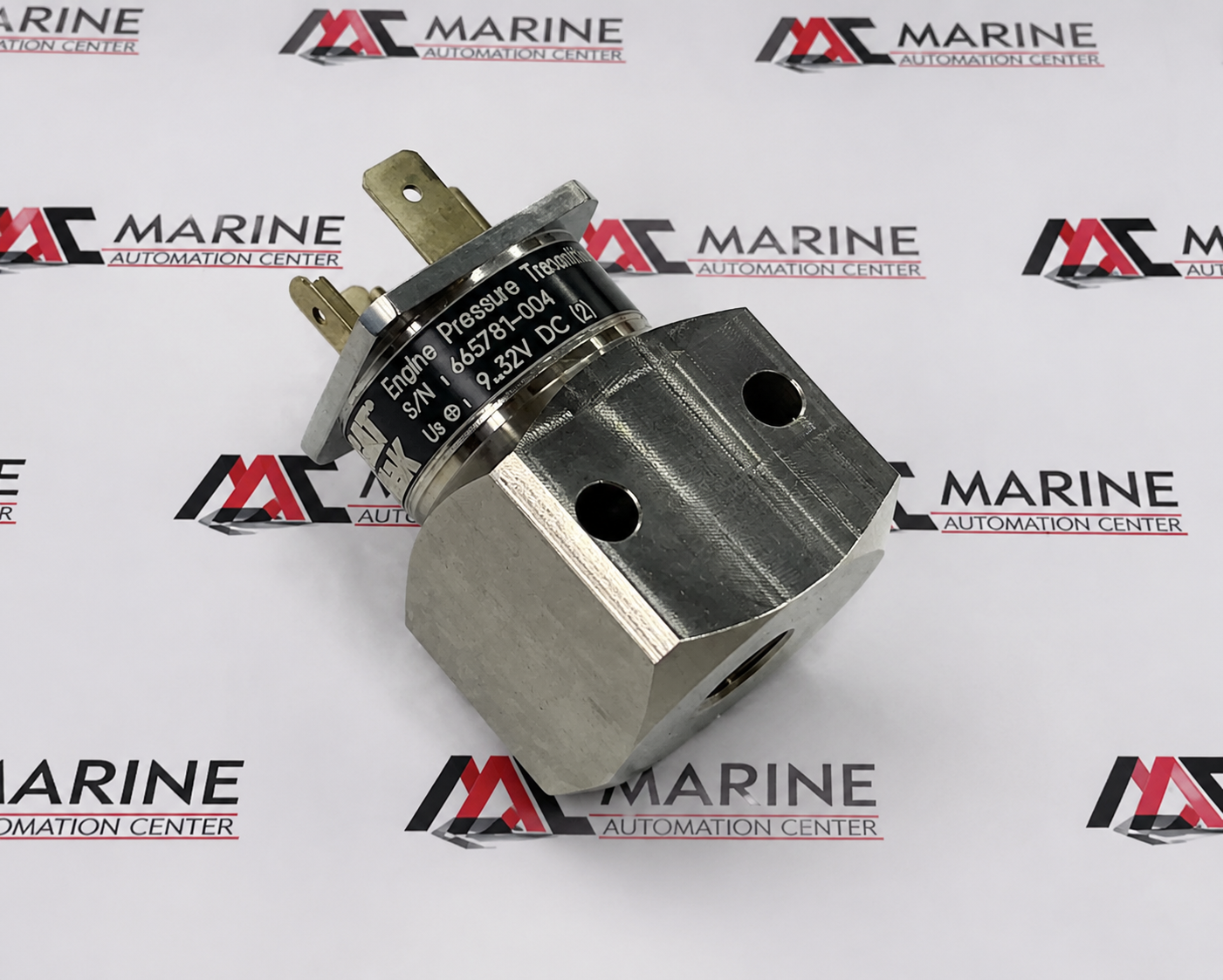

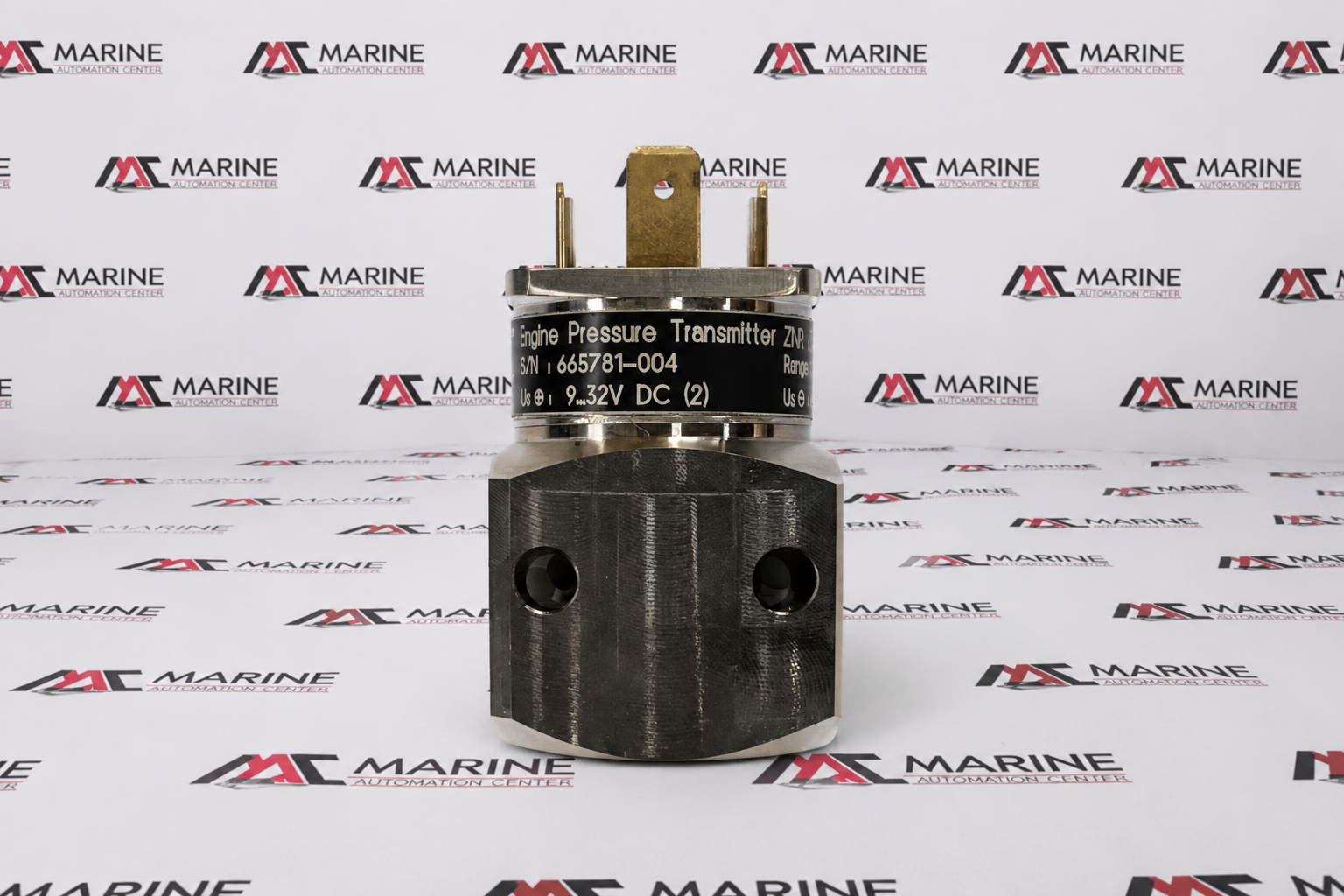

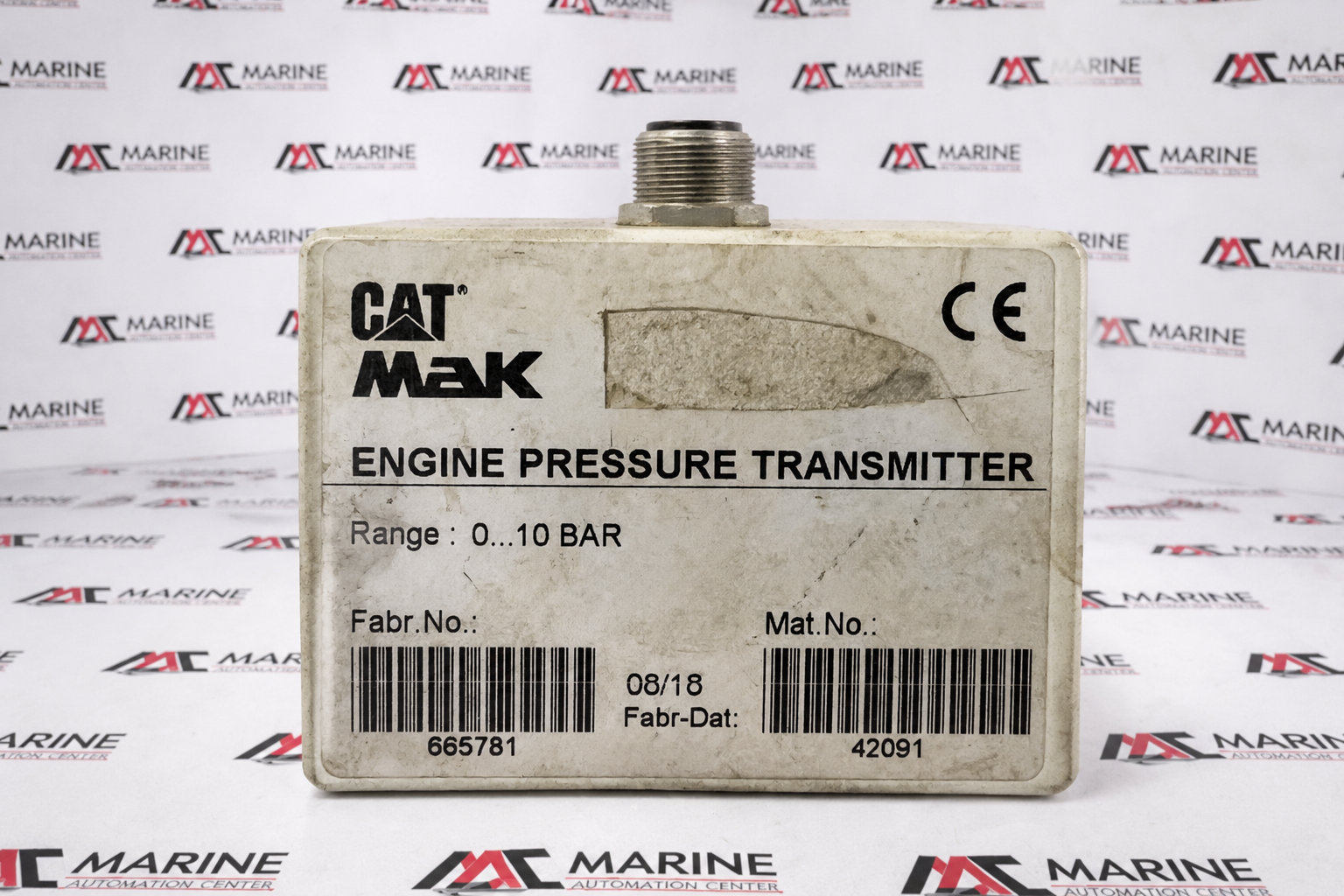

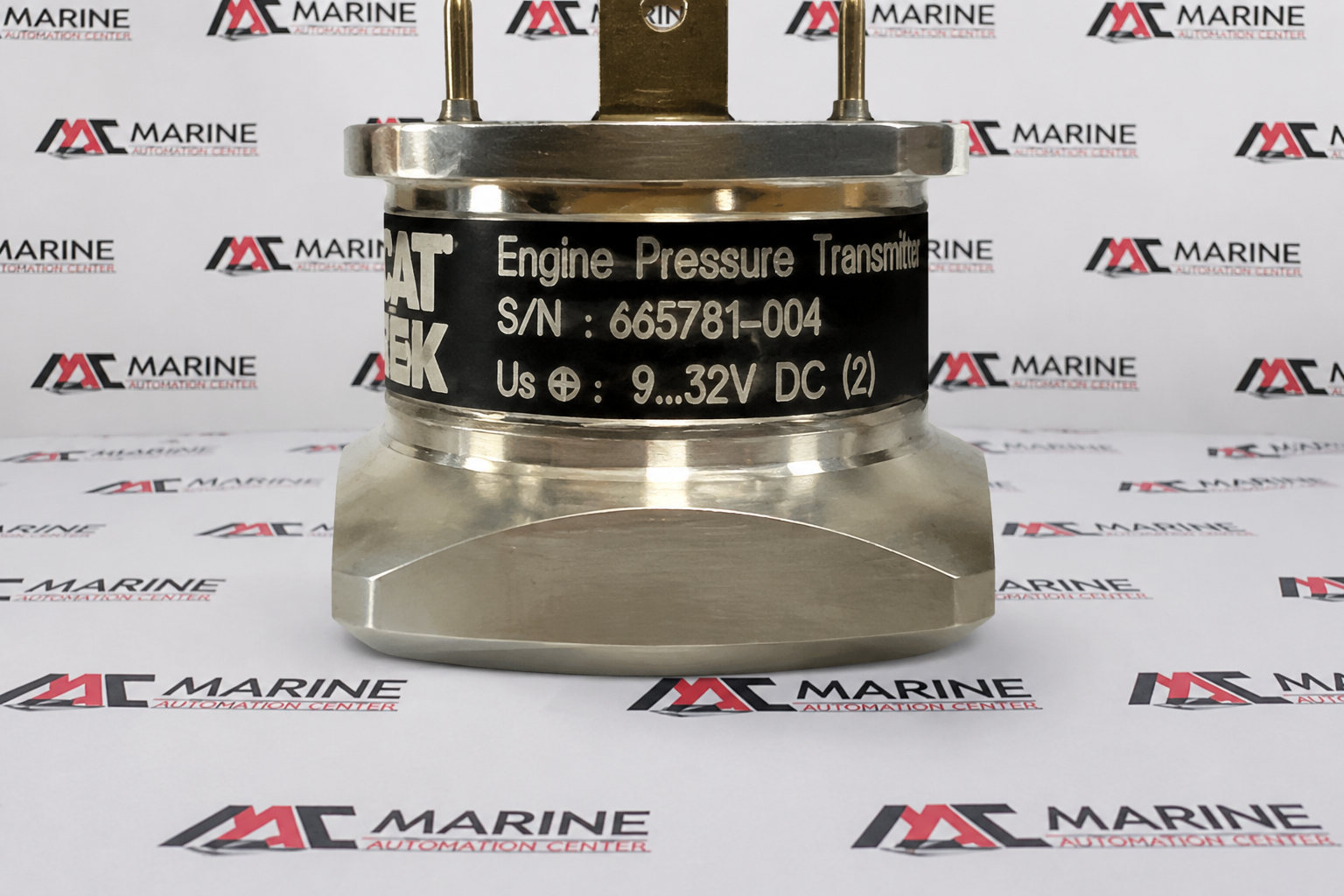

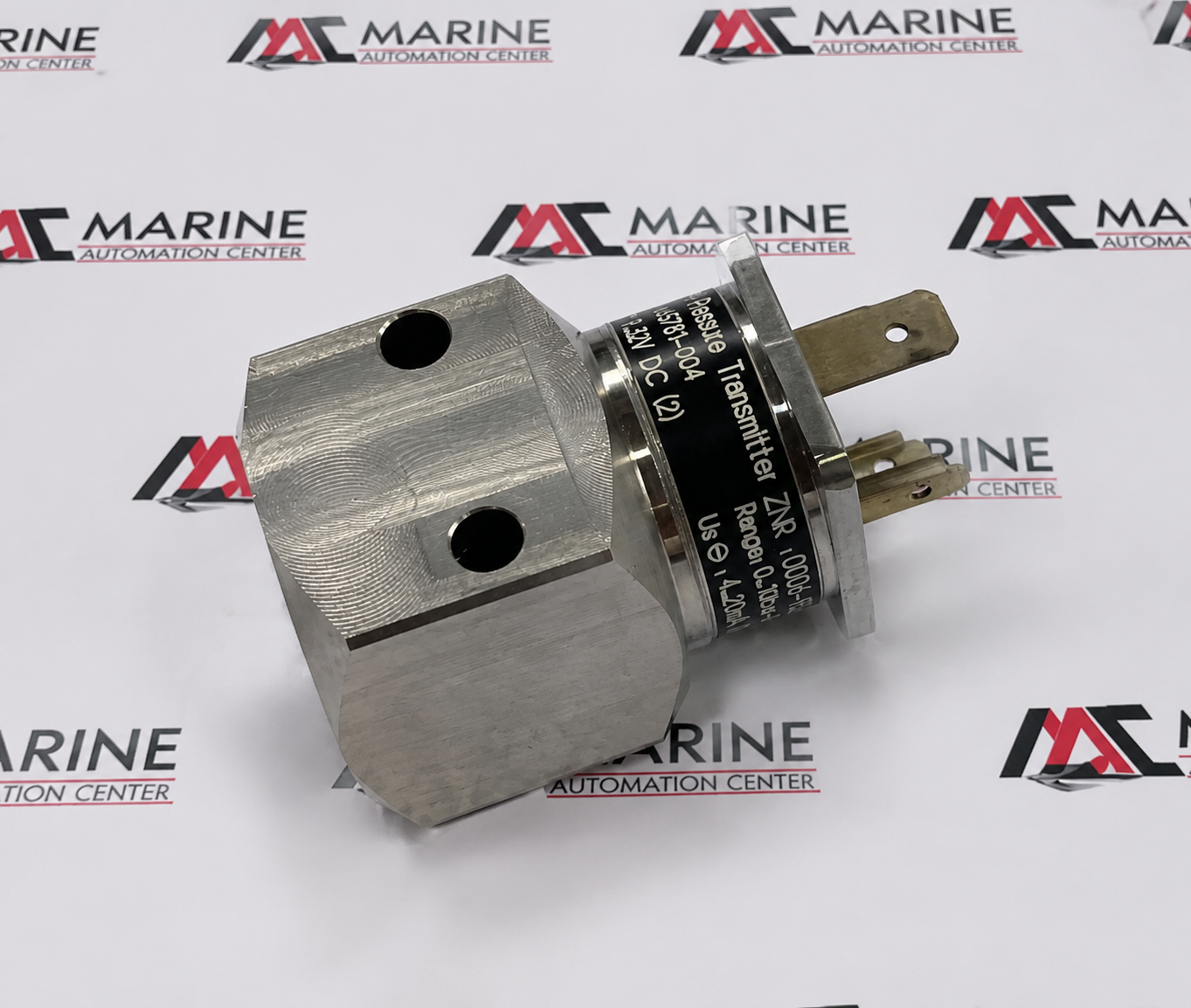

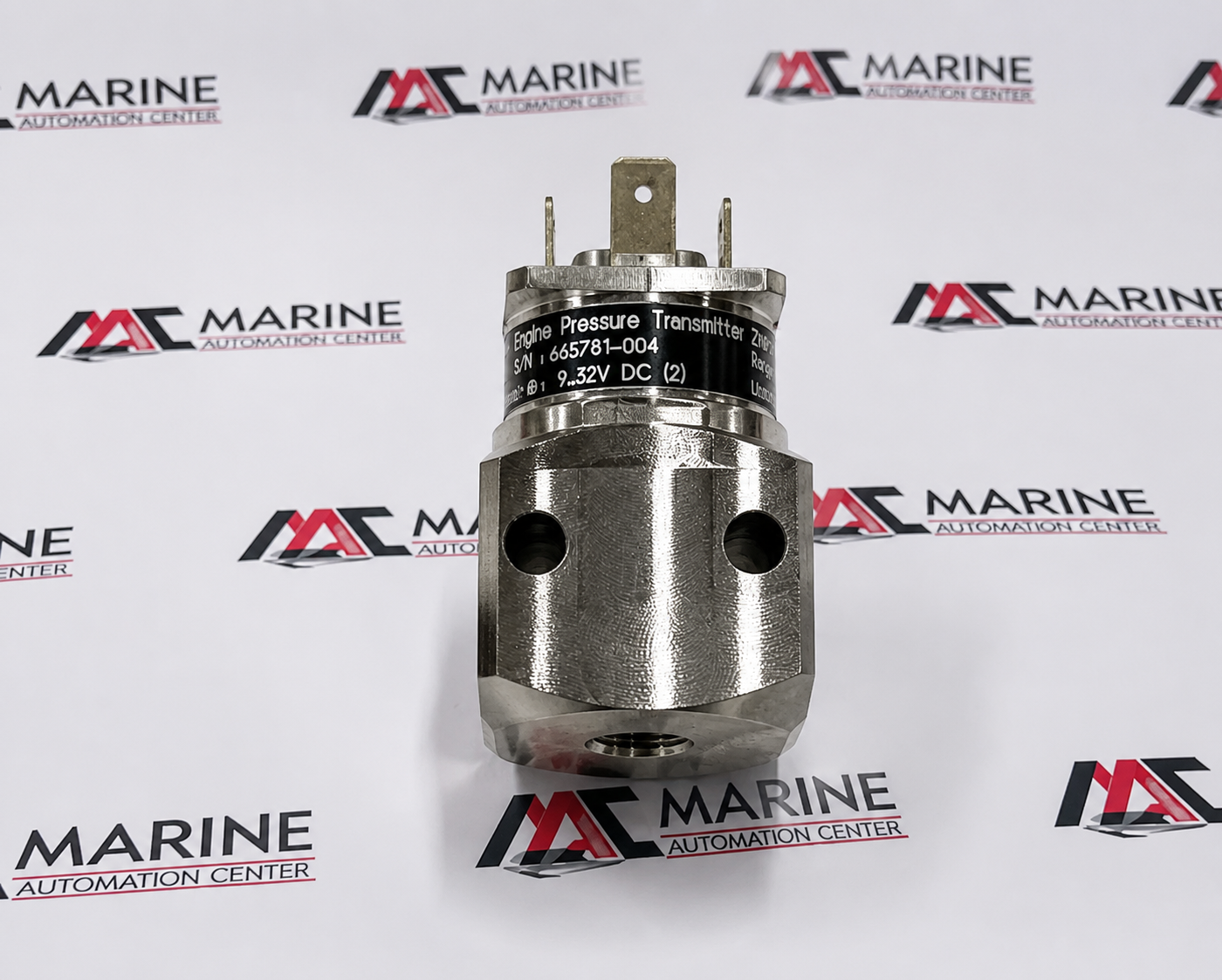

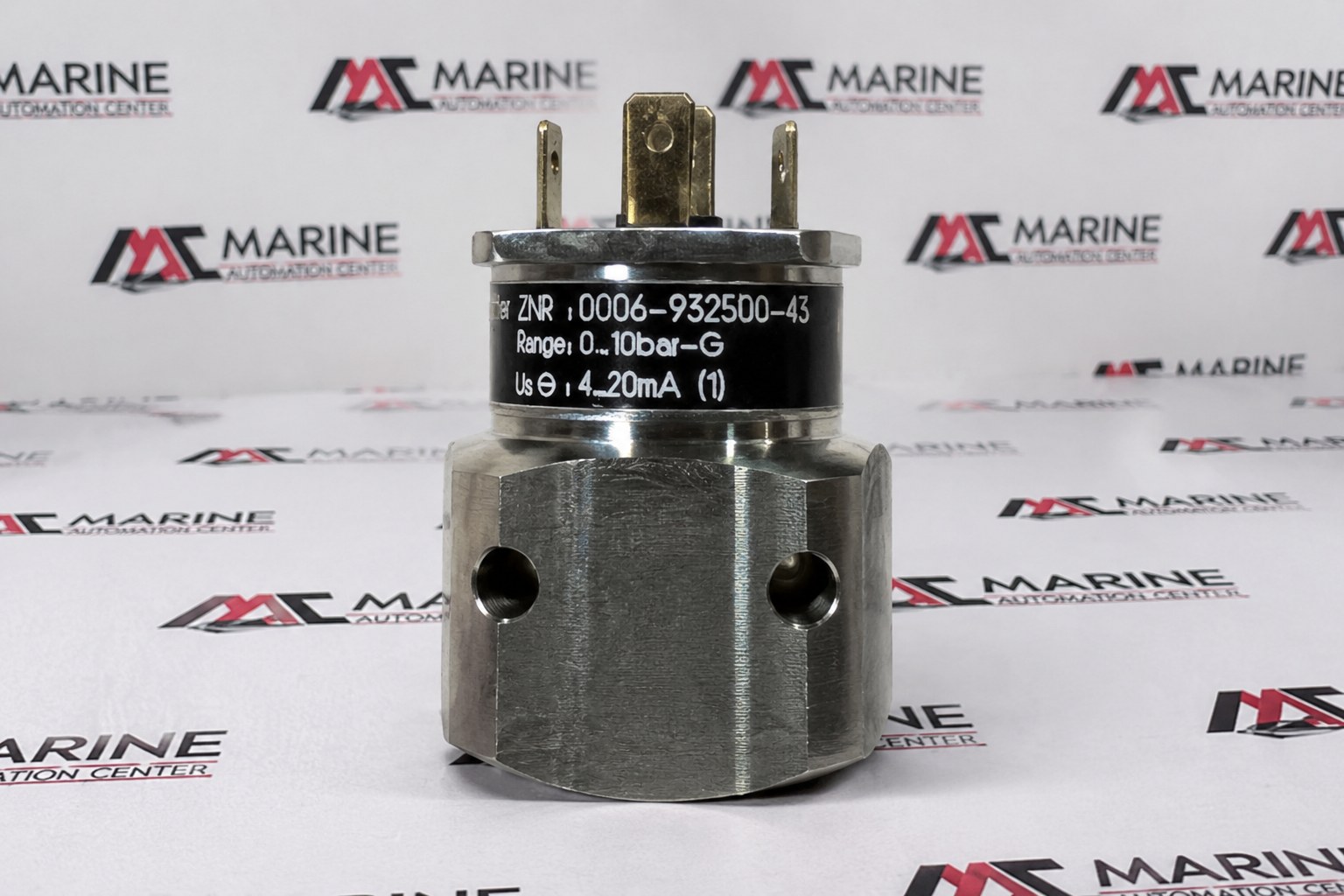

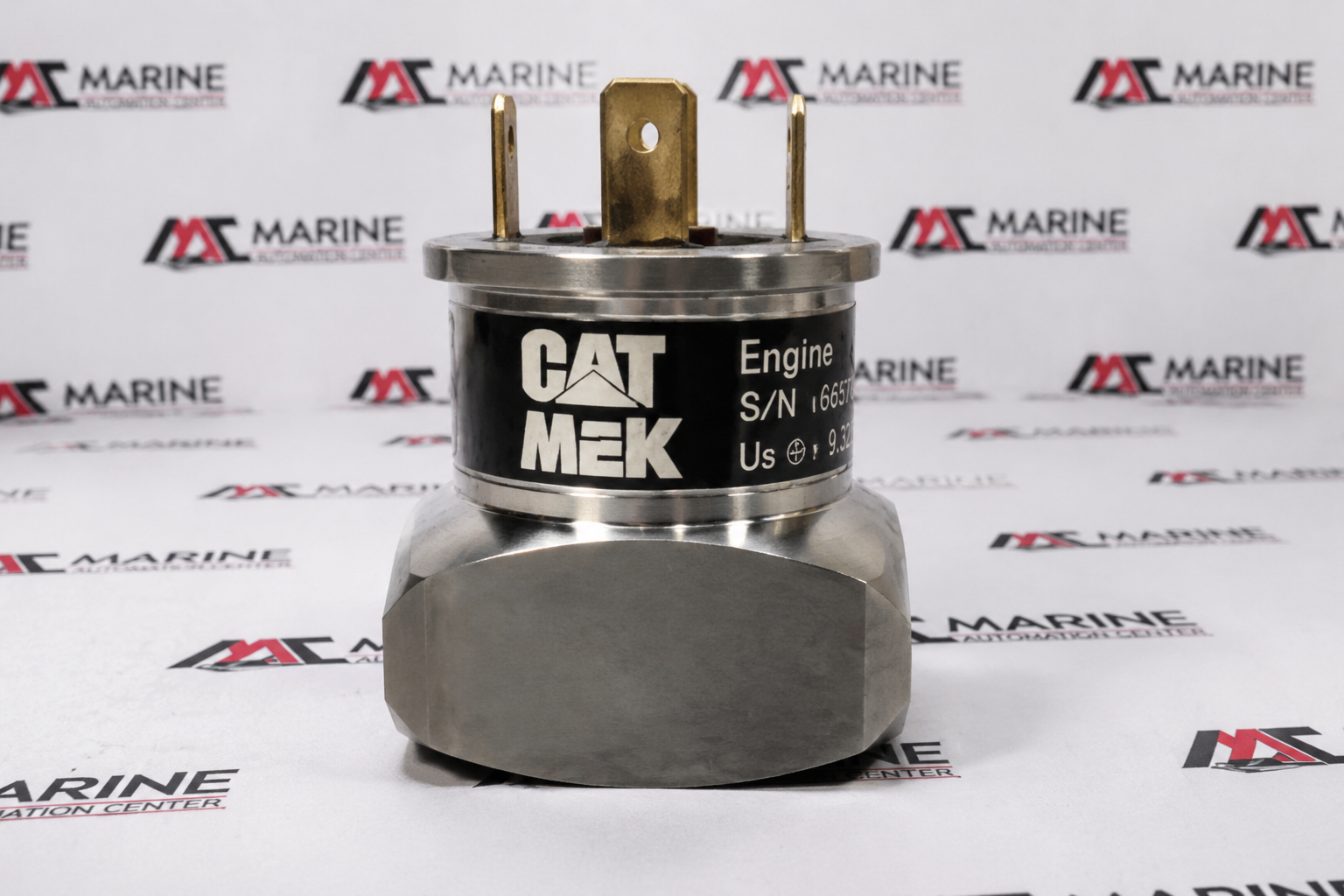

CAT MaK 0006-932500-43 Engine Pressure Transmitter
CAT MaK Engine Pressure Transmitter (P/N: 0006-932500-43) is a pressure sensing device designed for accurate monitoring of engine operating pressure parameters. It converts engine pressure into an electrical signal for use by control and monitoring systems, ensuring reliable engine performance monitoring in marine and industrial applications
BRAND
CAT MAK
TYPE
Engine Pressure Transmitter
PART NO.
Engine Pressure Transmitter 0006-932500-43
MODEL
0006-932500-43
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | CAT MAK |
| TYPE | Engine Pressure Transmitter |
| PART NO. | Engine Pressure Transmitter 0006-932500-43 |
| MODEL | 0006-932500-43 |
| Voltage Rating | 9 V – 32 V DC Loop Power |
| Application | Monitoring lube oil pressure, fuel oil system lines, cooling water pressure, and manifold air boost pressure tracking across large-bore MaK medium-speed diesel propulsion and auxiliary marine engines |
| IEC | CE certified; meets industrial and maritime electromagnetic compatibility (EMC) regulations |
| Measurement Calibration Range | 0 to 10 bar-G |
| Electrical Input/Output | 4 mA to 20 mA |
| Enclosure Sealing Level Class | Heavy-duty marine ingress rating, completely dust-tight and resistant to high-pressure washdown conditions |
| Electrical Connection Interface | High-integrity 4-pin connection studs positioned on top with integrated lock-nuts to withstand persistent low-frequency engine vibrations |
| Ambient Thermal Performance | Specifically calibrated to handle high-temperature maritime machine room surroundings near operational engine blocks |
| S/N | 665781-004 |
| Made In | Germany / United Kingdom |
| REF NO | 311 |
