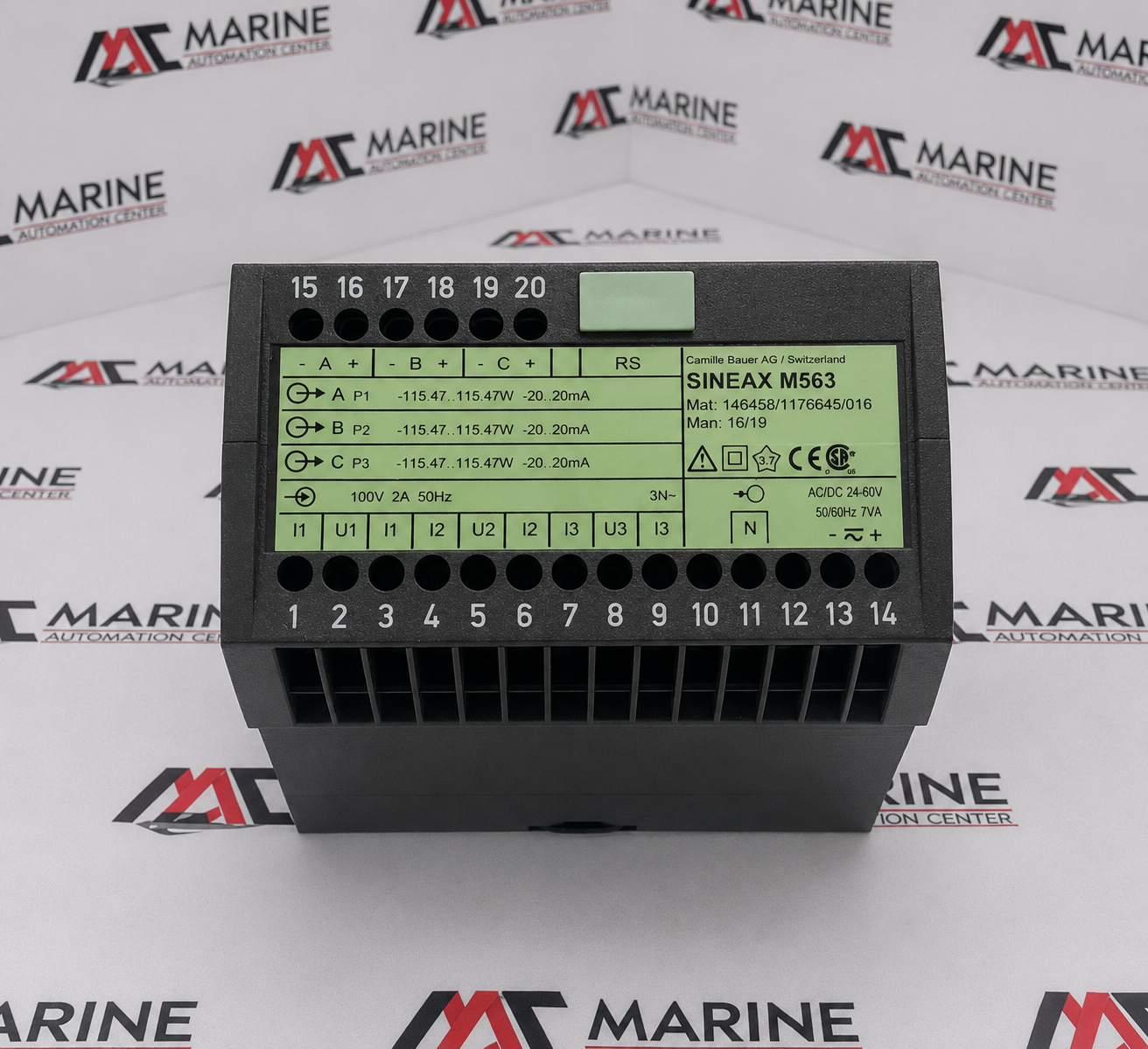

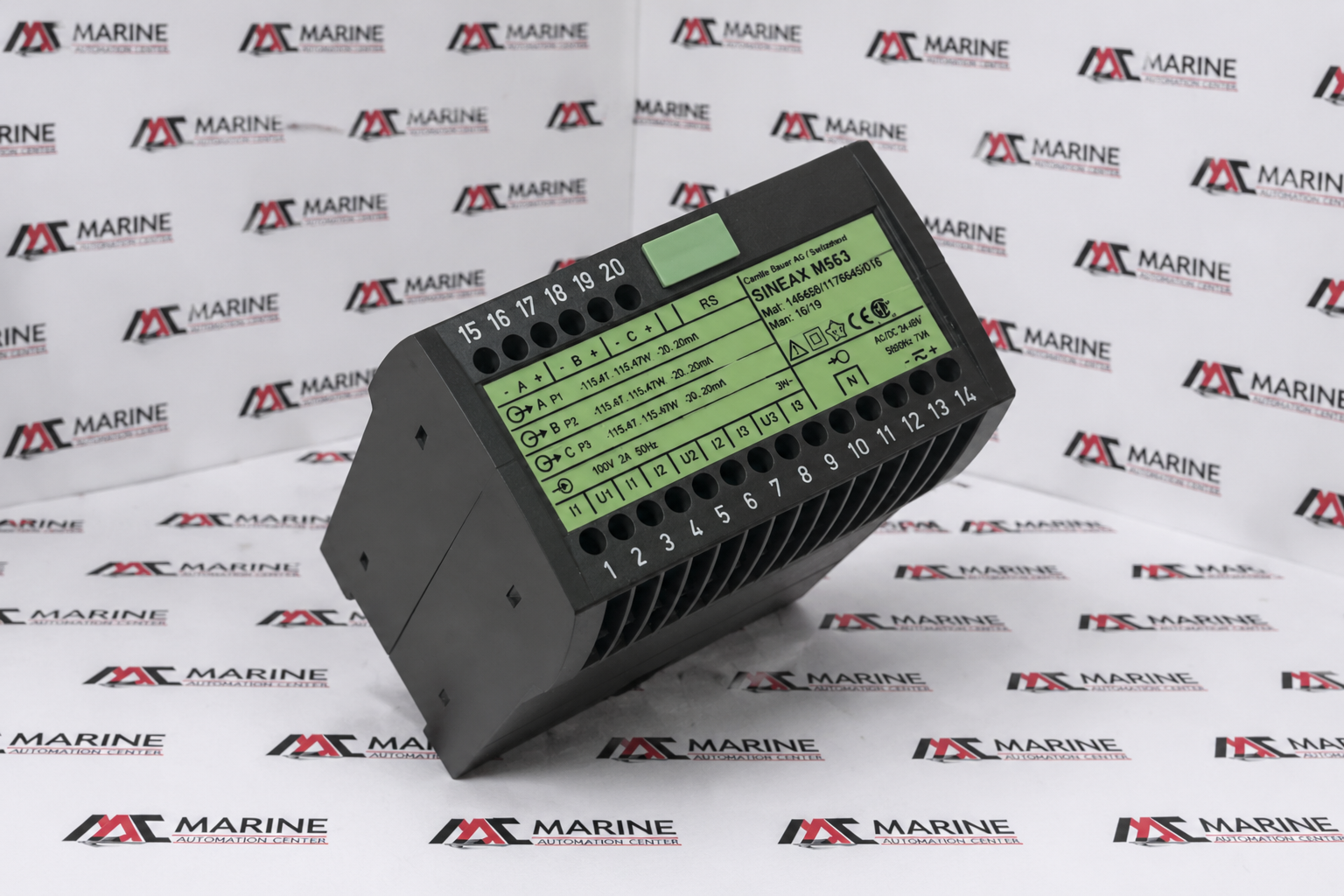

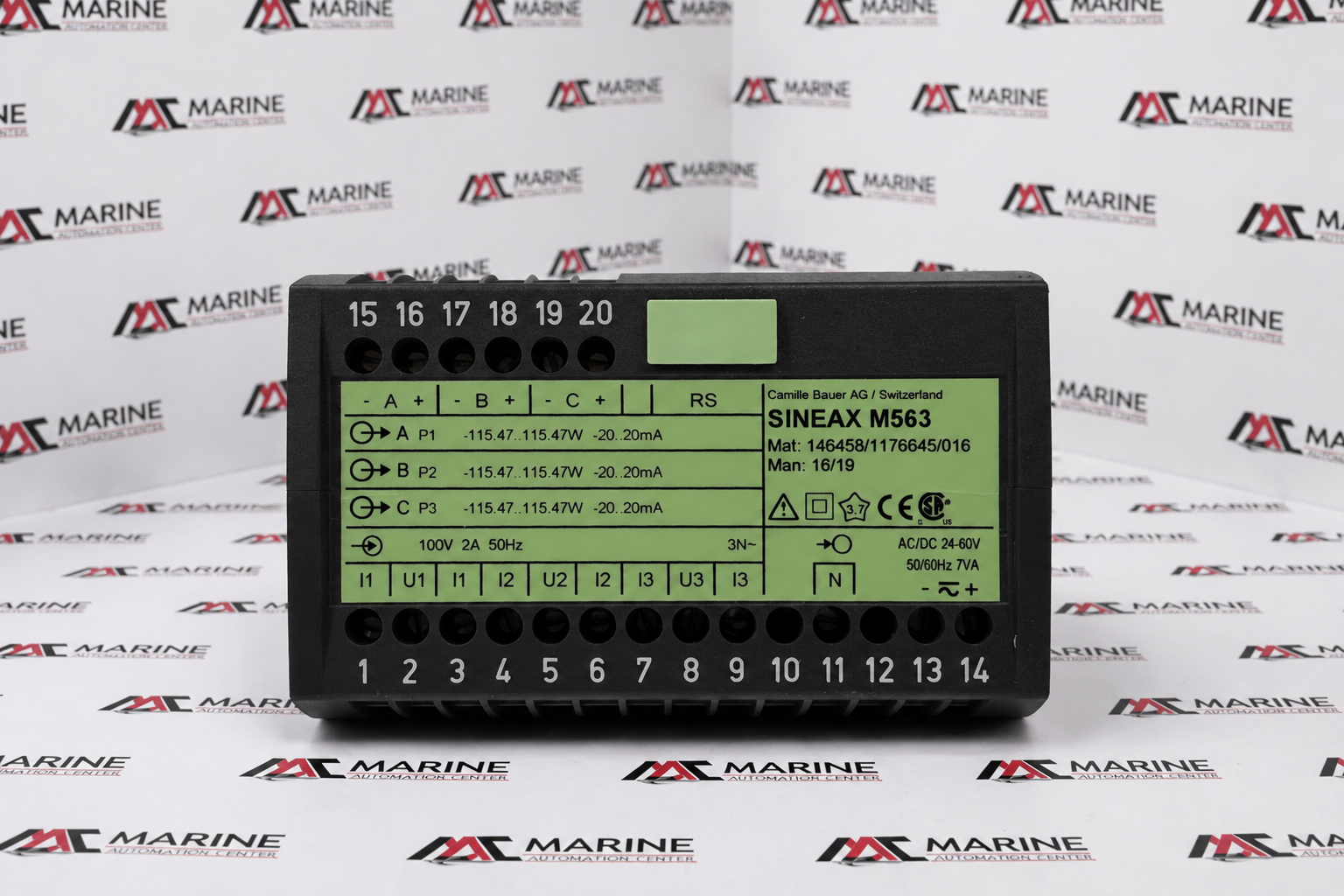

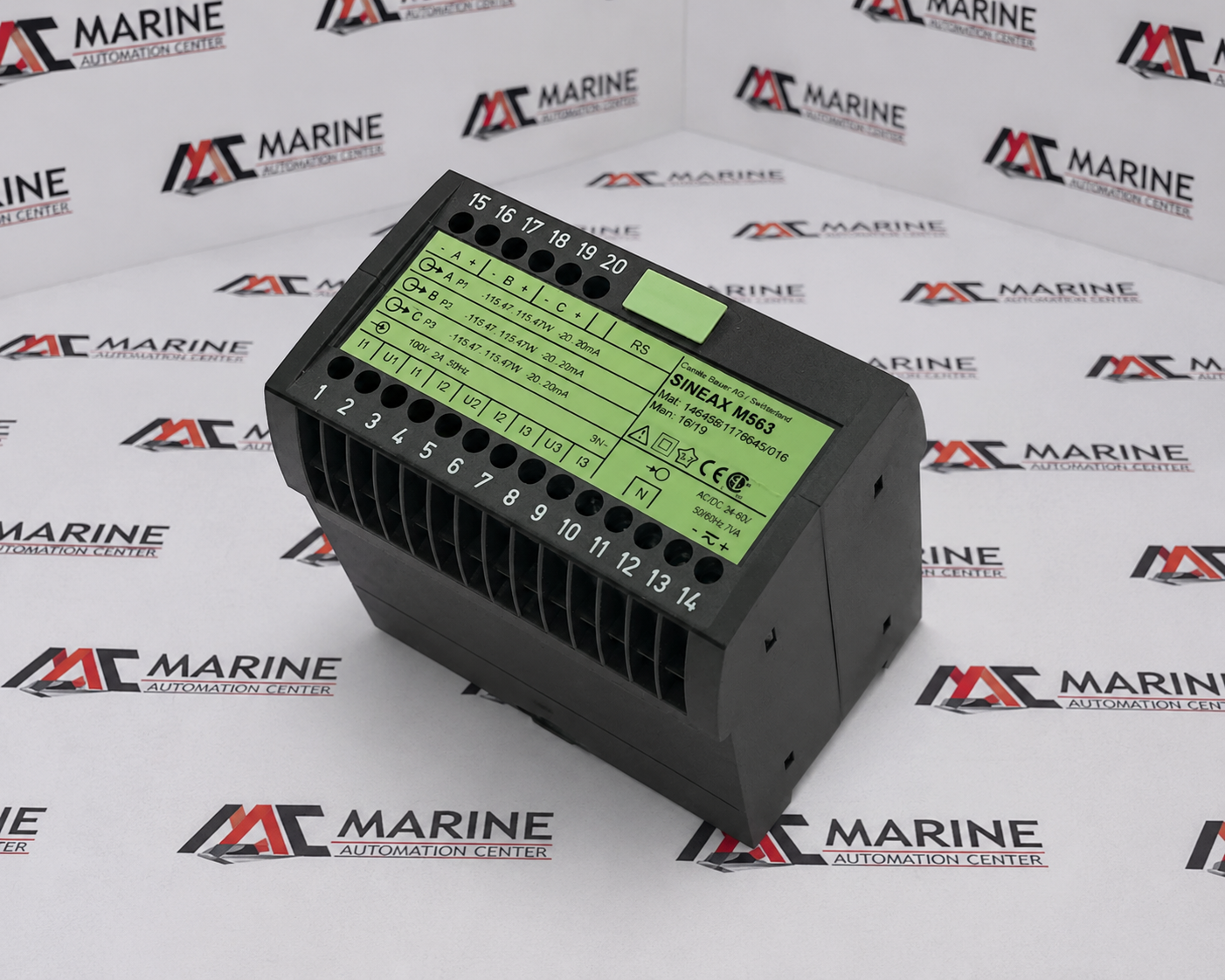

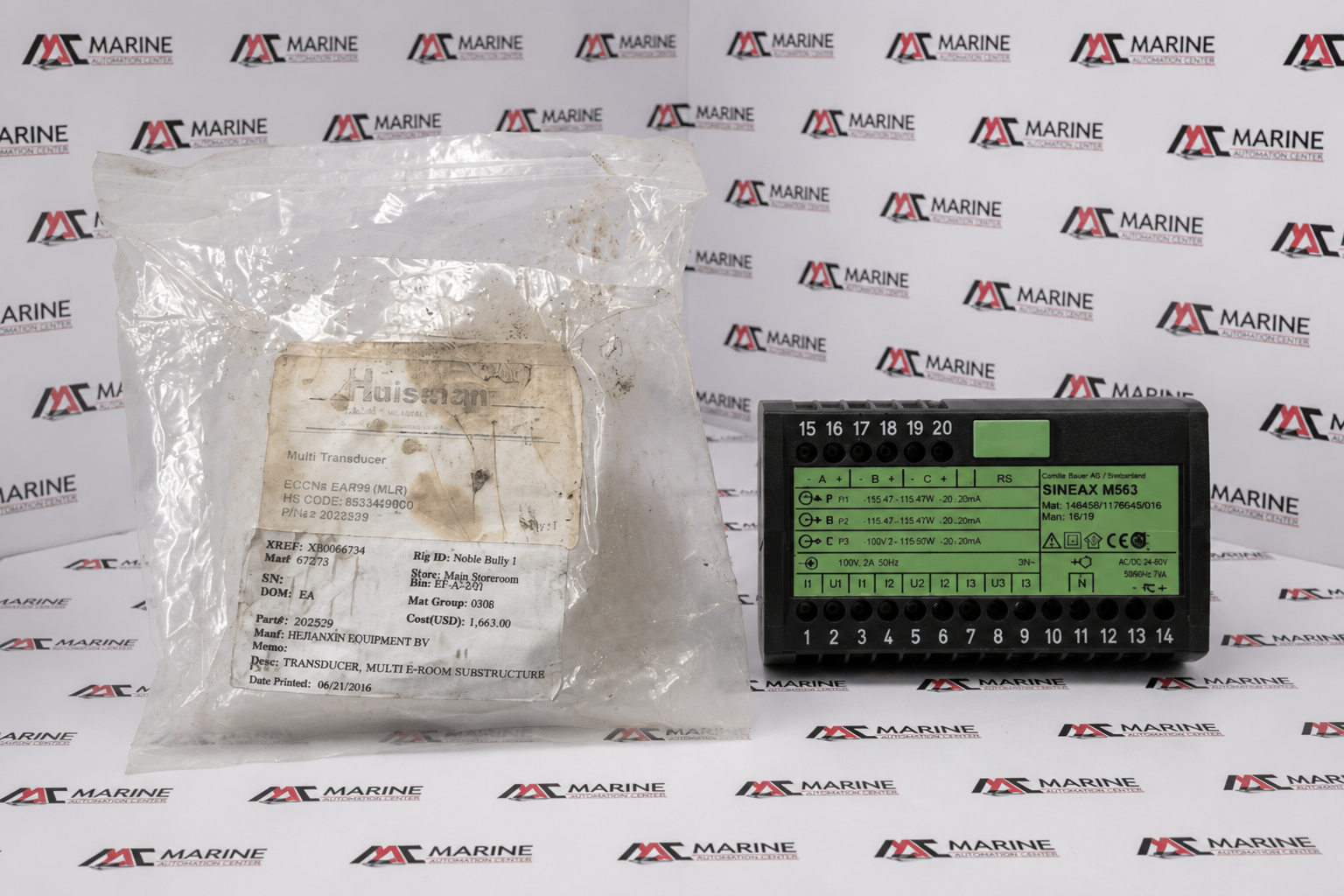

Camille Bauer SINEAX M563 Programmable Multifunction Transducer
Camille Bauer SINEAX M563 Programmable Multifunction Transducer (Model: SINEAX M563, P/N: 146458 / 1176645/016) is a programmable multifunction transducer designed to measure and convert multiple electrical parameters, including voltage, current, power, frequency, energy, and power factor, into standardized analog and digital output signals. It is ideal for power monitoring, energy management, and industrial automation applications
BRAND
Camille Bauer
TYPE
Programmable Multifunction Transducer (Multi-Transducer)
PART NO.
146458 / 1176645/016
MODEL
SINEAX M563
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Camille Bauer |
| TYPE | Programmable Multifunction Transducer (Multi-Transducer) |
| PART NO. | 146458 / 1176645/016 |
| MODEL | SINEAX M563 |
| Voltage Rating | Power Supply (Auxiliary): 24...60 V AC/DC (50/60 Hz, 7 VA) | Input Rating: 100V, 2A, 50Hz (3N~) |
| Application | Heavy-current electrical network monitoring, marine vessel power plants, and industrial substations |
| IEC Standards | Evaluated to standard industrial electrical compliance thresholds (CE, CAT III up to 693V phase-to-phase) |
| Output Profile | 3 independent analog current outputs |
| Measurement Metrics | A P1 (-115.47...115.47 W), B P2 (-115.47...115.47 W), and C P3 (-115.47...115.47 W) |
| Network Wiring Scheme | Configured for 3-phase systems with a neutral line connection option (3N~) |
| Made In | Switzerland |
| REF NO | 508 |
