C-mac 1804 RT31-2-1-120-M2 Timer Relay
The C-mac 1804 RT31-2-1-120-M2 is an industrial timer relay designed to provide accurate and reliable time-delay control for automation and electrical control circuits. It offers dependable timing performance for sequencing, switching, and process control applications, making it suitable for use in industrial machinery, control panels, and automation systems.
BRAND
C-mac
TYPE
Timer Relay
PART NO.
RT31-2-1-120-M2
MODEL
1804
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | C-mac |
| TYPE | Timer Relay |
| PART NO. | RT31-2-1-120-M2 |
| MODEL | 1804 |

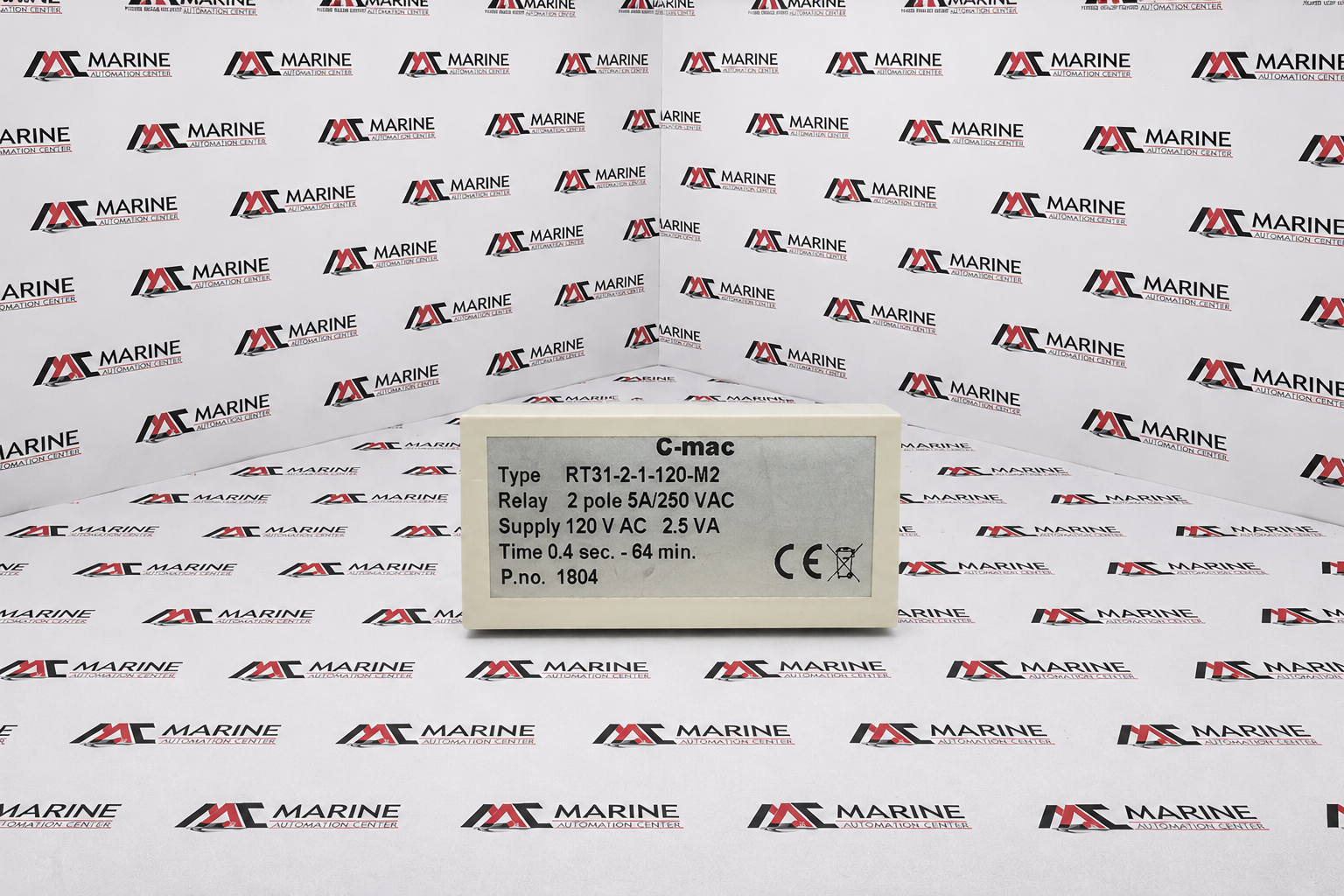

| Relay Output | 2 Pole Relay |
| Contact Rating | 5 A / 250 VAC |
| Supply Voltage | 120 V AC |
| Power Consumption | 2.5 VA |
| Timing Range | 0.4 Seconds – 64 Minutes |

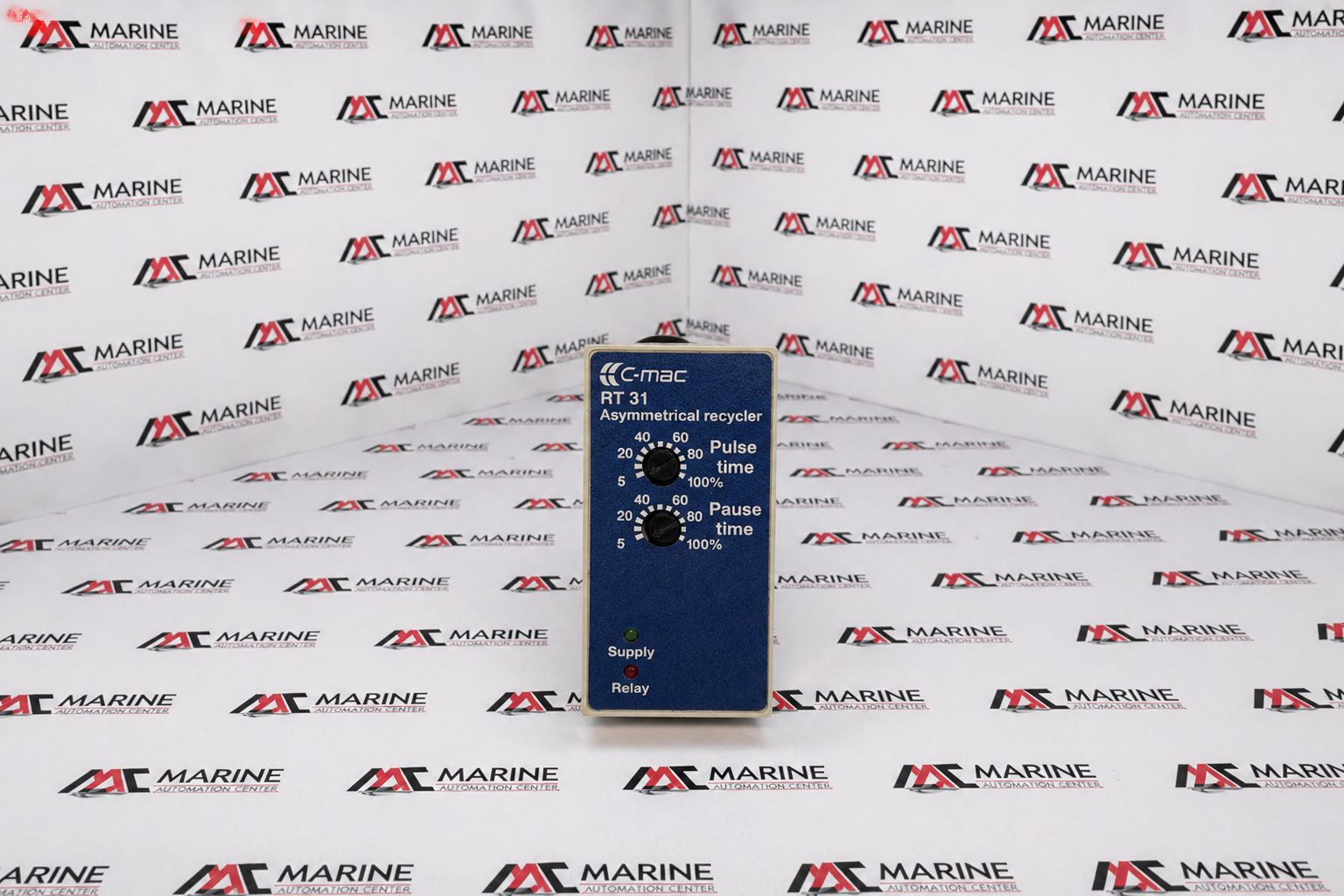

| Function | Asymmetrical Recycling Timer (Independent Pulse & Pause Timing) |
| Pulse Time Adjustment | Adjustable 5–100% |
| Pause Time Adjustment | Adjustable 5–100% |
| Time Ranges | 0.4–15 sec, 1.5–60 sec, 0.2–8 min, 1.6–64 min (Selectable) |
| Indicators | Green LED – Supply, Red LED – Relay Status |
| Mounting | Plug-in Timer Relay |

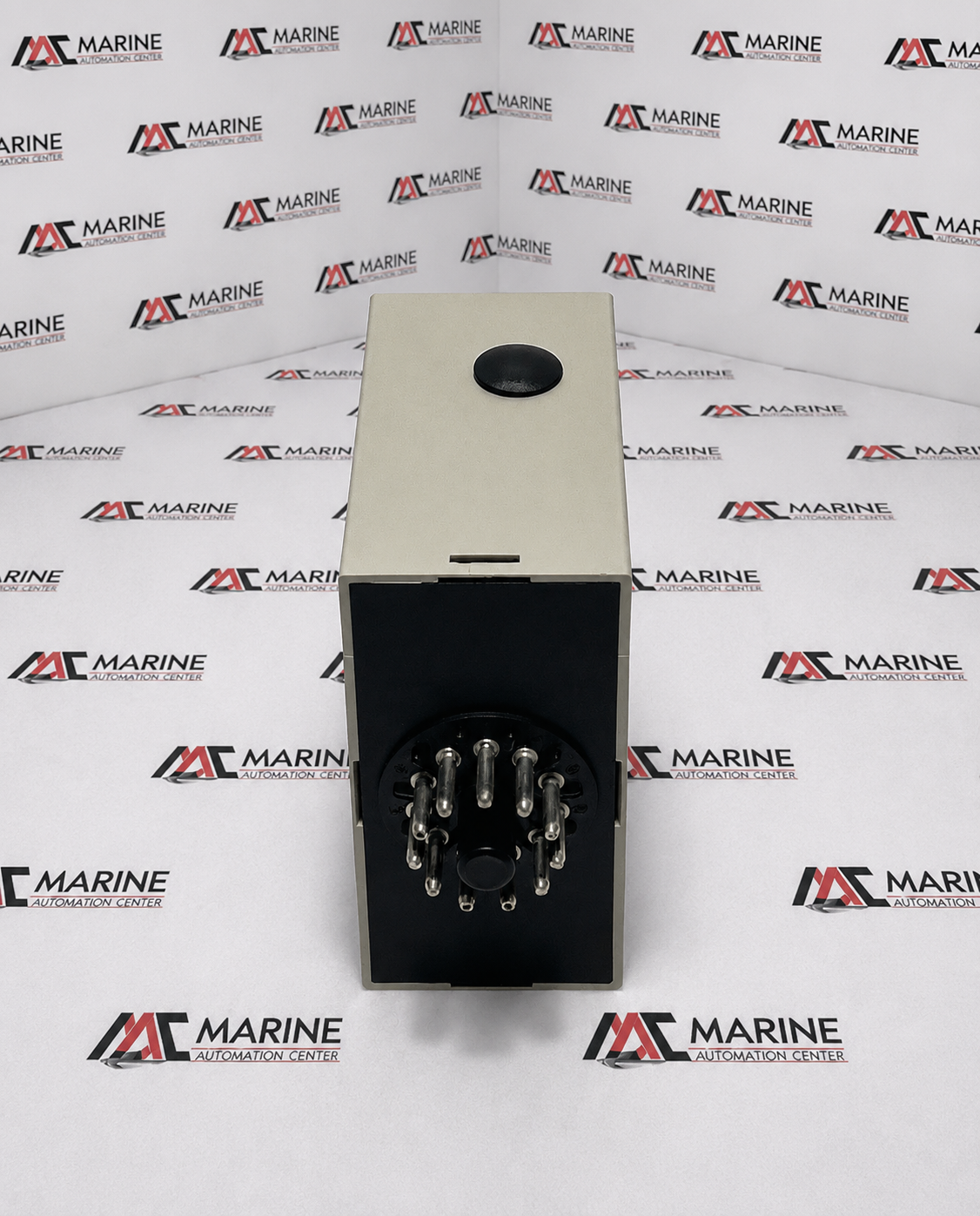

| Terminal Configuration | 11-Pin Plug-in Base |
| Application | Cyclic timing control, industrial automation, process control, sequential machine operation, marine automation systems, pumps, lubrication systems, and conveyor control |
| Certification | CE |
| Made In | Denmark |
| REF NO | 1290 |
