BEKA associates BA508E 4-Digit Loop-Powered Indicator
BEKA Associates BA508E is a general-purpose, loop-powered 4-digit digital indicator designed for 4–20 mA process loops. It provides a large, high-visibility display for accurate monitoring of process variables without requiring an external power supply. The panel-mounted indicator features IP66 front protection, on-site scaling, and reliable performance for industrial process control applications
BRAND
BEKA associates
TYPE
General Purpose Loop-Powered Digital Indicator
PART NO.
Digital Indicator BA508E
MODEL
BA508E
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | BEKA associates |
| TYPE | General Purpose Loop-Powered Digital Indicator |
| PART NO. | Digital Indicator BA508E |
| MODEL | BA508E |
| Voltage Rating | Loop-powered (No external voltage needed); introduces a maximum voltage drop of only 1.2V into the 4/20mA control circuit (increases to < 5V if fitted with an optional backlight unit) |
| Application | Serves as a process dashboard monitor to display real-time sensor measurements (such as pressure, fluid level, or temperature) from a standard 4 to 20mA current loop directly in custom engineering units |
| IEC | IP66 front panel protection rating; IP20 rear housing casing security classification (IEC 60529 standards compliant) |

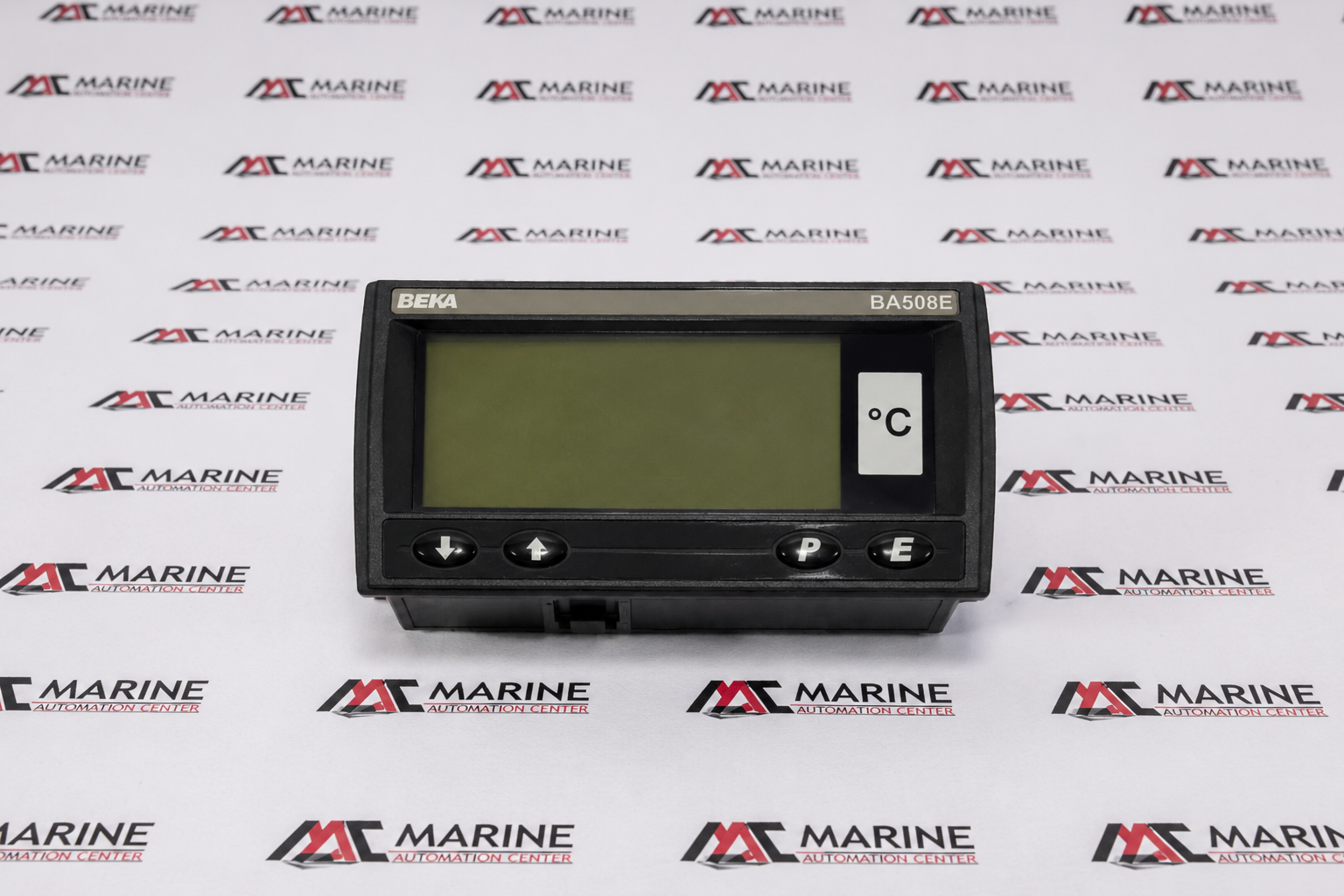

| Display Specifications | 34 mm high |
| Factory Calibration Profile | Display Span (DISP) of -100.0 to 180.0 |
| Input Protection Circuitry | internal processing board up to ±200mA or ±30V without damaging loop function accuracy |

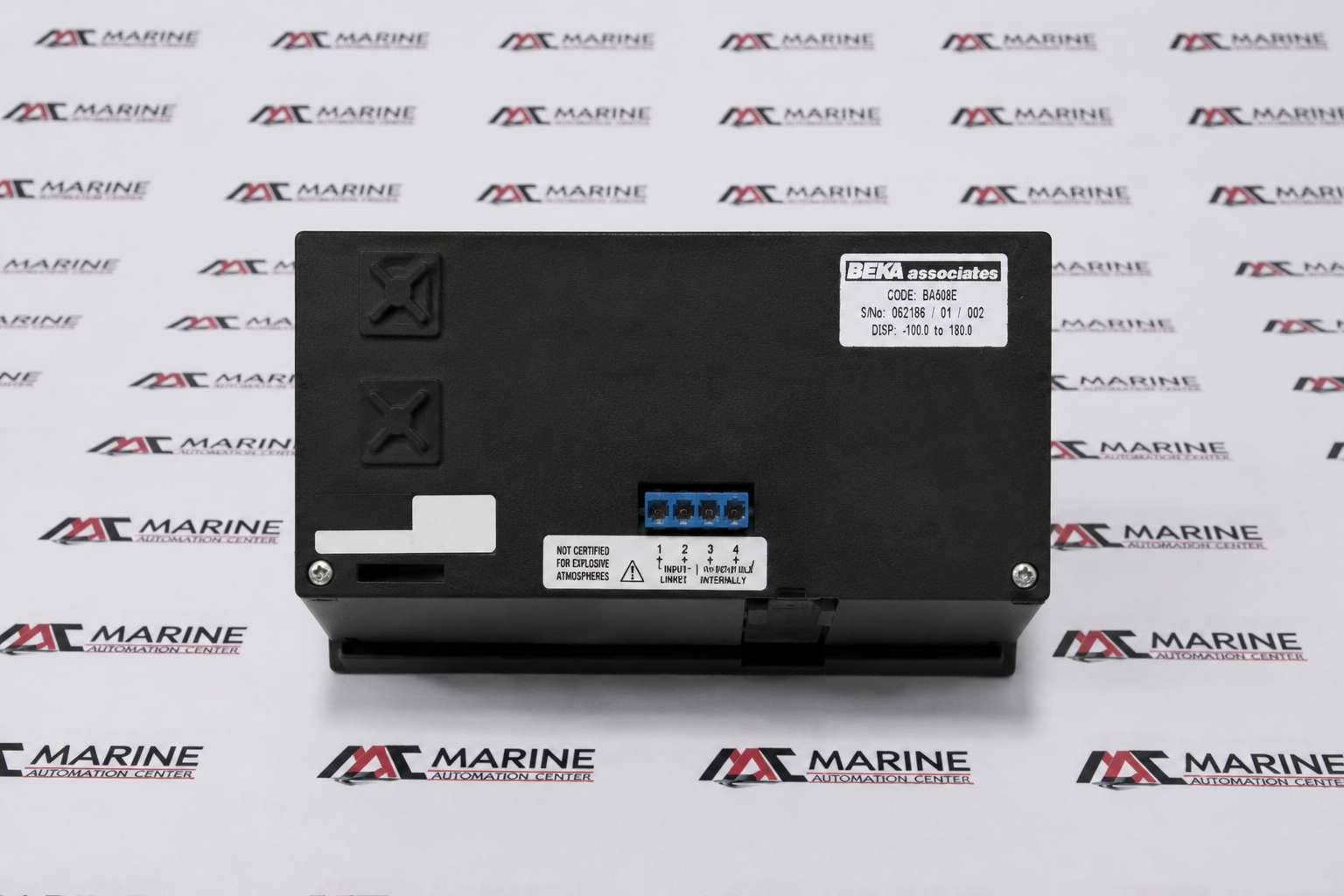

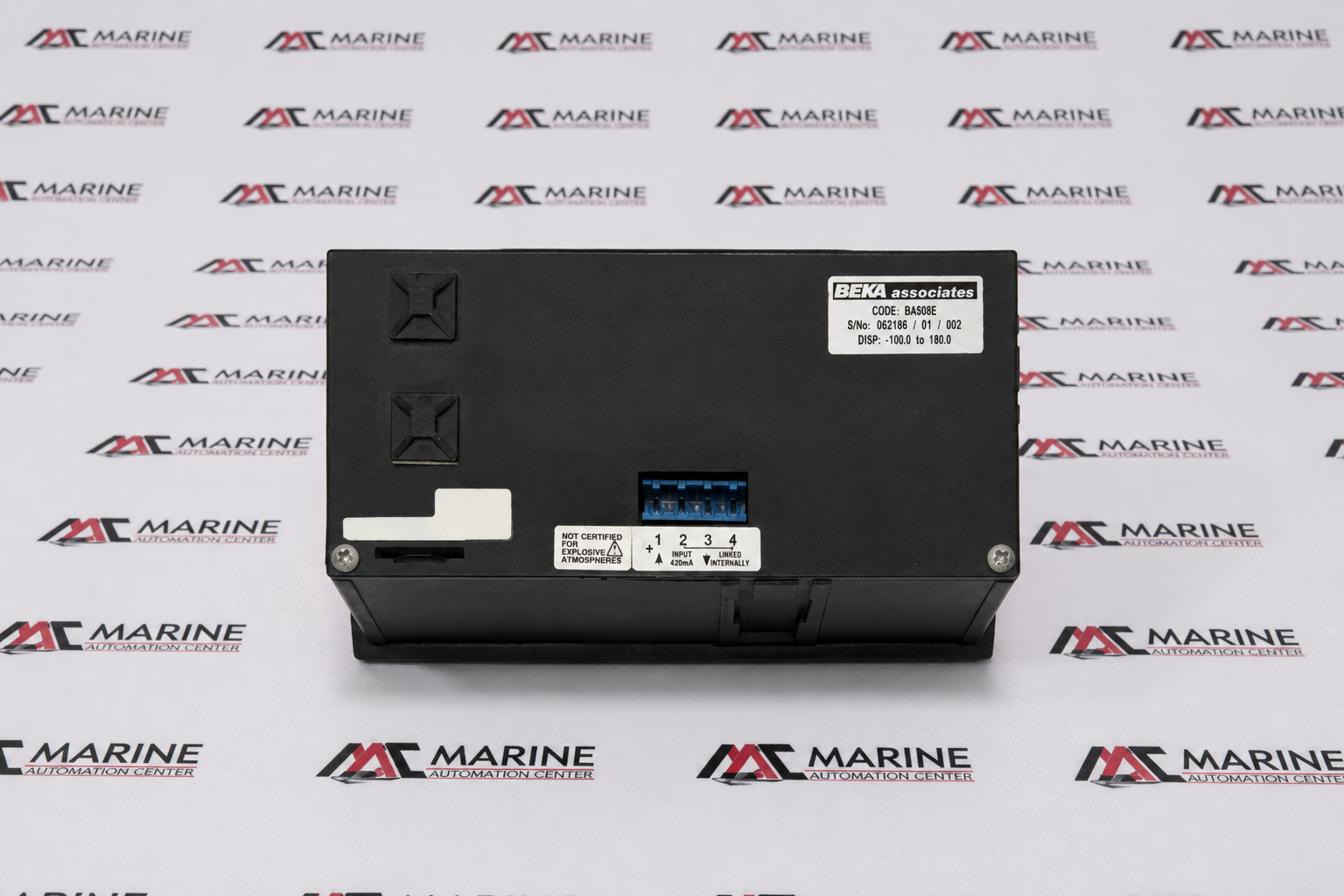

| Environmental Limit | Certified with a strict "NOT CERTIFIED FOR EXPLOSIVE ATMOSPHERES" warning plate |
| Weight | 0.35kg |
| Operating temp | -40 to 70°C |
| Storage temp | -40 to 85°C |
| Humidity | to 95% at 40°C noncondensing |
| Made In | United Kingdom |
| REF NO | 1472 |
