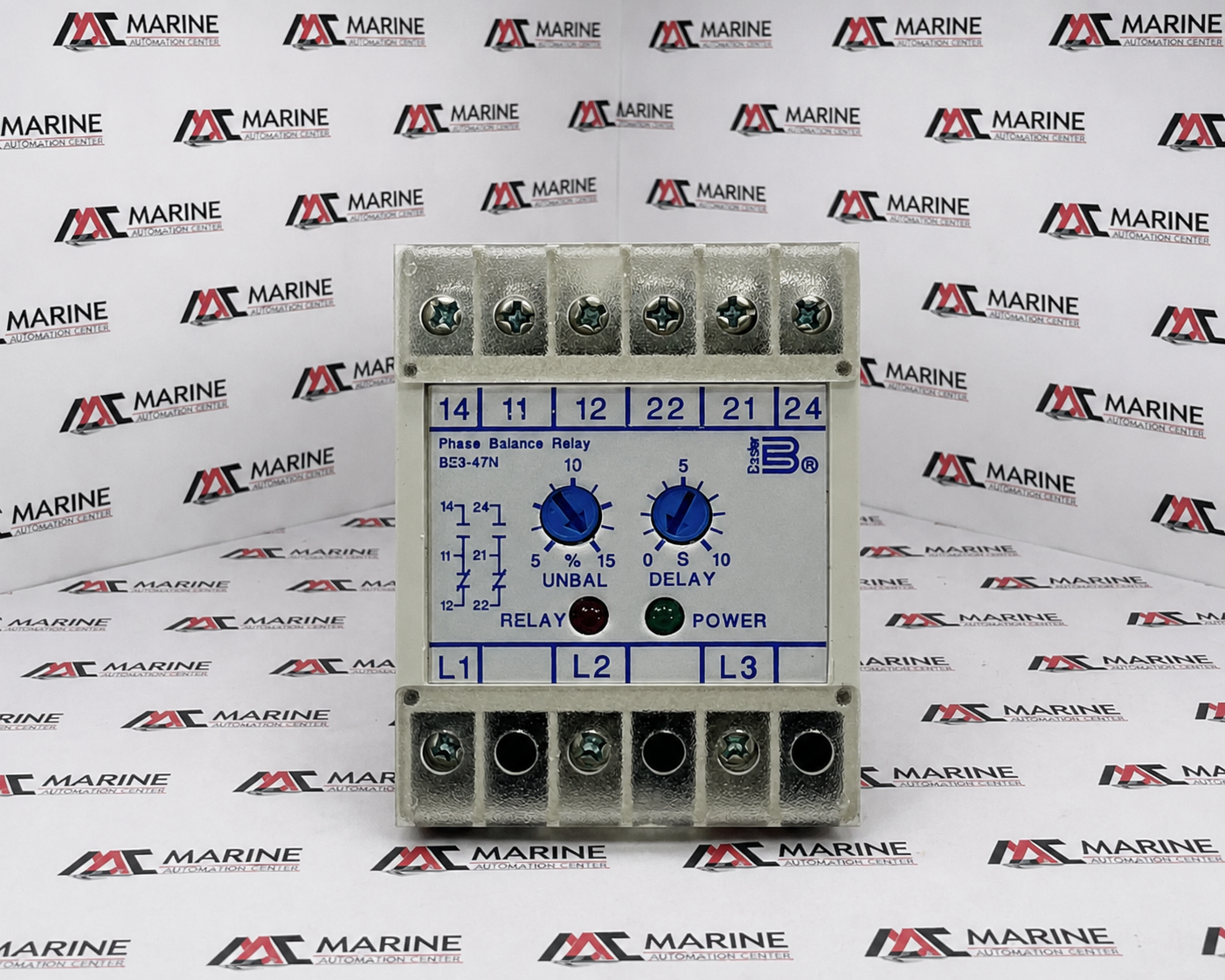

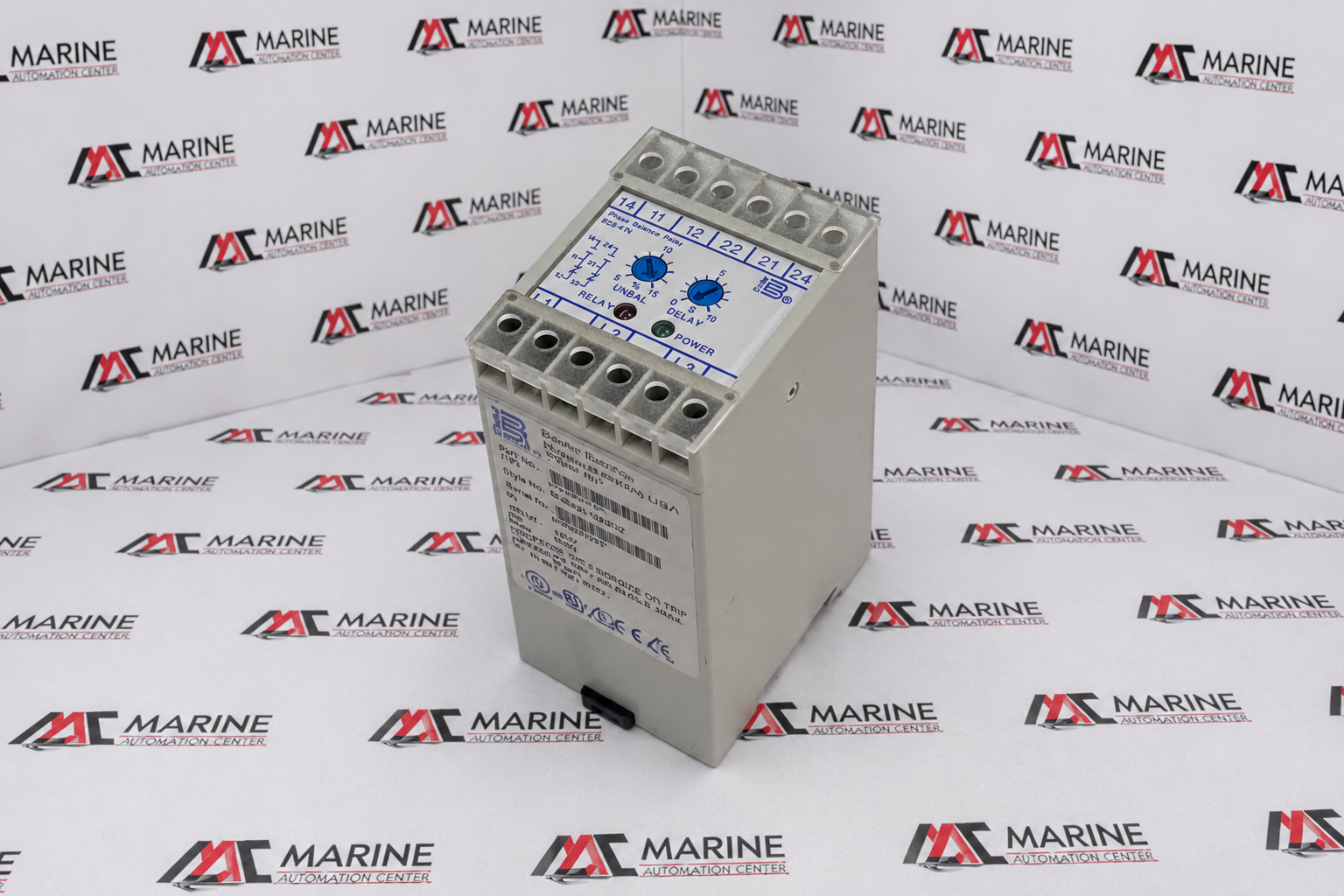

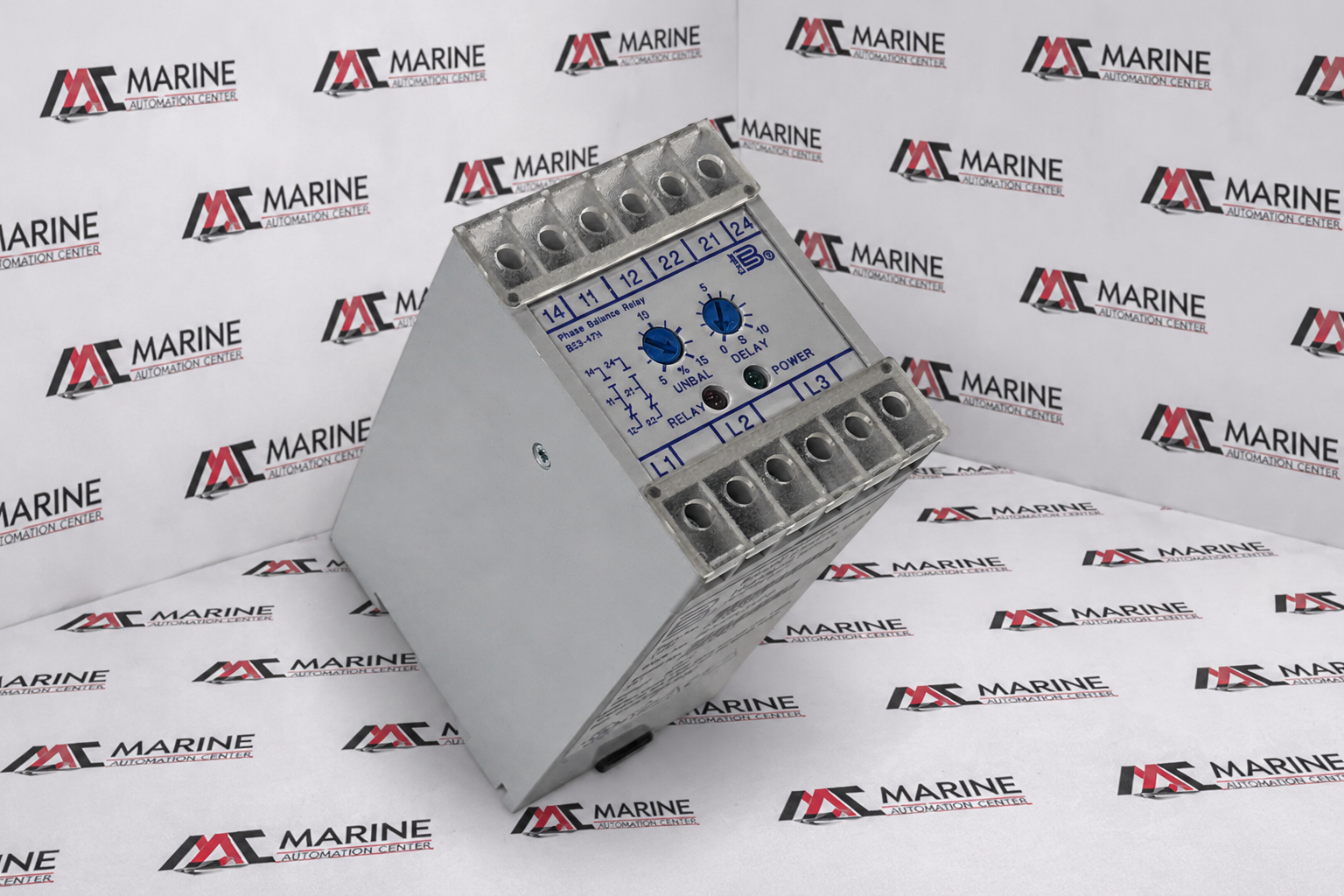

Basler Electric BE3-47N Phase Balance Relay
Basler Electric BE3-47N Phase Balance Relay (Model: BE3-47N-3A4N2, P/N: 9320300101) is a three-phase, three-wire protection relay designed to monitor phase balance, phase loss, and phase reversal. It helps protect motors, generators, transformers, and other three-phase equipment by detecting abnormal phase conditions and providing reliable relay output with adjustable unbalance and time-delay settings
BRAND
Basler Electric
TYPE
Phase Balance Relay (Three-Phase / Three-Wire)
PART NO.
9320300101
MODEL
BE3-47N-3A4N2
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Basler Electric |
| TYPE | Phase Balance Relay (Three-Phase / Three-Wire) |
| PART NO. | 9320300101 |
| MODEL | BE3-47N-3A4N2 |

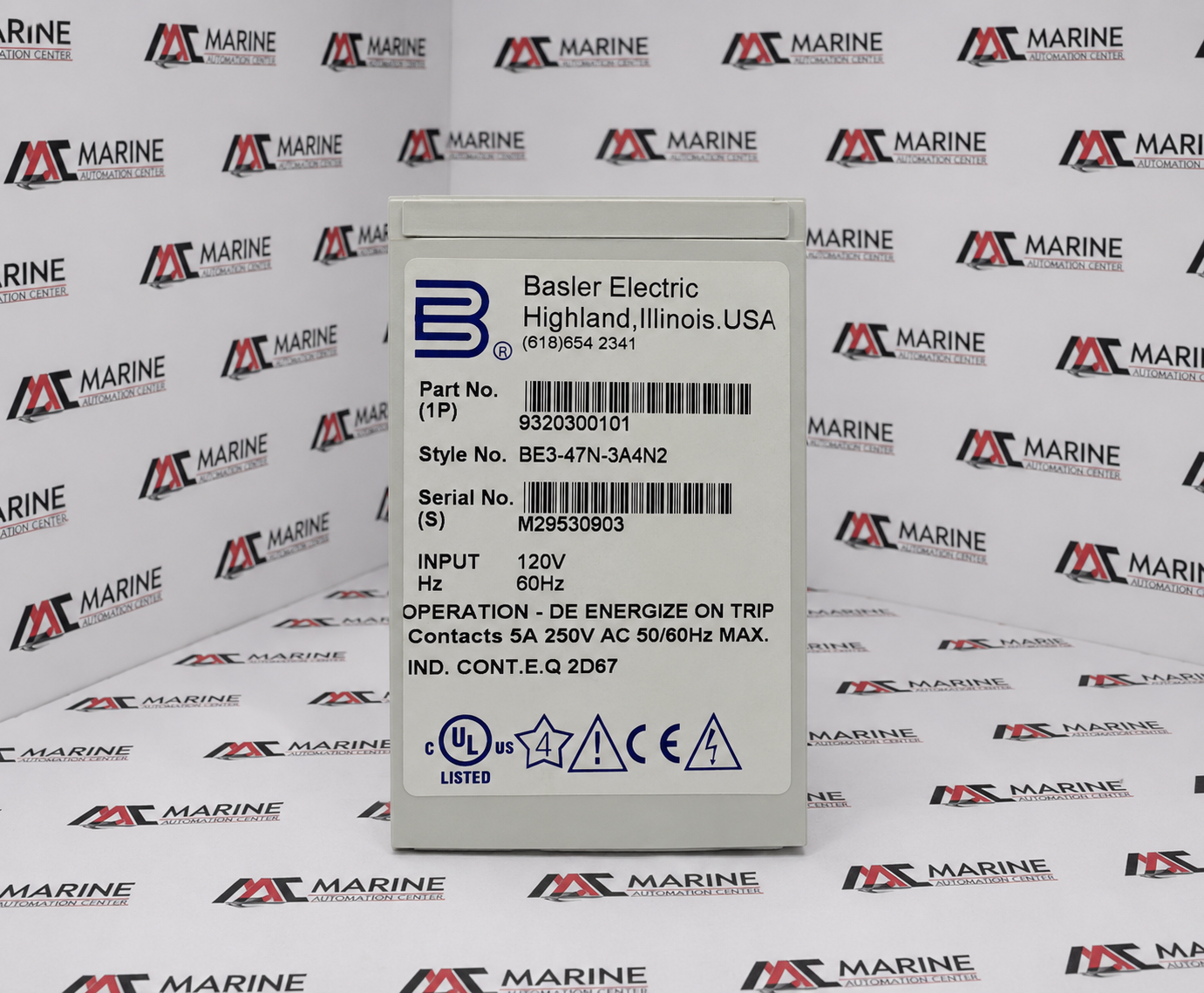

| Voltage Rating | Sensing Input: 120V AC (3-Phase, 3-Wire) | Contact Rating: 5A at 250V AC Max |
| Application | Protection of 3-phase motors, generators, and transformers against phase loss, unbalance, and reversal |
| IEC Standards | Complies with standard industrial benchmarks (Case style meets IEC 529, DIN 40050) |

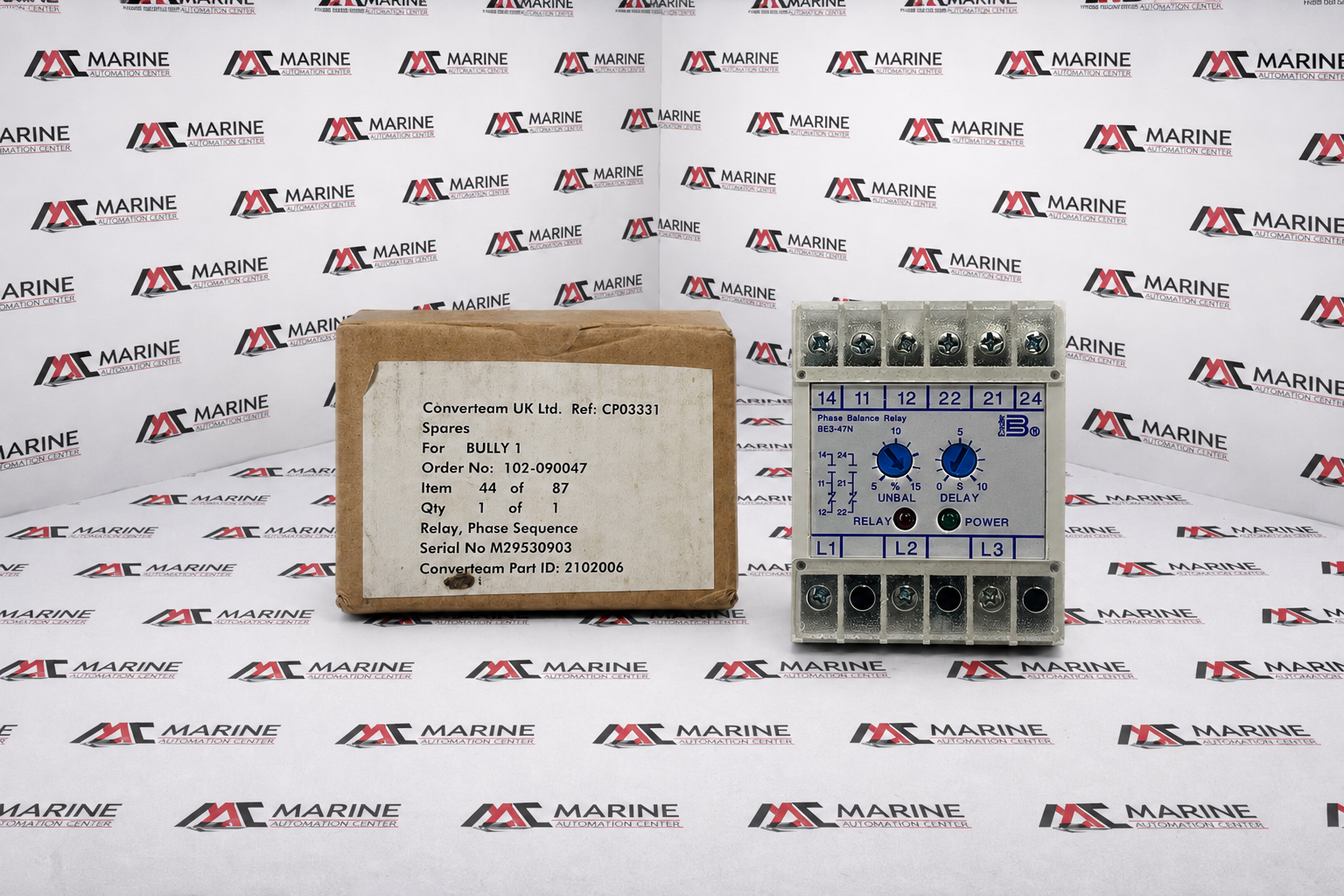

| Serial No | M29530903 |
| System Monitoring Profile | Basler BE3-47N phase unbalance, phase loss, or phase reversal condition |
| Output Configuration | De-Energize on Trip |
| Frequency Standard | 60 Hz electrical power distributions |
| Adjustable Thresholds | unbalance trip window between 5% to 15% |
| Certifications | cULus Listed |
| Made In | USA (Highland, Illinois) |
| REF NO | 506 |
