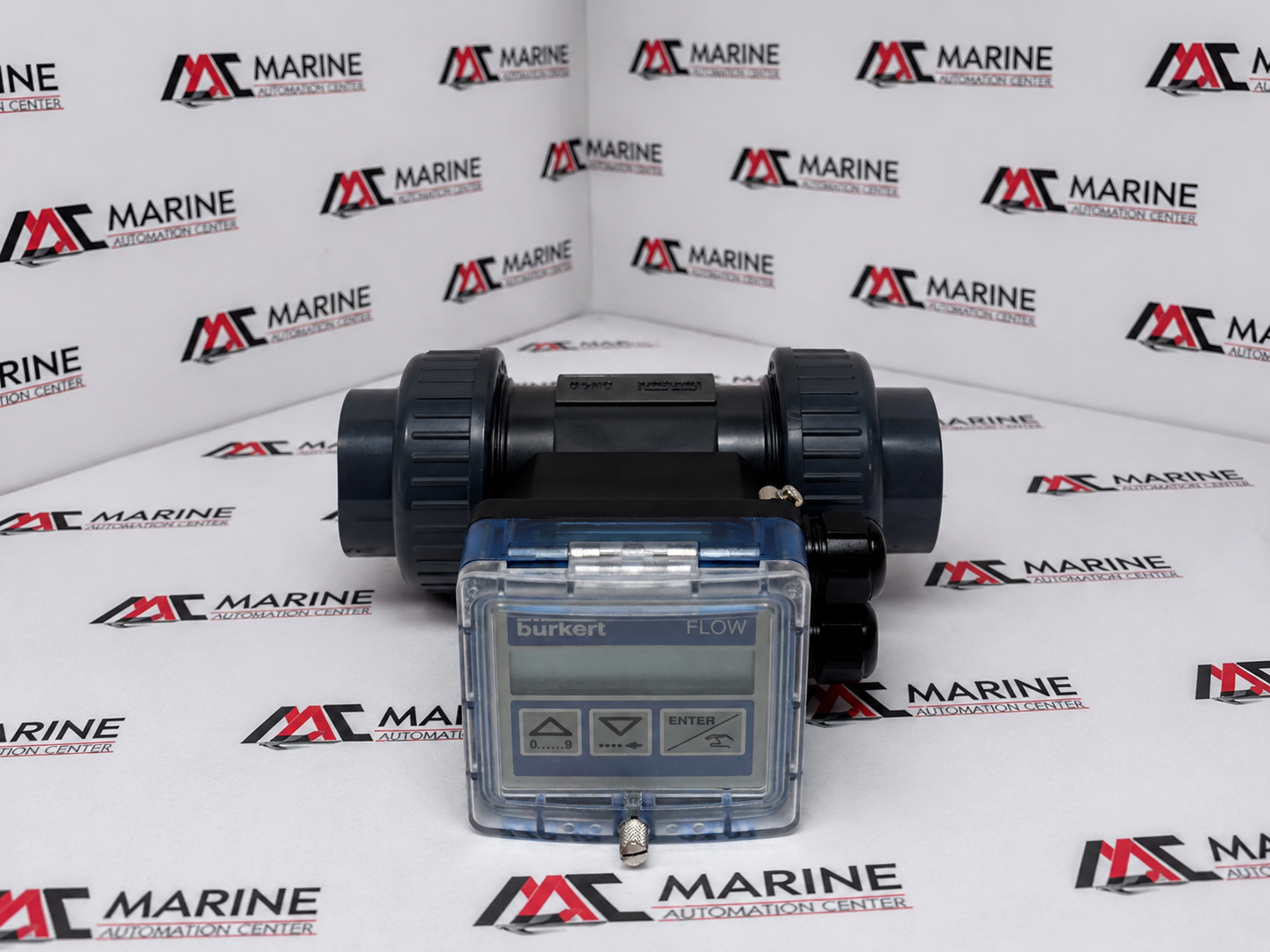

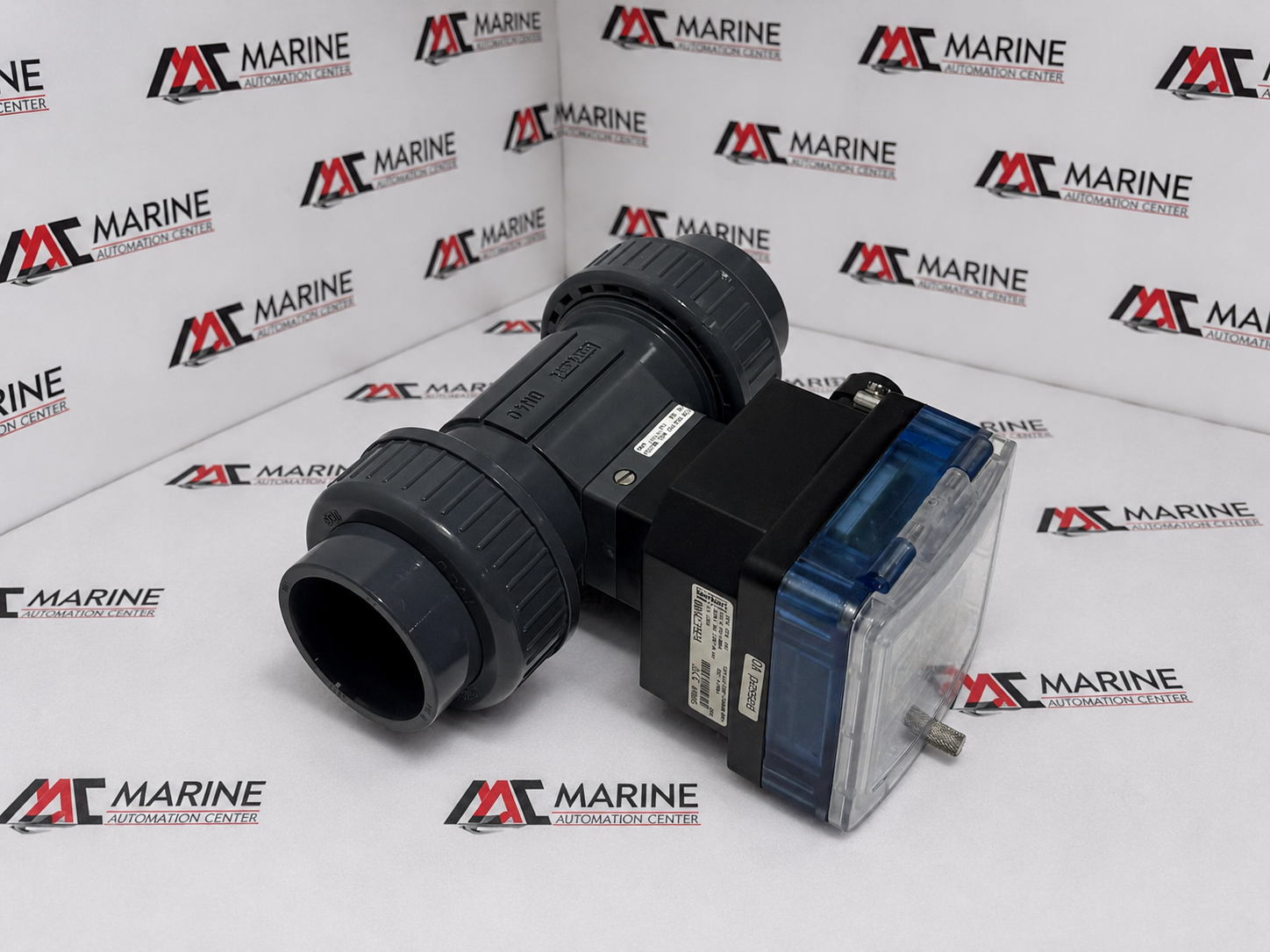

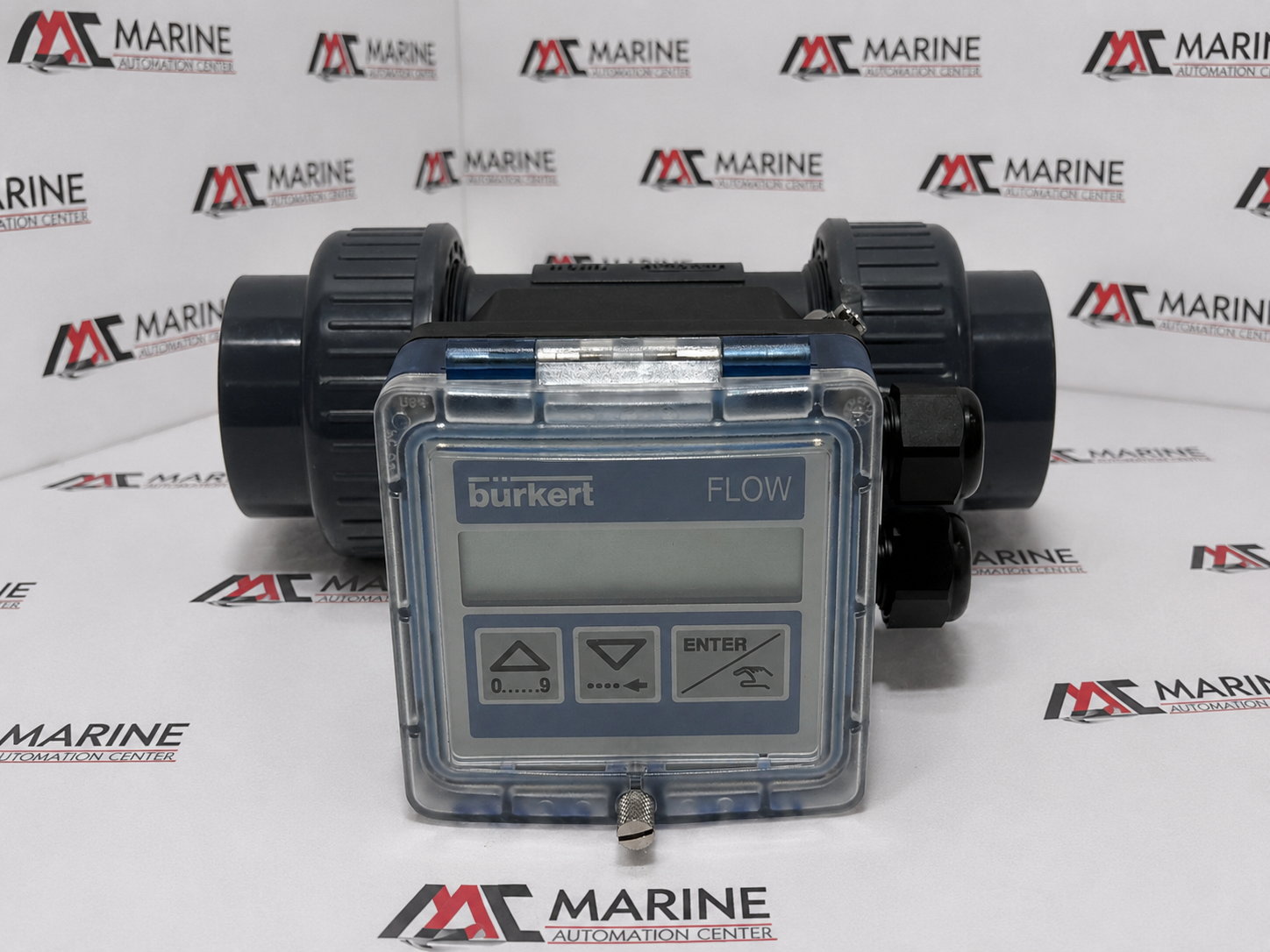

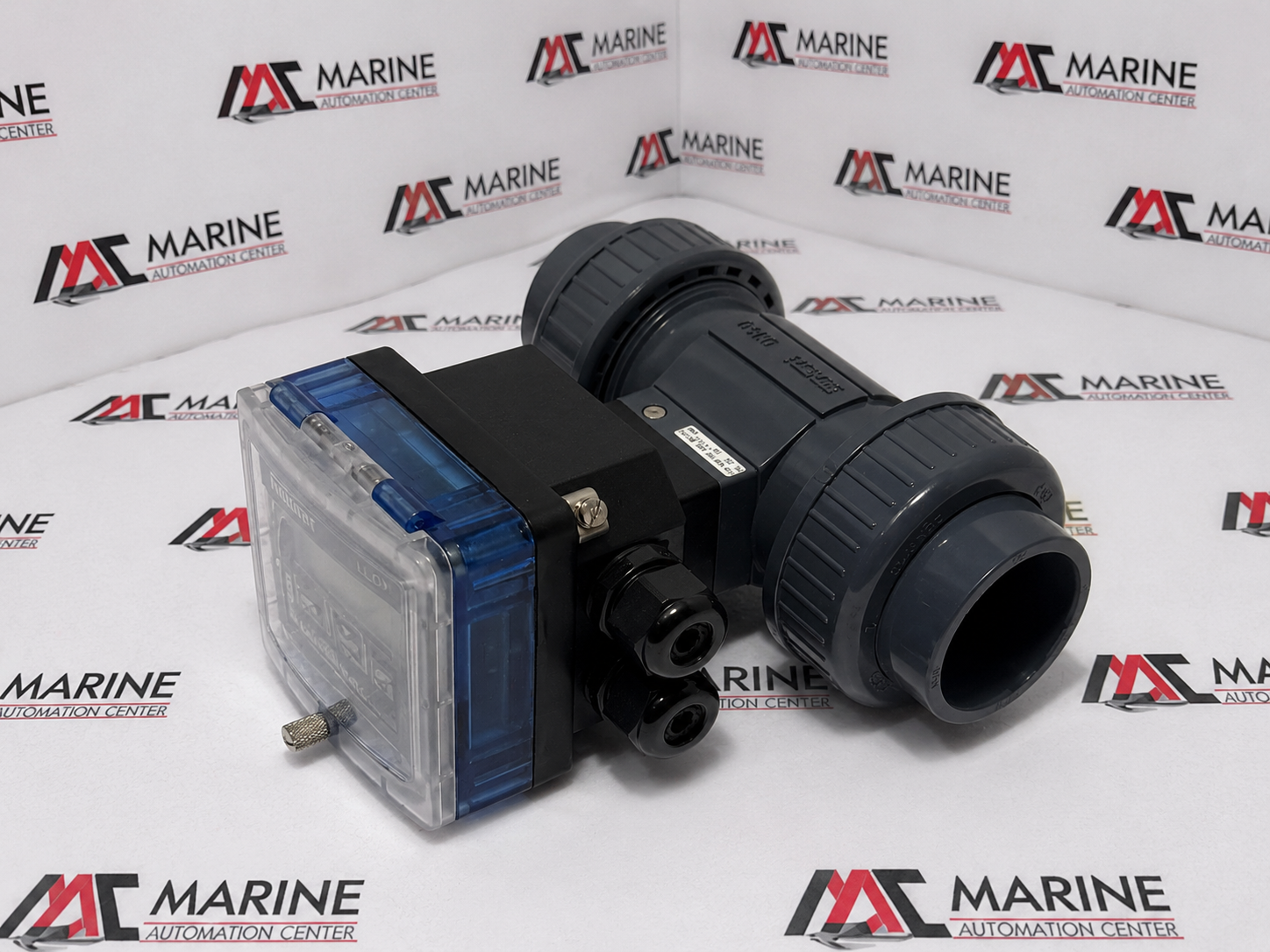

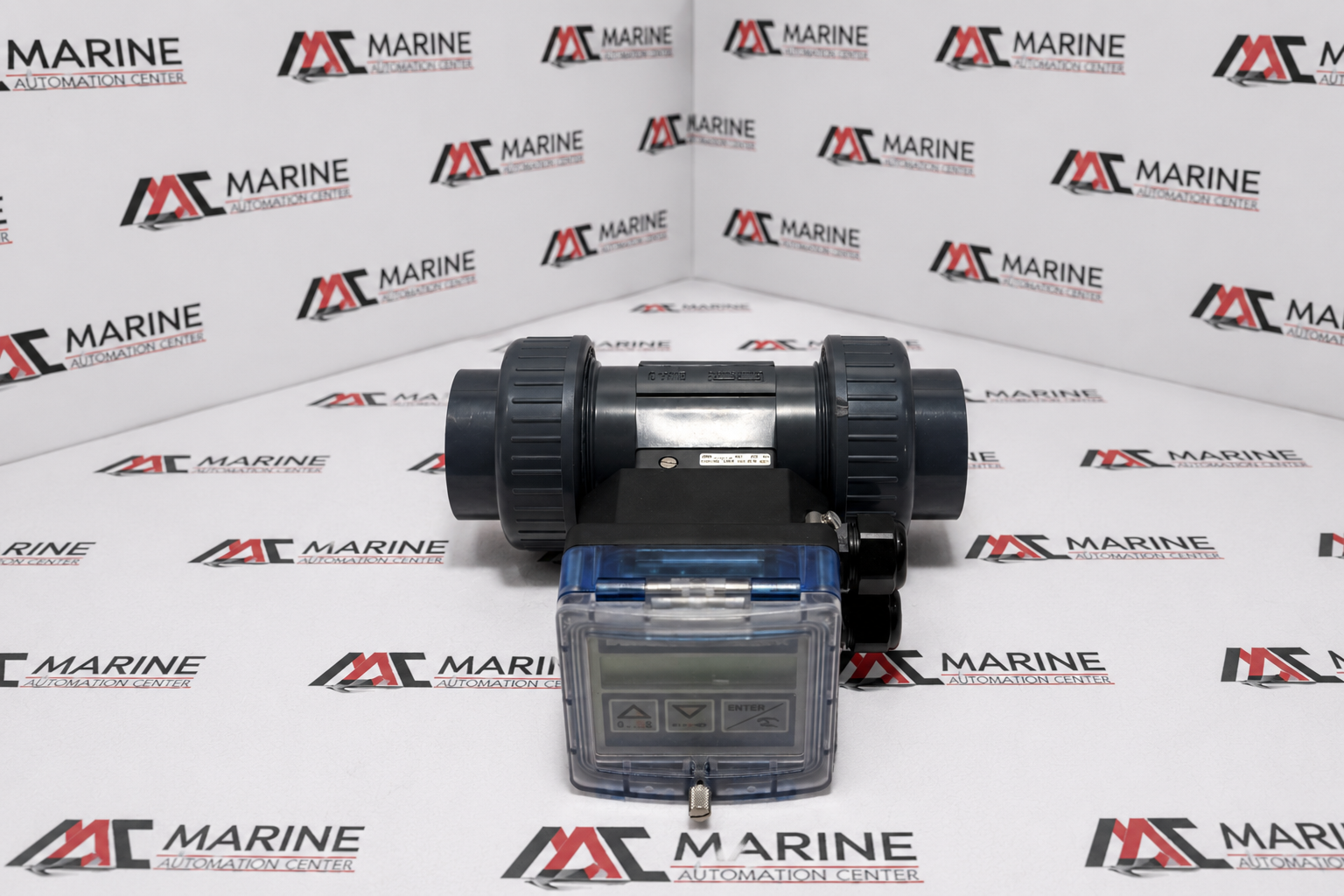

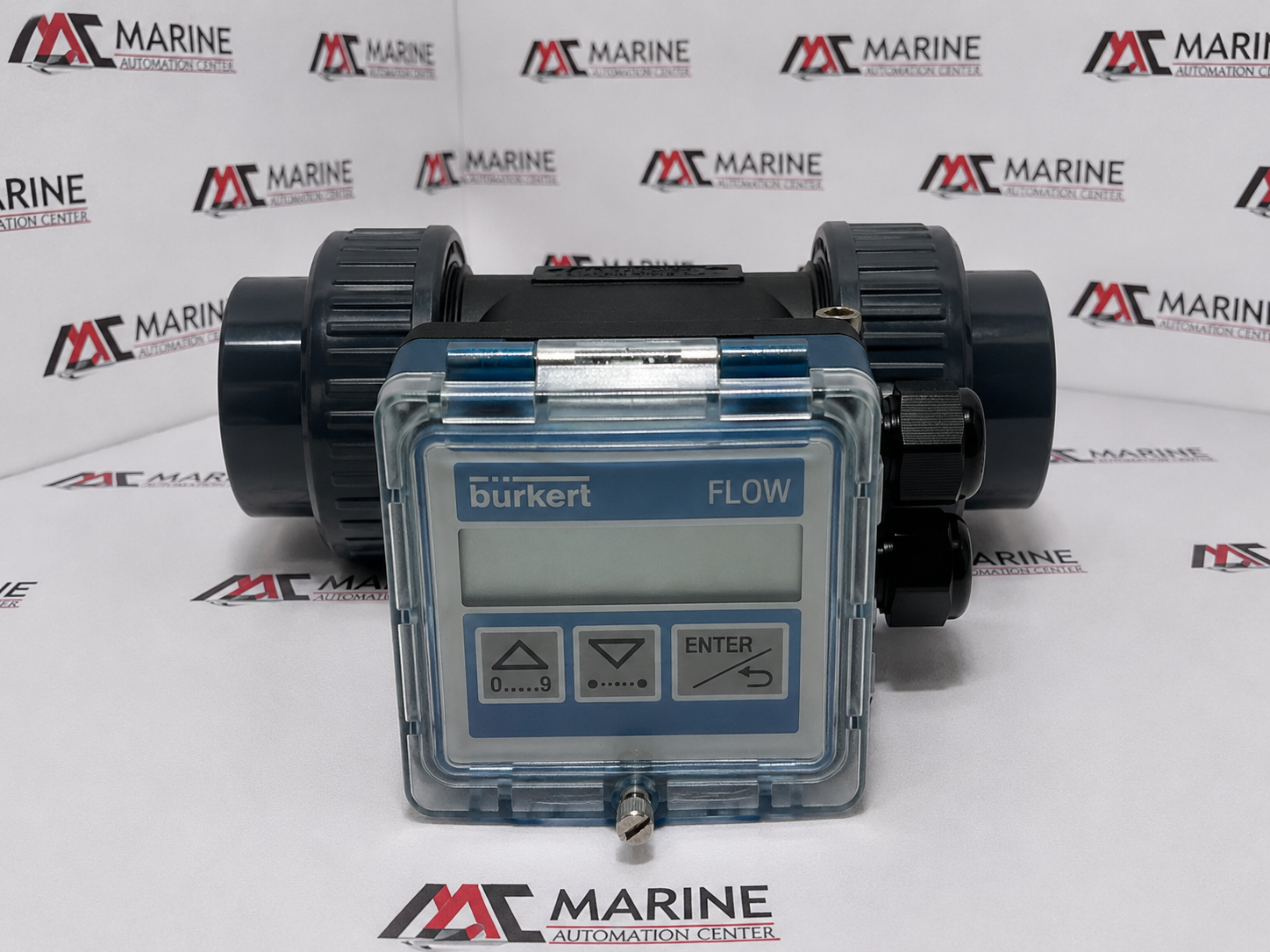

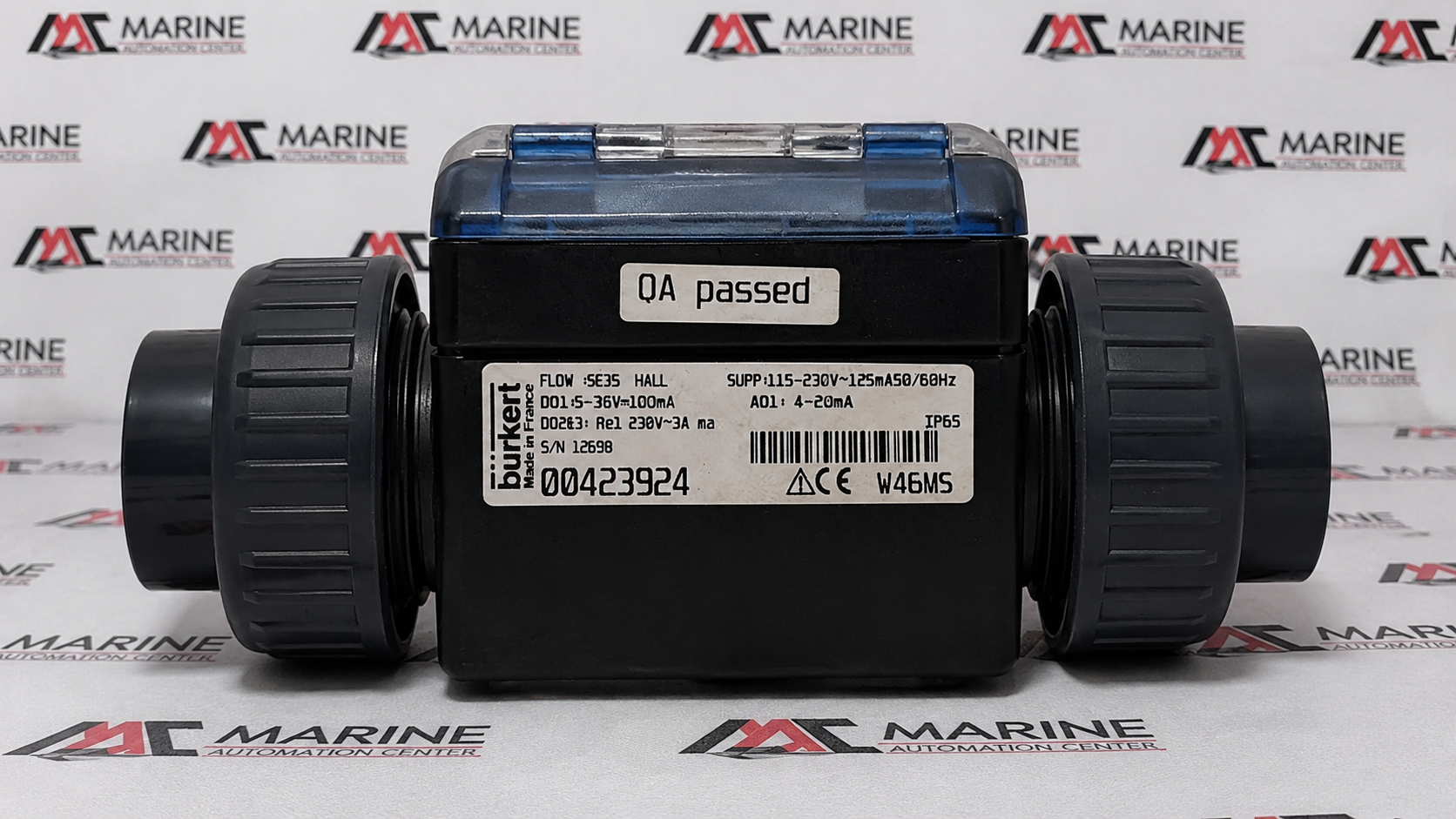

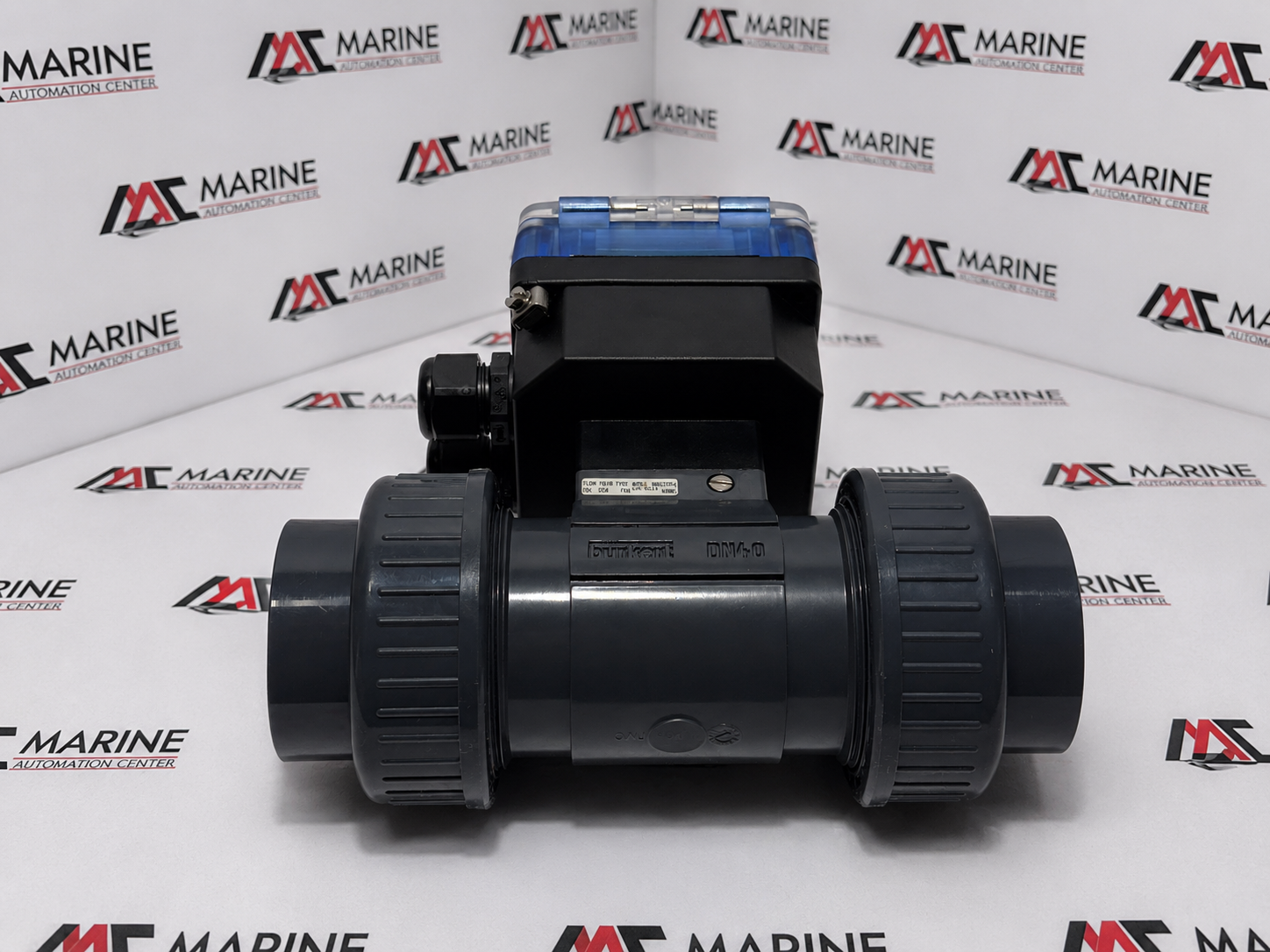

Bürkert Inline Flowmeter 00423924
The Bürkert Type 8035 (P/N: 00423924 / 423924) is an inline paddle wheel flow transmitter that combines the SE35 electronic transmitter with the S030 inline sensor fitting to provide accurate flow measurement of neutral or mildly aggressive, particle-free liquids. It features a digital display, 4–20 mA and pulse outputs, automatic Teach-In calibration, and is designed for reliable industrial process monitoring in water treatment, chemical processing, and automation systems.
BRAND
Bürkert
TYPE
Inline Paddle Wheel Flow Transmitter
PART NO.
00423924
MODEL
Type 8035
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Bürkert |
| TYPE | Inline Paddle Wheel Flow Transmitter |
| PART NO. | 00423924 |
| MODEL | Type 8035 |
| MANUFACTURER | Bürkert Fluid Control Systems |
| Sensor System | Type SE35 Electronic Transmitter with Type S030 Inline Sensor Fitting |
| Display | LCD Digital Display with Keypad |
| Measuring Principle | Paddle Wheel |
| Flow Direction | Bidirectional Installation According to Arrow Marking |
| Pipe Size | 1-1/2 in. True Union PVC |
| Body Material | PVC Inline Sensor Fitting |
| Housing Material | Polycarbonate (PC) Electronic Housing |
| Power Supply | 115–230 V AC, 50/60 Hz |
| Power Consumption | Approx. 5 VA |
| Analog Output | 4–20 mA |
| Digital Output 1 | 5–36 V DC, 100 mA |
| Ingress Protection | IP65 |
| Application | Flow measurement and monitoring of neutral or mildly aggressive, particle-free liquids in industrial process systems, water treatment, chemical dosing and marine automation applications. |
| IEC | IEC Compliant Industrial Flow Measurement Device |
| Made In | France |
| ref no. | 1406 |
