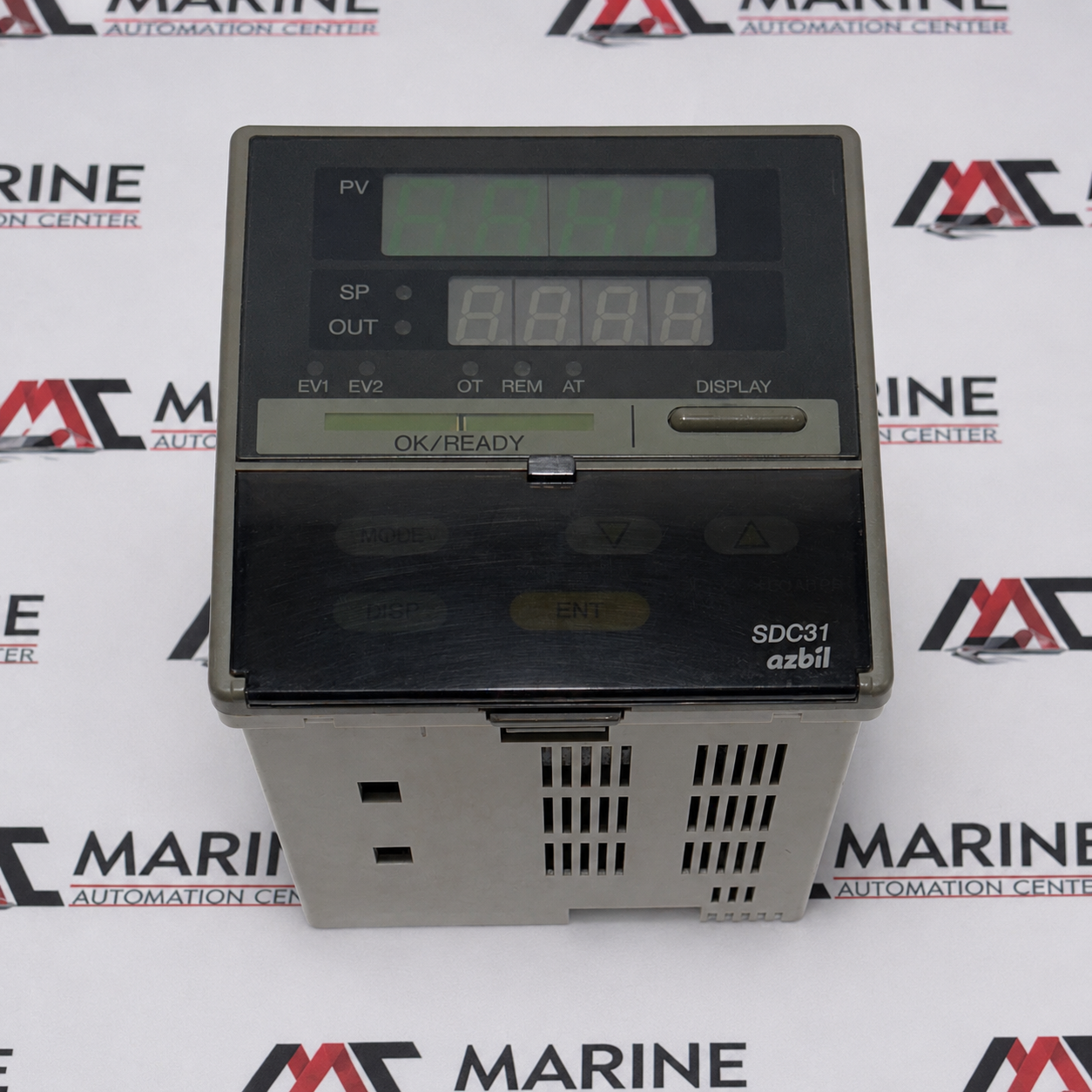

Azbil SDC31 Digital Indicating Controller
Azbil SDC31 Digital Indicating Controller (Part No. C315GA040500)is a high-performance temperature and process controller designed for precise monitoring and control of industrial processes. It provides accurate PID control, clear digital indication, and reliable operation to maintain stable process conditions. Ideal for temperature control, process automation, manufacturing equipment, and industrial instrumentation applications.
BRAND
Azbil
TYPE
Digital Indicating Controller
PART NO.
C315GA040500
MODEL
SDC31
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Azbil |
| TYPE | Digital Indicating Controller |
| PART NO. | C315GA040500 |
| MODEL | SDC31 |
| MANUFACTURER | Azbil Corporation |
| Serial Number | 143608024 |
| Voltage Rating | AC 100–240 V, 50/60 Hz |
| Power Consumption | 18 VA Max |

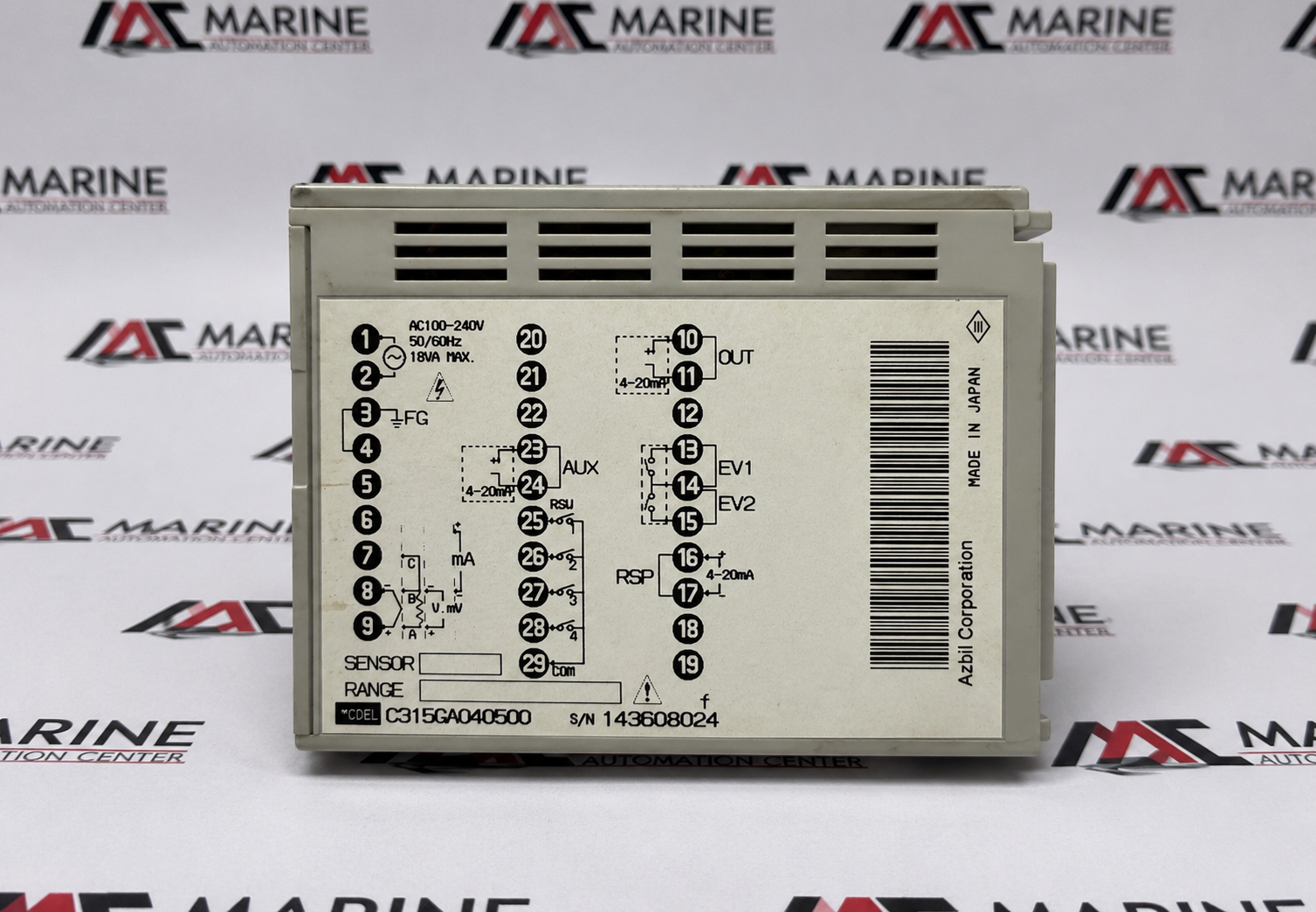

| Power Supply Terminals | Terminal 1 & 2: AC Supply, Terminal 3: Frame Ground (FG) |
| Sensor Input | Multi-range Analog Input (Voltage, Millivolts, Current mA) |
| Sensor Input Terminals | Terminals 7, 8, 9 |
| Control Output | 4–20 mA Current Output |
| Frequency | 50/60 Hz |
| Application | Industrial temperature and process control, PID control, process automation, and instrumentation systems |
| Made In | Japan |
| REF NO | 1413 |
