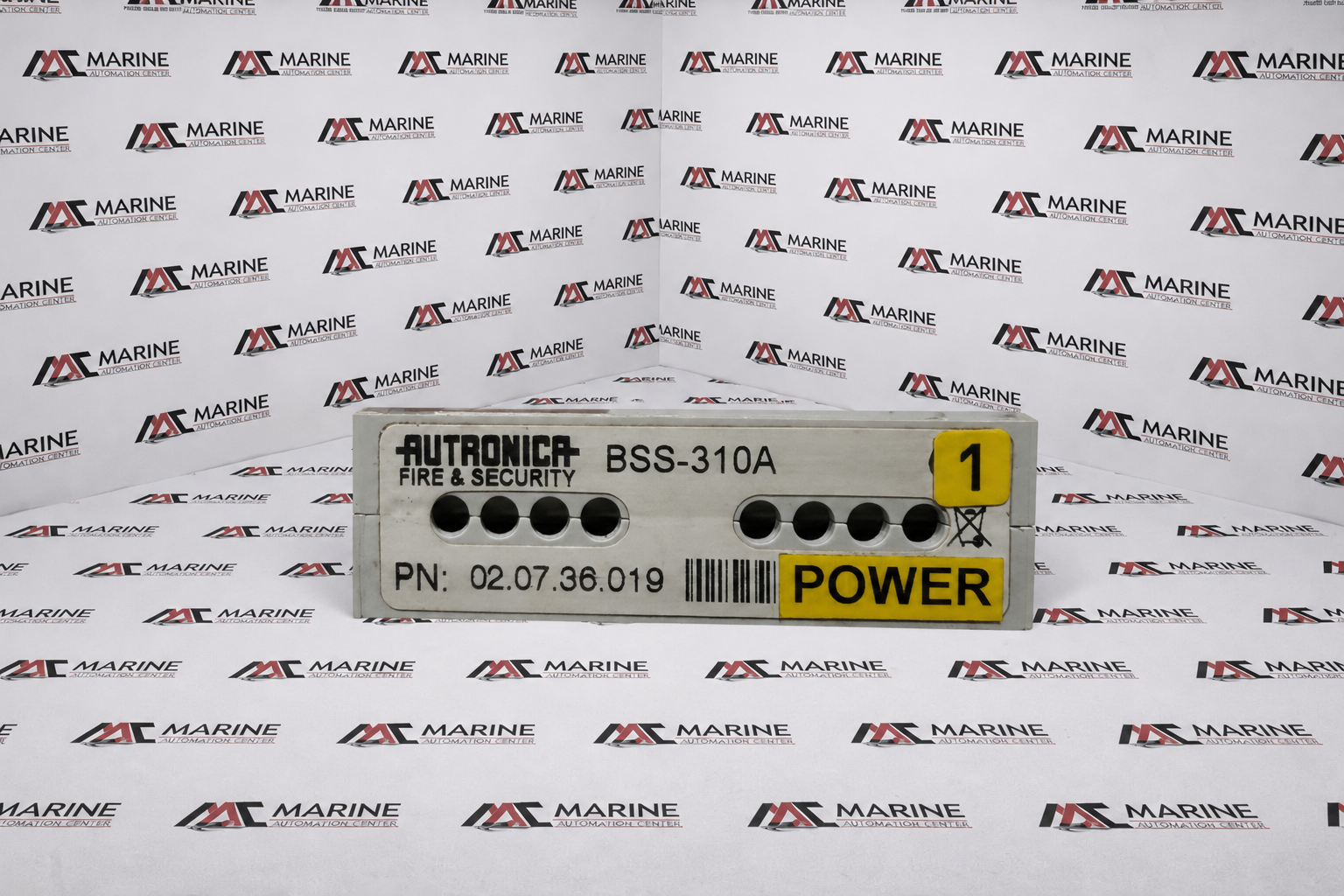

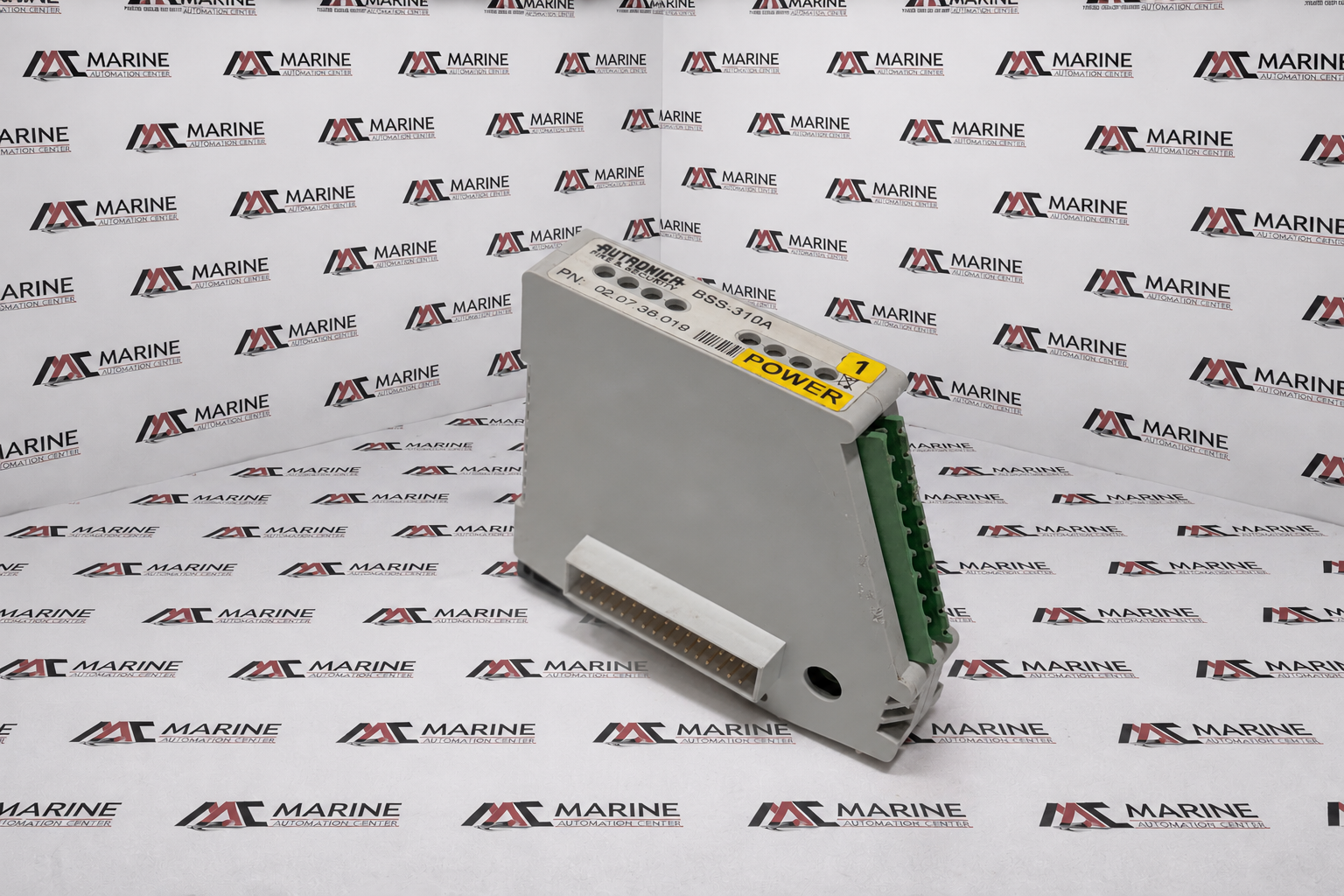

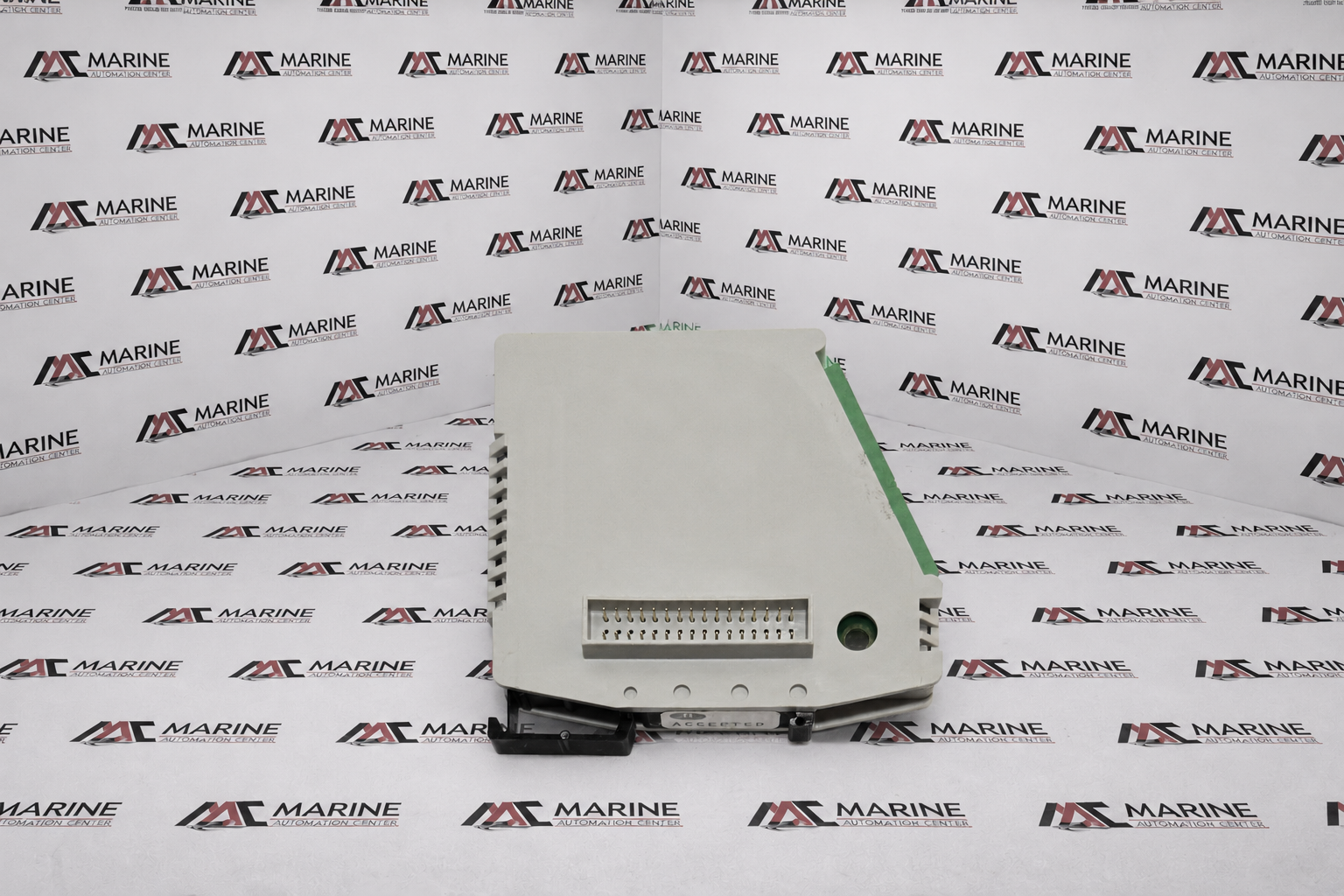

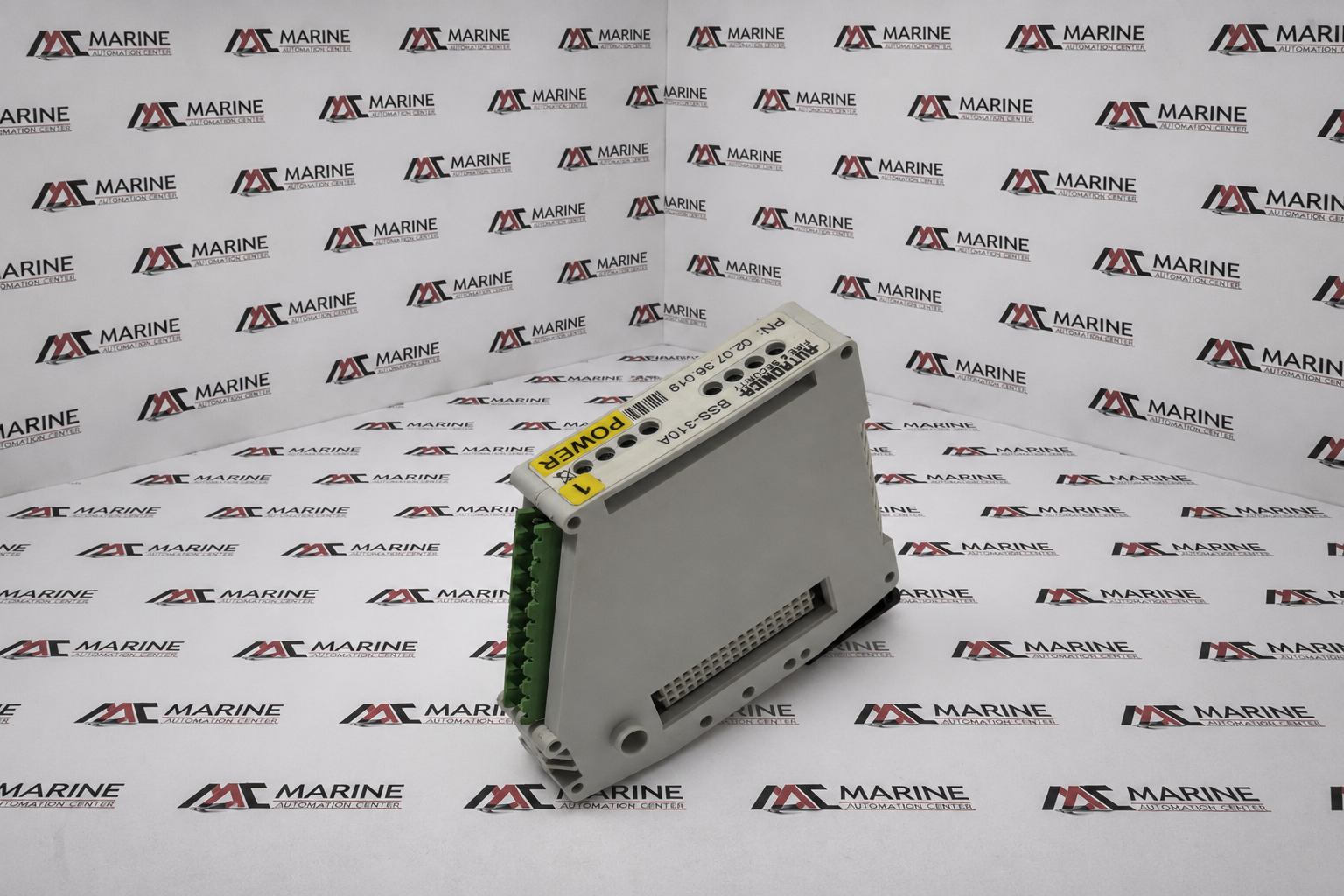

Autronica Fire & Security BSS-310A Power Supply Module
Autronica Fire & Security BSS-310A Power Supply Module (Part No. 02.07.36.019) is a reliable power supply module designed to provide stable and efficient power for Autronica fire alarm and safety systems. Engineered for dependable performance, it ensures continuous operation of connected control panels and system modules, making it ideal for fire detection, life safety, and building management applications.
BRAND
Autronica Fire & Security
TYPE
Power Supply Module
PART NO.
02.07.36.019
MODEL
BSS-310A
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Autronica Fire & Security |
| TYPE | Power Supply Module |
| PART NO. | 02.07.36.019 |
| MODEL | BSS-310A |
| MANUFACTURER | Autronica Fire & Security |
| Primary Function | Supplies and regulates internal DC operating power across the panel backplane to connected I/O, loop, and communication modules |
| Output Voltage | 24 V DC (up to 840 mA for loop drivers), 5 V DC (up to 400 mA) |
| Maximum Output Current | 840 mA @ 24 V DC, 400 mA @ 5 V DC |
| Scalability | Supports parallel connection of up to 2 power modules per cabinet |
| System Integration | Plugs directly into the AutroSafe panel backplane and standard mounting rails |
| Mounting Type | DIN Rail / Backplane Mount |
| System Compliance | EN 54 Fire Detection and Fire Alarm Systems |
| Voltage Rating | 24 V DC / 5 V DC Output |
| Application | Power distribution for AutroSafe fire alarm control panels and associated I/O, loop, and communication modules |
| IEC | EN 54 |
| REF NO | 1389 |
