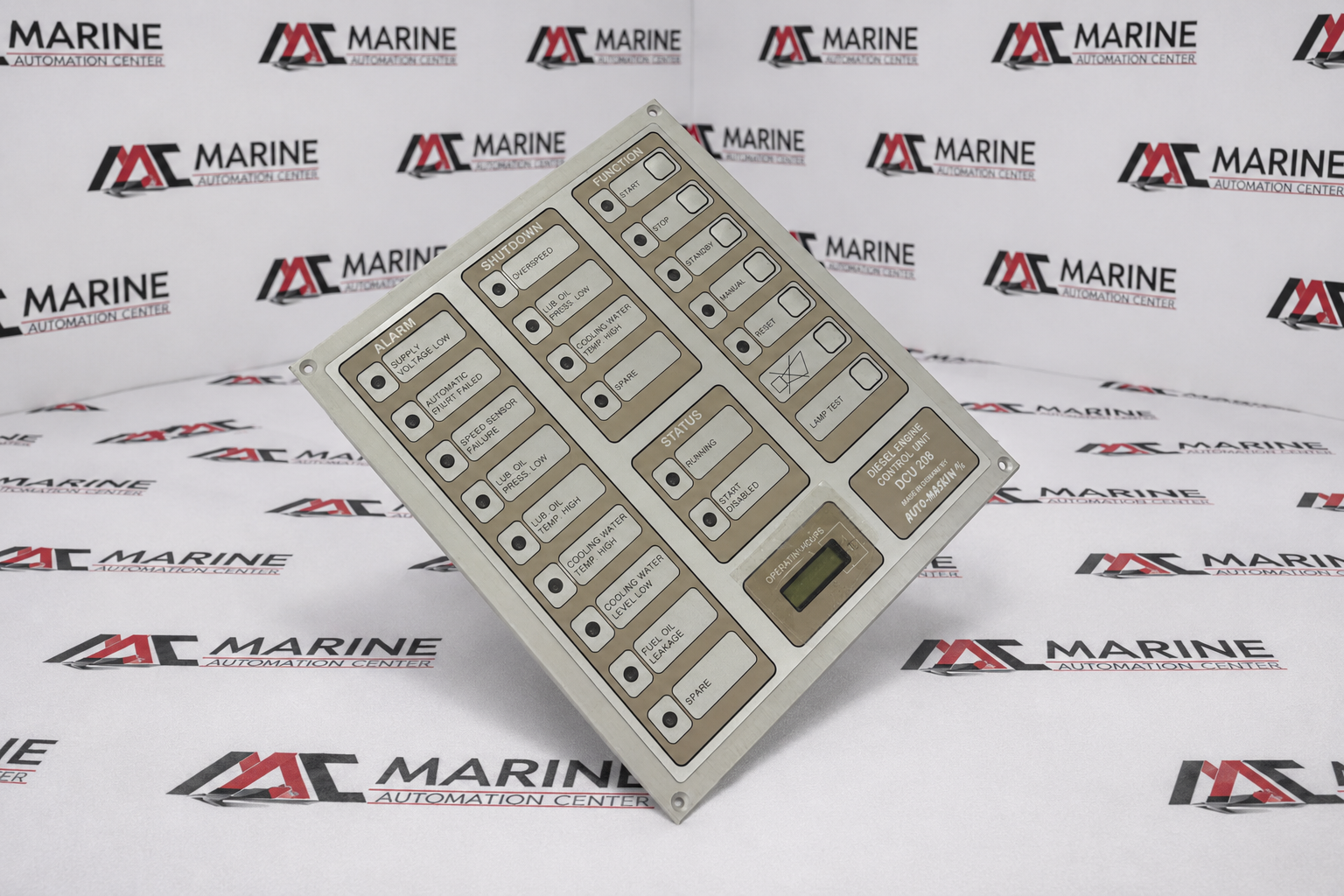

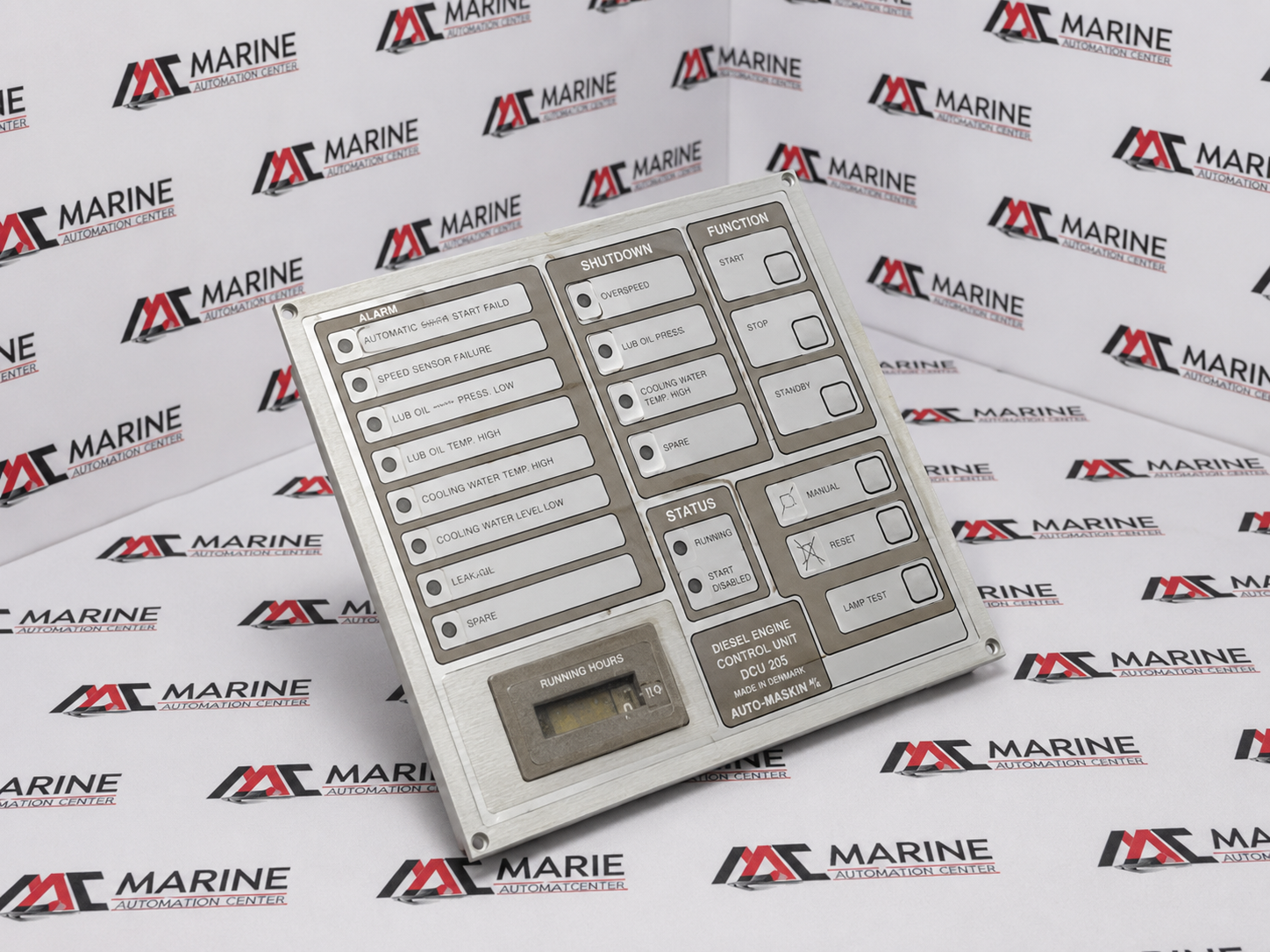

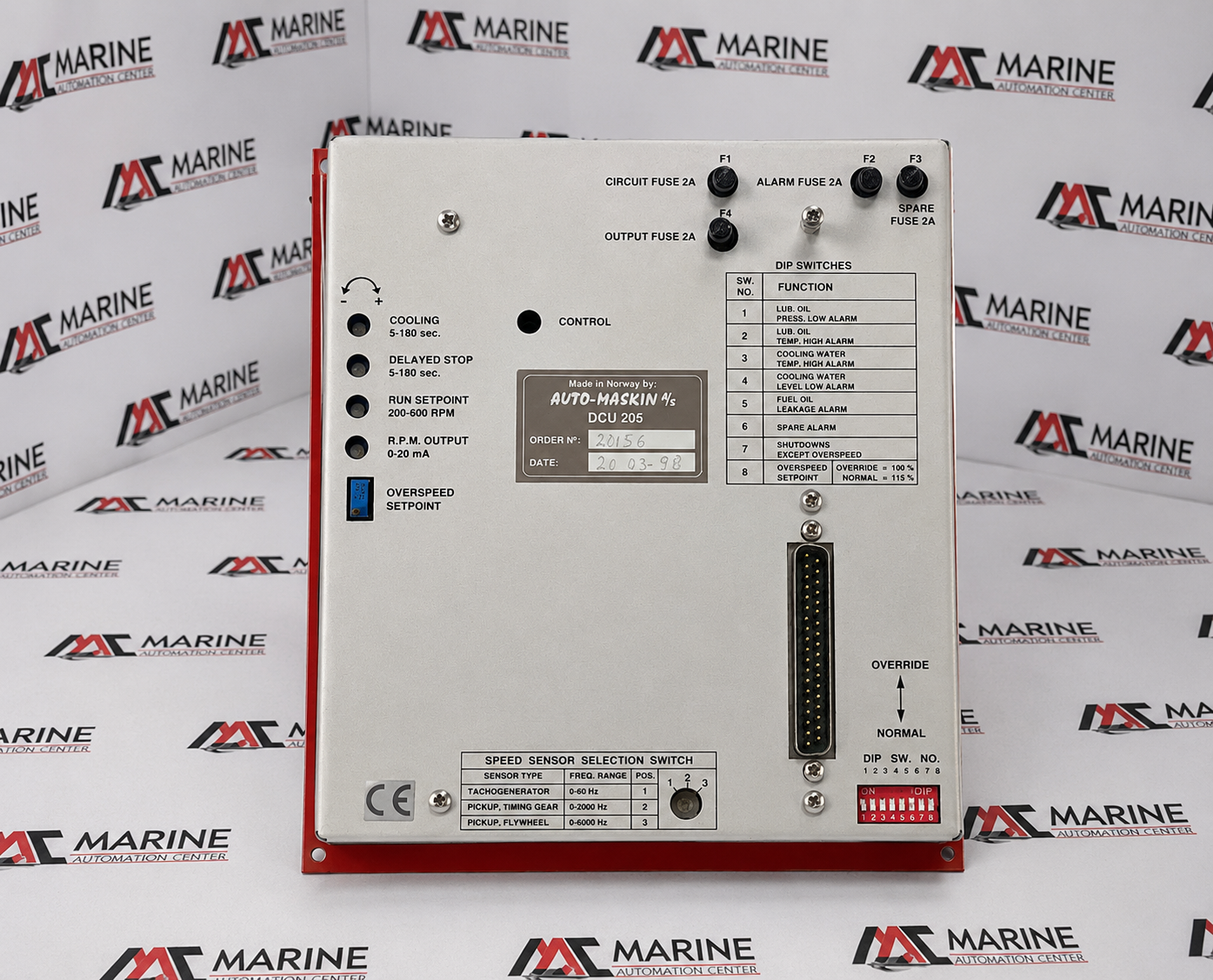

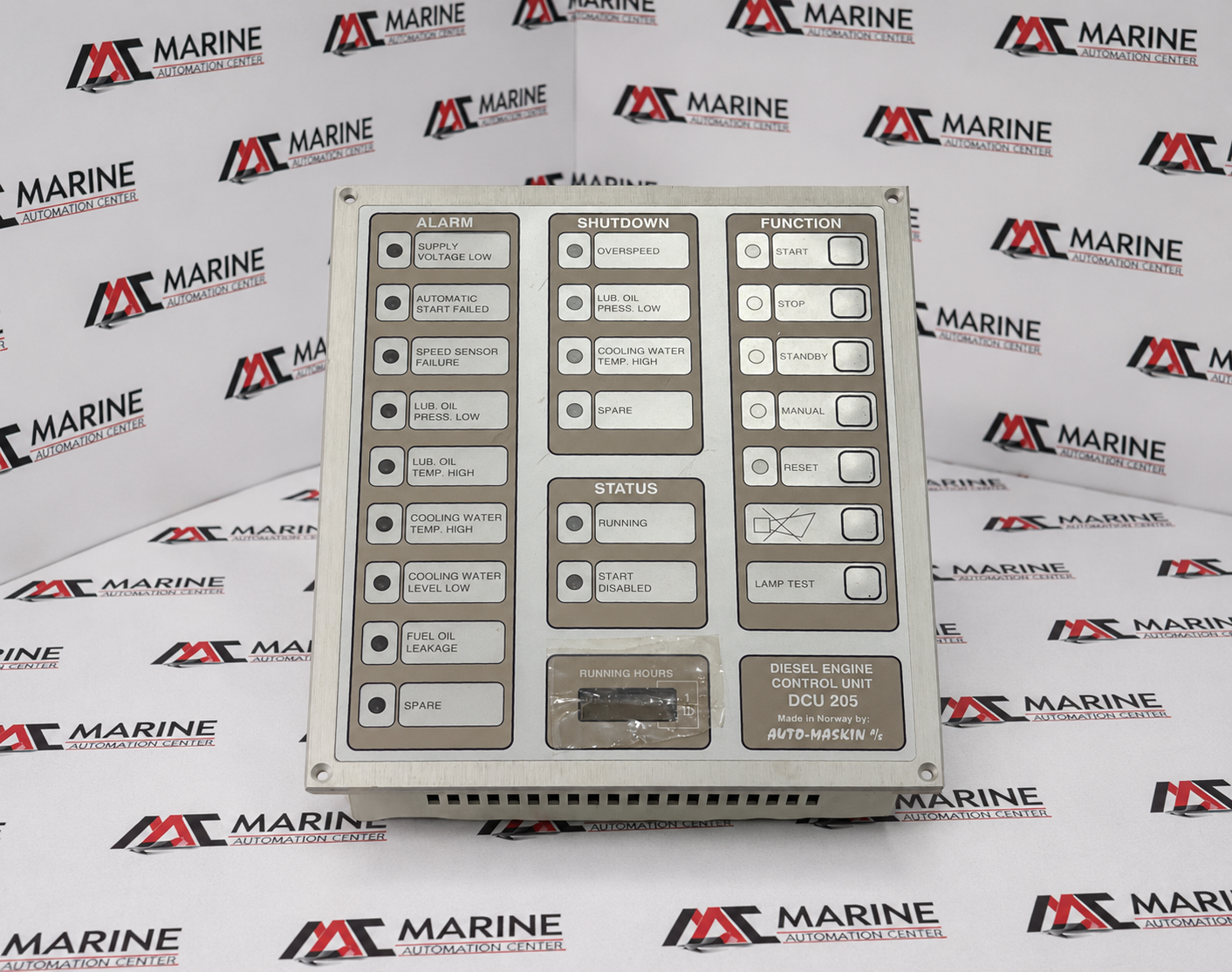

AUTO-MASKIN Diesel Engine Control Unit DCU 205
The AUTO-MASKIN DCU 205 is a diesel engine control unit designed for monitoring, control, and protection of diesel engines used in marine and industrial power generation applications. It integrates engine instrumentation, alarm handling, and automatic shutdown functions into a compact unit, providing reliable engine management, real-time operating data, and enhanced safety for generator sets, propulsion systems, and auxiliary engines.
BRAND
AUTO-MASKIN
TYPE
Diesel Engine Control Unit
PART no.
DCU 205
MODEL
DCU 205
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | AUTO-MASKIN |
| TYPE | Diesel Engine Control Unit |
| PART no. | DCU 205 |
| MODEL | DCU 205 |
| Supply Voltage | 20–30 VDC (Control Unit & Alarm Unit) |
| Voltage Rating | 20–30 VDC |
| Current Consumption | Approx. 100 mA |
| Relay Output Rating | Max. 125 VAC / 2 A |
| Operating Temperature | 0°C to +70°C |
| Front Protection Rating | IP55 |
| Functions | Manual Start, Stop, Standby, Manual Mode, Reset, Lamp Test, Automatic Start/Stop, Alarm & Shutdown Monitoring |
| Shutdown Inputs | Overspeed, Lubricating Oil Pressure Low, Cooling Water Temperature High, Spare |
| Application | Marine diesel engine control, monitoring and protection for generator sets, propulsion engines and pumping stations |
| Made In | Norway |
| REF NO. | 354 |
