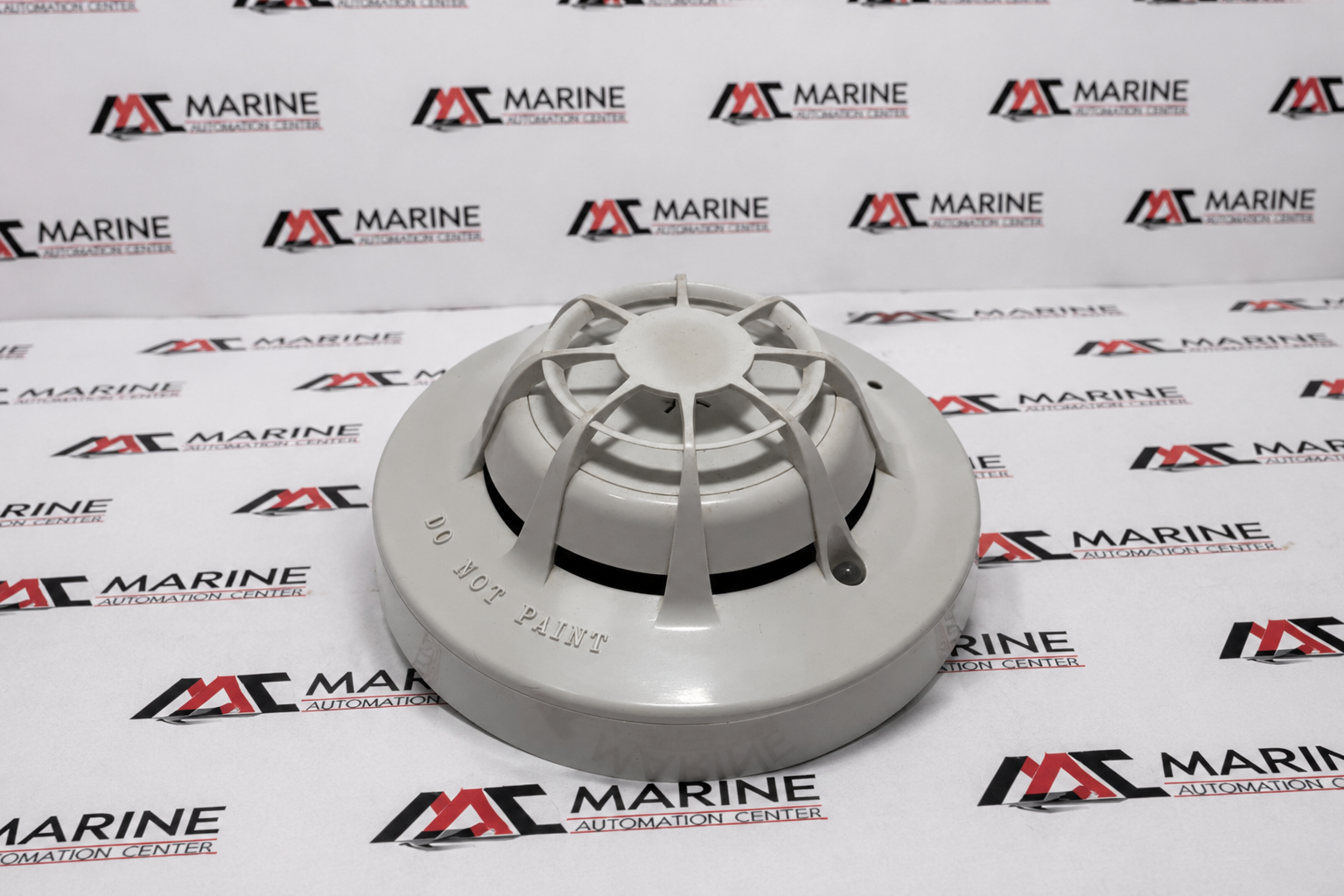

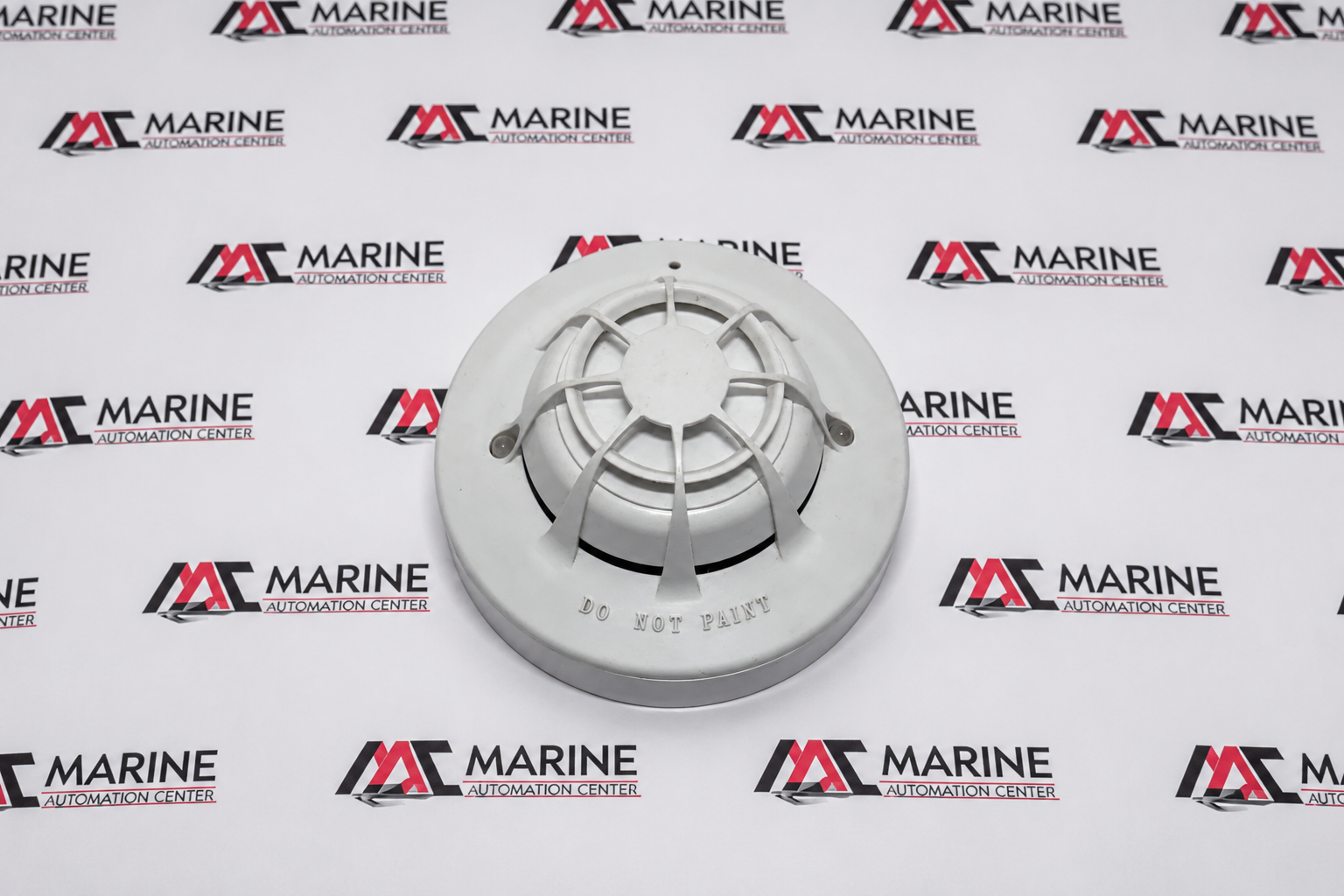

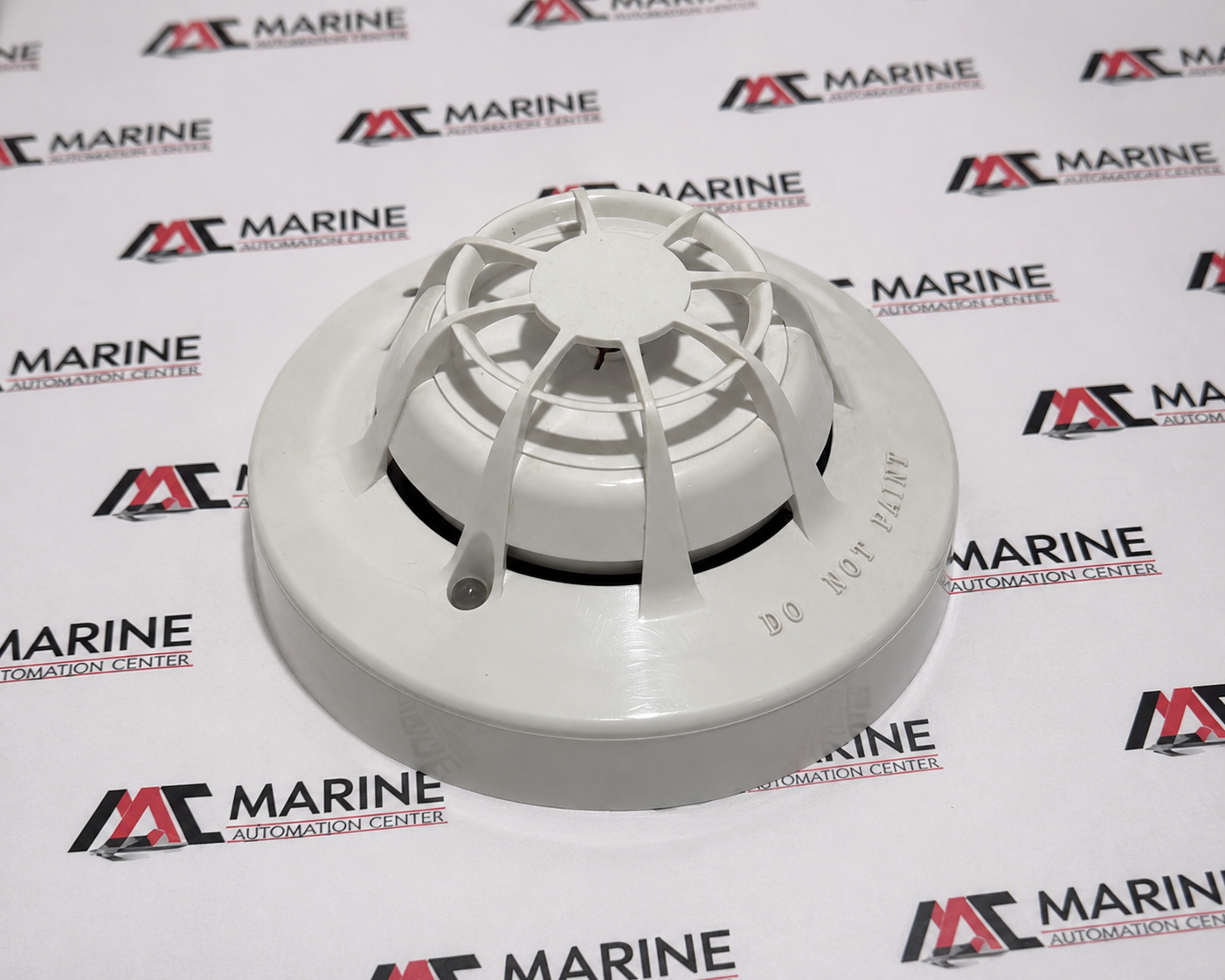

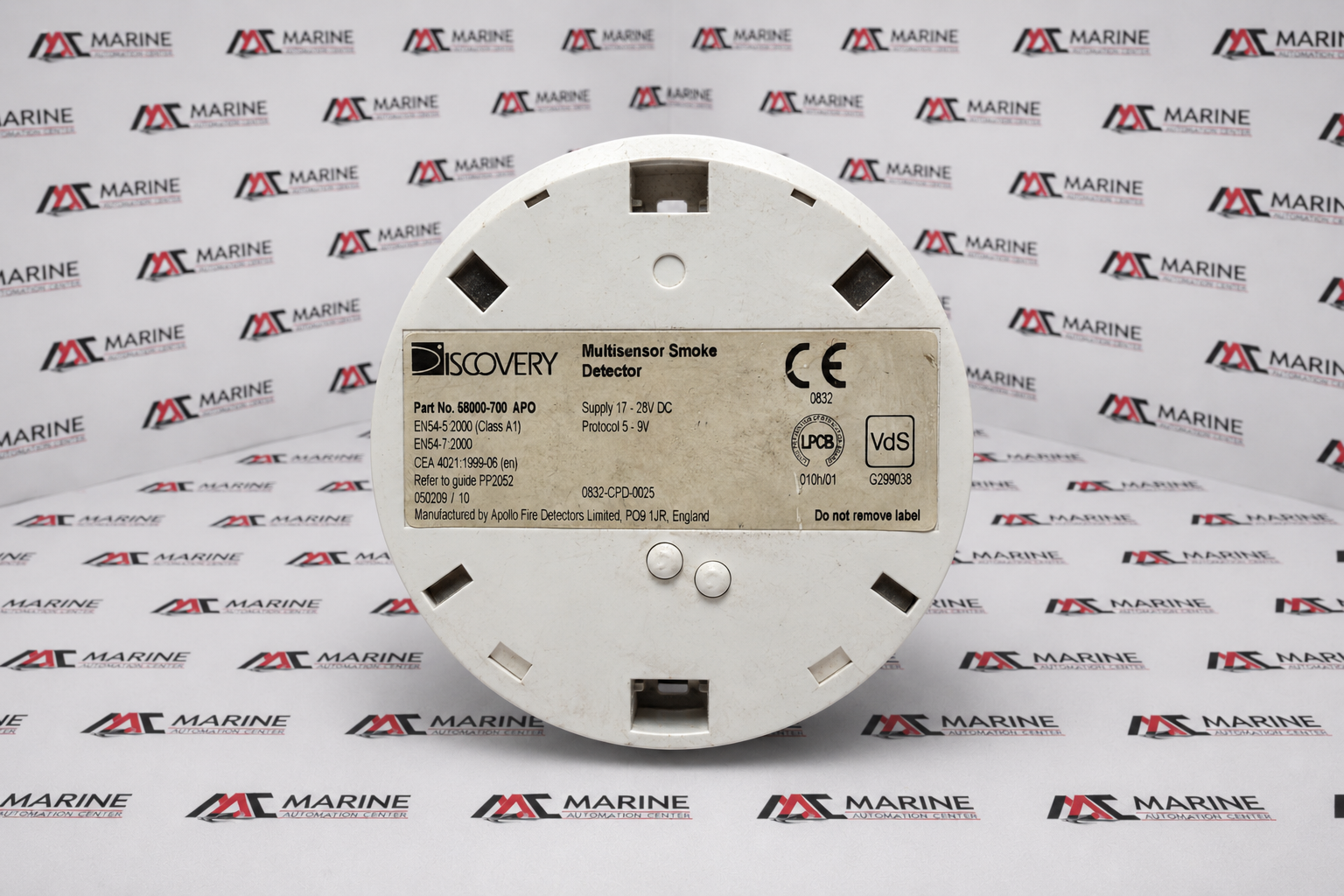

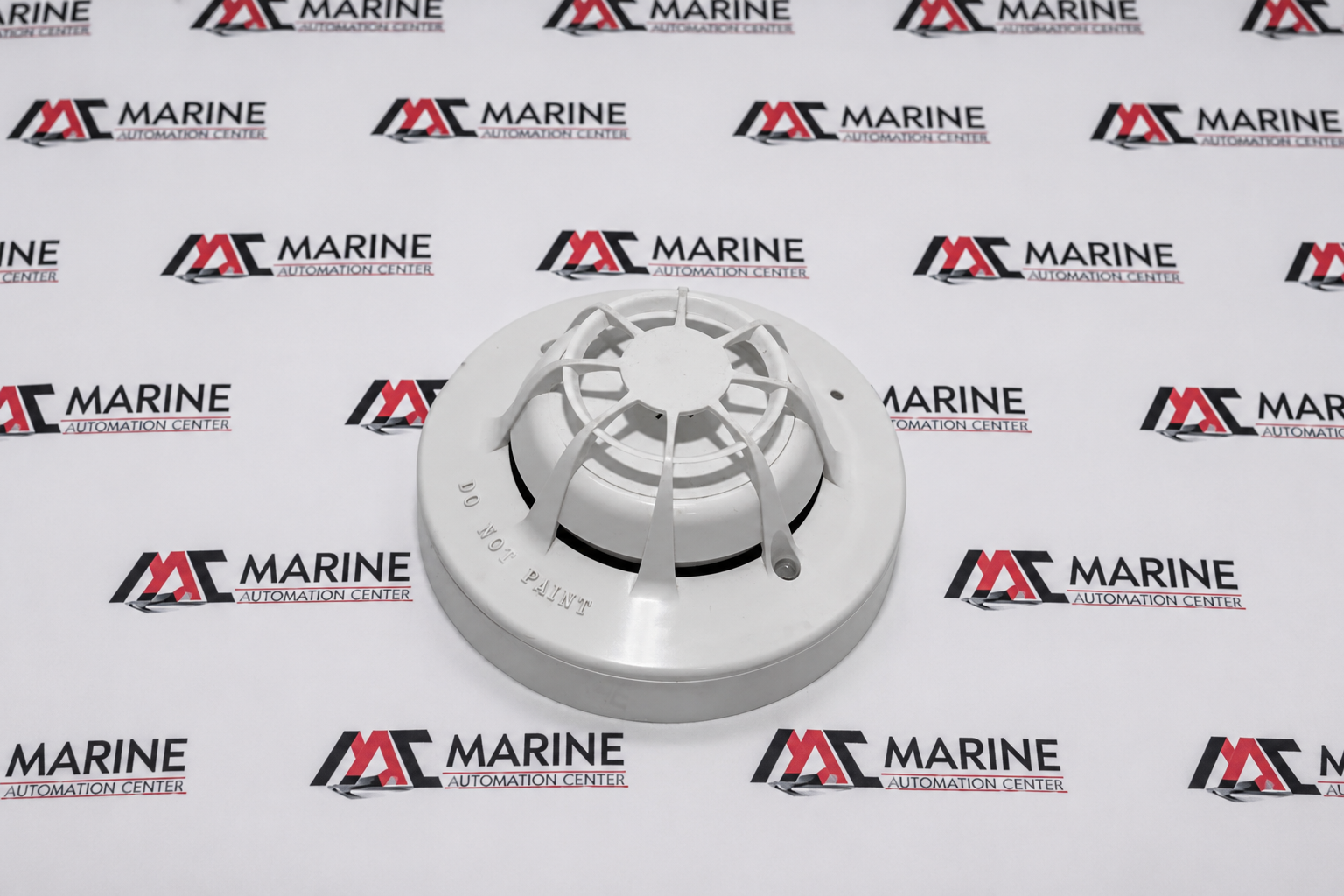

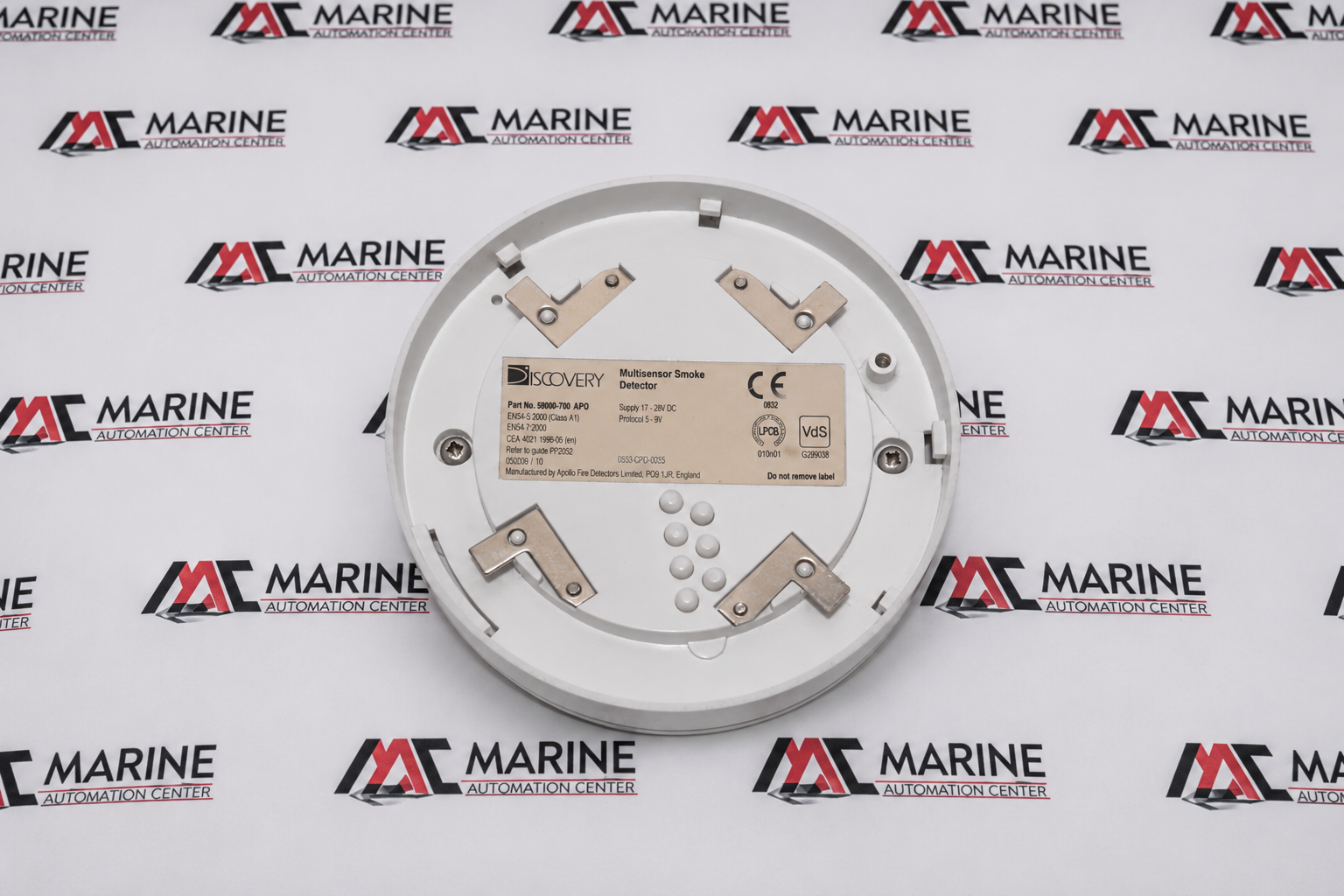

Apollo Discovery 58000-700APO Optical-Heat Multisensor Detector
Apollo Discovery 58000-700APO is an addressable optical-heat multisensor detector from the Discovery Series, designed to provide reliable fire detection by combining optical smoke and heat sensing technologies. It offers enhanced immunity to false alarms, configurable operating modes, and is ideal for a wide range of commercial and industrial fire alarm applications
BRAND
Apollo Fire Detectors (Discovery Series)
TYPE
Addressable Multisensor Smoke & Heat Detector
PART NO.
58000-700 APO
MODEL
Discovery Multisensor Detector
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Apollo Fire Detectors (Discovery Series) |
| TYPE | Addressable Multisensor Smoke & Heat Detector |
| PART NO. | 58000-700 APO |
| MODEL | Discovery Multisensor Detector |
| Voltage Rating | Supply Voltage: 17 V DC to 28 V DC | Protocol Pulse Voltage: 5 V to 9 V peak-to-peak |
| Application | High-reliability indoor fire detection inside multi-zone environments (such as hotel rooms, hospital wards, or offices). It utilizes integrated multi-mode algorithms to maximize false alarm management |
| IEC | Approved and listed under EN 54-5:2000 (Class A1) and EN 54-7:2000 life safety standards. |
| Sensing Mechanism | Employs a dual-sensor array comprising a photoelectric light-scattering chamber for smoke particle verification alongside an integrated thermistor for tracking temperature fluctuations |
| User-Selectable Modes | Supports 5 distinct EN 54-approved operating sensitivity modes programmable via the fire control panel interface to match changing localized ambient hazards |
| System Certifications | Fully accredited by global bodies including the LPCB (Loss Prevention Certification Board - Cert. No. 010h/01) and VdS (Certification No. G299038) |
| Made In | United Kingdom |
| REF NO | 1473 |
