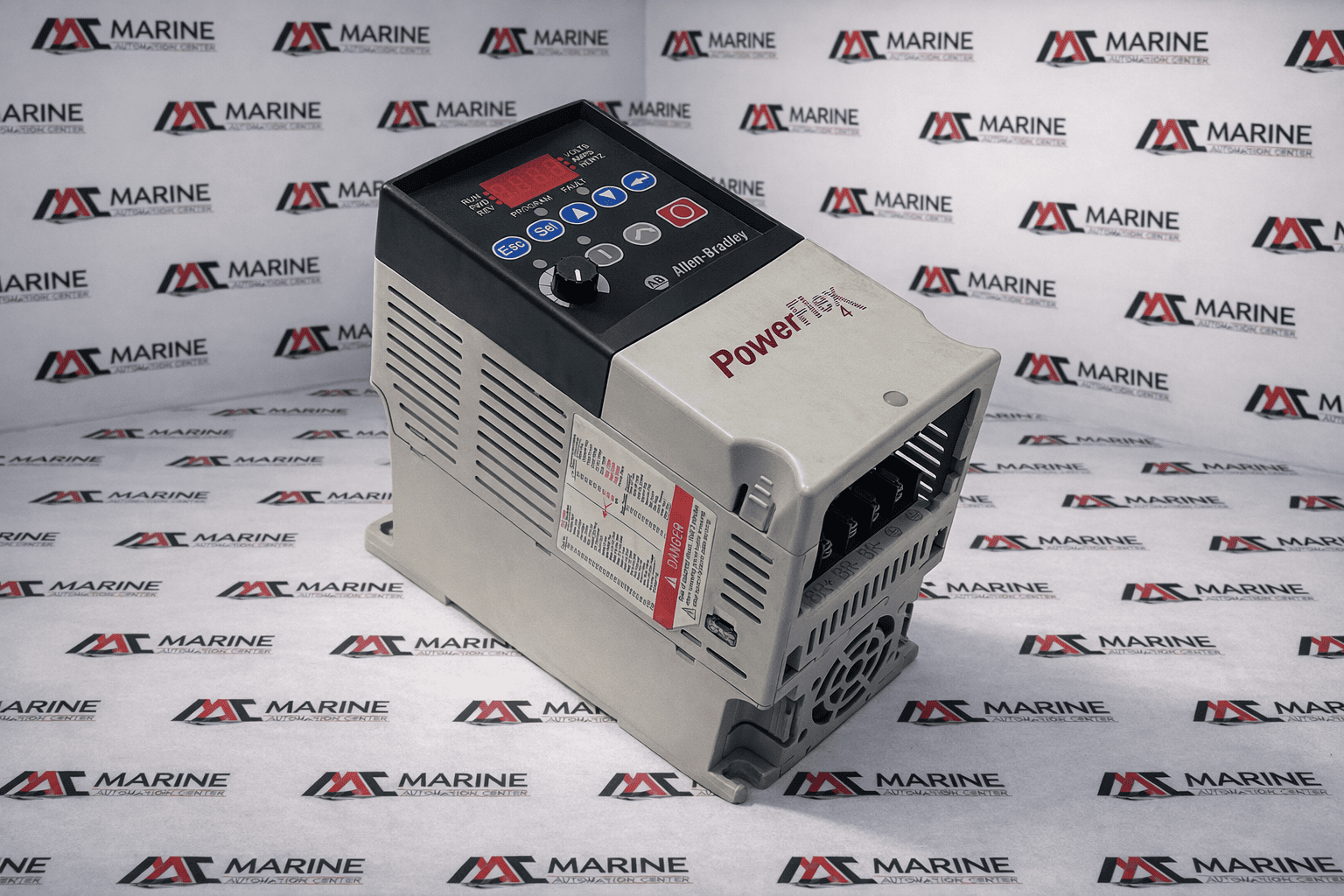

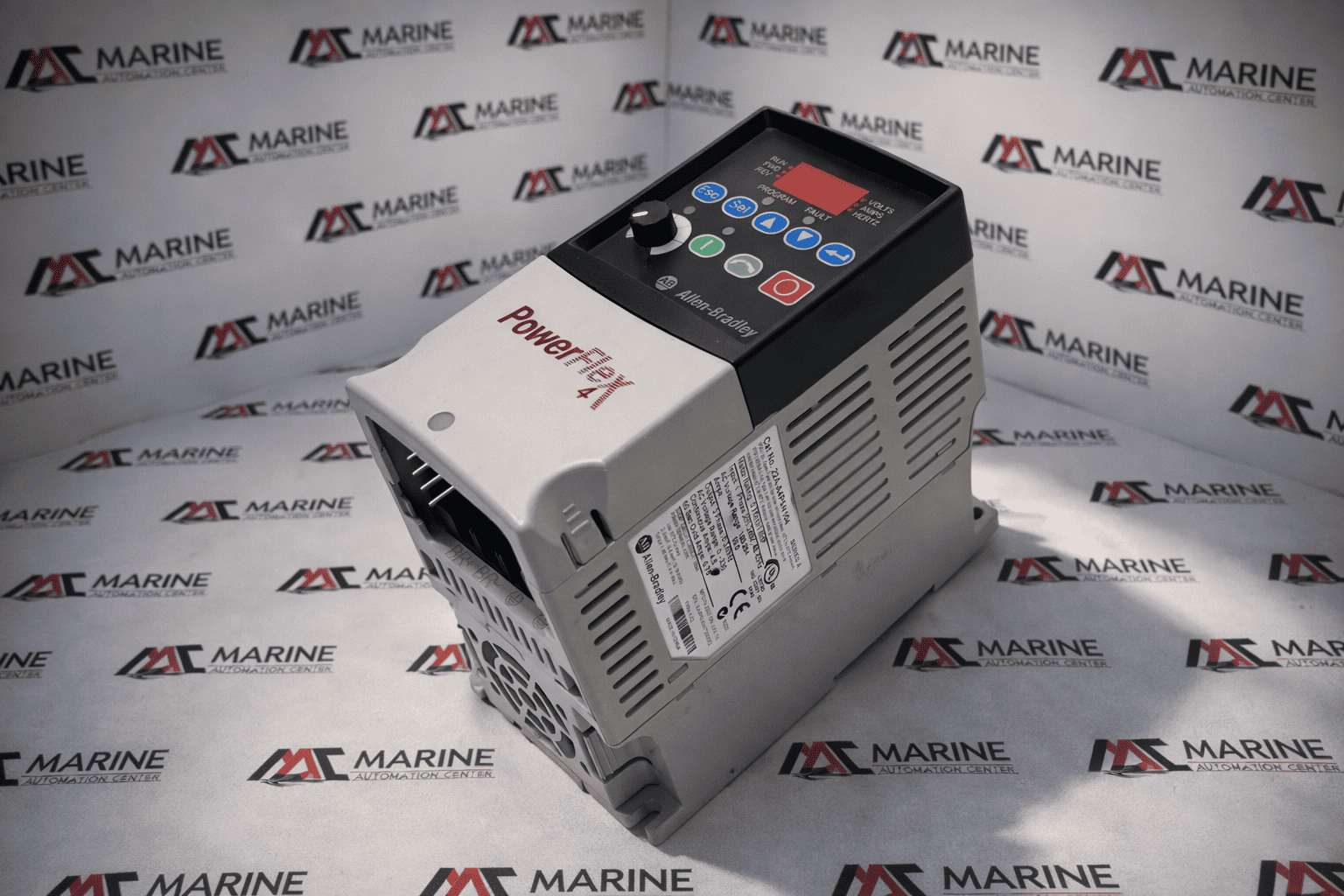

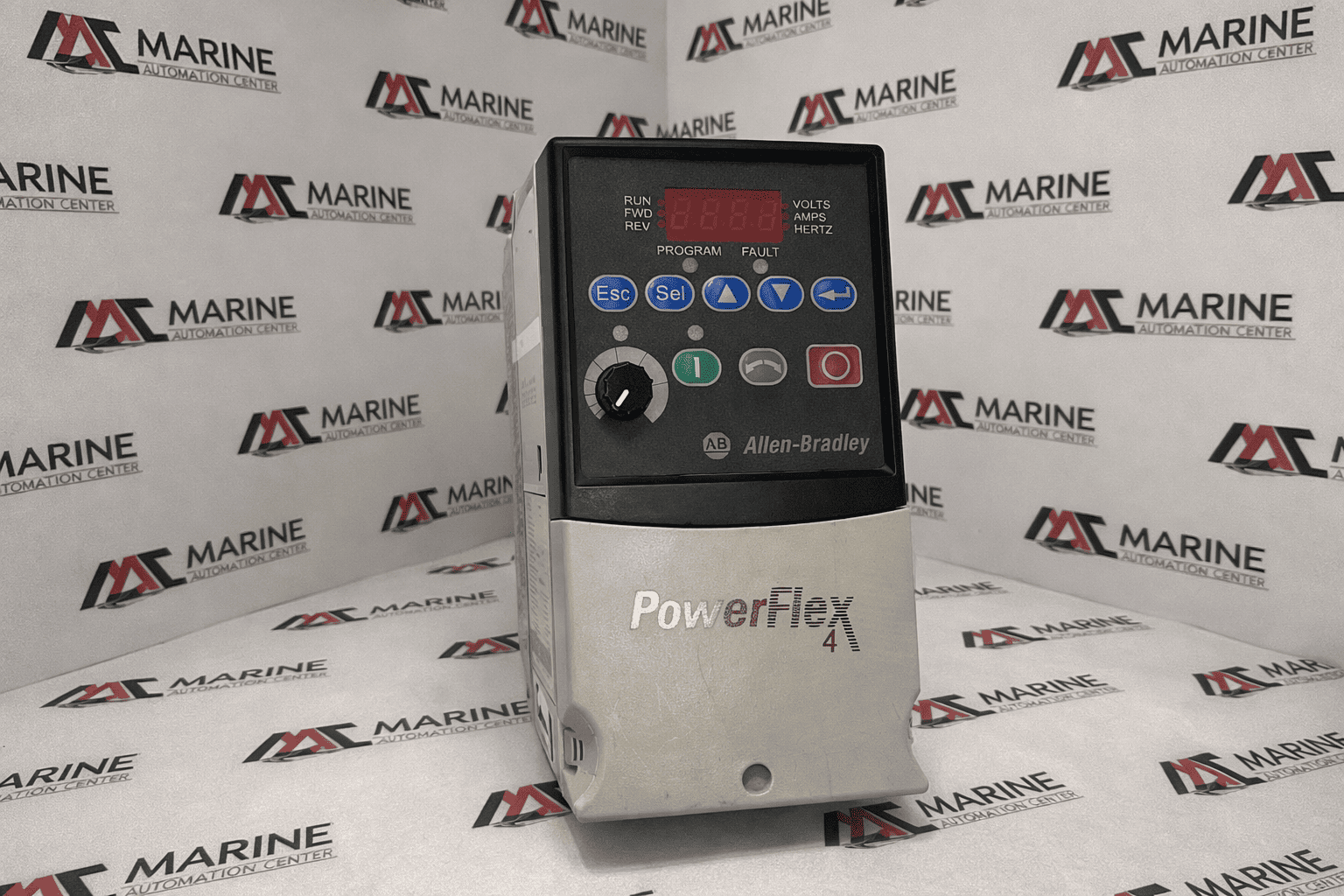

Allen-bradley 22a-a4p5n104 Powerflex 4 AC Drive 1-Phase
Discover the Allen-Bradley 22A-A4P5N104 PowerFlex 4 AC Drive, a 1-phase variable frequency drive designed for precise motor control in industrial applications. Optimize performance and energy efficiency with this reliable AC drive.
BRAND
Allen-bradley
TYPE
Drive 1-Phase
PART NO.
22a-a4p5n104
MODEL
Allen-bradley 22a-a4p5n104 Powerflex 4 AC Drive 1-Phase
Full Technical Specifications ▶

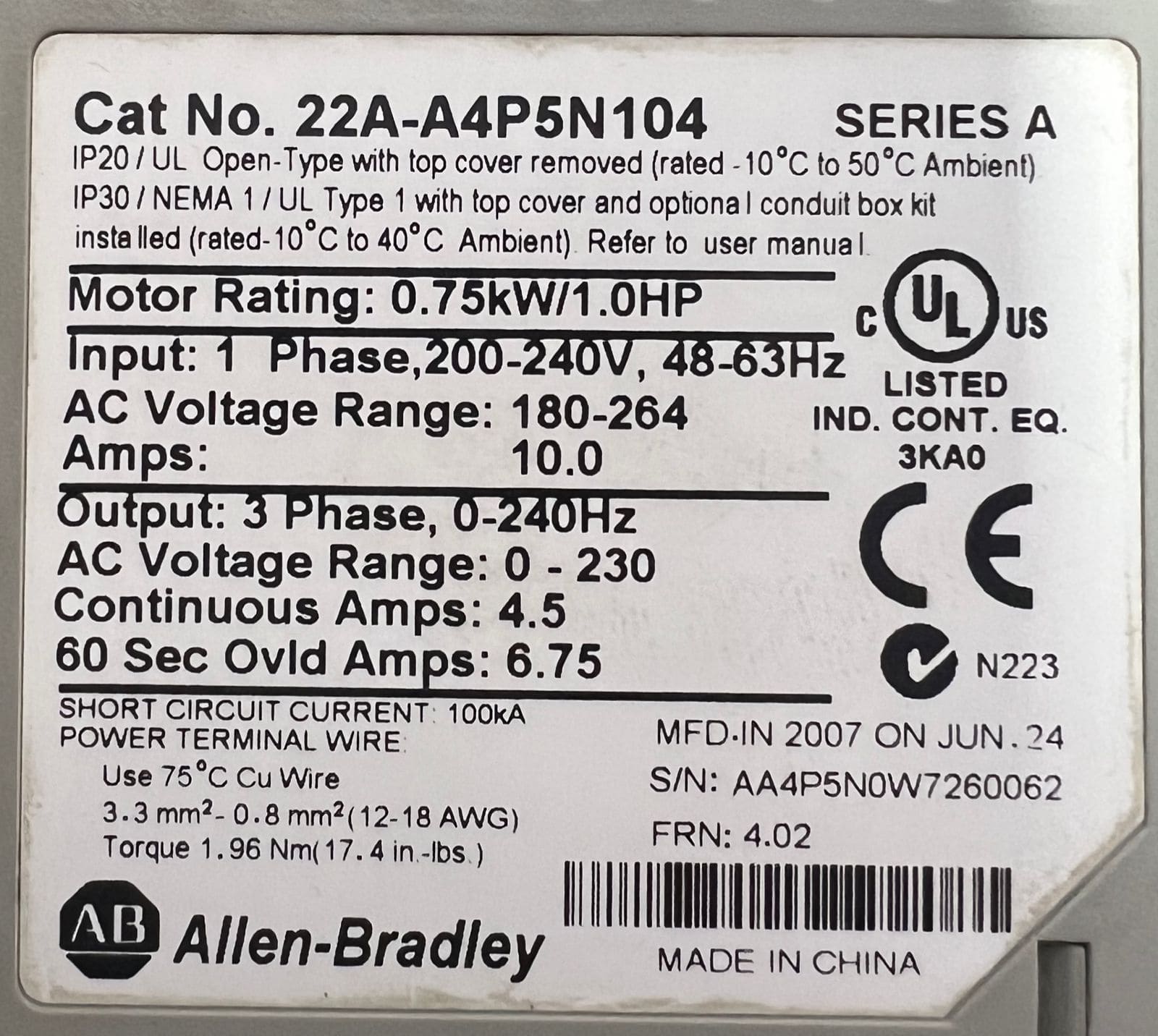

| Parameter | Value / Description |
|---|---|
| BRAND | Allen-bradley |
| TYPE | Drive 1-Phase |
| PART NO. | 22a-a4p5n104 |
| MODEL | Allen-bradley 22a-a4p5n104 Powerflex 4 AC Drive 1-Phase |
| Serial No | Aa4p5n0w7260062 |
| Motor Rating | 0.75kw/1.0hp |
| Input | 1 Phase, 200-240v, 48--63hz |
| Ac Voltage Range | 180-264 |
| Amps | 10.0 |
| Output | 3phase, 0-240hz |
| Ac Voltage Range | 0-230 |
| Continuous Amps | 4.5 |
| 60 Sec Ovld Amps | 6.75 |
| Short Circuit Current | 100ka |
| Power Terminal Wire | Use 75 C Cu Wire |
| : | 3.3mm2-0.8mm2(12-18 Awg) |
| : | Torque 1.96nm (17.4 In.ibs) |
| : | Ip20 |
| : | Ip30 |
| Frn | 4.02 |
| Made In | China |
| Reference No | 594 |
