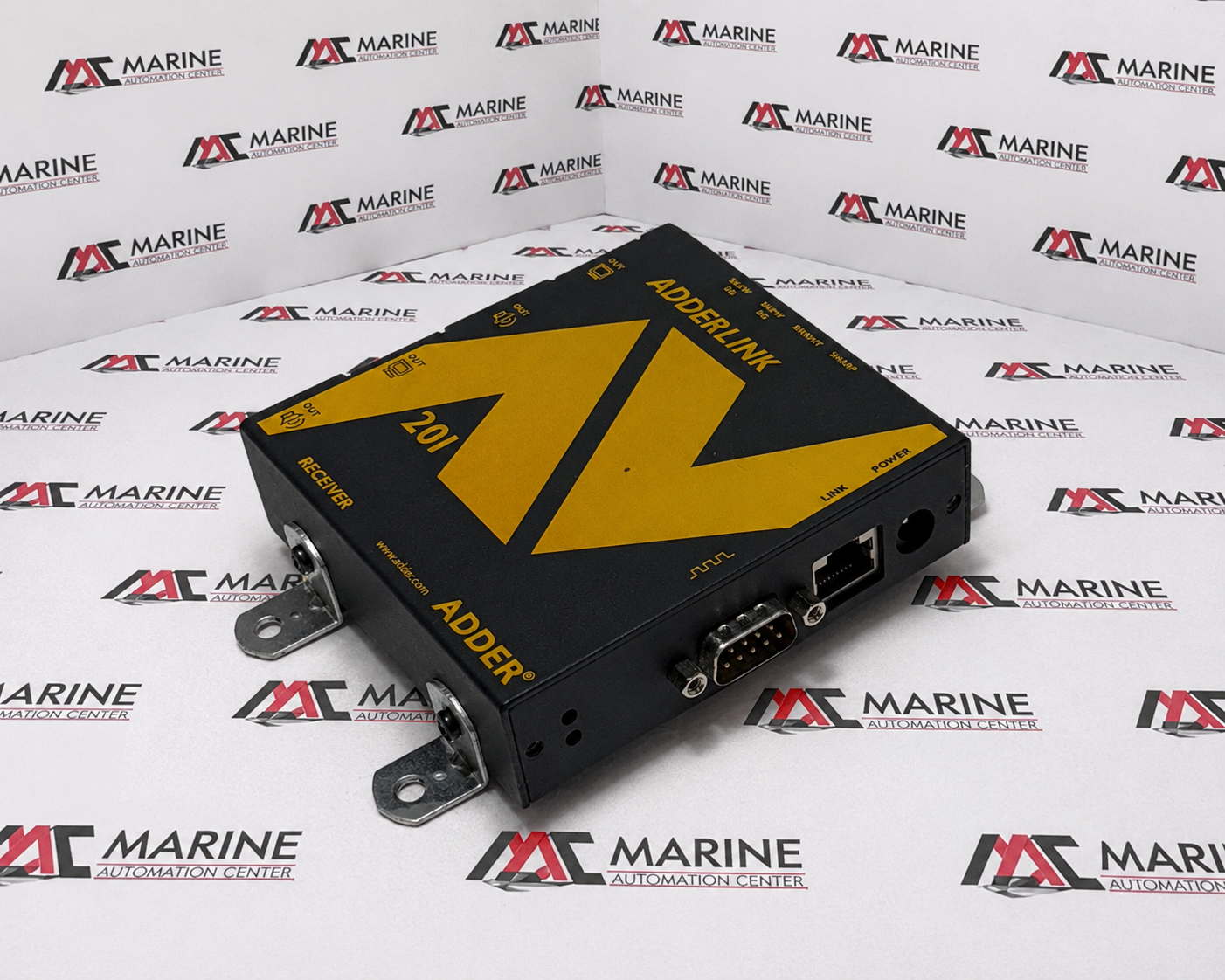

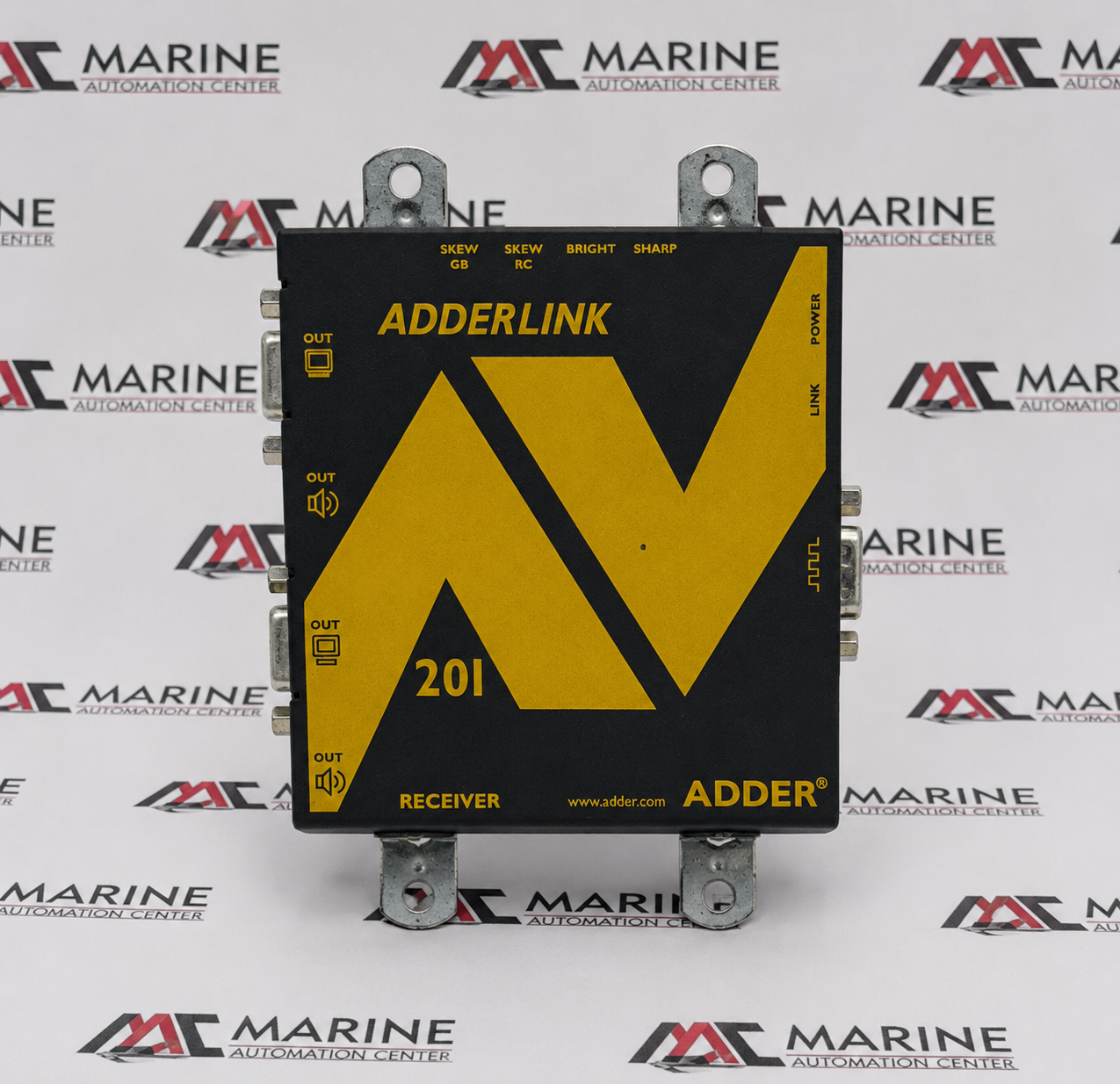

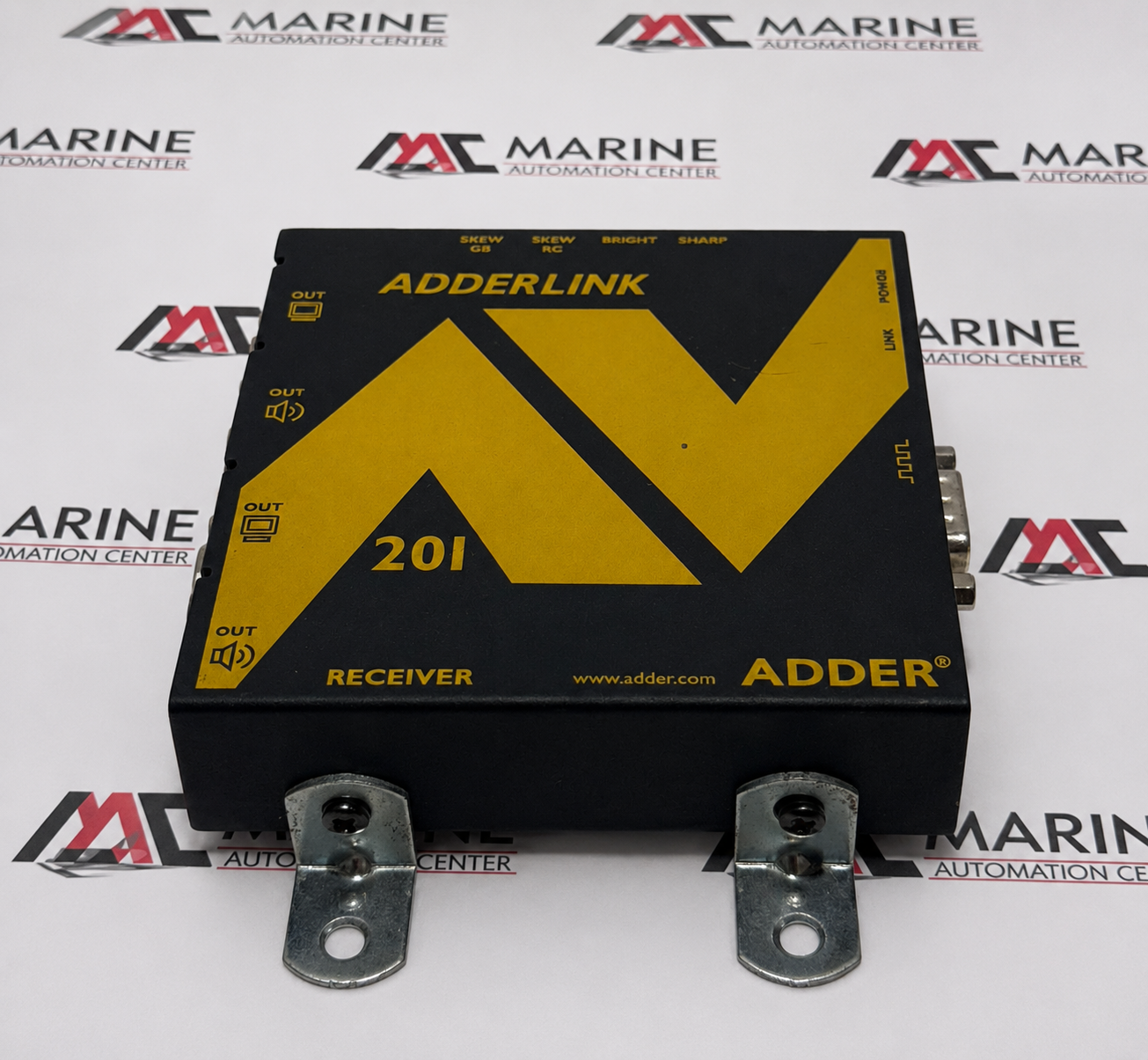

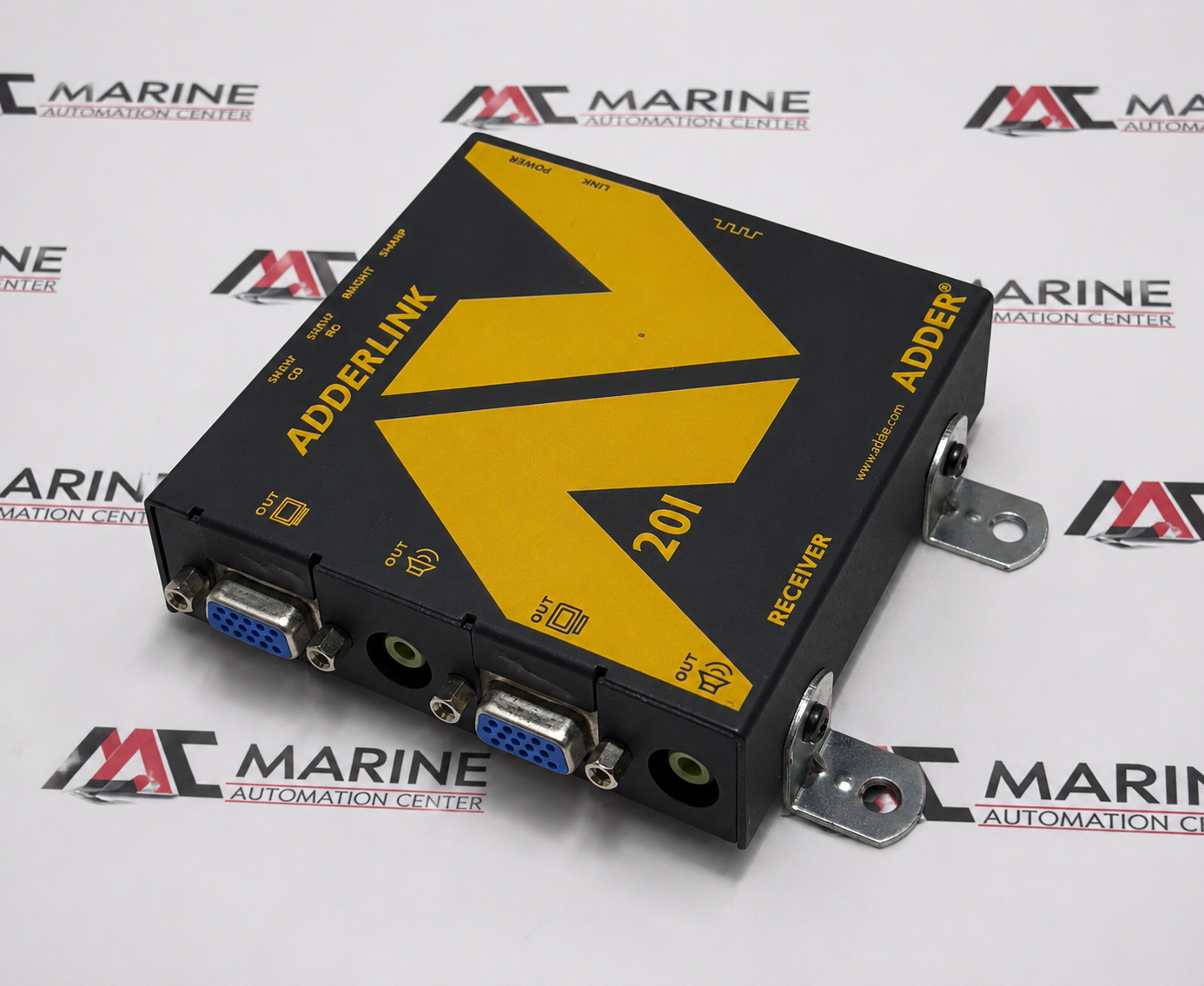

Adder Technology Ltd. KVM Extender Receiver AdderLink AV ALAV201R
The Adder Technology AdderLink AV ALAV201R (Part No. ALAV201R) is a KVM extender receiver / audio-video receiver unit designed to receive and extend high-resolution VGA video and stereo audio signals over a single CAT5/5e/6 cable. It provides reliable long-distance transmission for industrial control rooms, marine automation systems, security monitoring, and remote workstation applications, delivering high-quality video with integrated audio and easy plug-and-play operation.
BRAND
Adder Technology Ltd.
TYPE
KVM Extender Receiver
PART NO.
ALAV201R
MODEL
AdderLink AV ALAV201R
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Adder Technology Ltd. |
| TYPE | KVM Extender Receiver |
| PART NO. | ALAV201R |
| MODEL | AdderLink AV ALAV201R |
| MANUFACTURER | Adder Technology Ltd. |
| Product Description | Remote receiver unit for extending VGA video and stereo audio over CAT5/5e/6 cable in KVM and AV distribution systems |
| Device Type | Receiver Unit |
| Power Supply | 5.3 V DC, 1 A |
| Power Connector | DC Barrel Jack |
| Transmission Medium | CAT5 / CAT5e / CAT6 Twisted Pair Cable |
| Maximum Extension Distance | Up to 300 m (depending on cable type, resolution and installation). |
| Video Interface | Dual VGA (HD-15 Female) Output |
| Audio Interface | Dual 3.5 mm Stereo Audio Output |
| Network Interface | RJ45 Link Port |
| Operating Function | Receives and reconstructs remote VGA video and stereo audio signals transmitted over a single CAT5/5e cable for remote workstation or display applications. |
| Applications | Industrial automation, control rooms, marine automation systems, broadcast facilities, security monitoring, factory automation, remote workstation extension. |
| Made In | United Kingdom |
| Ref no. | 1498 |
