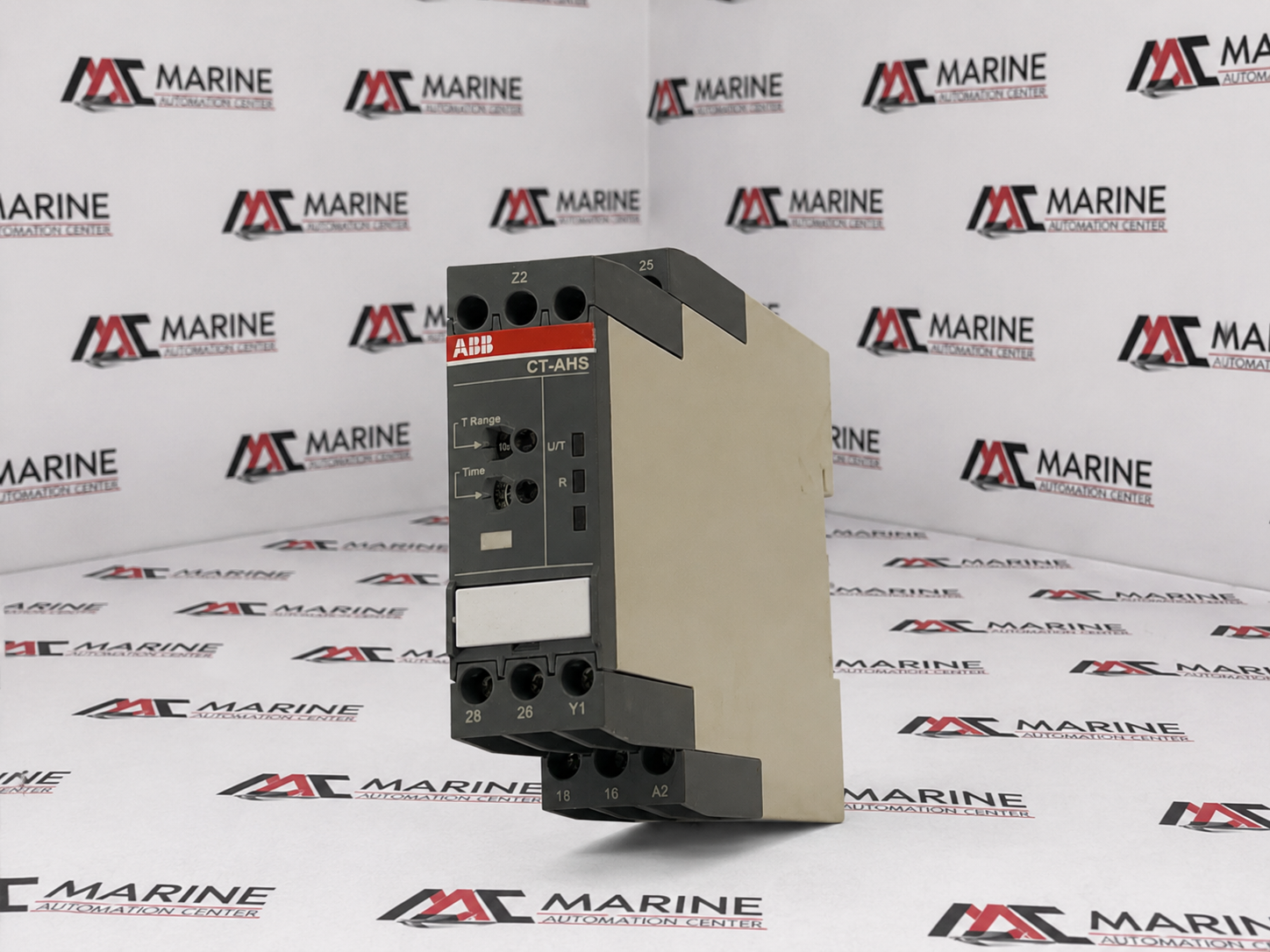

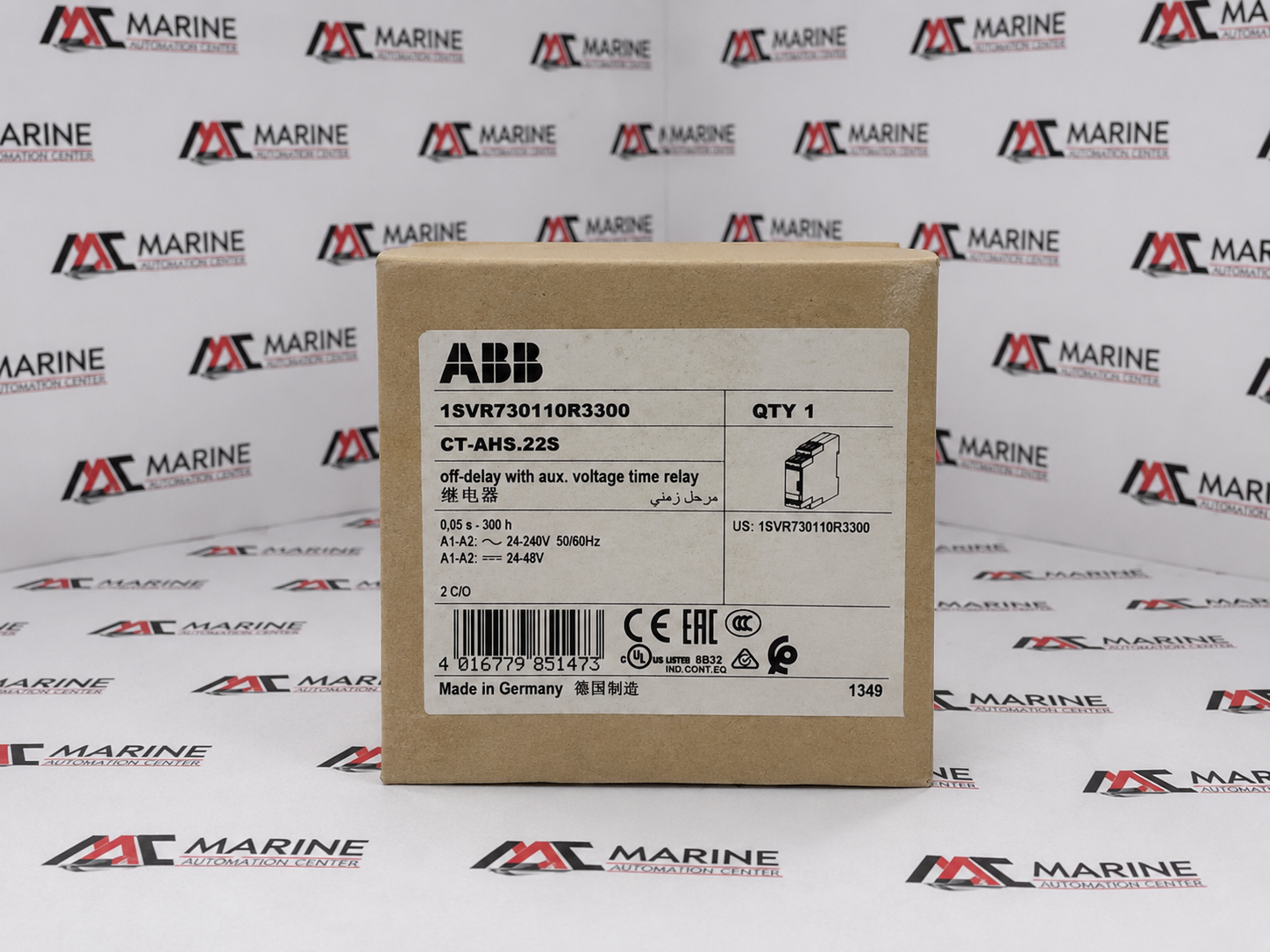

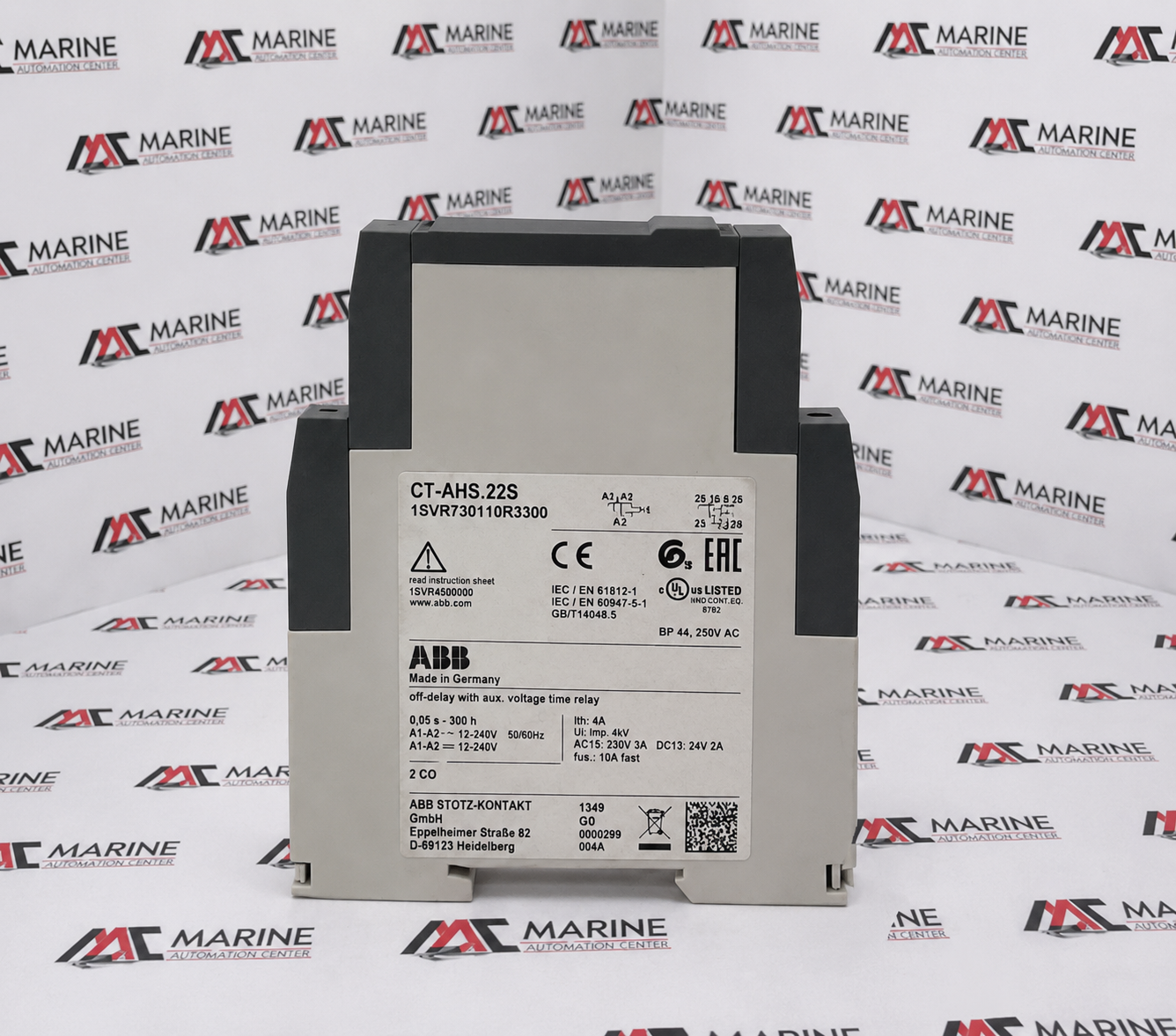

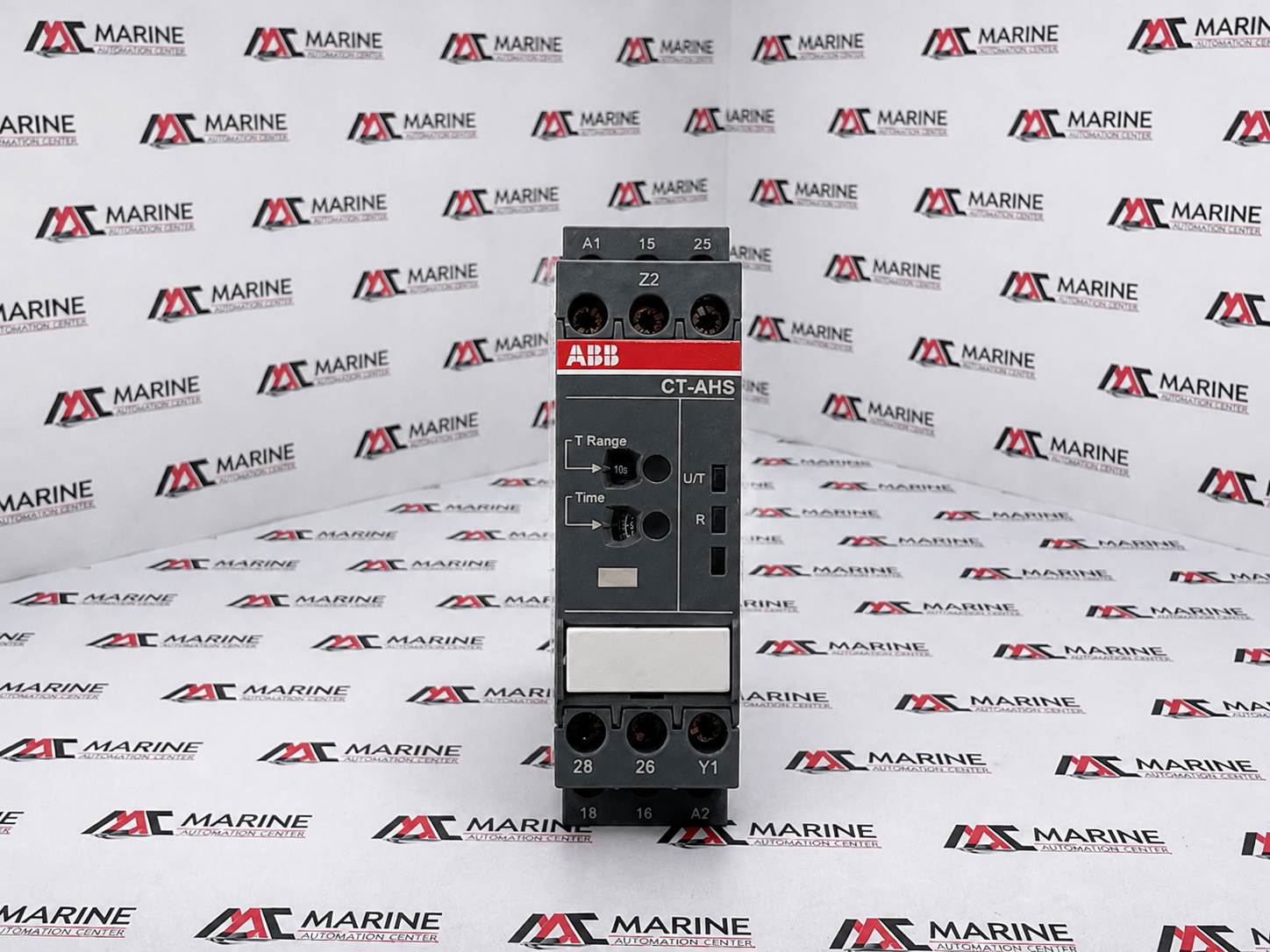

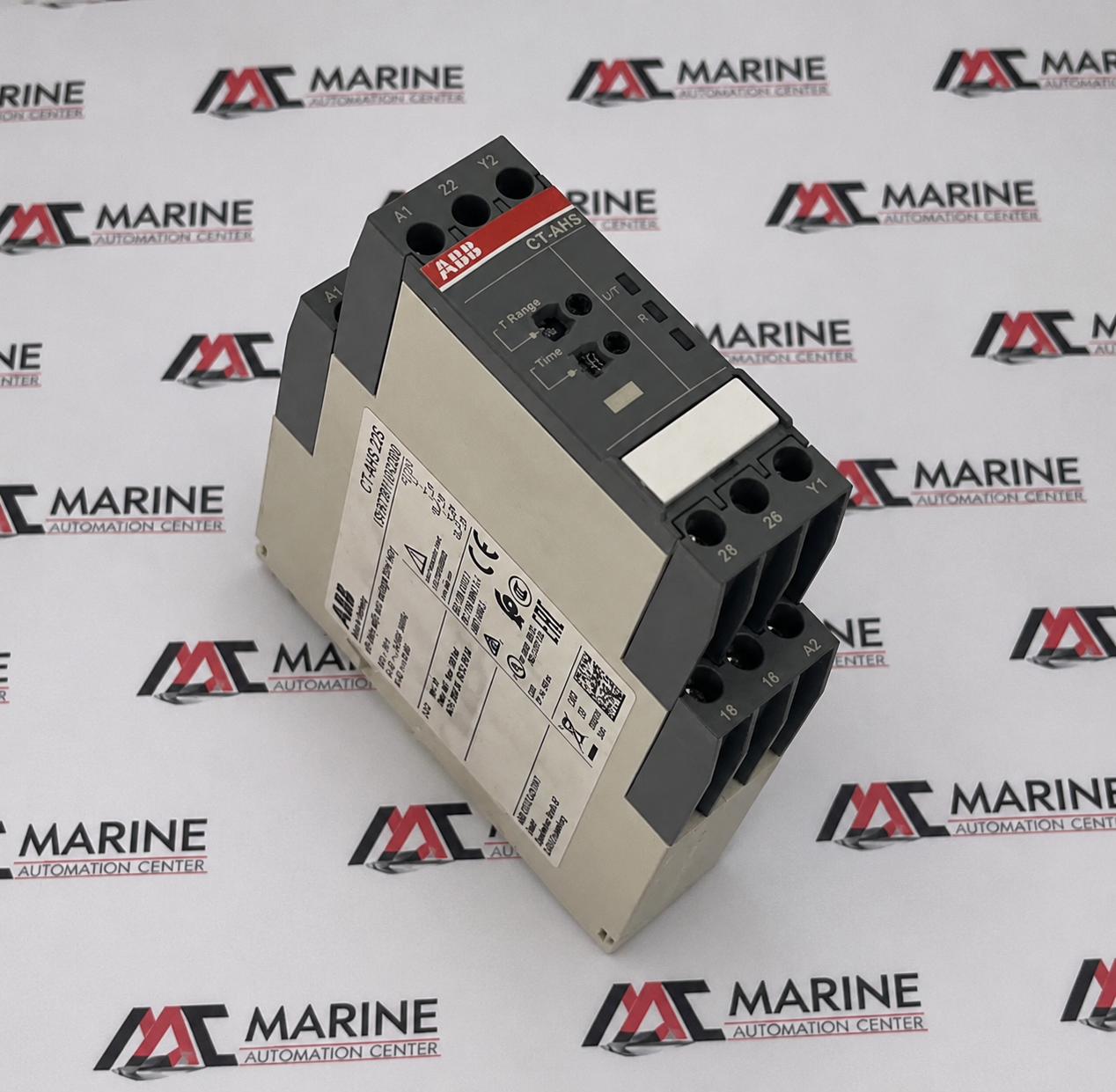

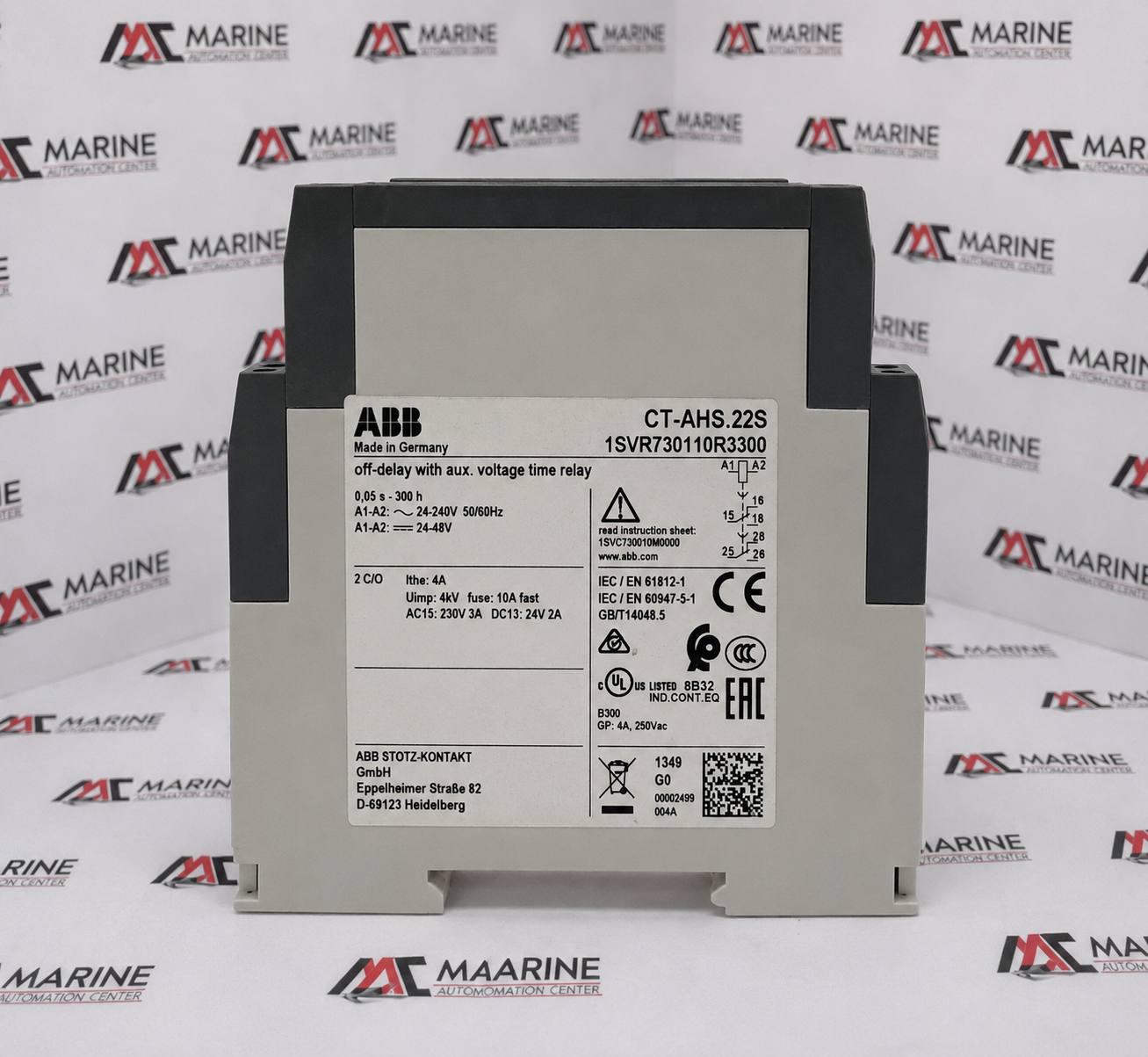

ABB Voltage Time Relay
ABB CT-AHS.22S (1SVR730110R3300) Voltage Time Relay is a single-function electronic time relay designed to provide precise ON-delay timing control in industrial automation and electrical control systems. It features adjustable time settings, reliable switching performance, and DIN-rail mounting, making it suitable for motor control, control panels, machinery, process automation, and marine applications.
BRAND
ABB
TYPE
Voltage Time Relay
PART NO.
1SVR730110R3300
MODEL
CT-AHS.22S
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | ABB |
| TYPE | Voltage Time Relay |
| PART NO. | 1SVR730110R3300 |
| MODEL | CT-AHS.22S |
| SERIES | CT-S Time Relay Series |
| TIME RANGE | 0.05 s – 300 h |
| CONTROL SUPPLY VOLTAGE (AC) | 24–240 V AC, 50/60 Hz |
| OUTPUT CONTACT RATING | 4 A at 250 VAC |
| AC CONTACT RATING | AC-15: 230 V / 3 A |
| TERMINAL TYPE | Screw Connection Terminals |
| MOUNTING TYPE | DIN Rail Mount |
| APPLICATION | Industrial automation, motor control circuits, machine control panels, process control systems, switchgear, delayed shutdown and control applications. |
| MADE IN | Germany |
| REF NO | 423 |
