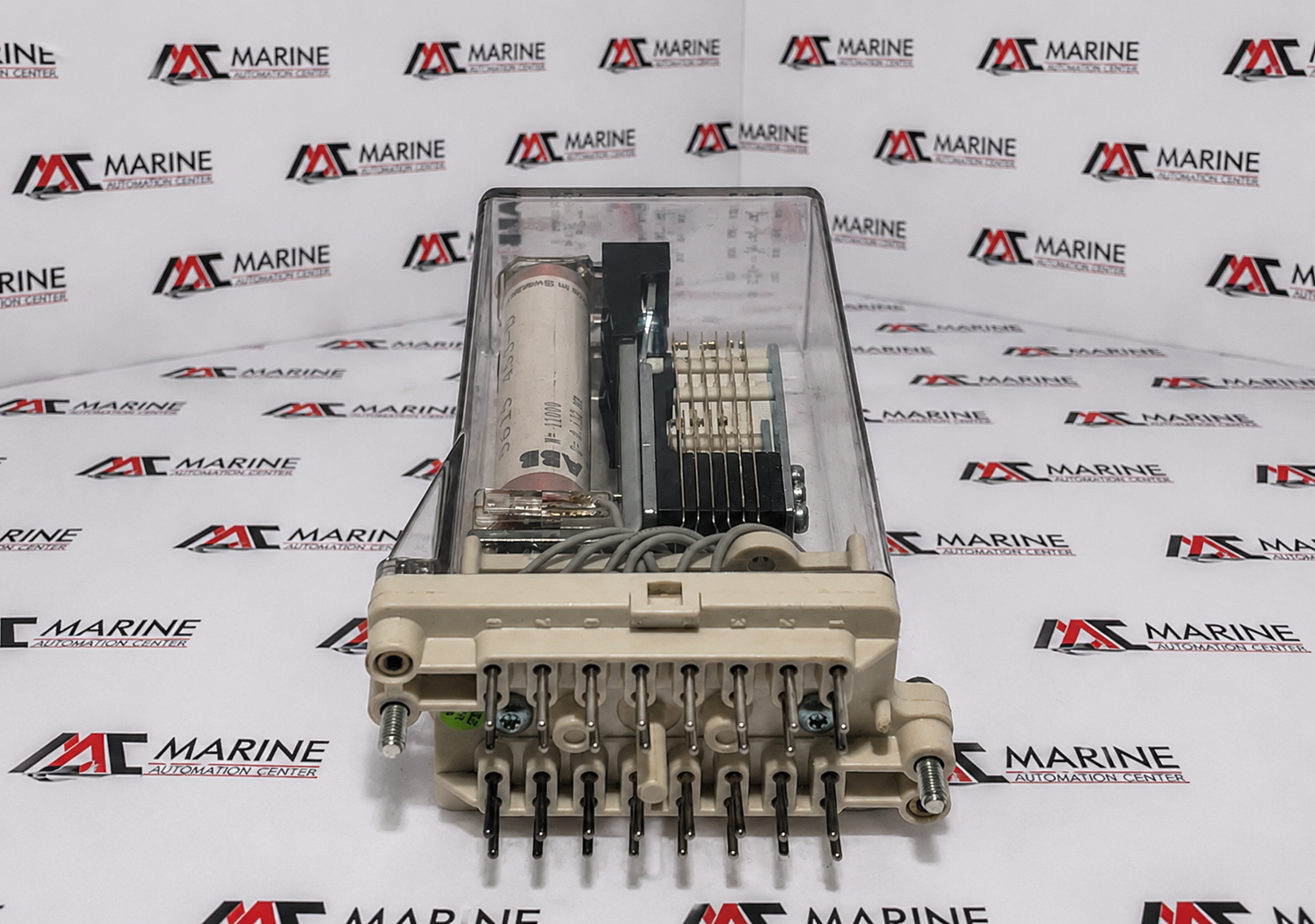

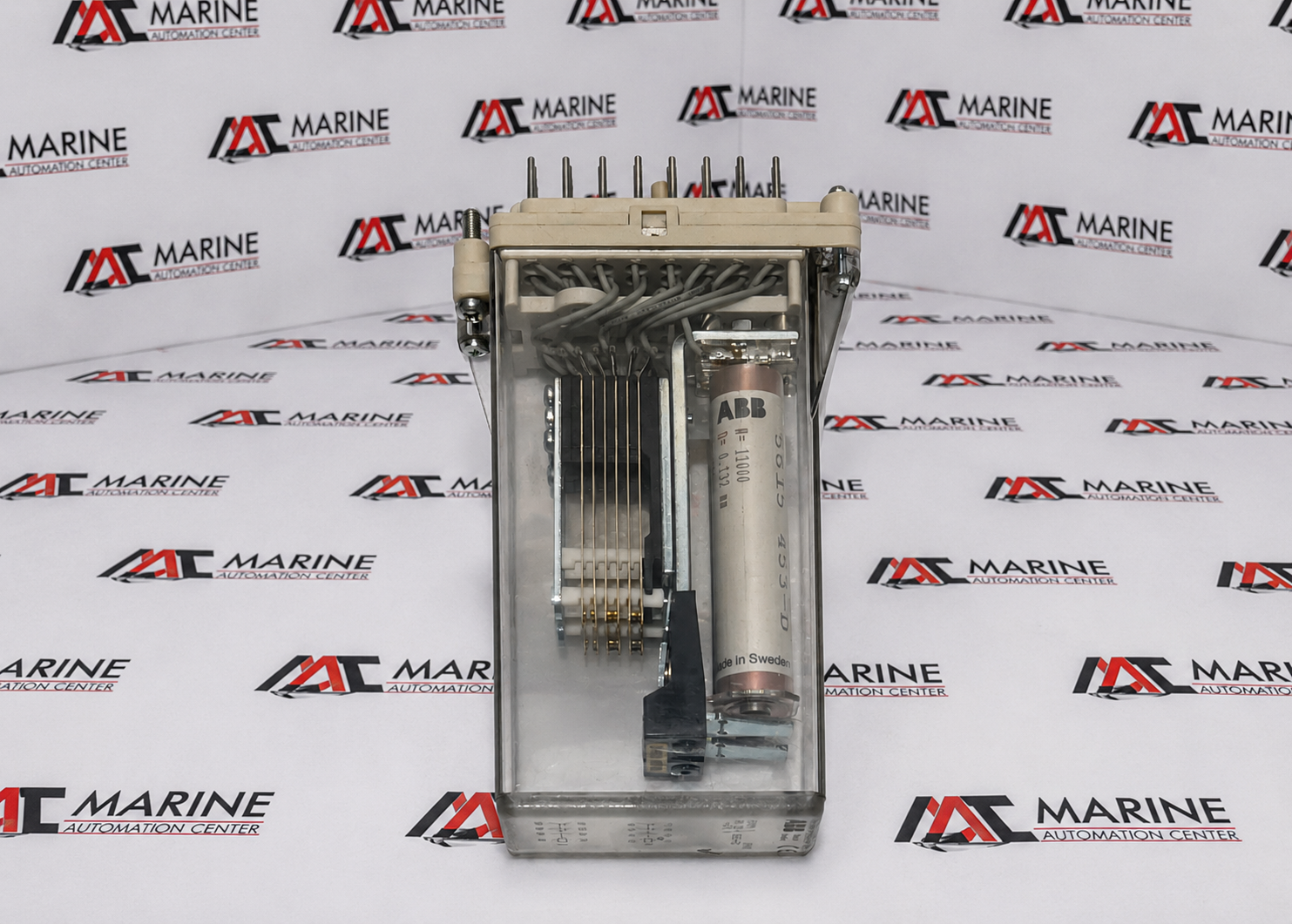

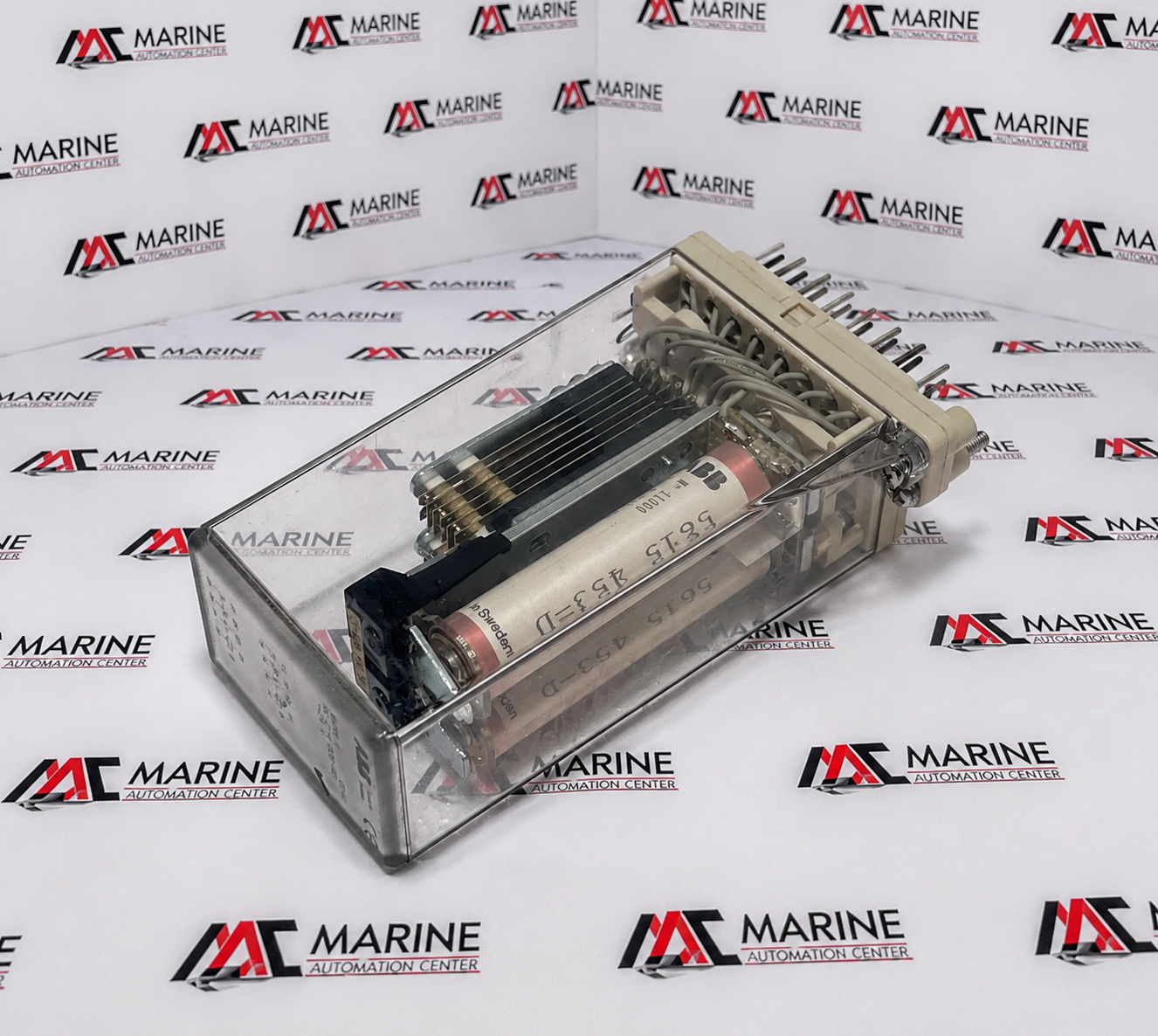

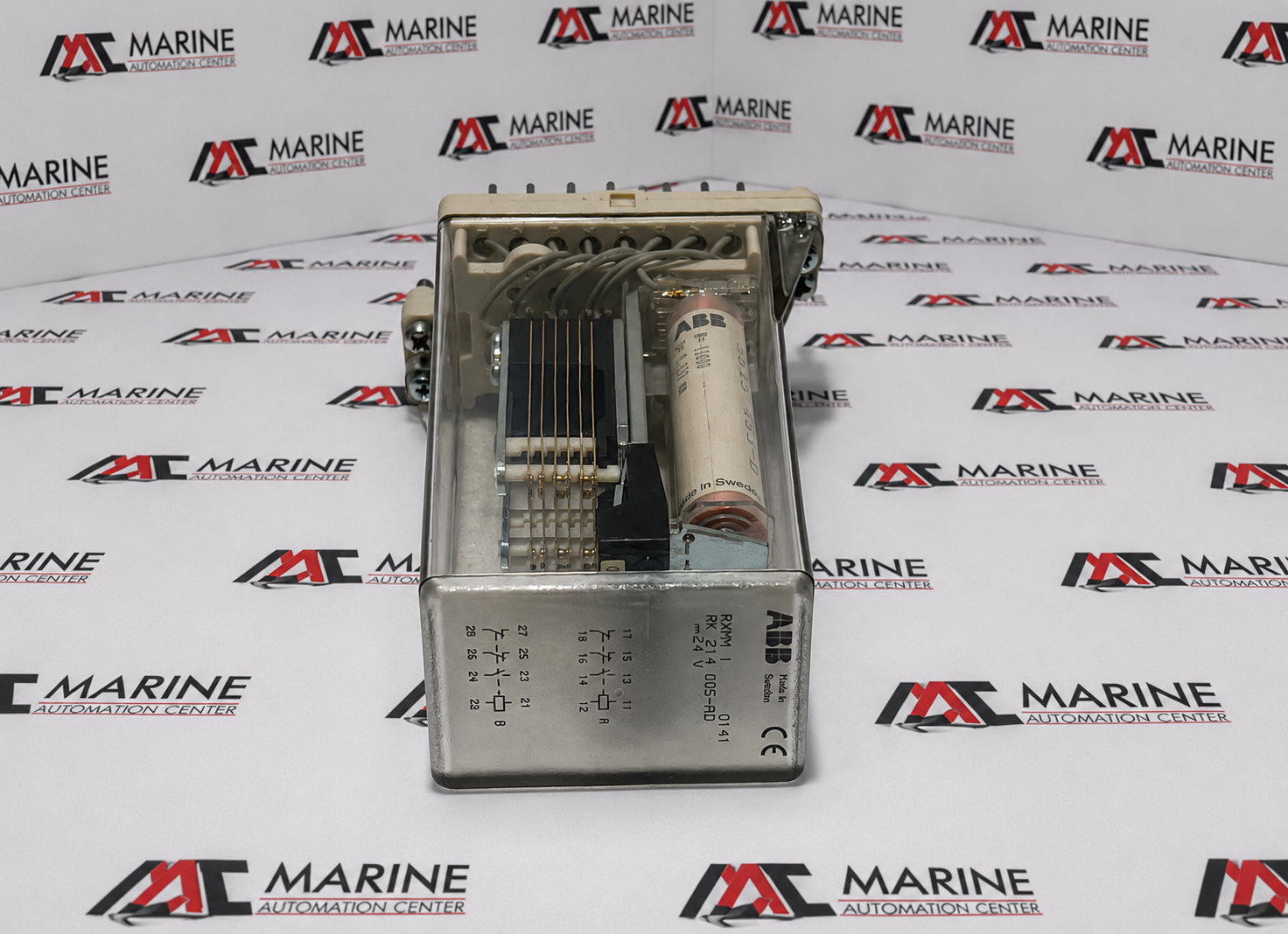

ABB RXMM 1 Auxiliary Relay
ABB RXMM 1 Auxiliary Relay (RK 214 005-AD) is an electromechanical auxiliary relay designed for protection, control, and automation applications. It provides reliable switching for trip, alarm, interlocking, and signaling circuits, featuring a robust plug-in design for easy installation, maintenance, and dependable operation in industrial and power system environments.
BRAND
ABB
TYPE
Auxiliary Relay
PART NO.
RK 214 005-AD
MODEL
RXMM 1
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | ABB |
| TYPE | Auxiliary Relay |
| PART NO. | RK 214 005-AD |
| MODEL | RXMM 1 |
| Coil Voltage | 24 V DC |
| Voltage Rating | 24 V DC |
| Contact Configuration | 2 Independent Relay Elements, Each with 3 Contacts (Twin Contact Design) |
| Relay Designation | RXMM 1 D141 |
| Application | Protection and control circuits, interposing relay, contact multiplication, signalling, tripping and industrial automation systems |
| Mounting Type | Plug-in / COMBIFLEX Modular Mounting |
| Contact Type | Twin Contacts for High Reliability |
| Operating Principle | Electromagnetic Auxiliary Relay |
| Standards | CE Marked |

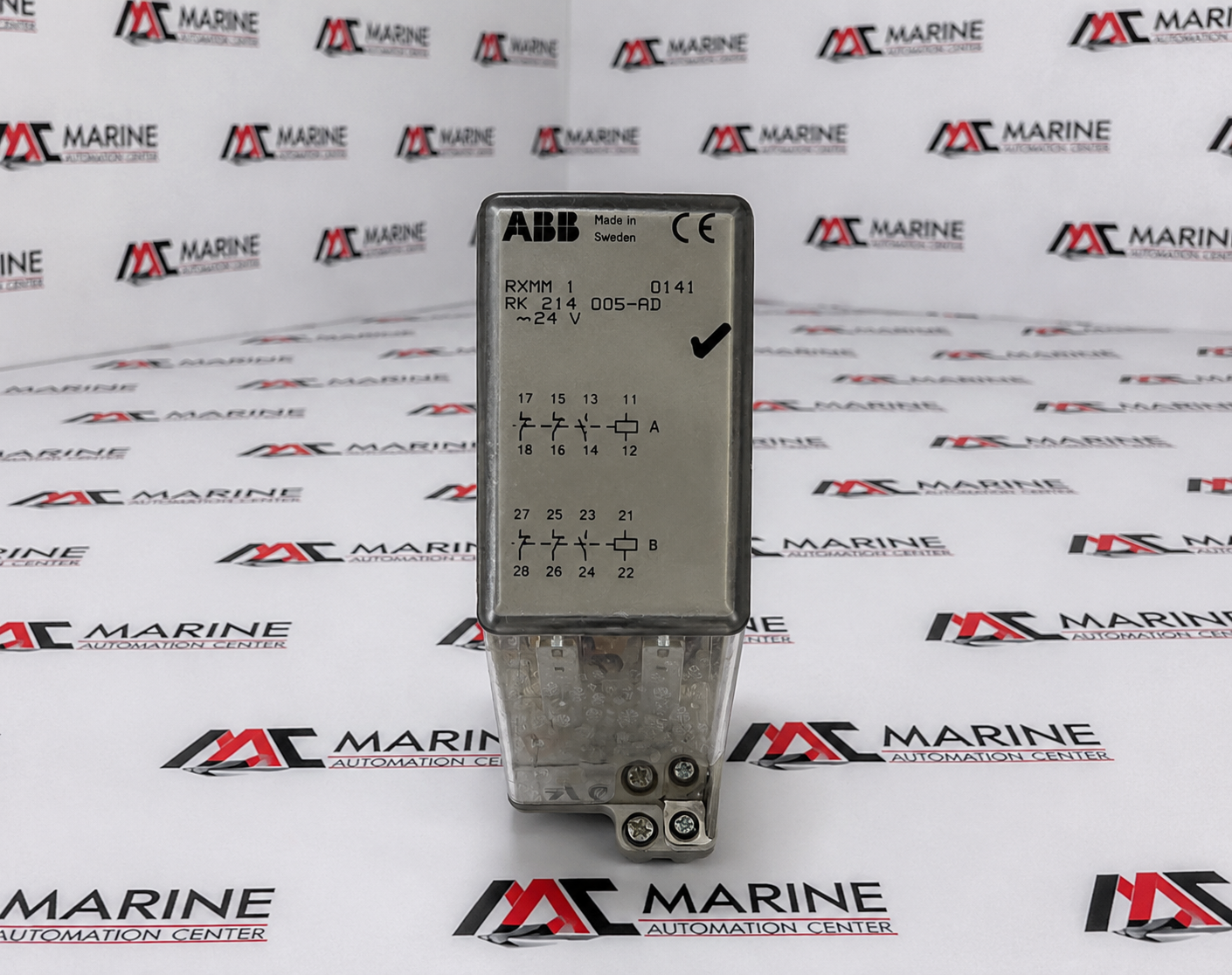

| Marking on Label | D141 |
| Additional Coil Marking | N = 11000, D = 0.132 mm, R = 460 Ω |
| Terminal Identification | A Coil: 11-12, Contacts: 13-14, 15-16, 17-18; B Coil: 21-22, Contacts: 23-24, 25-26, 27-28 |
| Application Areas | Power system protection, switchgear panels, substation automation, marine automation and industrial control systems |
| Made In | Sweden |
| REF NO | 1259 |
