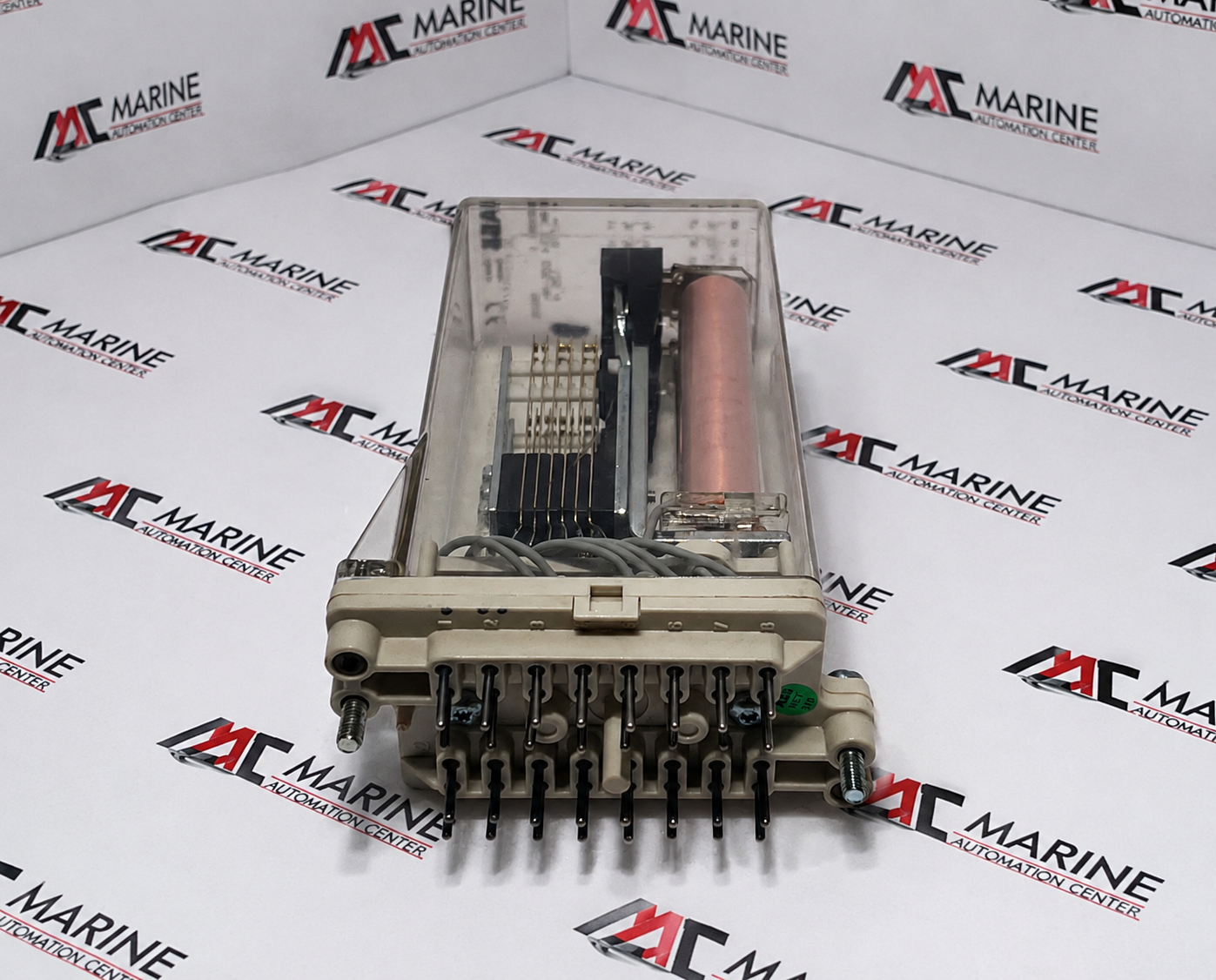

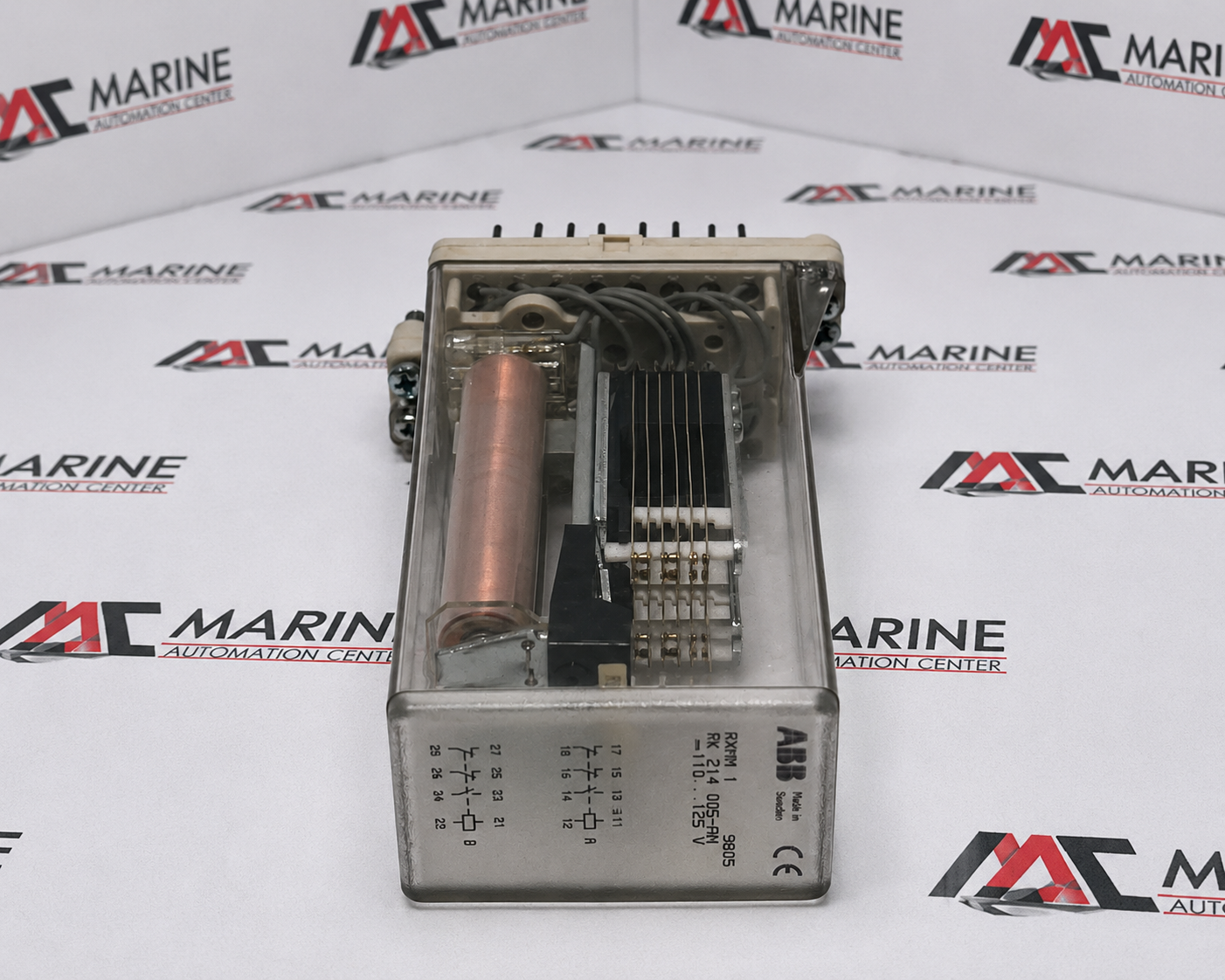

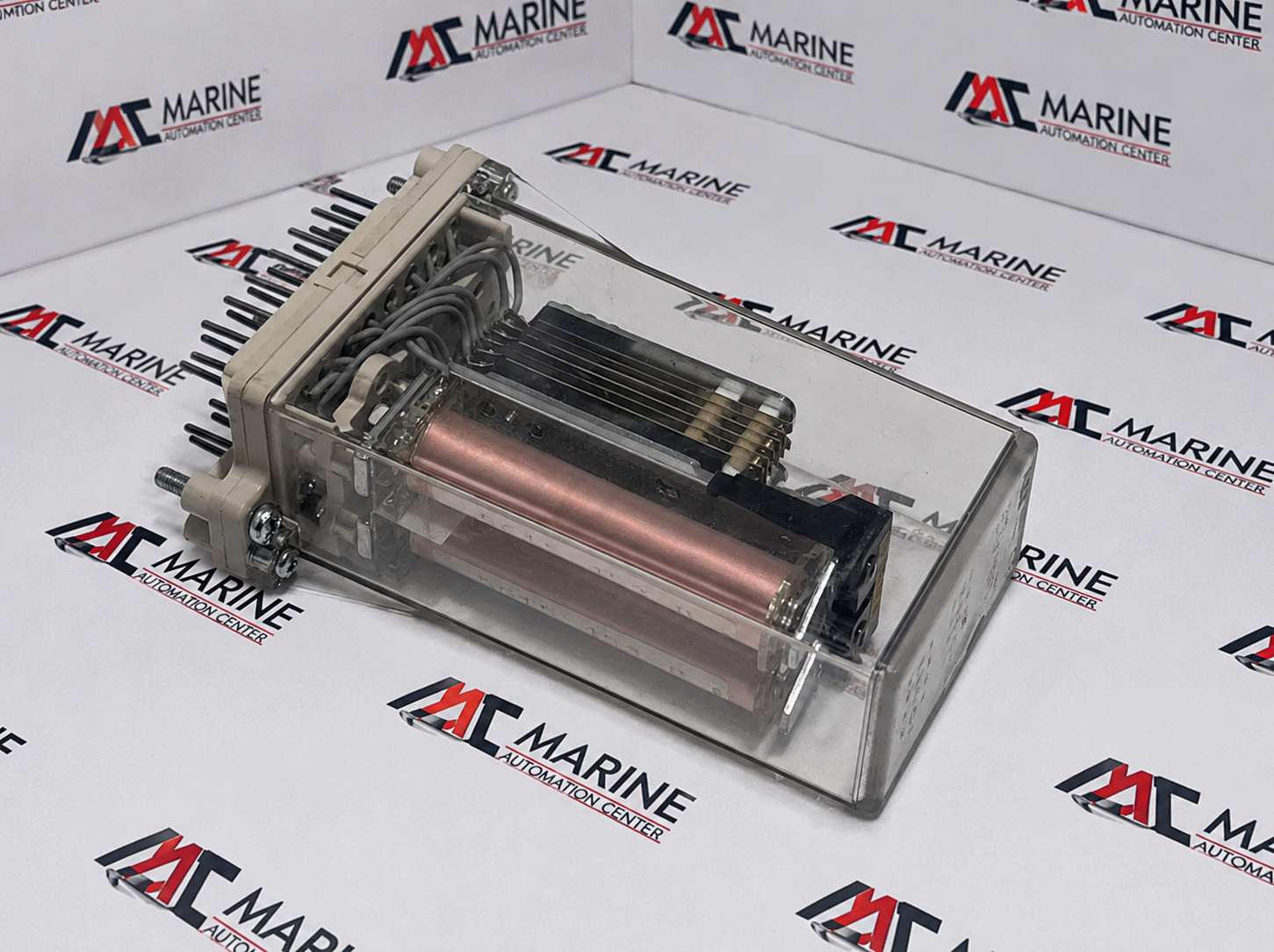

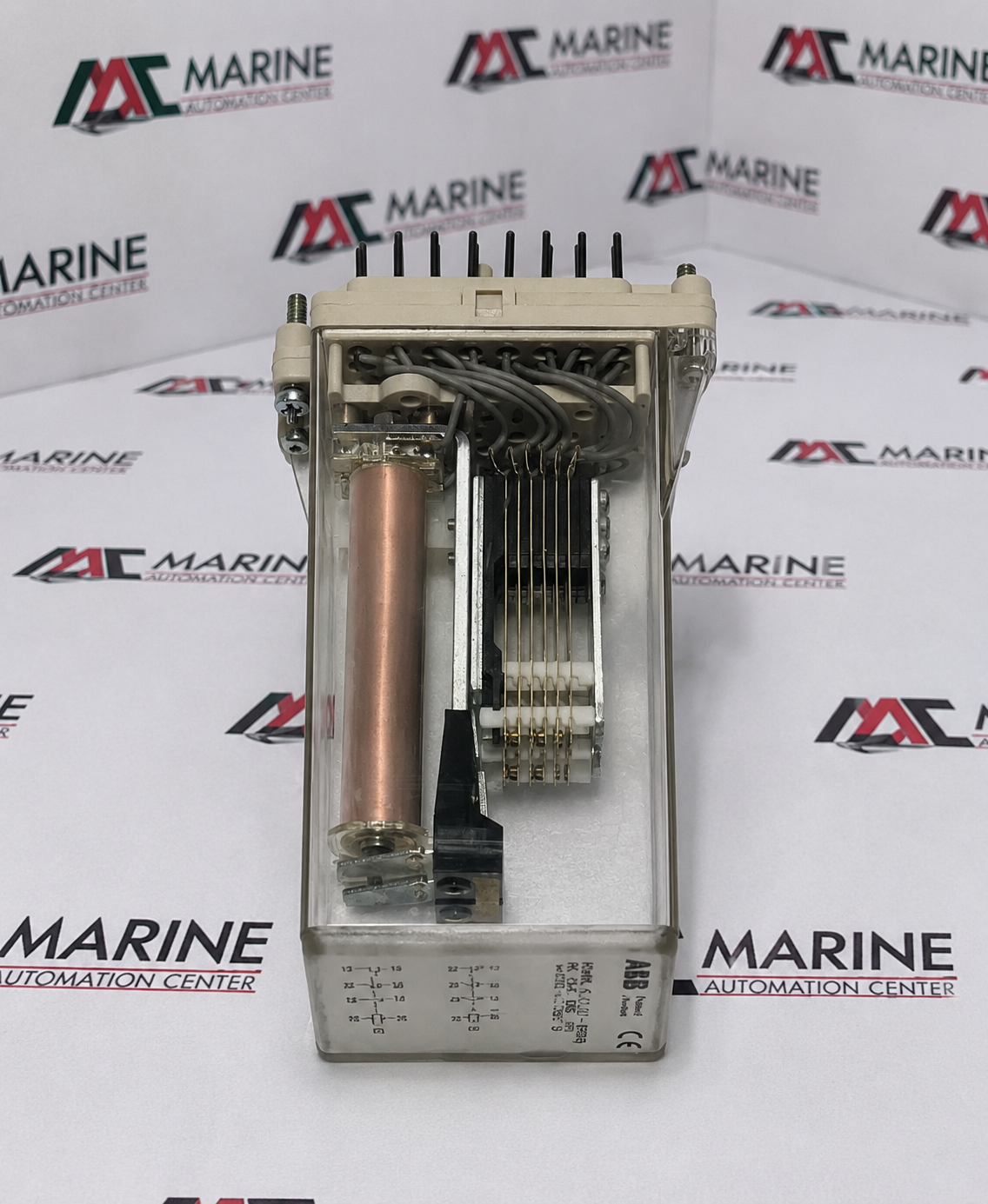

ABB RXMM 1 Auxiliary Relay
ABB RXMM 1 Auxiliary Relay (RK 214 005-AN) is a dependable electromechanical auxiliary relay designed for protection, control, and automation systems. It provides reliable switching for interlocking, trip, alarm, and signaling circuits, featuring a plug-in design for easy installation and maintenance, making it suitable for industrial and power distribution applications.
BRAND
ABB
TYPE
Auxiliary Relay
PART NO.
RK 214 005-AN
MODEL
RXMM 1
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | ABB |
| TYPE | Auxiliary Relay |
| PART NO. | RK 214 005-AN |
| MODEL | RXMM 1 |
| PRODUCT DESIGNATION | RXMM 1 Auxiliary Relay |
| COIL VOLTAGE | 110 / 125 V DC |
| RATED VOLTAGE | 110-125 V DC |
| OPERATING VOLTAGE | 110/125 VDC Nominal |
| CURRENT TYPE | DC (Direct Current) |
| CONTACT CONFIGURATION | 2 Independent Relay Coils (A & B) with 3 Contacts Each |
| CONTACT ARRANGEMENT | 2 NO + 1 NC per relay section (A & B) |

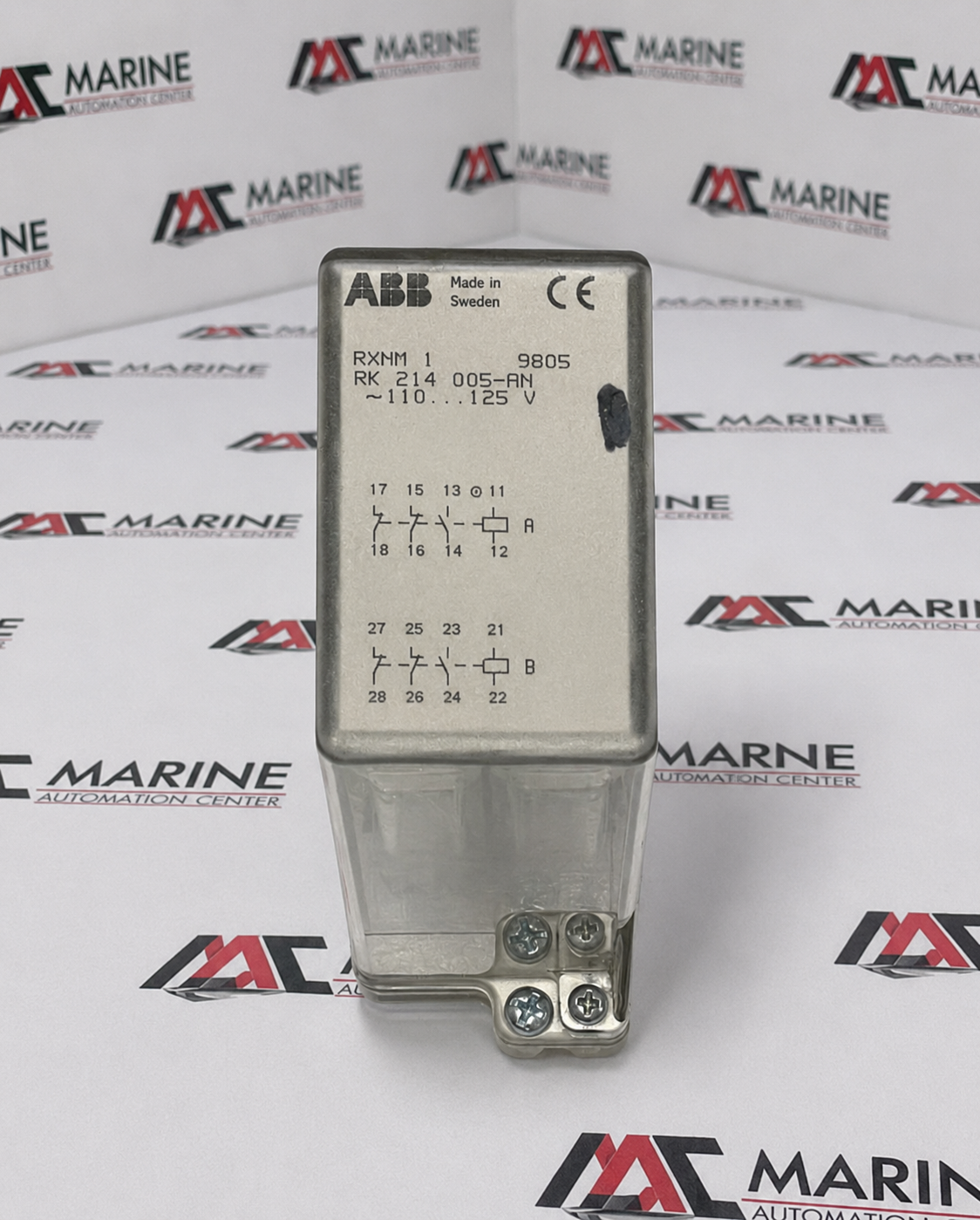

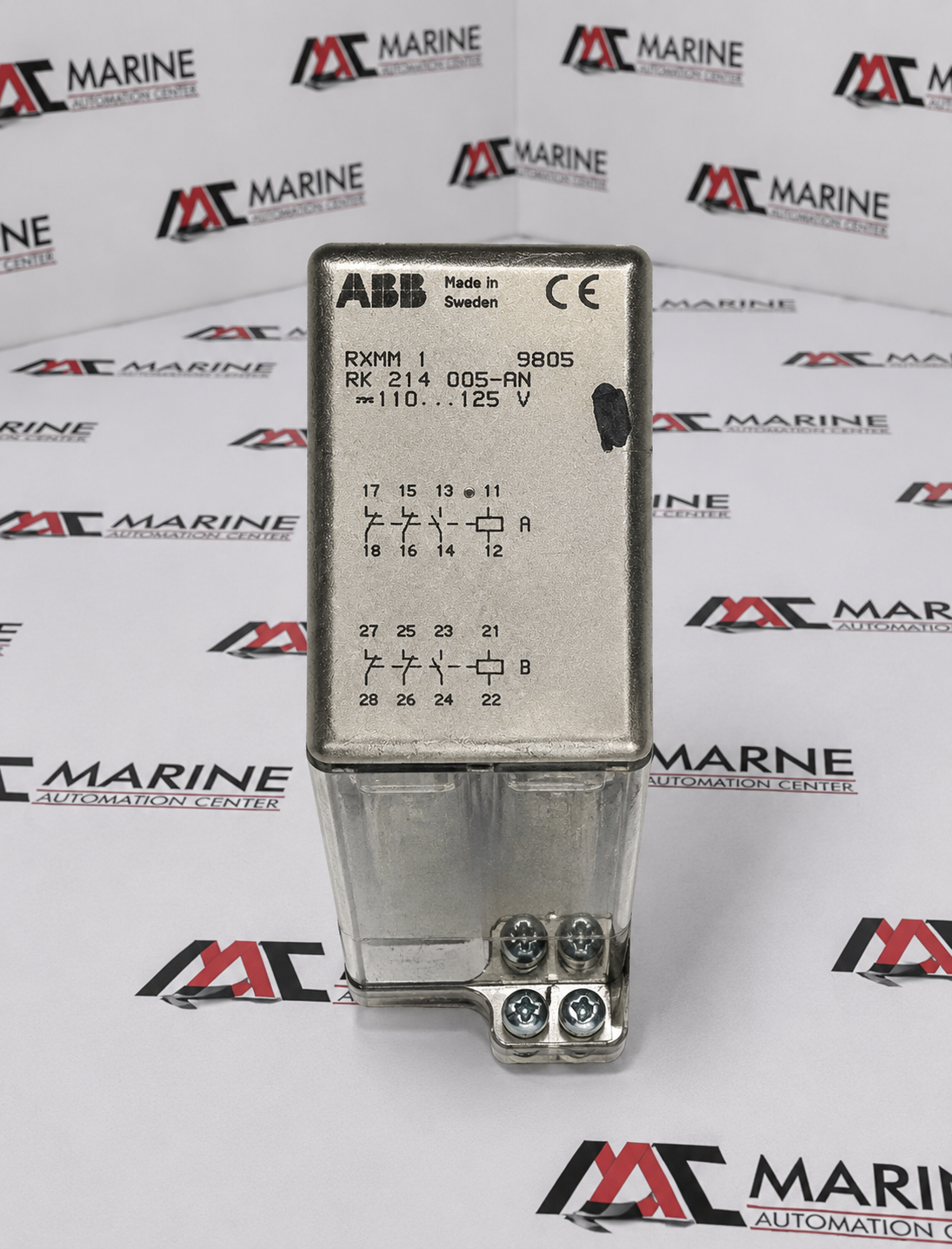

| TERMINAL DESIGNATION | Relay A: 11-12 Coil, Contacts 13-14, 15-16, 17-18; Relay B: 21-22 Coil, Contacts 23-24, 25-26, 27-28 |
| MOUNTING TYPE | Plug-in / COMBIFLEX Modular Mounting |
| OPERATING PRINCIPLE | Electromechanical Auxiliary Relay |
| FUNCTION | Interposing, Tripping, Signalling, Blocking, Interlocking and Control Functions |
| RELAY DESIGN | Dual-Coil Auxiliary Relay |
| OPERATING SPEED | High-Speed Auxiliary Relay Operation |
| INDICATION | Mechanical Operation Indicator |
| INSULATION CLASS | Industrial Protection Relay Insulation |
| APPLICATION | Protective relay panels, substations, switchgear, control circuits, signalling circuits, tripping circuits and industrial automation systems |
| IEC | IEC Compliant Protection Auxiliary Relay |
| CERTIFICATION | CE Marked |
| ADDITIONAL LABEL DATA | RK 214 005-AN |
| MADE IN | Sweden |
| REF NO | 1258 |
